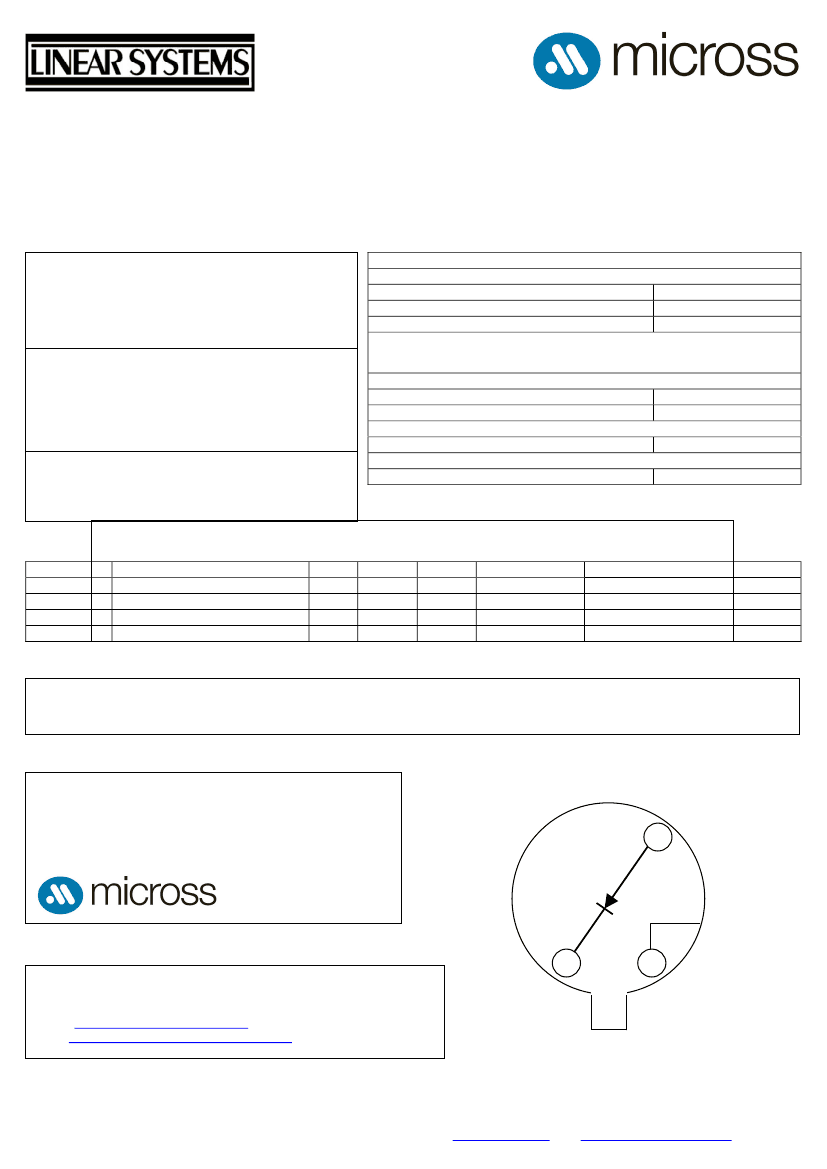

LSPAD50

LOW LEAKAGE

PICO-AMP DIODE

Linear Systems replaces discontinued Siliconix PAD50

LSPAD50 is a low leakage Pico-Amp Diode packaged in hermetic

TO-72

The LSPAD50 extremely low-leakage diode provides a

superior alternative to conventional diode

technology when reverse current (leakage) must be

minimized. The LSPAD50 features a leakage current of

-50 pA and is well suited for use in applications such as

input protection for operational amplifiers.

FEATURES

DIRECT REPLACEMENT FOR SILICONIX PAD50

REVERSE BREAKDOWN VOLTAGE

ULTRALOW LEAKAGE

REVERSE CAPACITANCE

ABSOLUTE MAXIMUM RATINGS

@ 25°C (unless otherwise noted)

Maximum Temperatures

Storage Temperature

Operating Junction Temperature

Maximum Power Dissipation

Continuous Power Dissipation

MAXIMUM CURRENT

Forward Current (Note 1)

≥ ‐45V

≤ 50 pA

rss

≤ 2.0pF

LSPAD50 Benefits:

Negligible Circuit Leakage Contribution

Circuit “Transparent” Except to Shunt

High-Frequency Spikes

Simplicity of Operation

‐65°C to +150°C

‐55°C to +135°C

300mW

50mA

LSPAD50 Applications:

Op Amp Input Protection

Multiplexer Overvoltage Protection

LSPAD50 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted)

SYMBOL

CHARACTERISTICS

MIN.

TYP.

Reverse Breakdown Voltage

‐45

‐‐

Forward Voltage

‐‐

0.8

rSS

Total Reverse Capacitance

‐‐

1.5

Maximum Reverse Leakage Current

‐‐

Click To Buy

MAX.

‐‐

1.5

‐50

UNITS

TO-72 (Bottom View)

CONDITIONS

= ‐1µA

= 5mA

= ‐5V, f = 1MHz

= ‐ 20V

Notes:

1. Absolute maximum ratings are limiting values above which LSPAD50 serviceability may be impaired.

Available Packages:

LSPAD50 in TO-72

LSPAD50 available as bare die

Please contact Micross for full package and die dimensions

Micross Components Europe

Tel: +44 1603 788967

Email:

chipcomponents@micross.com

Web:

http://www.micross.com/distribution.com

Information furnished by Linear Integrated Systems and Micross Components is believed to be accurate and reliable. However, no responsibility is assumed for its use; nor for any infringement of patents or

other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Linear Integrated Systems.

Micross Components Ltd, United Kingdom, Tel: +44 1603 788967, Fax: +44 1603788920, Email:

baredie@micross.com

Web:

www.micross.com/distribution.aspx
