3-terminal Regulator
＆
LDO Regulator Series
Standard Fixed Output
LDO Regulator
BA□□DD0,BA□□DD0W,BA□□CC0 and BA□□CC0W Series
●General
Description
BA□□DD0/CC0 are low-saturation regulators, available for output s up to 2A/1A. ROHM has a wide output voltage range
and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents
the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to
overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the
IC.
●Features
1) Maximum output current : 2A (BA□□DD0),
1A(BA□□CC0)
2)
±1%
highly accurate output voltage (BA□□DD0)
3) Low saturation with PNP output
4) Built-in over-current protection circuit that prevents
the destruction of the IC due to output short circuits
5) Built-in thermal shutdown circuit for protecting the
IC from damage due to overloading
6) Built-in over- voltage protection circuit that prevents
the destruction of the IC due to power supply
surges
7) TO220FP and HRP5 packaging (BA□□DD0)
TO220FP and TO252 packaging(BA□□CC0)
●Applications
Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
●Line
up
■1A
BA□□CC0 Series
Part Number
BA□□CC0WT
BA□□CC0WT-V5
BA□□CC0WFP
BA□□CC0T
BA□□CC0FP
3.0
○
－
－
○
○
3.3
○
○
○
○
○
5.0
○
○
○
○
○
6.0
－
－
○
－
○
7.0
○
－
○
○
○
8.0
○
○
○
○
○
9.0
○
○
○
○
○
10
○
－
－
○
○
12
○
○
○
○
○
15
－
－
－
○
○
Package
TO220FP-5
TO220FP-5（V5）
TO252-5
TO220FP-3
TO252-3
■2A
BA□□DD0 Series
Part Number
BA□□DD0WT
BA□□DD0WHFP
BA□□DD0T
1.5
○
○
○
1.8
○
○
○
2.5
○
○
○
3.0
○
○
○
3.3
○
○
○
5.0
○
○
○
9.0
○
○
○
12
○
○
○
16
○
○
○
Package
TO220FP-5
HRP5
TO220FP-3
Part Number
：BA□□CC0□□
Part Number
：BA□□DD0□□
a
Symbol
□□
03
a
033
05
06
bc
Details
Output Voltage Designation
Symbol
Output Voltage(V)
a
bc
Details
Output Voltage Designation
□□
15
18
25
30
Output Voltage(V)
Output Voltage(V)
□□
08
09
J0
J2
□□
50
90
J2
J6
Output Voltage(V)
3.0V(Typ.)
3.3V(Typ.)
5.0V(Typ.)
6.0V(Typ.)
8.0V(Typ.）
9.0V(Typ.）
10.0V(Typ.）
12.0V(Typ.）
a
1.5V(Typ.)
1.8V(Typ.)
2.5V(Typ.)
3.0V(Typ.)
5.0V(Typ.)
9.0V(Typ.)
12.0V(Typ.)
16.0V(Typ.)
b
c
07
7.0V(Typ.)
J5
15.0V(Typ.)
Switch:”With W”:Shutdown switch included
”Without W”:Shutdown switch not included
Package
T:TO220FP-5（V5）
、TO220FP-3
FP:TO252-5、TO252-3
b
c
33
3.3V(Typ.)
Switch:”With W”:Shutdown switch included
”Without W”:Shutdown switch not included
Package
T:TO220FP-5、TO220FP-3
HFP:HRP5
Oct.2007
●Absolute
Maximum Ratings(Ta=25℃)
Parameter
Input Power Supply Voltage
＊
1
Symbol
Vcc
Limits
-0.3½+35
2300（HRP5）
1300（TO252-5）
1200（TO252-3）
2000（TO220FP-3,5）
-40½+125
-55½+150
+150
-0.3½+Vcc
+50
Unit
V
Power Dissipation
＊
2
Pd
mW
Operating Temperature Range
Ambient Storage Temperature
Junction Temperature
Output Control Terminal Voltage
Voltage Applied to the Tip
＊
3
＊
4
Topr
Tstg
Tjmax
V
CTL
Vcc peak
℃
℃
℃
V
V
*1 Must not exceed Pd
*2 HRP5 : In cases in which Ta≧25℃ when a 70mm×70mm×1.6mm glass epoxy board is used, the power is reduced by 18.4 mW/℃.
TO252FP-3 : In cases in which Ta≧25℃ when a 70mm×70mm×1.6mm glass epoxy board is used, the power is reduced by 9.6 mW/℃.
TO252FP-5 : In cases in which Ta≧25℃ when a 70mm×70mm×1.6mm glass epoxy board is used, the power is reduced by 10.4 mW/℃.
TO220FP-5 : No heat sink. When Ta≧25℃, the power is reduced by 16 mW/℃.
*3 Only for models with shutdown switches.
*4 Applied voltage : 200msec or less (tr≥1msec)
tr≧1msec
50V
35V
MAX200msec
(Voltage Supply more than 35V)
0V
●
Recommended Operating Range (Ta=25℃)
Parameter
Symbol
Input Power
BA□□CC0
Vcc
Supply Voltage
BA□□DD0
BA□□CC0
Output Current
Io
BA□□DD0
Output Control Terminal Voltage
V
CTL
Min.
4.0
3.0
－
－
0
Max.
25.0
25.0
1
2
Vcc
Unit
V
A
V
●
Electrical Characteristics(ABRIDGED)
＊
5
BA□□CC0 Series (unless specified otherwise, Ta=25℃, V
CTL
=5.0V(only with switch), Io=500mA,and Vcc=Vcc
D
)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Conditions
Vo
Isd
Vd
Io
Reg.I
Reg.L
＊
6
Output Voltage
Circuit Current at Shutdown
Minimum I/O Difference
Output Current Capacity
Input Stability
Load Stability
Output Voltage Temperature Coefficient
Vo×0.98
－
－
1.0
－
－
－
Vo
0
0.3
－
20
50
±0.02
Vo×1.02
10
0.5
－
100
100
－
V
μA
V
A
mV
mV
%/℃
Refer to the lineup for Vo
V
CTL
=0V
Vcc= 0.95×Vo
Vcc= (Vo+1)V
→
25V
Io=5mA→1A
Io=5mA ,Tj=0~125℃
T
CVO
＊
7
BA00DD0□□ series (unless specified otherwise, Ta=25℃, V
CTL
=3V(only with switch), Io=500mA,and Vcc=Vcc
D
)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Conditions
Output Voltage
Circuit Current at Shutdown
Minimum I/O Difference
Output Current Capacity
Input Stability
Load Stability
Output Voltage Temperature Coefficient
*5
*6
*7
＊
6
Vo
Isd
Vd
Io
Reg.I
Reg.L
Vo×0.99
－
－
2.0
－
－
Vo
0
0.45
－
15
50
Vo×1.01
10
0.7
－
50
200
V
μA
V
A
mV
mV
Io=200mA
V
CTL
=0V
Vcc= 0.95×Vo, Io=2A
Vcc= Vcc
D
＊
7
→25
V,Io=200mA
Io=5mA→2A
T
CVO
－
±0.02
－
%/℃ Io=5mA ,Tj=0~125℃
Vo=3.0V : Vcc= 8.0V , Vo=3.3V : Vcc=8.3V , Vo=5.0V : Vcc=10.0V , Vo=6.0V : Vcc=11.0V , Vo=7.0V : Vcc=12.0V,
Vo=8.0V : Vcc= 13.0V , Vo=9.0V : Vcc=14.0V , Vo=10.0V : Vcc=15.0V , Vo=12.0V : Vcc=17.0V , Vo=15.0V : Vcc=20.0V
Design guarantee(100% shipping inspection not performed)
Vo=1.5V , 1.8V , 2.5V , 3.0V : Vcc=4.0V , Vo=3.3V , 5.0V : Vcc=7.0V , Vo=9.0V : Vcc=12.0V
Vo=12V : Vcc=14V , Vo=16V : Vcc=18V
2/8
●Reference
Data
BA□□CC0□□(BA33CC0WT)
(Unless specified otherwise, Vcc=8.3V, Vo=3.3V, V
CTL
=5.0V, and Io=0mA)
3
[BA00CC0WCP-V5]
[BA033CC0WT]
4
4
OUTPUT VOLTAGE
：
V
OUT
[V
]
3.5
3
[BA033CC0WFP]
[BA50BC0WFP]
CIRCUIT ＣURRENT ： Icc [mA]
2.5
2
1.5
1
0.5
0
0
2
4 6 8 10 12 14 16
SUPPLY VOLTAGE ： Vcc [V]
18 20
OUTPUT VOLTAGE
：
V
OUT
[V
]
3.5
3
[BA033CC0WFP]
2.5
2
2.5
2
1.5
1
1.5
1
0.5
0
0
2
4 6 8 10 12 14 16 18 20
SUPPLY VOLTAGE
：
Vcc [V]
0.5
0
0
2
4 6 8 10 12 14 16 18 20
SUPPLY VOLTAGE
：
Vcc [V]
Fig.1 Circuit current
3.5
OUTPU T VOLTAGE ： V
OUT
[V]
3
[BA033CC0WT]
Fig.2 Input Stability
600
DROPOUT VOLTAGE ： ΔVd [mV]
500
400
300
200
100
0
[BA033CC0WT]
Fig.3 Input Stability
（Io=500mA）
80
[BA033CC0WT]
70
RIPPLE REJECTION ： R.R. [dB]
60
50
40
30
20
10
2.5
2
1.5
1
0.5
0
0
2 00
40 0
60 0
8 00 10 00 12 00 1 40 0 1 60 0 18 00 2 00 0
0
100 200 300 400 500 600 700 800 900 1000
0
10
100
1000
10000
100000
1000000
OUTPUT CURRENT ： I
O
[mA]
OUTPUT CURRENT ： I
O
[mA]
FREQUENCY ： f [Hz]
Fig.4 Load Stability
Fig.5 Input/Output Voltage Difference
I
OUT
（0V=1A）
200
[BA033CC0WT]
Fig.6 Ripple Rejection Characteristics
（Io=100mA）
1000
900
CIRCUIT ＣURRENT ： Ictl [μA]
800
700
600
500
400
300
200
100
[BA033CC0WT]
4.5
OUTPU T VOLTAGE ： V
OUT
[V]
CIRCU IT ＣURRENT ： Icc [mA]
[BA033CC0WT]
4
150
3.5
100
3
2.5
50
2
-4 0 - 30 - 20 -1 0 0
10 20
30 40
50
60 70
80 90 10 0
0
0
100
200
300
400
500
600
700
800
900 1000
0
0
2
4
6
8
10
12
14
16
18
20
AMBIENT TEMPERATURE ： Ta [℃]
O UTPUT CURRE NT:Io(mA)
CONTROL VOLTAGE:V½½½（V)
Fig.7 Output Voltage
Temperature Characteristics
8
OUTPUT VOLTAGE ： V
OUT
[V]
7
6
5
4
3
2
1
0
0
2
4 6 8 10 12 14 16 18 20 22 24
CONTROL VOLTAGE ： V
ctl
[V]
Fig.8 Circuit Current by load Level
(I
OUT
=0mA→1A)
4
OUTPU T VOLTAGE ： V
OUT
[V]
3.5
3
2.5
2
1.5
1
0.5
0
0
5
10 15
20 25 30 35
SUPPLY VOLTAGE ： Vcc [V]
40
[BA033CC0WFP]
Fig.9 CTL Voltage vs. CTL Current
4
[BA033CC0WFP]
[BA033CC0WFP]
OUTPU T VOLTAGE ： V
OUT
[V]
3.5
3
2.5
2
1.5
1
0.5
0
130
140
150
160
170
180
190
AMBIENT TEMPERATURE ： Ta [℃]
Fig.10 CTL Voltage vs. Output Voltage
Fig.11 Overvoltage Operating
Characteristics(Io=200mA)
Fig.12 Thermal Shutdown
Circuit Characteristics
3/8
●Reference
Data
BA□□DD0□□(BA50DD0WT)
(Unless specified otherwise, Vcc=7.0V, Vo=5.0V, V
CTL
=3.0V, and Io=0mA)
6
[BA50DD0WT]
CIRCUIT ＣURRENT ： Icc [mA]
5
4
3
2
1
0
0
2
4
6 8 10 12 14 16 18 20 22 24
SUPPLY VOLTAGE ： Vcc [V]
OUTPUT VOLTAGE
：
VOUT [V
]
8
7.5
7
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
0
2
4
OUTPUT VOLTAGE
：
V
OUT
[V
]
[BA50DD0WT]
8
7.5
7
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
0
2
4
[BA50DD0WT]
6 8 10 12 14 16 18 20 22 24
SUPPLY VOLTAGE
：
Vcc [V]
6 8 10 12 14 16 18 20 22 24
SUPPLY VOLTAGE
：
Vcc [V]
Fig.13 Circuit Current
8
7.5
7
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
0
0.4
0.8 1.2
1.6
2
2.4
Fig.14 Input Stability
800
60
[BA50DD0WT]
Fig.15 Input Stability
[BA50DD0WT]
[BA50DD0WT]
DROPOUT VOLTAGE ： VDRP[mV]
700
600
500
400
300
200
100
0
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
1
1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9
2
OUTPU T VOLTAGE ： V
OUT
[V]
RIPPLE REJECTION ： R.R. [dB]
50
40
30
20
10
0
10
100
1000
[BA50BC0WFP]
10000
100000
1000000
2.8 3.2
3.6
4
4.4 4.8
OUTPUT CURRENT ： I
OUT
[A]
FREQUENCY ： f [Hz]
OUTPUT CURRENT ： I
OUT
[A]
Fig.16 Load Stability
Fig.17 Input/Output Voltage Difference
（Vcc=4.75V）
200
[BA50DD0WT]
Fig.18 Ripple Rejection Characteristics
（Iout=100mA）
800
[BA50DD0WT]
5.2
[BA50DD0WT]
180
CIRCUIT ＣURRENT (mA)
160
140
120
100
80
60
40
20
OUTPU T VOLTA GE ： V
OUT
[V]
700
CONTROL CURRENT:ICTL(μA)
5.1
600
500
400
300
200
100
0
0
2
4
6
8
10 12 14 16 18 20 22 24
5
4.9
4.8
-4 -3 -2
0
0
0
-1
0
0
10 20 30
40 50 60 70 80
90 10 11
0
0
0
0
0.5
1
1 .5
2
AMBIENT TEMPERATURE ： Ta [℃]
OUTPUT CURRENT ： IOUT [A]
CONTROL VOLYAGE:V½½½（V)
Fig.19 Output Voltage
Temperature Characteristics
8
OUTPUT VOLTAGE ： V
OUT
[V]
7
6
5
4
3
2
1
0
0
2
4 6 8 10 12 14 16 18 20 22 24
CONTROL VOLTAGE ： V
CTL
[V]
[BA50DD0WT]
Fig.20 Circuit Current by Load Level
(I
OUT
=0mA→2A)
8
7
OUT PUT VOLTAGE ： Vout[V]
[BA50DD0WT]
Fig.21 CTL Voltage vs. CTL Current
8
[BA50DD0WT]
6
5
4
3
2
1
0
0
5
10
15
20 25
30
35
SUPPLY VOLTAGE ： Vcc [V]
40
OUTPUT VOLTAGE ： V
OUT
[V]
6
4
2
0
130
140
150
160
170
180
AMBIENT TEMPERATURE ： Ta [℃]
190
Fig.22 CTL Voltage vs. Output Voltage
Fig.23 Overvoltage Operating
（Io=200½A）
Fig.24 Thermal Shutdown
1
4/8

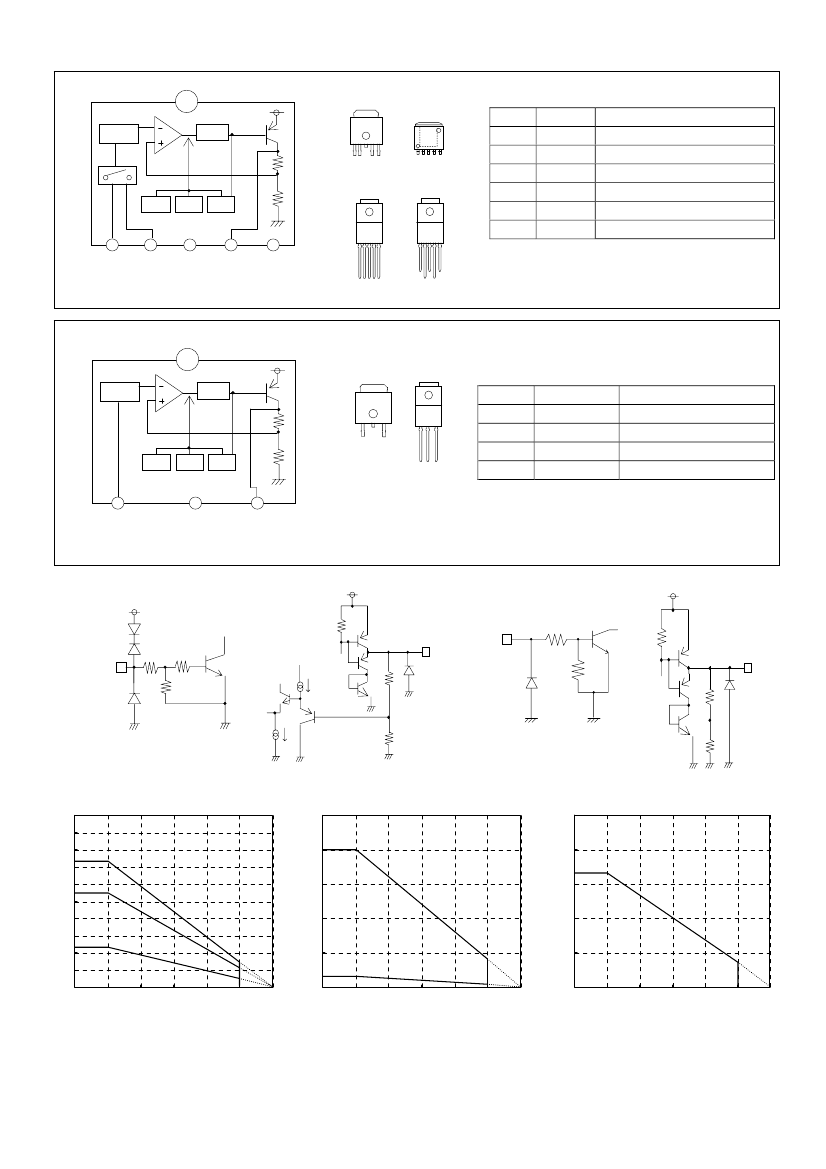

●Block
Diagrams
BA□□CC0WFP/ BA□□DD0WHFP/ BA□□CC0WT(V5)/ BA□□DD0WT
GND
Fin
(TO252-5½HRP5)
Vcc
Driver
R2
TOP VIEW
FIN
PIN No.
Pin Name
CTL
Vcc
N.C/GND
OUT
N.C
GND
Function
Output voltage ON/OFF control
Power supply voltage input
Unconnected terminal/GND
Voltage output
Unconnected terminal
GND
*
2
*
1
Vref
1
2
1 2 3 45
TO252-5
R1
1 2 3 45
HRP5
3
4
5
Fin
TOP VIEW
TOP VIEW
OVP
TSD
OCP
1
2
3
4
5
CTL
Vcc
N.C.
OUT
N.C.
1 2 3 45
TO220FP-5
1 2 3 45
TO220FP-5（V5）
＊1
TO252-5 is N.C.,and TO220FP-5,-5(V5),and HRP5 are GND
＊2
Only for TO252-5 and HRP5
(TO252-5)
GND
(TO220FP-5,-5(V5),HRP5)
Fig.25
BA□□CC0T/ BA□□CC0FP/ BA□□DD0T
GND
Fin
(TO252-3)
Vcc
TOP VIEW
Vref
Driver
R2
FIN
TOP VIEW
PIN No.
1
2
R1
OVP
TSD
OCP
1
2
3
1 2 3
TO220FP-3
Pin Name
Vcc
N.C/GND
OUT
GND
Function
Power supply voltage input
Unconnected terminal/GND*
1
Voltage output
GND
*
2
3
Fin
＊2
TO252-3
1
2
3
＊1
TO252-3 is N.C.,and TO-220FP-3,is GND
Only for TO252-3 and HRP5
Vcc
N.C.
(TO252-3)
GND
(TO220FP-3)
OUT
Fig.26
●Input
/ Output Equivalent Circuit Diagrams
< BA□□DD0 Series >
Vcc
10kΩ
39kΩ
CTL
31kΩ
R2
2kΩ
OUT
Vcc
< BA□□CC0 Series >
Vcc
25kΩ
CTL
25kΩ
R2
OUT
R1
R1
Fig.27
●Thermal
Design
HRP-5
10
9
8
Power Dissipation:Pd(W)
7
6
5
4
3
2
1
0
0
25
50
75
100
Ambient temperature:Ta(℃）
125
150
0
0
25
50
75
100
Ambient temperature:Ta(℃）
125
150
Fig.28
TO220FP-5
（1）
（2）
When using a maximum heat sick :
θj-c=6.25(℃/W)
When using an IC alone :
θj-6=62.5(℃/W)
Board size : 70×70×1.6
㎜
3
（board
contains a thermal via）
Board front copper foil area : 10.5×10.5
㎜
2
①2-layer
board (back surface copper foil area :15×15
㎜
2
)
②2-layer
board (back surface copper foil area :70×70
㎜
2
)
③4-layer
board (back surface copper foil area :70×70
㎜
2
)
25
2.0
TO252-5
Mounted on a Rohm standard board
Board size : 70×70×1.6
㎜
Copper foil area :7×7
㎜
TO252-5θja=96.2(℃/W)
20
1.6
Power Dissipation:Pd(W)
Power Dissipation:Pd(W)
③7.3W
（1）20.0
15
1.2
1.30
②5.5W
10
0.8
①2.3W
5
0.4
（2）2.0
0.0
0
25
50
75
100
Ambient temperature:Ta(℃）
125
150
Fig.29
Fig.30
Fig.31
When using at temperatures over Ta=25℃, please refer to the heat reducing characteristics shown in Fig.29 through 31. The IC
characteristics are closely related to the temperature at which the IC is used and if the temperature exceeds the maximum
junction temperature Tj
MAX
., the elements may be damaged or destroyed. From the standpoints of instantaneous destruction and
long-term operating reliability, it is necessary give sufficient consideration to IC heat. In order to protect the IC from thermal
damage, it is necessary to operate it at temperatures lower than the maximum junction temperature Tj
MAX
of the IC.
5/8
京公网安备 11010802033920号
EEWORLD
