SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 4540, REV. B
SHD115436
SHD115436B
HERMETIC SCHOTTKY RECTIFIER
Low Forward Voltage Drop
Features:
•
•
•
•
•
•
Soft Reverse Recovery at Low and High Temperature
Low Forward Voltage Drop
Low Power Loss, High Efficiency
High Surge Capacity
Guard Ring for Enhanced Durability and Long Term Reliability
Guaranteed Reverse Avalanche Characteristics
Maximum Ratings
Characteristics
Peak Inverse Voltage
Max. Average Forward Current
Max. Average Forward Current
Max. Peak One Cycle Non-
Repetitive Surge Current
Non-Repetitive Avalanche Energy
Repetitive Avalanche Current
Maximum Thermal Resistance
Max. Junction Temperature
Max. Storage Temperature
Symbol
V
RWM
I
F(AV)
I
F(AV)
I
FSM
E
AS
I
AR
R
θJC
T
J
T
stg
Condition
-
50% duty cycle, rectangular
wave form (Single)
50% duty cycle, rectangular
wave form (Common Cathode)
8.3 ms, half Sine wave
(per leg)
T
J
= 25
°C,
I
AS
= 3.0 A,
L = 4.4 mH (per leg)
I
AS
decay linearly to 0 in 1
µs
ƒ
limited by T
J
max V
A
=1.5V
R
DC operation
-
-
Max.
200
30
60
570
20
3.0
0.50
-65 to +200
-65 to +200
Units
V
A
A
A
mJ
A
°C/W
°C
°C
Electrical Characteristics
Characteristics
Max. Forward Voltage Drop
(per leg)
Max. Reverse Current
(per leg)
Max. Junction Capacitance
(per leg)
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
Condition
@ 30A, Pulse, T
J
= 25
°C
@ 30A, Pulse, T
J
= 125
°C
@V
R
= 200V, Pulse,
T
J
= 25
°C
@V
R
= 200V, Pulse,
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz,
V
SIG
= 50mV (p-p)
Max.
0.92
0.76
0.2
2.0
600
Units
V
V
mA
mA
pF
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-Mail - sales@sensitron.com
•
SHD115436
SHD115436B
SENSITRON
TECHNICAL DATA
DATA SHEET 4540, REV. B

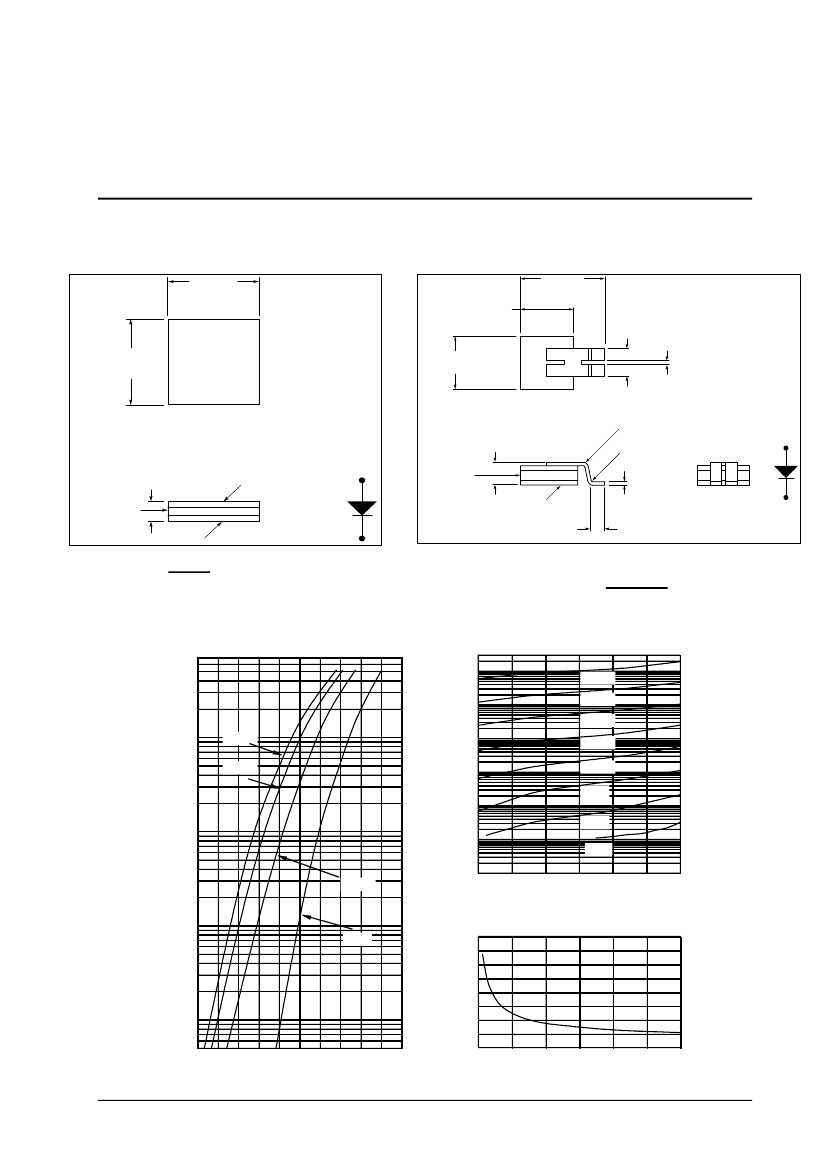

MECHANICAL DIMENSIONS: In Inches / mm
.315±.010
(8.00±.254)
.315±.010
(8.00±.254)
.465±.020
(11.8±.508)
.150±.010
(3.81±.254)
.315±.010
(8.00±.254)
.315±.010
(8.00±.254)
.015±.005
(.381±.127)
Copper Anode
.090 (2.29) Max
Alumina Ring
.020±.005 R
(.508±.127 )
.075 (1.91) Max
Alumina Ring
Moly Base
Moly Lid
Moly Base
(Cathode)
.015±.002
(.381±.051)
.060±.010
(1.52±.254)
SHD-2
SHD-2B
Note:
The V
f
curves shown are for the unpackaged die only.
Typical Forward Characteristics
10
1
Instantaneous Reverse Current - I
R
(mA)
Typical Reverse Characteristics
200 °C
175 °C
150 °C
10
0
10
1
200 °C
175 °C
10
-1
125 °C
100 °C
75 °C
Instantaneous Forward Current - I
F
(A)
10
-2
-3
10
10
0
50 °C
10
-4
25 °C
10
-5
125 °C
0
40
80
120
160
Reverse Voltage - V
R
(V)
200
240
10
-1
Junction Capacitance - C
T
(pF)
Typical Junction Capacitance
25 °C
600
450
300
150
0
0
40
80
120
160
Reverse Voltage - V
R
(V)
200
240
10
-2
0.0
0.2
0.4
0.6
0.8
Forward Voltage Drop - V
F
(V)
1.0
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-Mail - sales@sensitron.com
•
SHD115436
SHD115436B
SENSITRON
TECHNICAL DATA
DATA SHEET 4540, REV. B
