BK/C520-3.5-R: DescriptionFAST BLOW ELECTRIC FUSE, 3.5A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size210KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

BK/C520-3.5-R Overview

FAST BLOW ELECTRIC FUSE, 3.5A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT

BK/C520-3.5-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Fusing characteristics	FAST
body height	15 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	11 J
Manufacturer's serial number	C520
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	5.2mm x 15mm
Rated breaking capacity	100 A
Rated current	3.5 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

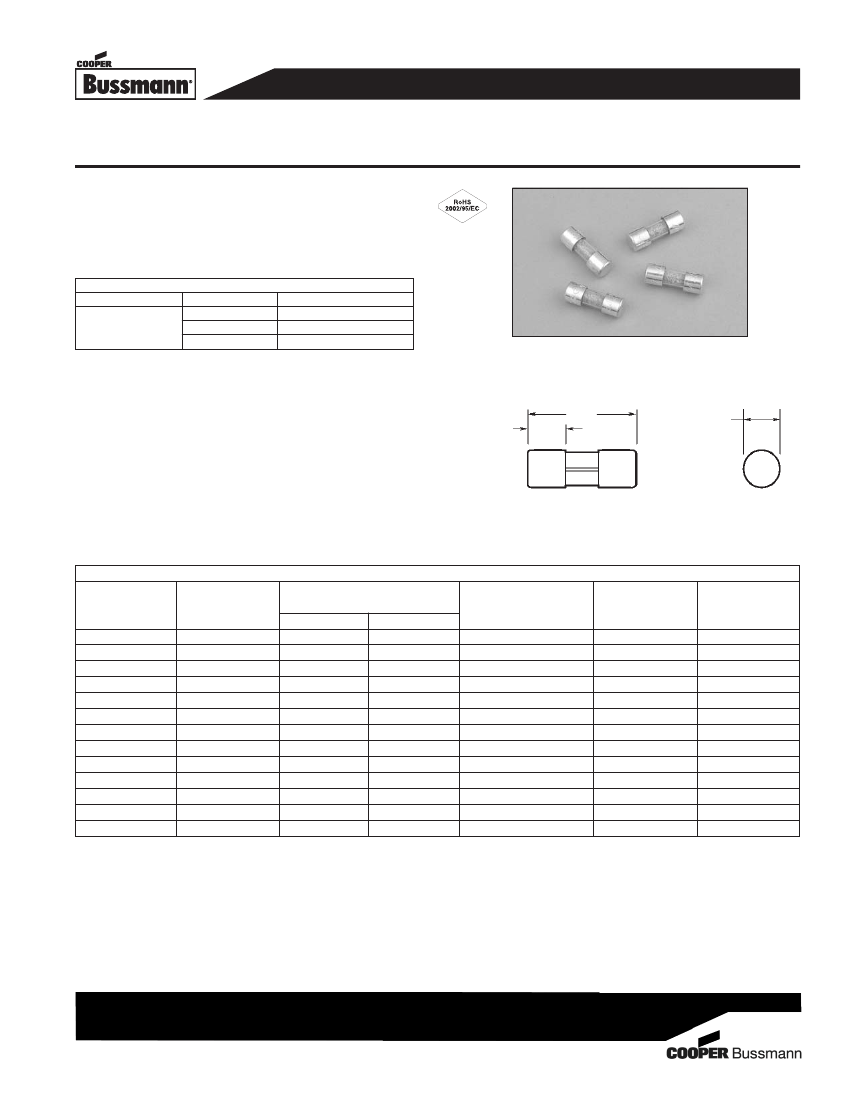

5 x 15mm Glass Tube Fuses

C520 Series, Fast-Acting

Description

• Fast-acting

• 5 x 14.48mm physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard UL 248-14

Electrical Characteristics

Rated Current

Amp Rating

Opening Time

100%

None

100mA - 5A

135%

1 hours max.

200%

2 seconds max.

Agency Information

• UL Listed Card: Guide JDYX, File E19180

• CSA Certification Card: Class 1422-01, 53787

Ordering

Specify product code

• Insert packaging code prefix before part number. E.g.

BK (or BK1)/C520-500-R

Dimensions - mm

Drawing Not to Scale

14.48

5.0 (Typ.)

5.2

Specifications

Part Number

C520-100-R

C520-125-R

C520-250-R

C520-375-R

C520-500-R

C520-750-R

C520-1.5-R

C520-2-R

C520-2.5-R

C520-3-R

C520-3.5-R

C520-4-R

C520-5-R

Voltage

Rating

Vac

250

Interrupting Rating

at Rated Voltage (amps)

250Vac

125Vac

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

35

10,000

100

10,000

100

10,000

100

10,000

100

10,000

100

10,000

200

10,000

200

10,000

Typical DC Cold

Resistance*

Ω

(Ω)

22.30

15.20

5.60

2.53

1.66

0.91

0.900

0.064

0.046

0.038

0.032

0.022

0.018

Typical

Melting I

2

t**

AC

0.0010

0.0019

0.012

0.039

0.059

0.264

0.800

1.9

2.9

6.1

9.7

16.6

22.4

Typical

Voltage

Drop (mV)***

2230

1930

1450

968

845

686

135

136

121

116

115

88

91

* DC Cold Resistance (Measured at <10% of rated current)

** Typical Melting I

2

t (A

2

Sec) (maximum I

2

t at 10 times rated current)

*** Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)

0409 BU-SB09252

Page 1 of 2

Data Sheet 2027

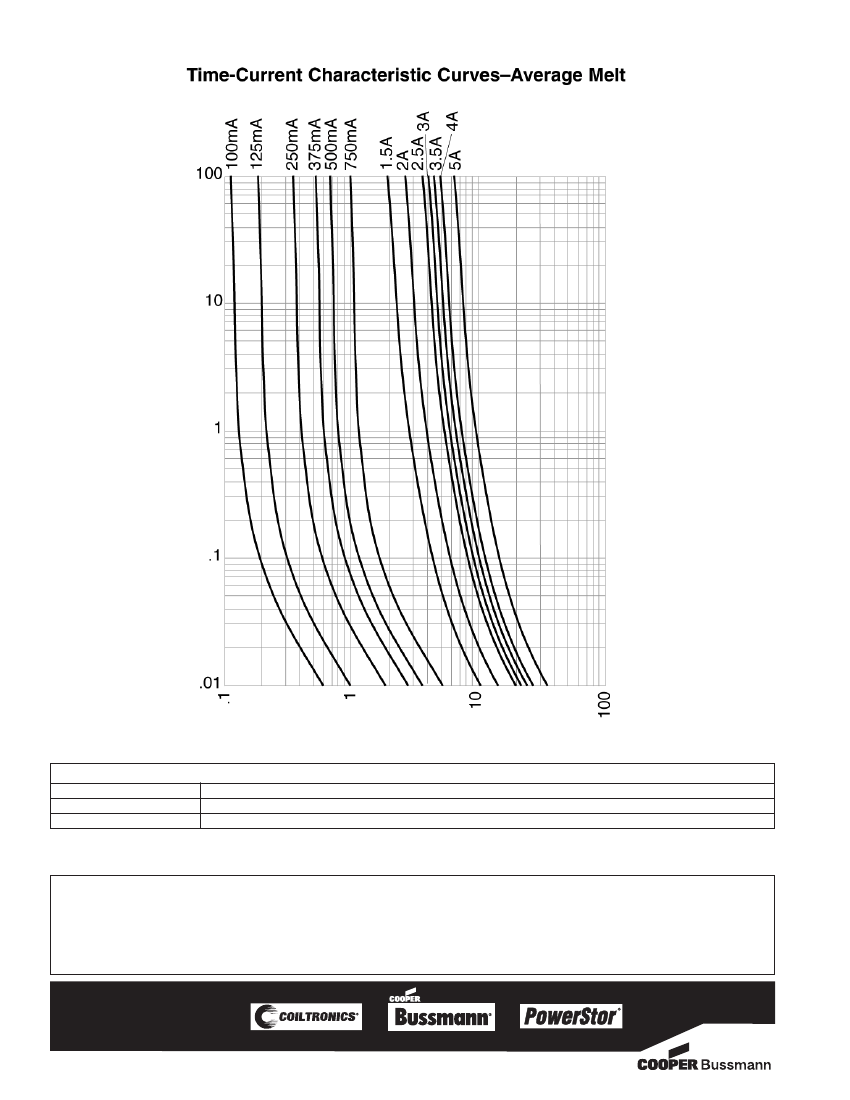

BK/C520-3.5-R Related Products

	BK/C520-3.5-R	BK/C520-125-R	BK/C520-100-R	BK/C520-250-R	BK/C520-2-R	BK/C520-2.5-R	BK/C520-3-R	BK/C520-5-R
Description	FAST BLOW ELECTRIC FUSE, 3.5A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 0.125A, 250VAC, 35A (IR), INLINE/HOLDER, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 0.1A, 250VAC, 35A (IR), INLINE/HOLDER, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 0.25A, 250VAC, 35A (IR), INLINE/HOLDER, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 2A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 2.5A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 3A, 250VAC, 100A (IR), INLINE/HOLDER, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 5A, 250VAC, 200A (IR), INLINE/HOLDER, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST
body height	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm
Body length or diameter	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	11 J	-	-	-	2 J	4 J	6 J	13 J
Manufacturer's serial number	C520	C520	C520	C520	C520	C520	C520	C520
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
method of packing	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
physical size	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm	5.2mm x 15mm
Rated breaking capacity	100 A	35 A	35 A	35 A	100 A	100 A	100 A	200 A
Rated current	3.5 A	0.125 A	0.1 A	0.25 A	2 A	2.5 A	3 A	5 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
