REVISION CB
DO NOT
SCALE FROM
THIS PRINT
PATENT NUMBER
7172438
"A" REF
(SEE TABLE 6, SHT 2)
DESIGNED & DIMENSIONED
IN INCHES[MILLIMETERS]
C
.100 2.54
REF (TYP)
No OF POSITIONS
-10, -15,**-19 -20,
-25, -30, -40, -50
SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR
.123 3.12
REF
"C" SPCS. @ .0500 = "D"
(SEE TABLE 6, SHT 2)
.0500 1.270 (TYP)
C
L
(PER ROW)
LEAD STYLE
-02.0 (SEE TABLE 1)
-03.0 (SEE TABLE 1)
-03.5 (SEE TABLE 1)
***-05.5
(SEE TABLE 1)
****
-06.5 (SEE TABLE 8, SHT 3)
(SEE NOTE 14)
-07.0 (SEE TABLE 8, SHT 3)
-09.0 (SEE TABLE 8, SHT 3)
-11.0 (SEE TABLE 8, SHT 3)
*-13.0
(SEE TABLE 8, SHT 3)
"A"
01
(SEE FIG 5, SHT 4) (SEE NOTE 7)
DOT APPLICATOR-KAPTON TAPE.
-04 ROW: USE K-DOT-.236-.343-.005
-05/-06 ROW: USE K-DOT-.236-.343-.005
-08 ROW: USE K-DOT-.325-.450-.005
-10 ROW: USE K-DOT-.404-.500-.005
-14 ROW: USE K-DOT-.404-.500-.005
-GP: GUIDE POST
(SEE FIG. 9, SHT 6)
(ONLY AVAILABLE WITH -02.0 LEAD
STYLE, 20, 30, 40, & 50 POSITION)
-EP: EXTENDED GUIDE POST
(SEE FIG. 10, SHT 6)
(ONLY AVAILABLE WITH
-02.0& -03.5 LEAD STYLE
20, 30, 40, & 50 POSITION)
(SEE NOTE 6 & 12)
TAPE & REEL
(SEE NOTES 8, 9 & 10)
K DOT
OPTION
.478 12.14
REF
C
.352 8.94
REF
C
L
.200 5.08
REF
VOIDED AT SAMTEC'S DISCRETION
"B" REF
(SEE TABLE 6, SHT 2)
"A"
08
SEAM-XX-XX.X-08-A
C "H" REF
.040 1.02
REF
.050 1.27 (TYP)
C "E" (TYP)
(SEE TABLE 6, SHT 2)
.044 1.12 REF
.034 0.86 REF
"J" REF
-L: 10µ" LIGHT GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-(LEAD STYLE -02.0 THRU-05.5:
.060 1.52
USE NEW-SUB-T-1M36-XX.X-L-X)
REF
-(LEAD STYLE -06.5 THRU-13.0:
USE NEW-SUB-T-1M38-XX.X-L-X)
30µ" SELECTIVE GOLD IN
.035 0.89 REF
-SM:AREA, MATTE TIN ON TAIL CONTACT
-(LEAD STYLE -02.0 THRU-05.5:
USE NEW-SUB-T-1M36-XX.X-S-X)
-(LEAD STYLE -06.5 THRU-13.0:
USE NEW-SUB-T-1M38-XX.X-S-X)
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-(LEAD STYLE -02.0 THRU-05.5:
.040 1.02
USE NEW-SUB-T-1M36-XX.X-S-X)
REF
-(LEAD STYLE -06.5 THRU-13.0:
USE NEW-SUB-T-1M38-XX.X-S-X)
PLATING SPECIFICATION
ALIGNMENT PIN
SOLDER COMPOSITION & STYLE
C
-1: 63% TIN / 37% LEAD
CHARGE TAIL
(USE NEW-T-1M3X-XX.X-X-1)
-2: 95.5% TIN / 3.8% SILVER / .7% COPPER
CHARGE TAIL
(USE NEW-T-1M3X-XX.X-X-2)
.050 1.27
REF
'B'
ROW
-04: 4 ROWS (SEE FIG 3, SHT 4)
(NOT AVAILABLE IN -13.0 LEAD STYLE)
-05: 5 ROWS (SEE FIG 7, SHT 5)(SEE NOTE 14)
-06: 6 ROWS (SEE FIG 6, SHT 5)
-08: 8 ROWS (SEE FIG 1)
*
= NOT TOOLED
= 10 POSITION ONLY AVAILABLE IN -04 ROW LEAD
-10: 10 ROWS (SEE FIG 4, SHT 4)
STYLES -02.0, -03.0, -03.5, -07.0, -09.0, -11.0.
■-14:
14 ROWS (SEE FIG 11, SHT 7)
"G" REF
.044 1.12
REF
"F" REF
(SEE TABLE 6, SHT 2)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 0.50 LBS.
3. NOTE DELETED.
4. 5 ROW SOLDER TAILS ARE NOT SYMMETRICAL WITH BODY WIDTH (.378[9.60]
SEE FIG. 7, SHEET 5).
5. WHEN APPLICABLE, DIMENSION C8 MUST BE MEASURED USING INSPECTION FIXTURE AT-1817-836-1
FOR 4 ROW OR AT-1817-836-2 FOR 6, 8 & 10 ROW, USE CO-AU-WI-2003-M FOR PROCESS.
6. WITHOUT -A AVAILABLE FOR EXISTING CUSTOMERS ONLY AS OF REVISION AD.
7. K DOT WILL BE SUPPLIED WHETHER OR NOT -K IS SPECIFIED.
8. TAPE & REEL WILL BE SUPPLIED WHETHER OR NOT -TR IS SPECIFIED.
9. FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER, OR REEL WILL BE SUPPLIED.
FOR QUANTITIES 50 - 124, NO LEADER OR TRAILER WILL BE SUPPLIED.
10. ATTACH LABEL "SEAX-0001" TO EACH TAPE & REEL PACKAGE.
11. SOLDER CHARGE VOLUME IS 0.891 x 10^-5 IN ^3 REF.
12. NOTE DELETED.
13. MAXIMUM ROW TO ROW VARIATION .003[0.08], MEASURED FIRST & LAST POSITIONS
ONLY, ALL ROWS.
14. THESE OPTIONS AVAILABLE AS ASO (APPLICATION SPECIFIC OPTIONS) ONLY.
PLEASE CONTACT SAMTEC FOR MORE INFORMATION.
AVAILABLE IN -06 ROW LEAD STYLES -02.0, -03.0, -03.5
= ONLY AVAILABLE IN A 10 ROW;
4 ROW, -02.0 LEAD STYLE AVAILABLE
= ONLY AVAILABLE WITH -02.0 OR -03.5 LEAD STYLE & 4 ROW;
-03.0 AVAILABLE
**
= ONLY AVAILABLE IN 6 ROW WITH -03.5 OR -05.5
LEAD STYLE
***
= ONLY AVAILABLE WITH 19 POSITION, 6 ROWS
****
= ONLY AVAILABLE IN 8 & 10 ROW
■
= 14 ROW ONLY AVAILABLE IN -02.0 AND -03.5 BODY HEIGHT
AND -40 POSITION. -02.0 OPTION IS NOT RELEASED.

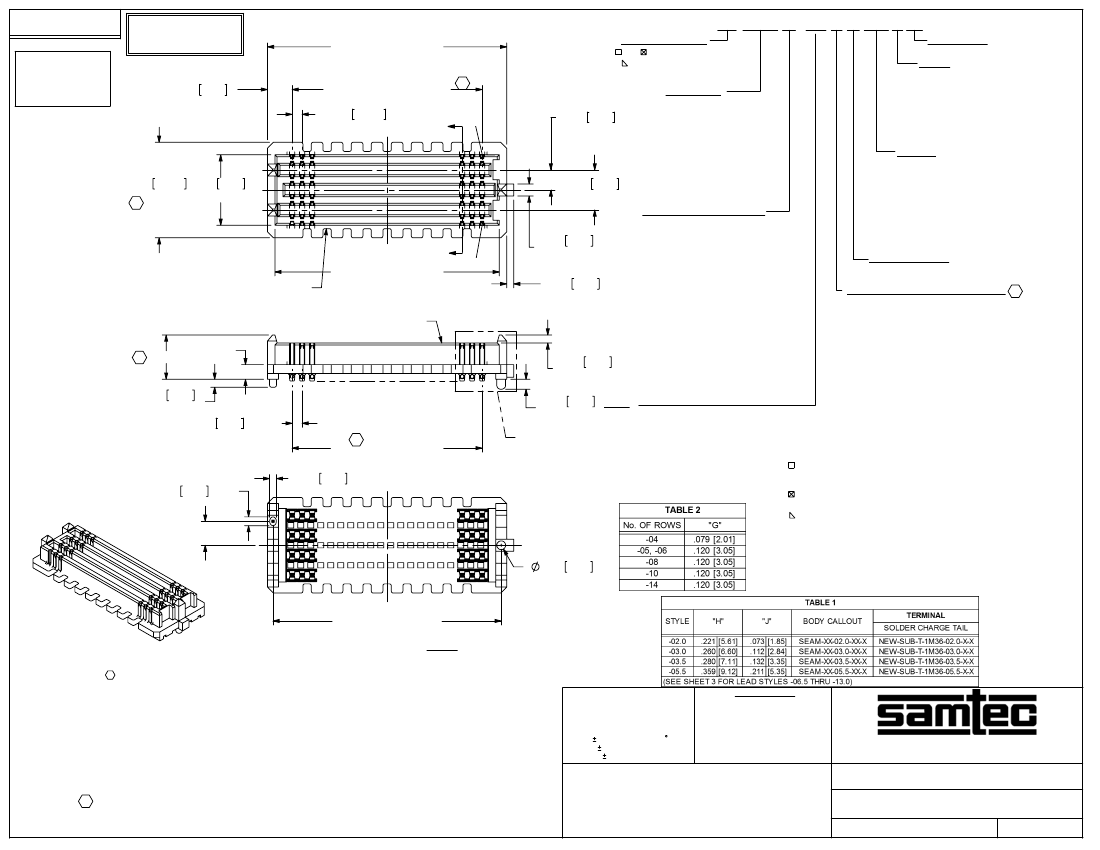

-08: 8 ROW
(SEAM-30-02.0-XX-08-1-A-XX-K-TR SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
FIG 1
*
PROPRIETARY NOTE
*
.XX: .01[0.3]
2
.XXX: .005[0.13]
.XXXX: .0020[0.051]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
C
INSULATOR: LCP, COLOR: BLACK
TERMINAL: COPPER ALLOY
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 PITCH TERMINAL ARRAY ASSEMBLY
SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR
SHEET
1
OF
7
BY:
BRATCHER 08-09-2010
c:\enterprisevault\DWG\MISC\MKTG\SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR-MKT.SLDDRW

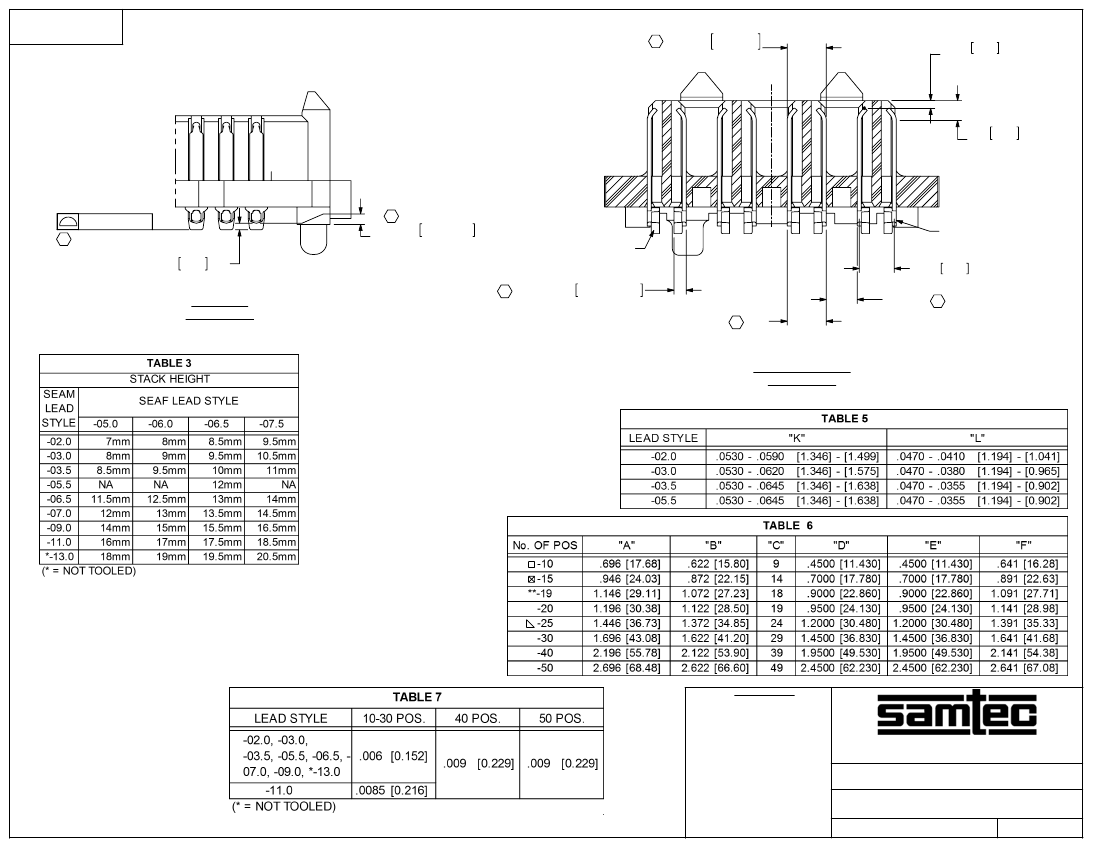

REVISION CB

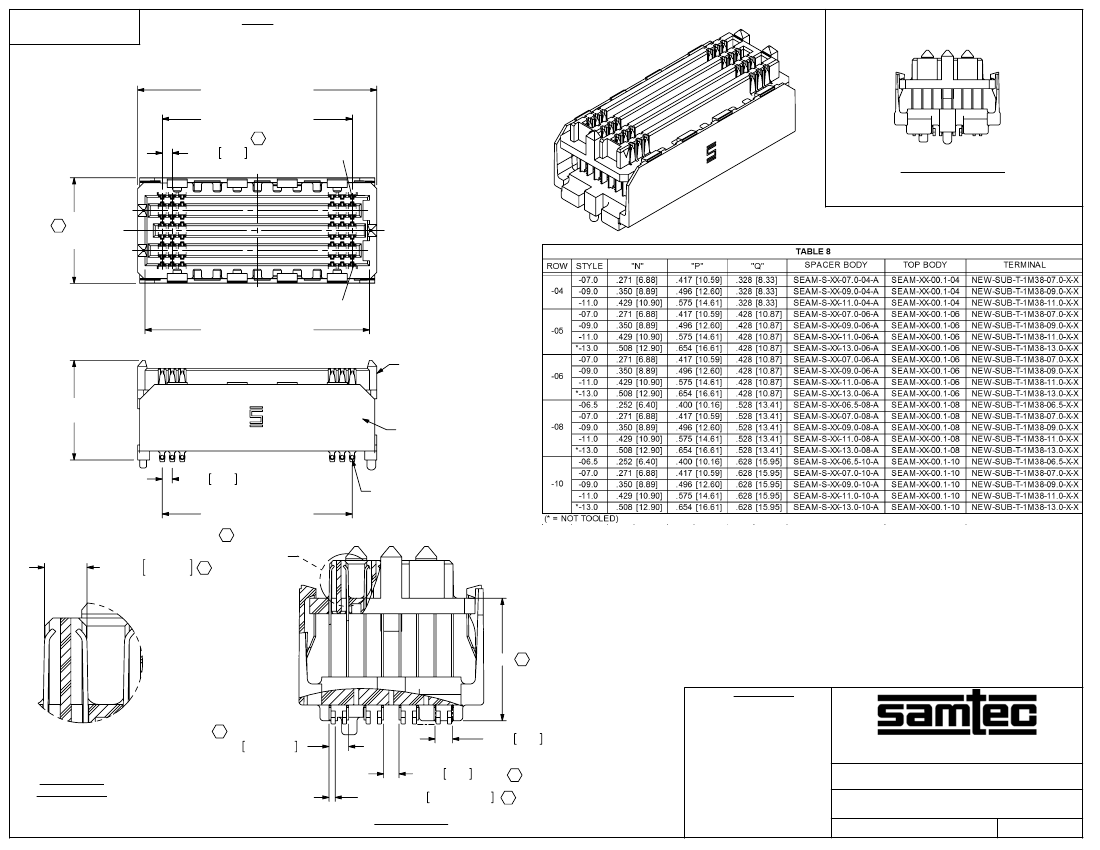

-06.5 THRU -13.0 LEAD STYLES
(SEAM-20-09.0-XX-08-1-A SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
"A" REF
(SEE TABLE 6, SHT 2)
"D"
(SEE TABLE 6, SHT 2)
C
.050 1.27
FIG 2
01
(SEAM-XX-07.0-X-08-X-A SHOWN)
"Q"
C REF
-07.0 LEAD STYLE
C
L
C
L
"B" REF
(SEE TABLE 6, SHT 2)
08
SEAM-XX-00.1-XX
"P"
REF
SEAM-S-XX-XX.X-XX-A
.050 1.27 (TYP)
"E" (TYP)
(SEE TABLE 7, SHT 2)
C
.053
+.002
1.35
+0.05
- .003
- 0.08
C
NEW-SUB-T-1M38-XX.X-X-X
'D'
"N" C
*
PROPRIETARY NOTE
*
C
.056±.003 1.42±0.08
C
L
C
L
.050 1.27
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DETAIL 'D'
SCALE 8 : 1
.044 1.12 (TYP) C
.0175±.0030 0.445±0.076
C
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 PITCH TERMINAL ARRAY ASSEMBLY
SHEET
3
OF
7
SCALE 3.5:1
SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR
BY:
BRATCHER 08-09-2010
c:\enterprisevault\DWG\MISC\MKTG\SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR-MKT.SLDDRW
REVISION CB

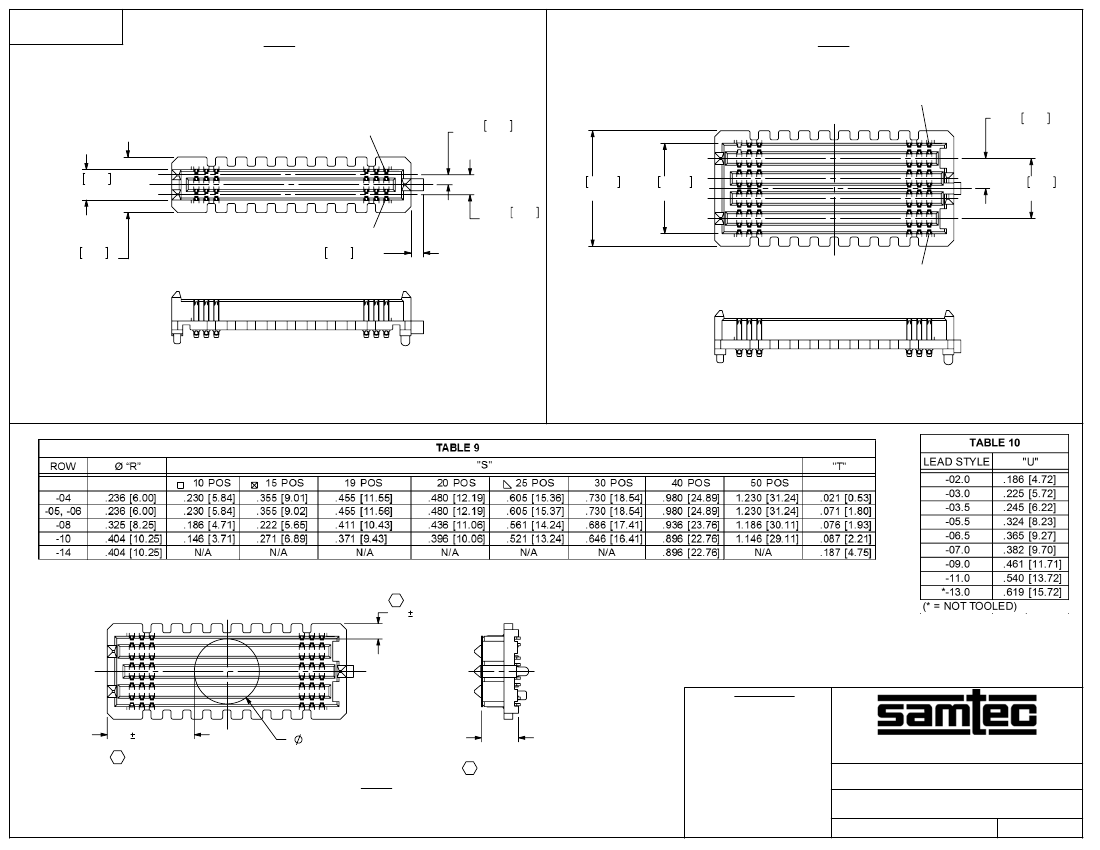

-04: 4 ROW
(SEAM-20-02.0-XX-04-1-A SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 3
-10: 10 ROW
(SEAM-20-02.0-XX-10-1-A SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
C
L
FIG 4
01
01
.050 1.27
REF
.150 3.81
REF
.152 3.86
REF
04
.578 14.68
REF
.100 2.54
REF
.452 11.48
REF
C
L
.300 7.62
REF
.278 7.06
REF
.063 1.60 REF
10
**
C
L
C
"T" .020[0.51]
C
L
*
PROPRIETARY NOTE
*
"S" .020[0.51]
C
"R"
"U"
(INCL. K DOT)
-K: K DOT
(SEAM-20-02.0-XX-08-1-A-K SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 5
C
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE:2:1
.050 PITCH TERMINAL ARRAY ASSEMBLY
SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR
SHEET
4
OF
7
BY:
BRATCHER 08-09-2010
c:\enterprisevault\DWG\MISC\MKTG\SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR-MKT.SLDDRW
REVISION CB

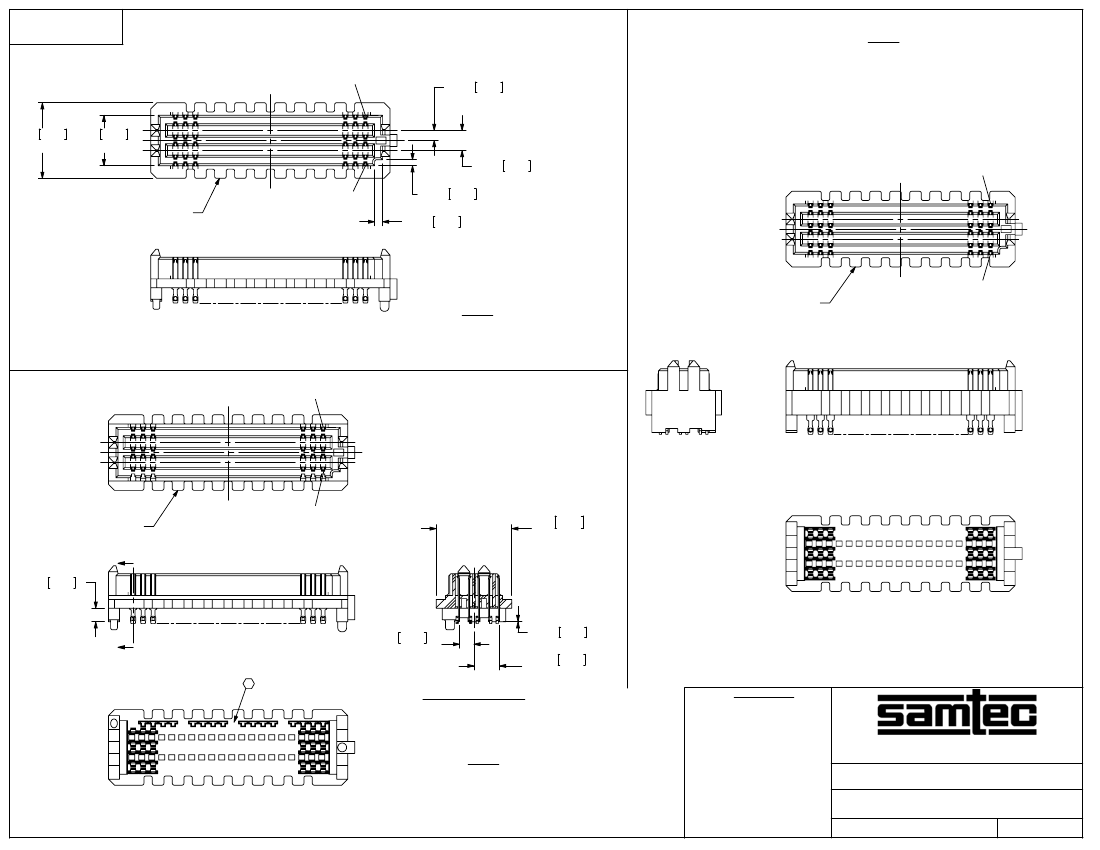

01
C
L
.050 1.27 REF (TYP)
-19: 19 POSITIONS
(SEAM-19-05.5-XX-06-1 SHOWN)
(ONLY AVAILABLE IN -06 ROW WITH -03.5 OR -05.5 LEAD STYLE)
(SAME AS FIG 6, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
(SEE NOTE 12)
FIG 8
.378 9.60
REF
.252 6.40
REF
C
L
.100 2.54 REF
06
C
L
01
.030 0.76 REF
.040 1.02 REF
C
L
SEAM-XX-XX.X-06-X
06
-06: 6 ROWS
(SEAM-20-03.0-XX-06-1-A SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
FIG 6
SEAM-19-XX.X-06-X
C
L
01
C
L
05
SEAM-XX-XX.X-05-X
.378 9.60 REF
(SEE NOTE 4)
"G"
.068 1.73
REF
.002 0.05 REF
.128 3.25
(SEE NOTE 4)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
"G"
C
.072 1.83
(SEE NOTE 4)
SECTION "G"-"G"
*
PROPRIETARY NOTE
*
-05: 5 ROWS
(SEAM-20-03.5-XX-05-1-A SHOWN)
(SAME AS FIG 6, EXCEPT AS SHOWN)
(SOME CENTER FEATURES REMOVED FOR CLARITY)
(SEE NOTE 4)
FIG 7
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 PITCH TERMINAL ARRAY ASSEMBLY
SHEET
5
OF
7
SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR
BY:
BRATCHER 08-09-2010
c:\enterprisevault\DWG\MISC\MKTG\SEAM-XX-XX.X-XX-XX-X-A-XX-K-TR-MKT.SLDDRW
