SMAJP4KE62CAP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJP4KE62CAP

SMAJP4KE62CAP: DescriptionTrans Voltage Suppressor Diode, 400W, 53V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMAJ, 2 PIN; CategoryDiscrete semiconductor diode; File Size2MB，4 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric View All

SMAJP4KE62CAP Overview

Trans Voltage Suppressor Diode, 400W, 53V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, SMAJ, 2 PIN

SMAJP4KE62CAP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
package instruction	R-PDSO-C2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	65.1 V
Minimum breakdown voltage	58.9 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	53 V
surface mount	YES
technology	AVALANCHE
Terminal surface	MATTE TIN
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

MCC

Features

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

SMAJP4KE6.8(C)A

THRU

SMAJP4KE550(C)A

Transient

Voltage Suppressor

6.8 to 550 Volts

400 Watt

DO-214AC

(SMAJ)( LEAD FRAME)

For surface mount applicationsin in or der to optimize

boar d space

L ow pr ofil e package

Fast response time: typical less than 1.0ps from 0 volts to

minimum

Low inductance

UL Recognized File # E222849

Mechanical Data

CASE: JEDEC DO-214AC

Terminals: solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes posit ive end (cathode)

except Bidirectional

Maximum soldering temperature: 250 C for 10 seconds

Maximum Ratings @ 25

C Unless Otherwise Specified

Peak Pulse Current on

See Table 1 Note: 1

10/1000us waveform

Peak Pulse Power

400W

Note: 1,

Dissipation

Peak Forward Surge

FSM)

40A

Note: 3

Current

Operation And Storage T

, T

STG

Temperature Range

-55

C to

+150

DIMENSIONS

INCHES

MIN

.079

.050

.002

---

.030

.065

.189

.157

.090

MIN

2.00

1.27

.05

---

.76

1.65

4.80

4.00

2.25

DIM

MAX

.096

.064

.008

.02

.060

.091

.220

.181

.115

MAX

2.44

1.63

.20

.51

1.52

2.32

5.59

4.60

2.92

NOTE

SUGGESTED SOLDER

PAD LAYOUT

0.085 ”

MA X

5”

NOTES:

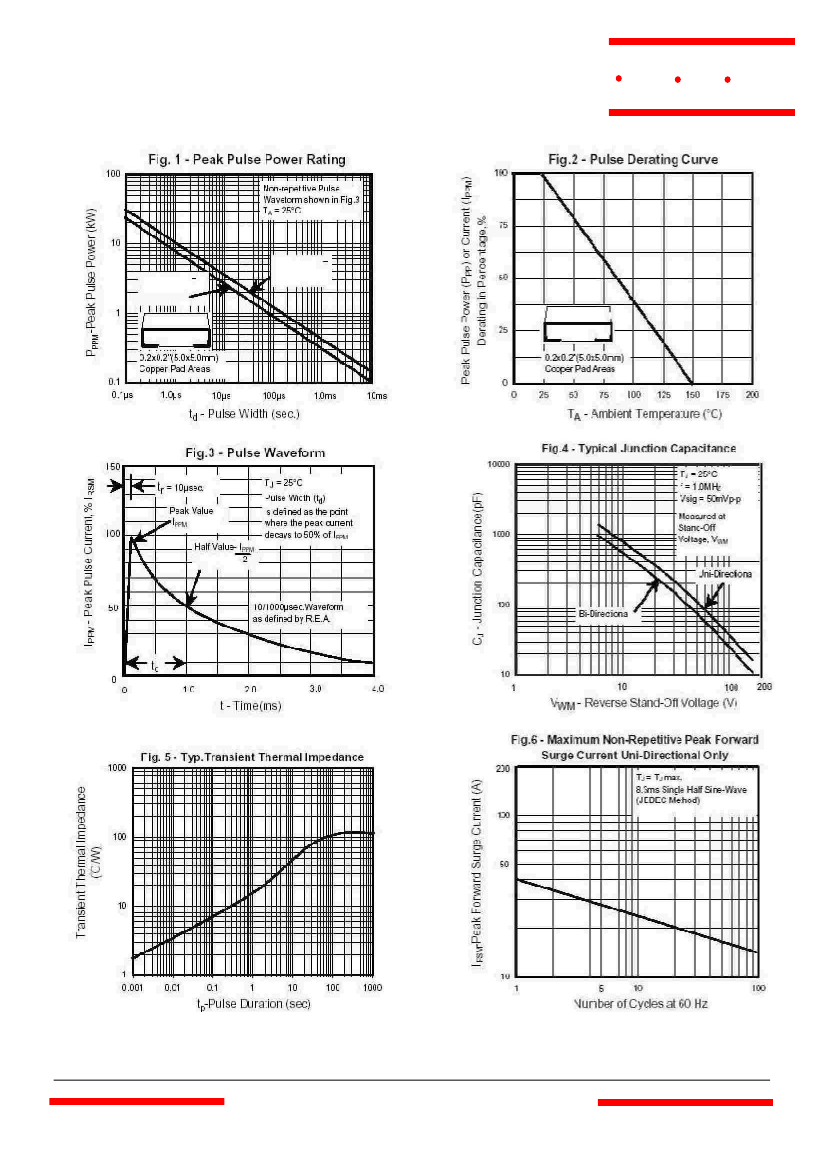

Non-repetitive current pulse, per Fig.3 and derated above

=25 C per Fig.2.

Mounted on 5.0mm copper pads to each terminal.

8.3ms, single half sine wave duty cycle=4 pulses per. Minute

maximum.

0.058 ” MI N

5”

0.05

MI N

5”

www.mccsemi.com

Revision: 2

2005/05/19
