CDRH38D16RLDNP-4R7MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH38D16RLDNP-4R7MB

CDRH38D16RLDNP-4R7MB: DescriptionGeneral Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, 1615, ROHS COMPLIANT; CategoryPassive components inductor; File Size147KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH38D16RLDNP-4R7MB Overview

General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, 1615, ROHS COMPLIANT

CDRH38D16RLDNP-4R7MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	1615
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1615
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.055 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	1.7 mm
Package length	4.1 mm
Package form	SMT
Package width	3.8 mm
method of packing	Box
Maximum rated current	2 A
series	CDRH38D16R/LD
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 25% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

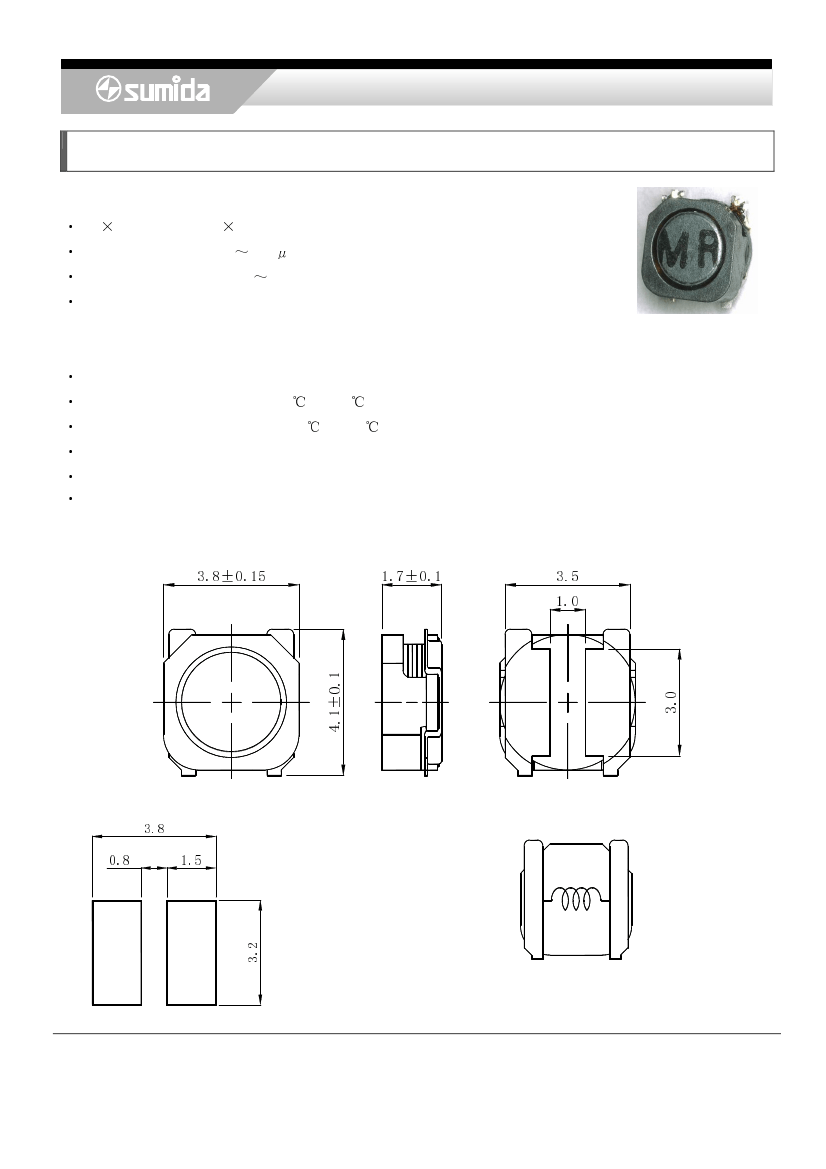

Power Inductors <SMD Type: CDRH Series>

Type: CDRH38D16R/LD

◆

Product Description

4.2 3.95mm Max.(L W ), 1.8mm Max. Height.

Inductance range: 0.90 100 H.

Rated current range: 0.15 1.54A.

Custom design is available.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

Product weight: 0.085g (Ref.).

RoHS compliance.

Ideally used in Mobilephone,PDA,MP3,DSC/DVC,HDD,etc as DC-DC converter inductors.

◆

Dimensions (mm)

5.3

1.0±7.1

51.0±8.3

◆

Land Pattern (mm)

8.3

◆

Schematics (Bottom)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

0.1

℃ ℃

Storage temperature range: -40 ~+105 .

~+105

μ ½

5.1

8.0

・

× ・

・

(including coil’s self-heat).

1/2
