4814P-3331/471

Description
RESISTOR, NETWORK, FILM, TERMINATOR, 1.12W, SURFACE MOUNT, 2239
CategoryPassive components    The resistor
File Size361KB,2 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Download Datasheet Parametric View All

4814P-3331/471 Overview

RESISTOR, NETWORK, FILM, TERMINATOR, 1.12W, SURFACE MOUNT, 2239

4814P-3331/471 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerBourns
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresDUAL TERMINATOR
structureChip
Component power consumption0.08 W
The first element resistor330 Ω
JESD-609 codee0
lead spacing1.27 mm
Manufacturer's serial number4800P
Installation featuresSURFACE MOUNT
Network TypeTERMINATOR
Number of components2
Number of functions12
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height2.03 mm
Package length9.91 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width5.59 mm
method of packingTR, 13 INCH
Rated power dissipation(P)1.12 W
Rated temperature70 °C
resistance330 Ω
Resistor typeARRAY/NETWORK RESISTOR
Second/last element resistor470 Ω
series4800P
size code2239
surface mountYES
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient100 ppm/°C
Temperature coefficient tracking50 ppm/°C
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeGULL WING
Tolerance2%
Operating Voltage50 V
Base Number Matches1
Features
*R
oH
V E S CO
AV R M
AI SIO PL
LA N IA
BL S NT
E
RoHS compliant* (see How to Order
Compliant leads to reduce solder joint
“Termination” option)
Standard E.I.A. package compatible with
automatic placement equipment
Tape and reel packaging standard
Custom circuits are available
fatiguing
Standard electrical schematics: isolated,
bussed, dual terminator
Now available with improved tolerance to
±0.5 %
Product Characteristics
Resistance Range
................... 10 ohms to 2.2 megohms
Maximum Operating Voltage ...........50 V
Temperature Coefficient of Resistance
50
Ω
and above..............±100 ppm/°C
below 50
Ω
.....................±250 ppm/°C
TCR Tracking
(for equal values within a package)
.....50 ppm/°C max. for values > 50
Ω;
.............100 ppm/°C for values
50
Ω
Operating Temperature
................................-55 °C to +125 °C
Insulation Resistance
........................ 10,000 megohms min.
Dielectric Withstanding Voltage
...........................................200 VRMS
Lead Solderability .....Meet requirements
of MIL-STD-202 Method 208
Environmental Characteristics
TESTS PER MIL-STD-202 ...... ∆R MAX.
Short Time Overload..................±0.25 %
Load Life ....................................±1.00 %
Moisture Resistance ..................±0.50 %
Resistance to Soldering Heat ....±0.25 %
Thermal Shock ..........................±0.25 %
Physical Characteristics
Flammability ........ Conforms to UL94V-0
Lead Frame Material
.........................Copper, solder coated
Body Material................... Thermoplastic
How To Order
WATTS
48 16 P - 1 - 103 __ __
Model
(48 = SOM Pkg.)
Number of Pins
Electrical Configuration
• 1 or 4 = Isolated*
• 2 = Bussed*
• 3 = Dual Terminator*
Resistance Code
• First 2 digits are significant
• Third digit represents the
number of zeros to follow.
Resistance Tolerance
• Blank = ±2 % (see “Resistance Tolerance”
on next page for resistance range)
• F = ±1 % (100 ohms - 1 megohm)
• D = ±0.5 % (100 ohms - 1 megohm)
Terminations
• All electrical configurations EXCEPT T03:
LF = RoHS compliant
• ONLY electrical configuration T03:
L = RoHS compliant
• Blank = Tin/Lead-plated
*For tube packaging, use T01, T02, T03 or T04.
Consult factory for other available options.
1.27
TYP.
(.050)
.63
TYP.
(.025)
4
2
LF
P
6
3
1
8 82 13
–6 C1

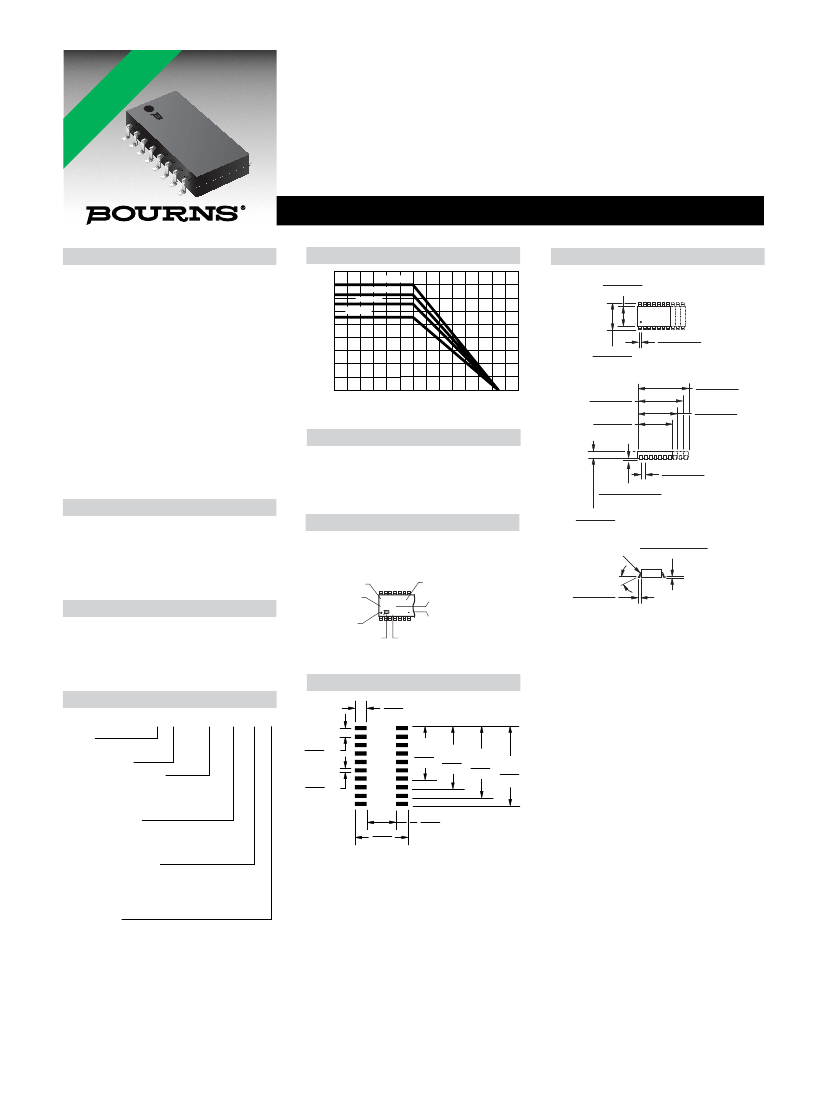

4800P Series - Thick Film Surface Mounted Medium Body
Package Power Temp. Derating Curve
1.6
1.4
1.2
1.0
.8
.6
.4
.2
0
25
70
AMBIENT TEMPERATURE (
°
C )
125
4820P
4818P
4816P
4814P
Product Dimensions
5.59
±
.12
(.220
±
.005)
7.62
±
.25
(.300
±
.010)
.432
±
.076
TYP.
(.017
±
.003)
12.45
±
.12
(.490
±
.005)
9.91
±
.12
(.390
±
.005)
13.72
±
.12
(.540
±
.005)
11.18
±
.12
(.440
±
.005)
Package Power Rating at 70 °C
4814P .....................................1.12 watts
4816P .....................................1.28 watts
4818P .....................................1.44 watts
4820P .....................................1.60 watts
Typical Part Marking
Represents total content. Layout may
vary.
PART
NUMBER
RoHS COMPLIANCY
INDICATOR
4816P LF
2-682
CYYWW
.13 + .12/ - .00
(.005 + .005/ - .000)
2.03
±
.12
(.080
±
.005)
R = .008" TYP.
8° MAX.
.611
±
.101
(.024
±
.004)
1.27
±
.076
TYP.
(.050
±
.003*)
.305 + .000/ - .101
(.012 + .000/ - .004)
CIRCUIT
PIN ONE
INDICATOR
MANUFACTURER'S
TRADEMARK
RESISTANCE CODE
DATE CODE
COUNTRY OF MANUFACTURE
(C = COSTA RICA)
Lead coplanarity .102mm (.004 inch) max. at mounting surface.
Governing dimensions are in metric. Dimensions in parentheses
are inches and are approximate.
*Terminal centerline to centerline measurements made at point of
emergence of the lead from the body.
Recommended Land Pattern
2.0
TYP.
(.079)
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
SOM-14
8.26 SOM-16 SOM-18
9.53
(.325)
10.80 SOM-20
(.375)
(.425) 12.07
(.475)
8.9
(.350)
4.9
(.193)
NOTE: Land pattern dimensions are based on
design rules established by the Institute for Inter-
connecting and Packaging Electronic Circuits in
IPC-SM-782.
For Standard Values Used in
Capacitors, Inductors, and Resistors,
click here.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
