BAT6405WE6327XT datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BAT6405WE6327XT

BAT6405WE6327XT: DescriptionRectifier Diode, Schottky, 2 Element, 0.25A, 40V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3; CategoryDiscrete semiconductor diode; File Size213KB，12 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAT6405WE6327XT Overview

Rectifier Diode, Schottky, 2 Element, 0.25A, 40V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3

BAT6405WE6327XT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	ROHS COMPLIANT PACKAGE-3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.25 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	40 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

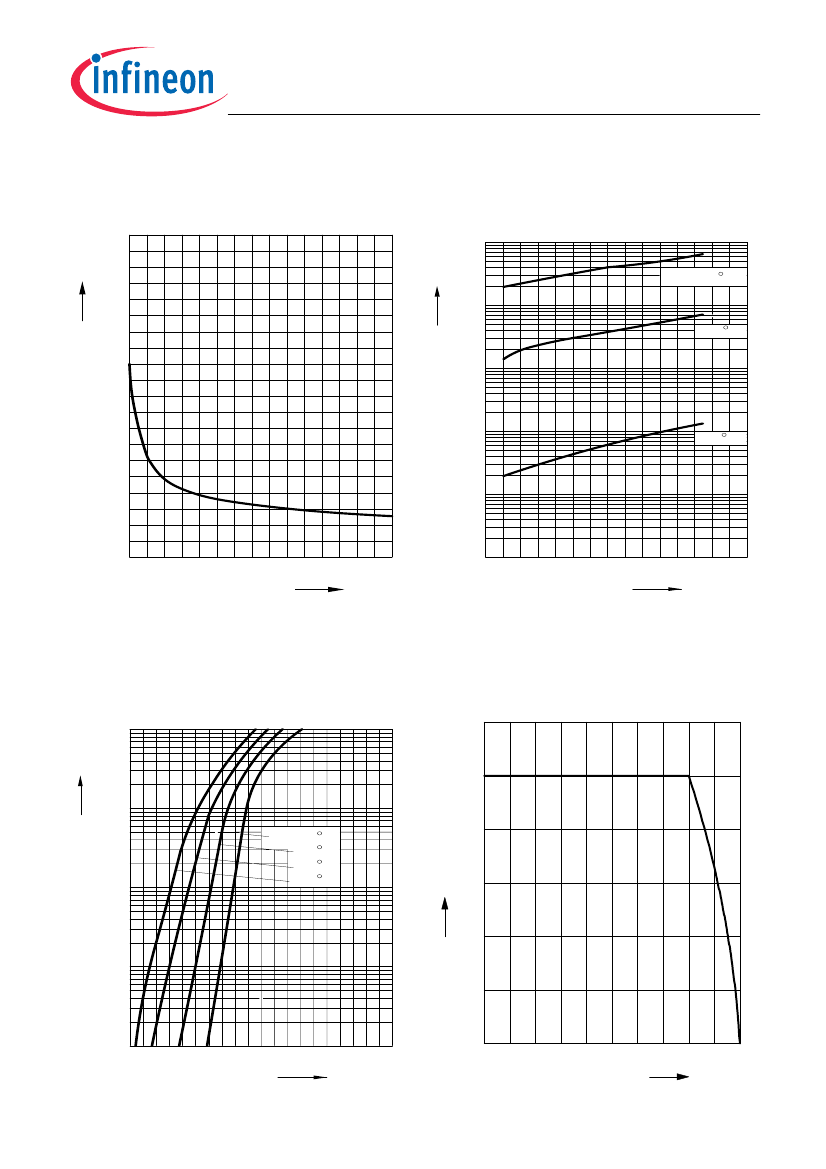

Preview

Download Datasheet

View All

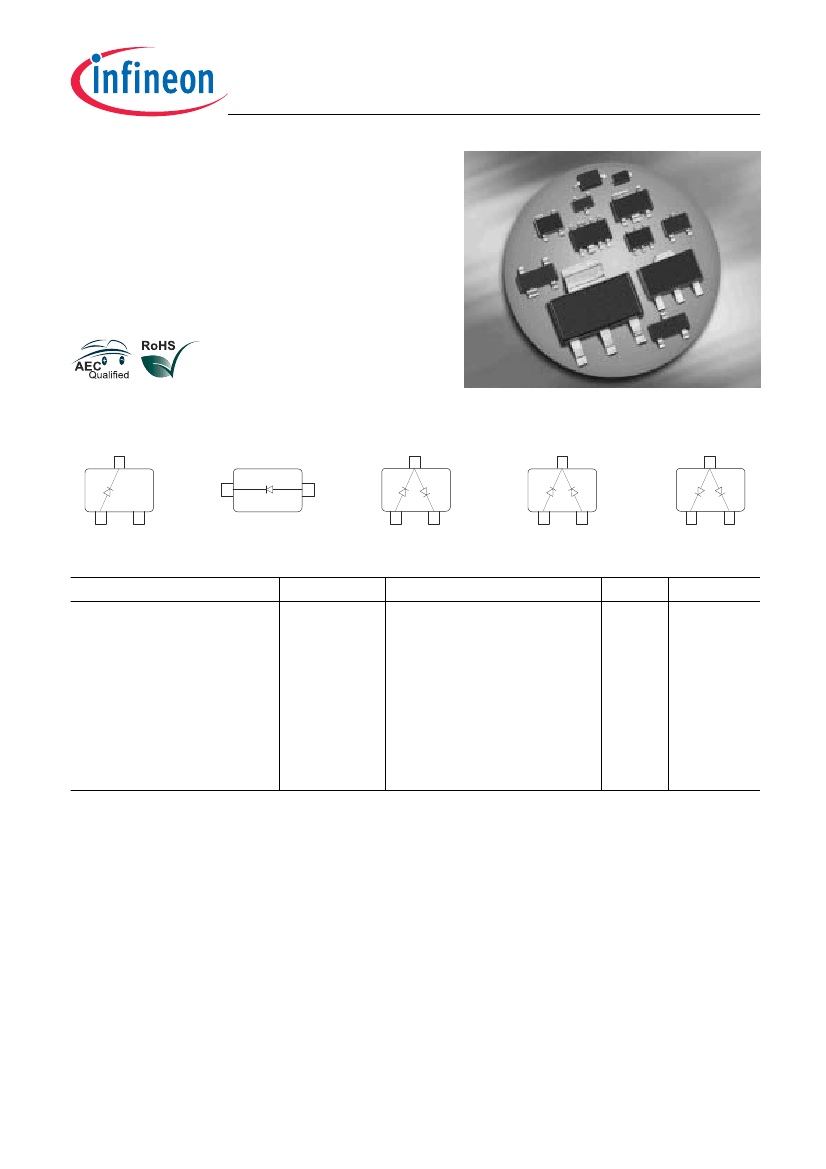

BAT64...

Silicon Schottky Diodes

•

For low-loss, fast-recovery, meter protection,

bias isolation and clamping application

•

Integrated diffused guard ring

•

Low forward voltage

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAT64

BAT64-02W

BAT64-04

BAT64-04W

BAT64-05

BAT64-05W

BAT64-06

BAT64-06W

ESD

(Electrostatic

discharge)

sensitive device, observe handling precaution!

Type

BAT64

BAT64-02W

BAT64-04

BAT64-04W

BAT64-05

BAT64-05W

BAT64-06

BAT64-06W

Pb-containing

Package

SOT23

SCD80

SOT23

SOT323

SOT23

SOT323

SOT23

SOT323

Configuration

single

series

common cathode

common anode

(nH)

1.8

0.6

1.8

1.4

1.8

1.4

1.8

1.4

Marking

63s

64s

65s

66s

package may be available upon special request

2007-06-11
