DFN1006H4-2: DescriptionPACKAGE OUTLINE DIMENSIONS; File Size766KB，32 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Compare View All

DFN1006H4-2 Overview

PACKAGE OUTLINE DIMENSIONS

Preview

Download Datasheet

View All

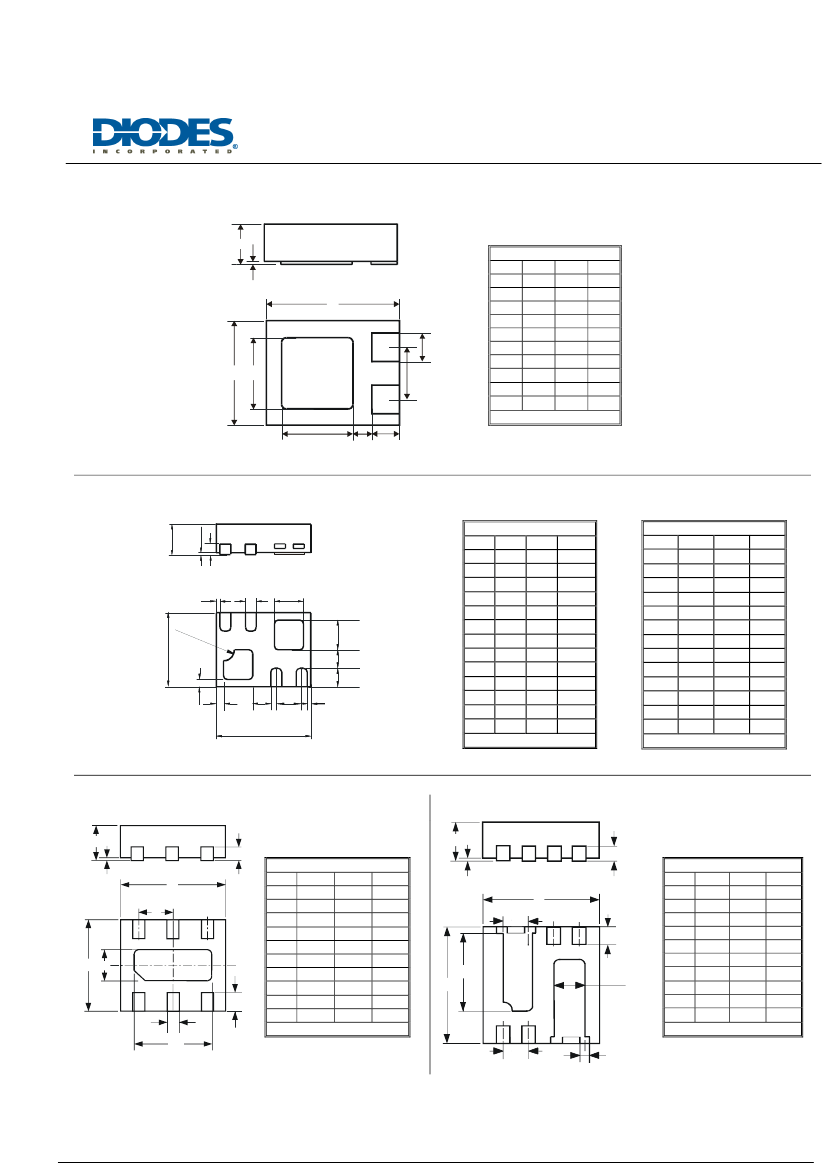

PACKAGE OUTLINE DIMENSIONS

Surface Mount Packages

DFN0603H3-2

A1 (2x)

b (2x)

DFN0603H3-2

Dim

Min

Max

Typ

0.27

0.33

0.30

0.00

0.03

0.02

0.18

0.28

0.23

0.595 0.645

0.62

0.295 0.345

0.32

0.355

0.125 0.225 0.175

0.045

All Dimensions in mm

L (2x)

DFN1006-2 / DFN1006H4-2

DFN1006-2

Dim Min Max Typ

0.47 0.53 0.50

0.05 0.03

0.45 0.55 0.50

0.95 1.075 1.00

0.55 0.675 0.60

0.40

0.20 0.30 0.25

0.05 0.15 0.10

All Dimensions in mm

DFN1006H4-2

Dim Min Max Typ

0.34 0.4 0.37

0.05 0.03

0.45 0.55 0.50

0.95 1.075 1.00

0.55 0.675 0.60

⎯

0.40

0.20 0.30 0.25

0.05 0.15 0.10

All Dimensions in mm

DFN1006-3 / DFN1006H4-3

DFN1006-3

Dim Min Max Typ

0.47 0.53 0.50

0.05 0.03

0.10 0.20 0.15

0.45 0.55 0.50

0.95 1.075 1.00

0.55 0.675 0.60

⎯

0.35

0.20 0.30 0.25

⎯

0.40

All Dimensions in mm

DFN1006H4-3

Dim Min Max Typ

⎯

0.40

⎯

0.05 0.03

0.10 0.20 0.15

0.45 0.55 0.50

0.95 1.05 1.00

0.55 0.65 0.60

⎯

0.35

0.20 0.30 0.25

⎯

0.40

All Dimensions in mm

AP02002 Rev. 44

1 of 32

www.diodes.com

Package Outline Dimensions

DFN1006H4-2 Related Products

	DFN1006H4-2	AP02002	DFN1006H4-3	DFN0603H3-2	DFN1006-2	DFN1006-3
Description	PACKAGE OUTLINE DIMENSIONS	PACKAGE OUTLINE DIMENSIONS	PACKAGE OUTLINE DIMENSIONS	PACKAGE OUTLINE DIMENSIONS	PACKAGE OUTLINE DIMENSIONS	PACKAGE OUTLINE DIMENSIONS
