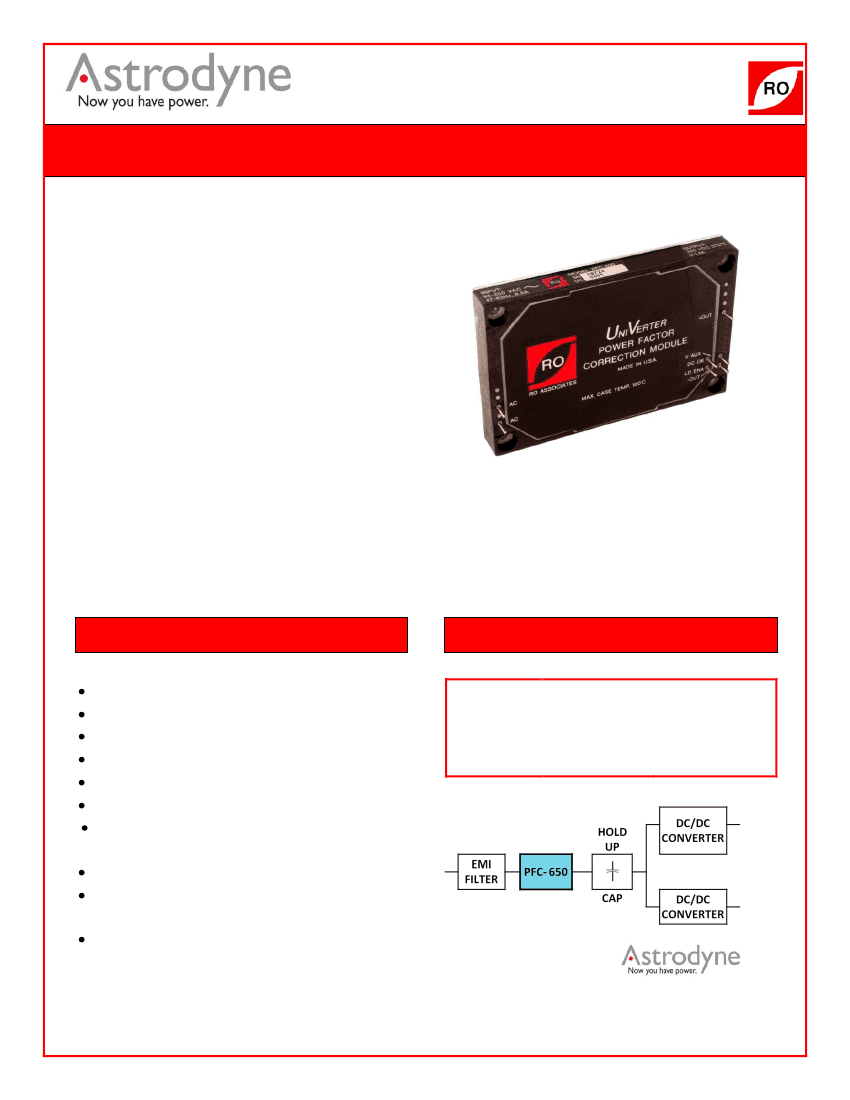

PFC-650 Series
Univerter® Power Factor Correction Module
The Univerter PFC -650 Power Factor
Correction modules are AC to DC converters
that operate from wide range AC input voltages
and frequencies with extremely high conversion
ef f iciency and near unit y power f act or ,
producing an output of 375VDC. The PFC-
650U operates from the universal input voltage
range of 90 to 265VAC and input frequencies in
the range of 47 to 440Hz making it ideal for
applications requiring Power Factor Correction
the world over. Model PFC-650W is optimized
for input voltages in the 90 to 180VAC range
and input frequencies in the range of 330 to
880Hz making it an ideal choice for both military
and commercial aircraft applications.
These compact power modules use advanced
electrical design and thermal management
techniques that make them suitable for rugged,
environmentally challenged applications .
650 Watt PFC Front End
Compact ¾ Brick Package
3.6 x 2.4 x 0.5 in.
FEATURES
Extremely High Efficiency – 94% typ
Near Unity Power Factor – 0.99 typ.
High Power Density – 150W/in³
-40ºC to +100 ºC Operation Standard
-55ºC to +100 ºC Operation Optional
Extremely Low Thermal Resistance
Conduction Cooled
Rugged Encapsulated Package
Active Inrush Current Limiting
LD ENA Signal Controls Downstream
Converters
MIL-STD-704/DO-160 Compatible
MODEL SELECTION
Input
Voltage, VAC
90 - 265
90 - 180
MODEL
PFC-650U
PFC-650W
Input
Frequency, Hz
47 - 440
330 - 880
Typical Application:
Astrodyne USA: 1-800-823-8082
Astrodyne Pacific: 886-2-26983458
PFC-650 Series
650 Watt Power Factor Correction Module
375 VDC Output, ¾ Brick Package
ABSOLUTE MAXIMUM RATINGS
Exceeding absolute maximum ratings may
cause permanent damage or reduce
reliability
PARAMETER
Input Voltage (AC1 to AC2)
Input Voltage (AC1 to AC2)
LD ENA Voltage (LD ENA to -Vout)
Circuit-to-Case Voltage
Storage Temperature
Standard
T
E
Operating Temperature
Standard
T
E
Soldering Temperature
-55
-55
-55
-40
-55
-55
-0.3
OPTION
MINIMUM
MAXIMUM
265
311
15.0
2500
110
110
125
100
100
125
260
UNITS
VAC
VAC
Vdc
Vdc
CONDITIONS
Continuous
100ms max.
°C
°C
°C
°C
°C
°C
°C
Baseplate
Baseplate
Baseplate
< 5 sec
SPECIFICATIONS
Electrical specifications apply for Vin = 115VAC, 60Hz (400Hz for PFC-650W model) Full Load, Tc=25 °C unless specified otherwise
INPUT SPECIFICATIONS
Input Voltage
PFC-650U
PFC-650W
Input Line Frequency
PFC-650U
PFC-650W
Power Factor
PFC-650U
PFC-650U
0.999
0.990
Vin = 115VAC, 60 Hz, Full Load
Vin = 230VAC, 50 Hz, Full Load
47
330
50/60/400
400/600
440
880
Hz
Hz
90
90
115/230
115
265
180
VAC
VAC
MINIMUM
TYPICAL
MAXIMUM
UNITS
CONDITIONS
PFC-650W
0.980
Vin =115VAC, 400 Hz, Full Load
Astrodyne Corp. 1-800-823-8082
PFC-650 Datasheet 08-29-13
Page 2 of 7
PFC-650 Series
650 Watt Power Factor Correction Module
375 VDC Output, ¾ Brick Package
SPECIFICATIONS (continued)
Electrical specifications apply for Vin = 115VAC, 60Hz (400Hz for PFC-650W model) Full Load, Tc=25 °C unless specified otherwise
Maximum Input Current
8.1
6.2
Arms
Arms
Vin = 90VAC, Full Load, Tc = 25°C
Vin = 115VAC, Tc = 100°C
Inrush Current
PFC-650U
PFC-650W
25
10
A
Using 15Ω external Rss.
115VAC, 400Hz
Start-up Voltage
Input Under Voltage
70
65
80
75
85
85
VAC
VAC
Vin = 115VAC, 60 Hz, Half Load, C hold up
= 440uF. Note: Ride through is indefinite
if output is held above 250 VDC.
Vin = 115VAC, 60 Hz, Half Load, C hold up
= 880uF. Note: Ride through is indefinite
if output is held above 250 VDC.
Ride Through Time 1
75
mS
Ride Through Time 2
150
mS
OUTPUT SPECIFICATIONS
Output Voltage
Output Current
Output Current Limit
Ripple
PFC-650U
PFC-650W
Hold Up Capacitance
PFC-650U
PFC-650W
Efficiency
PFC-650U
PFC-650U
MINIMUM
370
0
TYPICAL
375
MAXIMUM
380
1.75
UNITS
Vdc
ADC
CONDITIONS
Vin = 115VAC, Tc = 25°C
NONE
30
30
V p-p
V p-p
Vin = 115VAC, 60Hz, C hold up = 440uF
Vin = 115VAC, 400Hz, C hold up = 136uF
220
40
1000
220
µF
µF
0.990
0.999
Vin = 115VAC, 60 Hz, Full Load
Vin = 230VAC, 50 Hz, Full Load
PFC-650W
0.94
Vin =115VAC, 400 Hz, Full Load
Astrodyne Corp. 1-800-823-8082
PFC-650 Datasheet 08-29-13
Page 3 of 7
PFC-650 Series
650 Watt Power Factor Correction Module
375 VDC Output, ¾ Brick Package
SPECIFICATIONS (continued)
Electrical specifications apply for Vin = 115VAC, 60Hz (400Hz for PFC-650W model) Full Load, Tc=25 °C unless specified otherwise
CONTROL SPECIFICATIONS
LD ENA Threshold (Vout rising)
LD ENA threshold (Vout falling)
LD ENA Logic Low Current
LD ENA Logic Low Voltage
MINIMUM
320
205
TYPICAL
MAXIMUM
360
235
20
0.5
UNITS
Vdc
Vdc
mA
Vdc
LD ENA LOGIC LOW SINK
CURRENT = 10mA
CONDITIONS
ISOLATION SPECIFICATIONS
Input-to-Output Isolation
Input-to-Case Isolation
Output-to-Case Isolation
Circuit-to-Case Capacitance
MINIMUM
TYPICAL
Non-isolated
MAXIMUM
UNITS
Vdc
Vdc
Vdc
CONDITIONS
2500
2500
10
nF
THERMAL/ MECHANICAL SPECIFICATIONS
Thermal Shutdown Temperature
Thermal Shutdown Restart Temperature
Thermal Resistance, Case to Ambient
Size, l x w x h
Weight
MINIMUM
TYPICAL
105
85
4.2
0.5 x 2.4 x 3.6
(12.7 x 61.0 x 91.4)
5.7 (161)
MAXIMUM
UNITS
°C
°C
°C/W
in
(mm)
oz.
(gm)
CONDITIONS
Baseplate temp
Baseplate temp
Natural Convection in Free Air,
No Heatsink, Tc = 100°C
3/4 Brick, See Outline Drawing
EMC COMPLIANCE
MIL-STD-461E
RELIABILITY
MTBF Prediction
MINIMUM
EXTERNAL FILTER
FA250-6
TYPICAL
1.8
MAXIMUM
UNITS
M hrs
COMPLIANCE
YES
CONDITIONS
MIL-217F GB 25°C
Astrodyne Corp. 1-800-823-8082
PFC-650 Datasheet 08-29-13
Page 4 of 7
PFC-650 Series
650 Watt Power Factor Correction Module
375 VDC Output, ¾ Brick Package

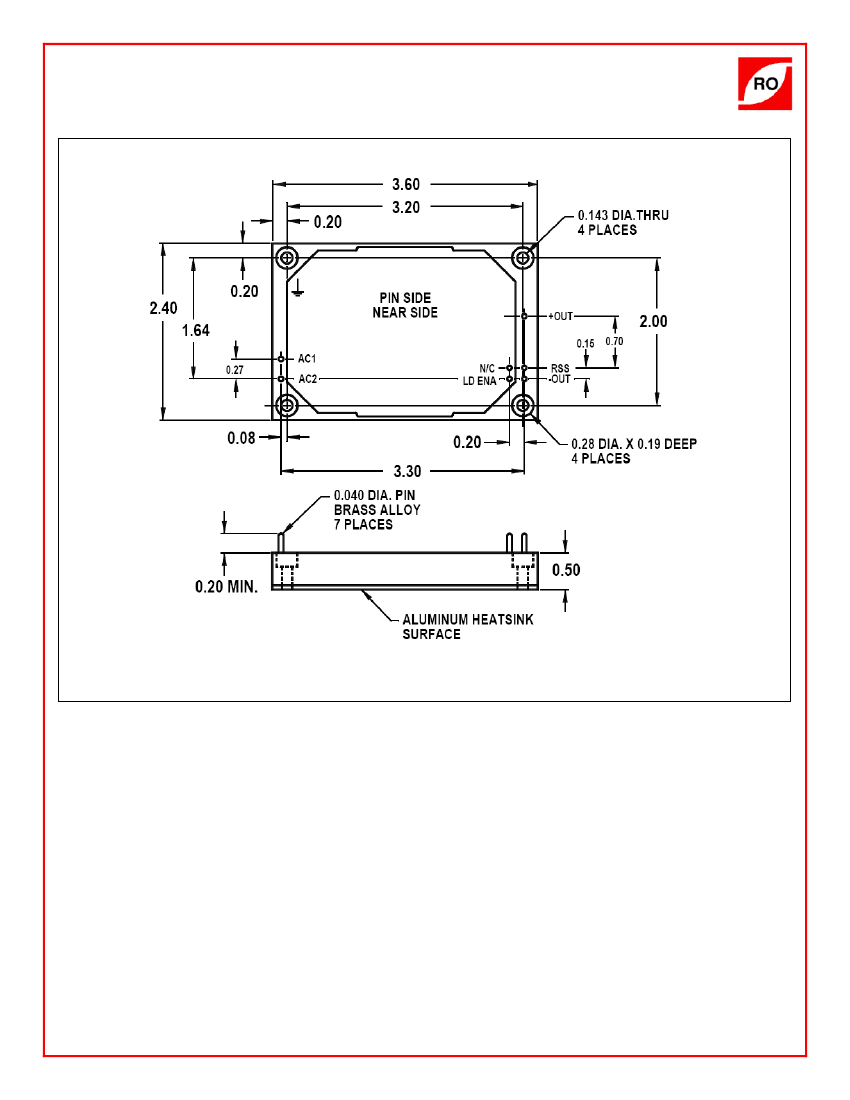

Outline Drawing
Pin Function/Description
AC1, AC2
These are the AC input terminals. The input should
be connected to a suitable input filter in order to for
the PFC module to perform properly and reliably
and to comply with applicable EMI performance
standards.
up capacitor must be located in close proximity to
the PFC output terminals.
LD ENA
This terminal provides logic control to downstream
DC/DC converters. The LD ENA signal will be a
logic low during PFC start up and will switch logic
state (to open collector) upon the PFC output
reaching 340 VDC. If AC input power is lost, the LD
ENA will again go low when the PFC output drops
to 220 VDC. For many RO DC/DC products, it is
not necessary to use the LD ENA terminal. Please
+Out
This is the positive output terminal. It should be
connected to the positive terminal of the hold up
capacitor. The 375 VDC output will appear here
w.r.t the –Out terminal. Hold-up capacitor value
ranges are provided in the specifications. The hold-
Astrodyne Corp. 1-800-823-8082
PFC-650 Datasheet 08-29-13
Page 5 of 7
