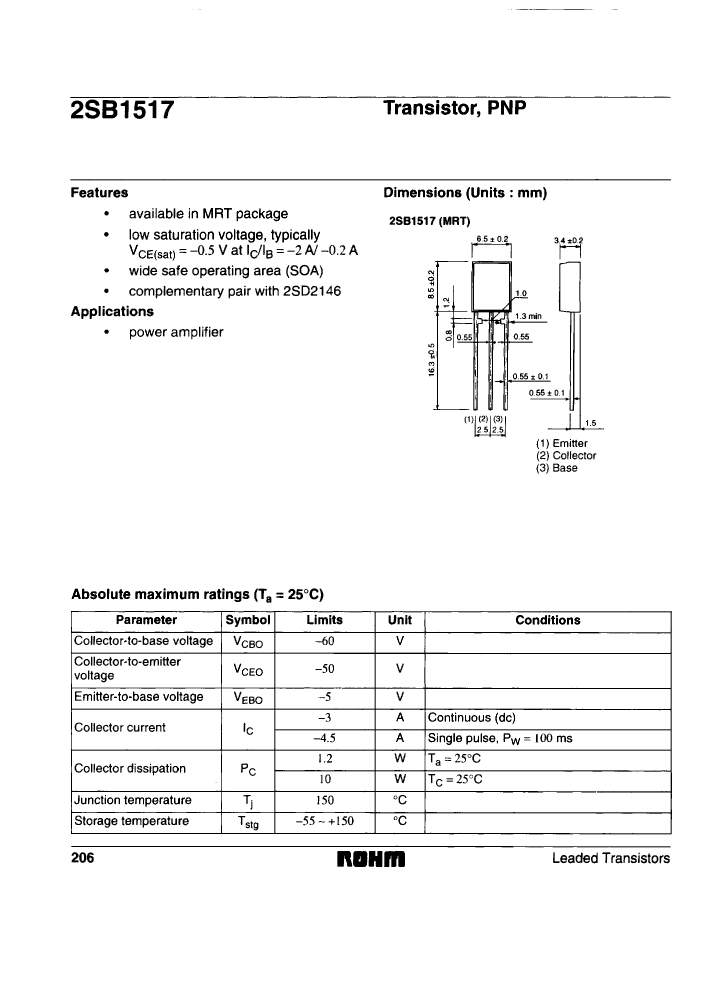

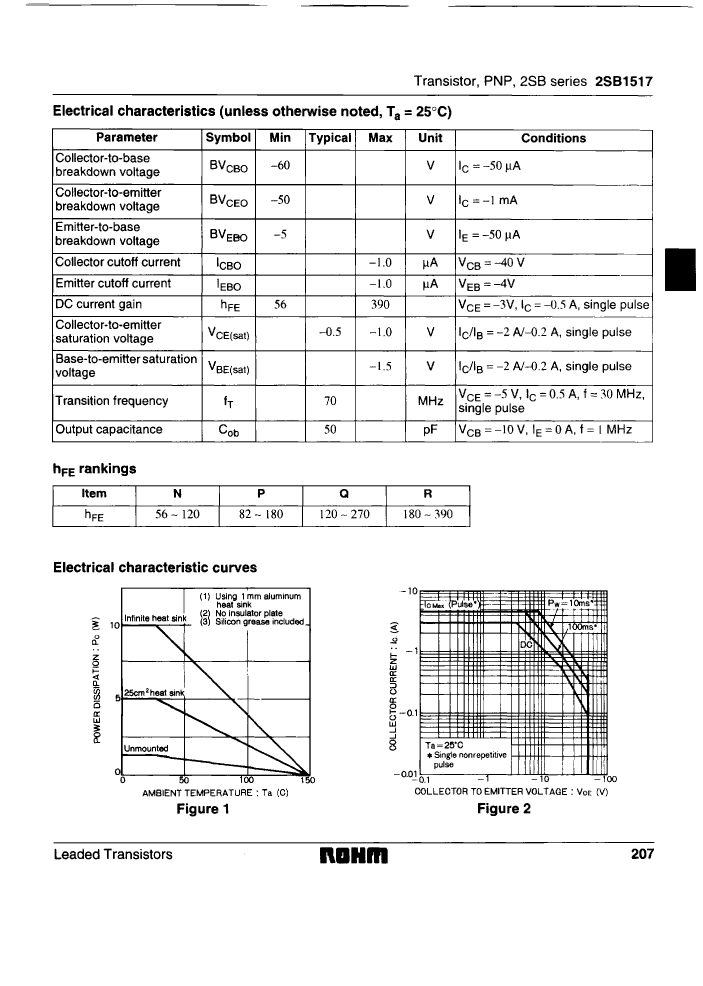

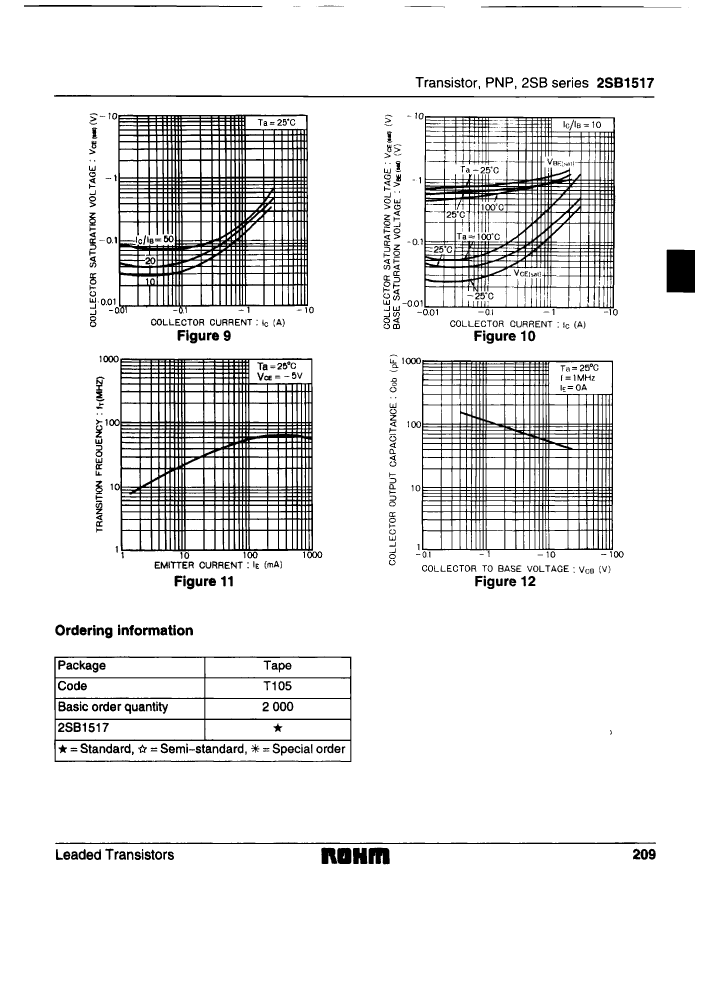

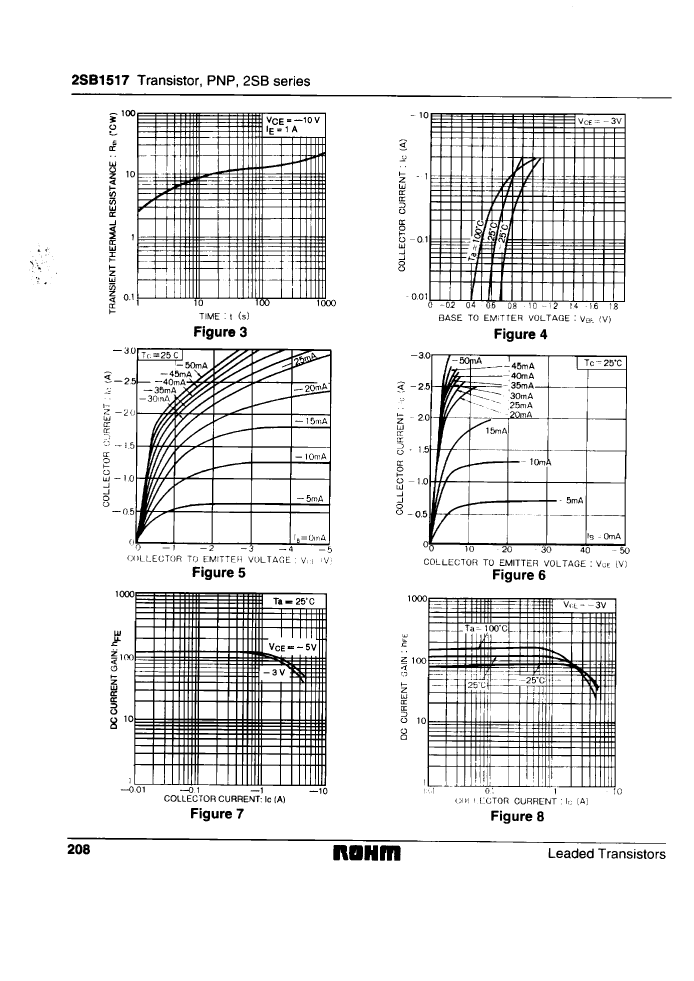

3A, 50V, PNP, Si, POWER TRANSISTOR
| Parameter Name | Attribute value |
| package instruction | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | unknow |
| Maximum collector current (IC) | 3 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 180 |
| JESD-30 code | R-PSIP-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Polarity/channel type | PNP |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| 2SB1517T105/R | UC28023_15 | 2SB1517T105/Q | 2SB1517T105N | 2SB1517T105P | 2SB1517T105Q | 2SB1517T105/P | 2SB1517T105/N | 2SB1517T105 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | 3A, 50V, PNP, Si, POWER TRANSISTOR | ECONOMY HIGH-SPEED PWM CONTROLLER | 3A, 50V, PNP, Si, POWER TRANSISTOR | Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin | Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin | Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin | 3A, 50V, PNP, Si, POWER TRANSISTOR | 3A, 50V, PNP, Si, POWER TRANSISTOR | Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin |
| package instruction | IN-LINE, R-PSIP-T3 | - | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | unknow | - | unknow | unknow | unknow | unknow | unknow | unknow | unknow |
| Maximum collector current (IC) | 3 A | - | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A |
| Collector-emitter maximum voltage | 50 V | - | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Configuration | SINGLE | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 180 | - | 120 | 56 | 82 | 120 | 82 | 56 | 56 |
| JESD-30 code | R-PSIP-T3 | - | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 |
| Number of components | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | - | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | - | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Polarity/channel type | PNP | - | PNP | PNP | PNP | PNP | PNP | PNP | PNP |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | - | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | - | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| transistor applications | SWITCHING | - | SWITCHING | AMPLIFIER | AMPLIFIER | AMPLIFIER | SWITCHING | SWITCHING | AMPLIFIER |
| Transistor component materials | SILICON | - | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Base Number Matches | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
