ADP-ED7874/1+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ADP-ED7874/1+

ADP-ED7874/1+: DescriptionCombiner, 0.5MHz Min, 1000MHz Max, 4.56dB Insertion Loss-Max, CASE CD636, 6 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size93KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ADP-ED7874/1+ Overview

Combiner, 0.5MHz Min, 1000MHz Max, 4.56dB Insertion Loss-Max, CASE CD636, 6 PIN

ADP-ED7874/1+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	ISOLATION-MIN (DB):11.54
Characteristic impedance	75 Ω
structure	COMPONENT
Maximum insertion loss	4.56 dB
JESD-609 code	e3
Maximum operating frequency	1000 MHz
Minimum operating frequency	0.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Maximum voltage standing wave ratio	1.14

Preview

Download Datasheet

View All

Engineering Development Model

Power Splitter/Combiner

2 Way-0°

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

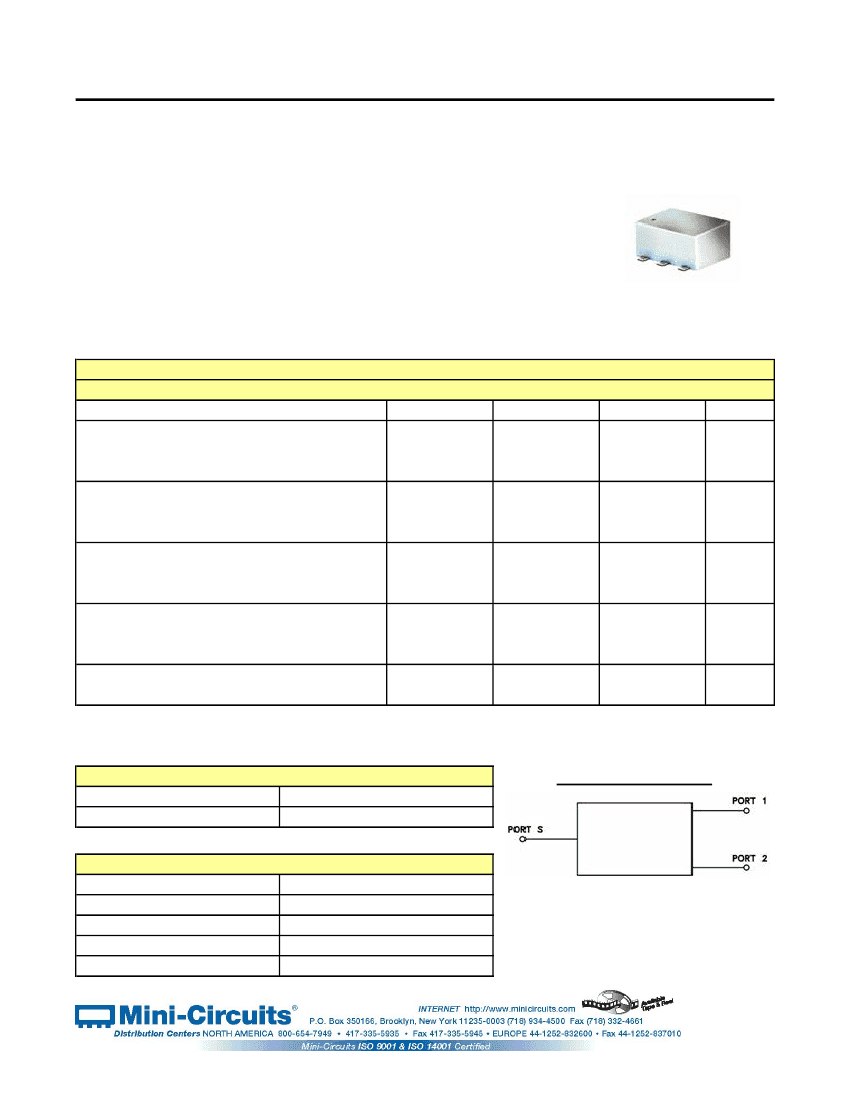

ADP-ED7874/1

CASE STYLE : CD636

ELECTRICAL SPECIFICATIONS 75Ω @ +25°C

Parameter

Frequency

Isolation

Min.

0.5

Typ.

Max.

1000

Units

MHz

deg.

(:1)

0.5 - 5 MHz

5 - 500 MHz

500 - 1000 MHz

0.23

Insertion Loss Above 3.0 dB 0.5 - 5 MHz

0.25

5 - 500 MHz

0.76

500 - 1000 MHz

0.005

Phase Unbalance

0.5 - 5 MHz

0.098

5 - 500 MHz

0.301

500 - 1000 MHz

0.010

Amplitude Unbalance

0.5 - 5 MHz

0.010

5 - 500 MHz

500 - 1000 MHz

0.130

1.13

VSWR

SUM Port

1.14

OUT Ports

Note:

Denotes 75 Ohm model, for coax connector models 75 Ohm BNC connectors are standard.

MAXIMUM RATINGS

-40°C to 85°C

Operating Temperature

-55°C to 100°C

Storage Temperature

PIN CONNECTIONS

SUM PORT

PORT 1

PORT 2

GND EXT

NOT USED

2, 5

Functional Diagram

REV. X1

ADP-ED7874/1

060712

Page 1 of 1

ADP-ED7874/1+ Related Products

	ADP-ED7874/1+	ADP-ED7874/1
Description	Combiner, 0.5MHz Min, 1000MHz Max, 4.56dB Insertion Loss-Max, CASE CD636, 6 PIN	Combiner, 0.5MHz Min, 1000MHz Max, 4.56dB Insertion Loss-Max, CASE CD636, 6 PIN
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Other features	ISOLATION-MIN (DB):11.54	ISOLATION-MIN (DB):11.54
Characteristic impedance	75 Ω	75 Ω
structure	COMPONENT	COMPONENT
Maximum insertion loss	4.56 dB	4.56 dB
JESD-609 code	e3	e0
Maximum operating frequency	1000 MHz	1000 MHz
Minimum operating frequency	0.5 MHz	0.5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	COMBINER	COMBINER
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.14	1.14
