REVISION A
DO NOT
SCALE FROM
THIS PRINT
Pb THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
RF23S-XXXXX-XXXXXX-XXXX
CABLE CALLOUT
23S: MWC-2350-01 CABLE
OVERALL CABLE LENGTH
MILLIMETERS OF CABLE
0100 MIN. (SEE NOTE 8 & 9)
END 2 PLATING OPTION
1: GOLD ALL COMPONENTS
6. ALTERNATE H GOLD / H GOLD / NICKEL
9. ALTERNATE HEAVY GOLD/MEDIUM GOLD
P: HEAVY GOLD / PASSIVATED STAINLESS STEEL
(LEAVE BLANK FOR -SING OR -XXXXXX
END 2 PREPARATION)
END 2 CONNECTOR OR PREPARATION (SEE NOTE 18)
-92SJ: 292XX-J-C-XX-ST-CS3 (SEE SHEET 2)
-92SP: 292XX-P-C-XX-ST-CS3 (SEE SHEET 2)
*
-SCC3: PRB3-P-C-XX-ST-CS3 (SEE SHEET 2)
-SING: SINGLE ENDED (ONE END ONLY,SEE NOTE 11)
-XXXXXX: STRIPPED AND TINNED (THIS END ONLY-
SEE NOTES 11-15, 17 & SHEET 2, FIG 3)
CABLE STRIPPING DIMENSIONS
PER CONFIGURATIONS
(SEE NOTES 12,13,14,15)
"A" mm
"B" mm
"C" mm
C
FIG 2
END 1 CONNECTOR
-92SJ: 292XX-J-C-XX-ST-CS3 (SEE SHEET 2)
-92SP: 292XX-P-C-XX-ST-CS3 (SEE SHEET 2)
*
-SCC3: PRB3-P-C-XX-ST-CS3 (SEE SHEET 2)
"D" mm
"E" mm
C
C
END 1 PLATING OPTION
1: GOLD ALL COMPONENTS
6. ALTERNATE H GOLD / H GOLD / NICKEL
9. ALTERNATE HEAVY GOLD/MEDIUM GOLD
P: HEAVY GOLD / PASSIVATED STAINLESS STEEL
(SEE SHEET 2 FOR PLATING SPECIFICS)
*=NOT RELEASED
(SEE FIG 2) "C" FORMAT: X.Xmm
(SEE FIG 2) "B" FORMAT: X.Xmm
(SEE FIG 2) "A" FORMAT: X.Xmm
*
DO NOT LEAVE ANY SPACE BLANK,
EACH MUST CONTAIN A
NUMERIC CHARACTER 0 THRU 9.
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2)
(SEE TABLE 1 FOR SUBTRACTORS)
C
C
3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS
C
4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1, THE TEST VOLTAGE FOR THE ASSEMBLY
FIG 1
SHOULD BE SET TO THE END OPTION WITH THE LOWEST TEST VOLTAGE RATING.

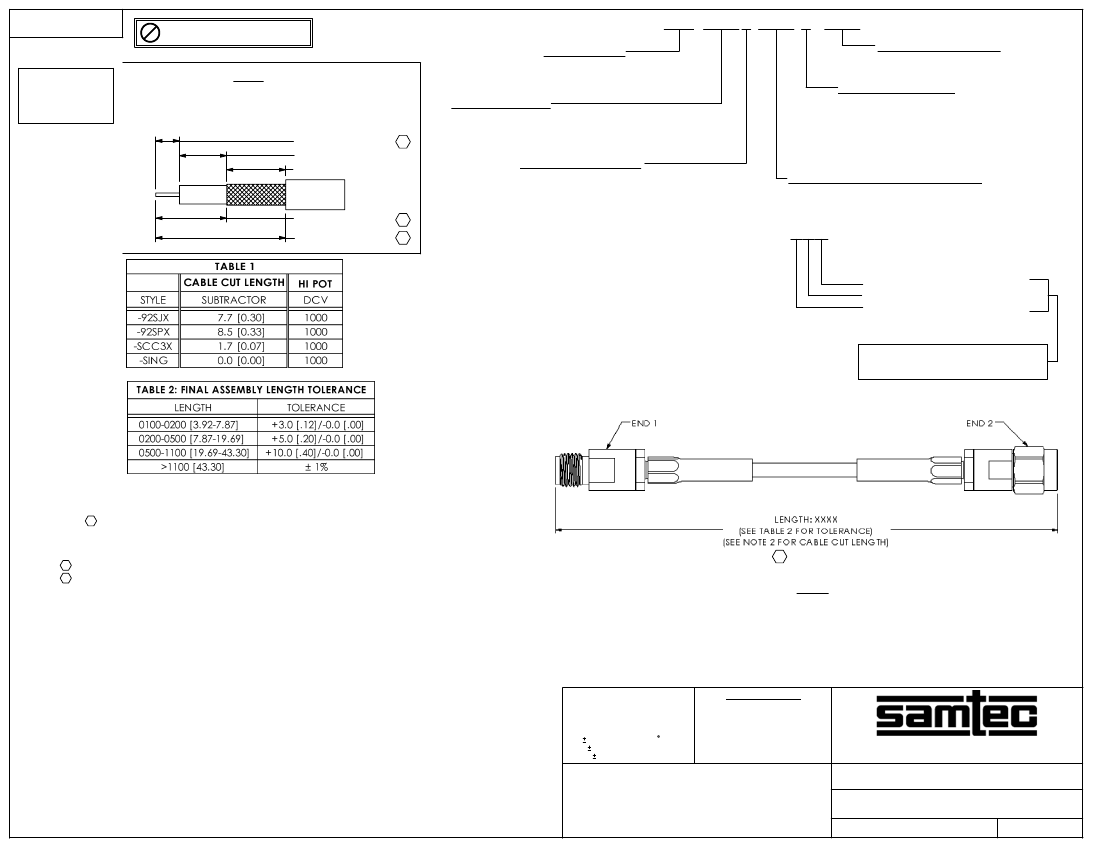

RF23S-92SJX-92SPX-XXXX SHOWN
5. AFTER FINAL ELECTRICAL TESTS, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL -ET
6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.
7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3040-M.
LOCK WASHERS AND NUTS TO BE SHIPPED UNASSEMBLED. GASKETS TO BE INSTALLED ON CABLE.
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS
9. CABLE LENGTHS LONGER THAN 500 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA
10. MINIMUM BEND RADIUS FOR RG25S = 9.0 [.35]
11. FOR SING ENDED OR STRIPPED AND TINNED ASSEMBLIES: MAKE A DOUBLE ENDED
F:\DWG\MISC\MKTG\RF23S-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
ASSEMBLY AT TWICE THE CABLE LENGTH AND TEST BEFORE CUTTING ASSEMBLY IN HALF.
UNLESS OTHERWISE SPECIFIED,
PROPRIETARY NOTE
12. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm
DIMENSIONS ARE IN
THIS DOCUMENT CONTAINS INFORMATION
MILLIMETERS [INCHES].
13. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A
CONFIDENTIAL AND PROPRIETARY TO
TOLERANCES ARE:
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
14. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B
OR TRANSFERRED TO OTHER DOCUMENTS OR
DECIMALS
ANGLES
DISCLOSED TO OTHERS OR USED FOR ANY
15. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C
.X: 0.3 [.01]
5
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PURPOSE OTHER THAN THAT WHICH IT WAS
16. FOR STRIPPED AND TINNED OPTION, ONLY THE CENTER CONDUCTOR IS TINNED.
.XX: 0.13 [.005]
PHONE: 812-944-6733
FAX: 812-948-5047
OBTAINED WITHOUT THE EXPRESSED WRITTEN
.XXX: 0.051 [.0020]
CONSENT OF SAMTEC, INC.
17. CONNECTORS TO BE ORIENTED ACCORDING TO CO-HD-WI-3048-M.
e-Mail info@SAMTEC.com
code 55322
SHEET SCALE: 2:1
DESCRIPTION:
MATERIAL:
18. FERRULE AND SPRING ARE FREE FLOATING AND ARE NOT STATIONARY.
DO NOT SCALE DRAWING
SEE END 1 AND END 2 ASSEMBLY PRINTS
RF23S CABLE ASSEMBLY
DWG. NO.
RF23S-XXXXX-XXXXXX-XXXX
BY:
EMMA CHEN 12/14/2012
SHEET
1
OF
2
REVISION A
(STRAIGHT JACK)
(USE DRAWING No. 292XX-J-C-XX-ST-CS3
FOR ASSEMBLY INSTRUCTIONS)
-92SJ
(STRAIGHT PLUG)
(USE DRAWING No. 292XX-P-C-XX-ST-CS3
FOR ASSEMBLY INSTRUCTIONS)
-92SP

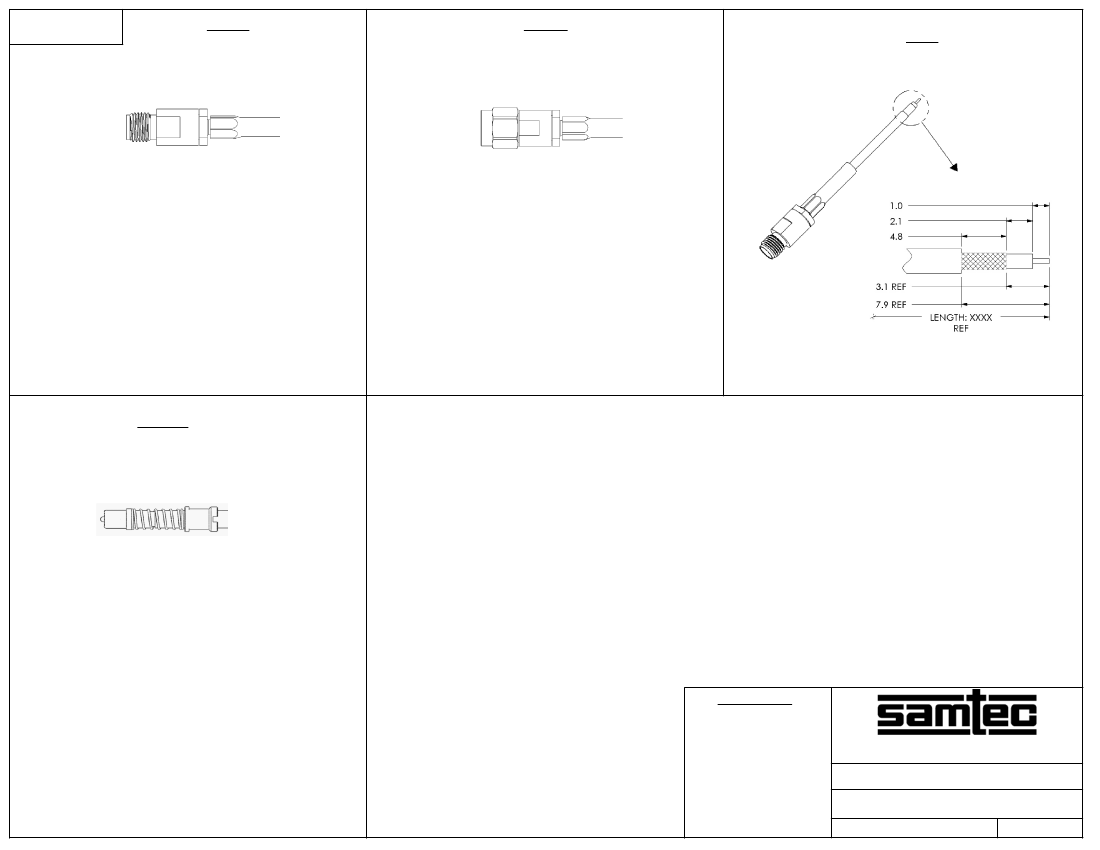

RF23S-92SJX-102148-XXXX SHOWN
FIG 3
PLATING OPTIONS
6: 30μ" MIN. GOLD CENTER CONTACT
30μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-J-C-HH-ST-CS3)
9: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-J-C-HG-ST-CS3)
P: 30μ" MIN. GOLD CENTER CONTACT
PASSIVATED STAINLESS STEEL OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PS-J-C-HP-ST-CS3)
NOTE: ALL CRITICAL DIMENSIONS ON 292XX-J-C-XX-ST-CS3
THAT APPLY MUST BE VERIFIED.
*
-SCC3
(STRAIGHT PLUG)
PLATING OPTIONS
6: 30μ" MIN. GOLD CENTER CONTACT
30μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-P-C-HH-ST-CS3)
9: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-P-C-HG-ST-CS3)
P: 30μ" MIN. GOLD CENTER CONTACT
PASSIVATED STAINLESS STEEL OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PS-P-C-HP-ST-CS3)
NOTE: ALL CRITICAL DIMENSIONS ON 292XX-P-C-XX-ST-CS3
THAT APPLY MUST BE VERIFIED.
(USE DRAWING No. PRB3-P-C-XX-ST-CS3
FOR ASSEMBLY INSTRUCTIONS)
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: PRB3-P-C-HF-ST-CS3)
NOTE: ALL CRITICAL DIMENSIONS ON PRB3-P-C-XX-ST-CS3
THAT APPLY MUST BE VERIFIED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
RF23S CABLE ASSEMBLY
RF23S-XXXXX-XXXXXX-XXXX
F:\DWG\MISC\MKTG\RF23S-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
BY:
EMMA CHEN 12/14/2012
SHEET
2
OF
2
