128K x 32 SRAM Module
TIGA2S4000
-20/25/35
Force Technologies Ltd. www.forcetechnologies.co.uk
Tel. +44 (0)1264
731200
Fax. +44 (0)1264
731444
TIGA6S4000/A/B-20/25/35
TIGA7S4000/A/B-20/25/35
Issue
1 2005
Description
Available in PGA (TIGA 2), JLCC (TIGA 6) and
Gullwing (TIGA 7) footprints. The
TIGA
**S4000
is a 4 Mbit SRAM module, user configurable as
128K x 32, 256K x 16 or 512K x 8. The device is
available with fast access times of 20, 25 and
35ns. The device may be screened in accordance
with MIL-STD-883C.
Features
4 Megabit SRAM module.
Fast Access Times of 20/25/35 ns.
Output Configurable as 32 / 16 / 8 bit wide.
Upgradeable footprint.
Operating Power 3740 / 2310 / 1595 mW (Max).Low
Power Standby (L version) 220 mW (Max).
•
TTL Compatible Inputs and Outputs.
•
May be screened in accordance with MIL-STD-883.
•
TIGA
2 - 66 pin
Ceramic
PGA.
•
TIGA
6 - 68 pin
Ceramic
JLCC.
•
TIGA 7-
68 pin
Ceramic
Gullwing.
•
•
•
•
•

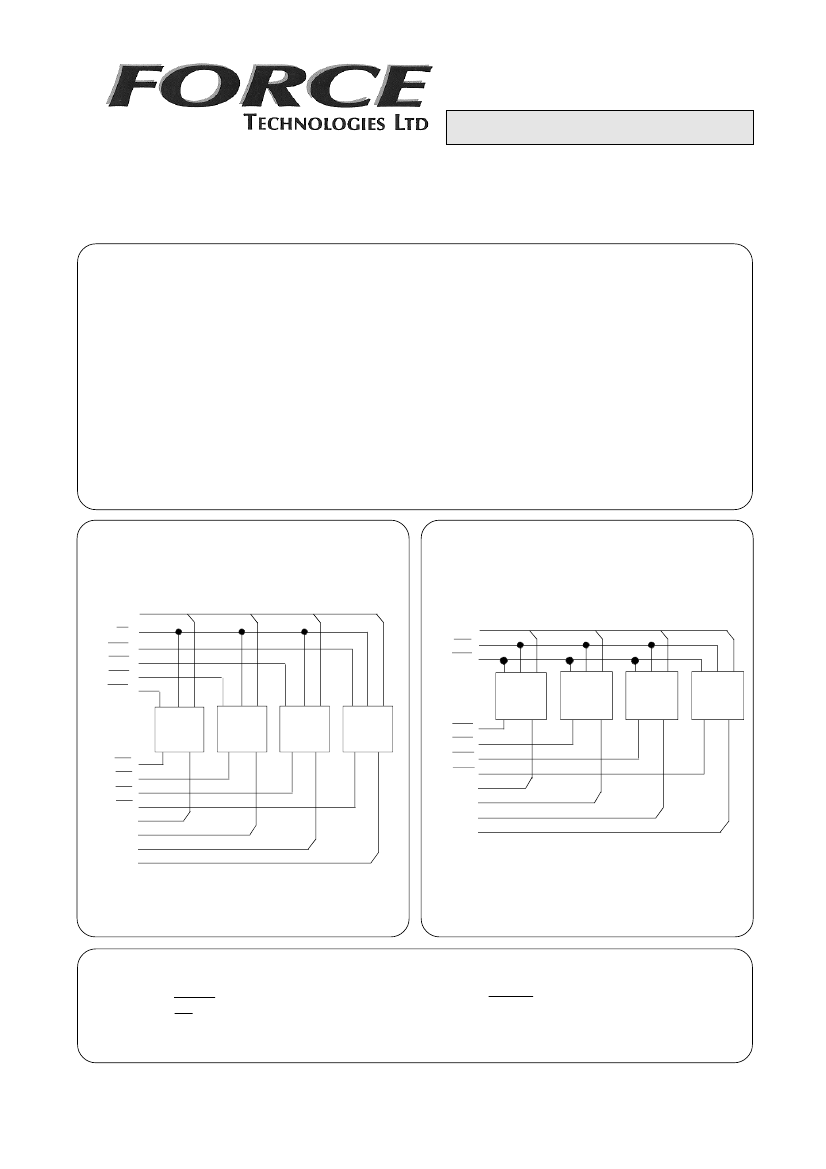

Block Diagram
TIGA2S4000,
6S4000A/B and 7S4000A/B
A0~A16
OE
WE4
WE3
WE2
WE1
128Kx8
SRAM
CS1
CS2
CS3
CS4
D0~7
D8~15
D16~23
D24~31
128Kx8
SRAM
128Kx8
SRAM
128Kx8
SRAM
Block Diagram
TIGA6S4000
and 7S4000
A0-A16
OE
WE
128Kx8
SRAM
CS1
CS2
CS3
CS4
D0-7
D8-15
D16-23
D24-31
128Kx8
SRAM
128Kx8
SRAM
128Kx8
SRAM
Pin Functions
A0~A16
CS1~4
OE
GND
Address Input
Chip Select
Output Enable
Ground
D0~D31
WE1~4
Vcc
Data Inputs/Outputs
Write Enables
Power (+5V)
TIGA
2/6/7S4000/A/B - 20/25/35
Issue
1
DC OPERATING CONDITIONS
Absolute Maximum Ratings
(1)
Voltage on any pin relative to GND
(2)
Power Dissipation
Storage Temperature
V
T
P
T
T
STG
-0.5V to +7.0
4
-65 to +150
V
W
°
C
Notes (1) Stresses above those listed may cause permanent damage. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational sections of this specification
is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Recommended Operating Conditions
min
Supply Voltage
Input High Voltage
Input Low Voltage
Operating Temperature
V
CC
V
IH
V
IL
T
A
T
AI
T
AM
4.5
2.2
-0.5
0
-40
-55
typ
5.0
-
-
-
-
-
max
5.5
6.0
0.8
70
85
125
V
V
V
°
C
°
C (Suffix
I)
°
C (Suffix
M, MB)
DC Electrical Characteristics
(V
CC
=5V±10%,T
A
=-55°C to +125°C)
Parameter
Input Leakage Current
Output Leakage Current
Operating Supply Current
32 bit
16 bit
8 bit
Standby Supply Current
Output Voltage Low
Output Voltage High
(TTL)
-L Version
Symbol Test Condition
I
LI1
I
LO
I
CC32
I
CC16
I
CC8
I
SB1
I
SB2
V
OL
V
OH
V
IN
=0V to V
CC
CS
(1)
=V
IH
or OE=V
IH
, V
I/O
=0V to V
CC
WE=V
IL
Min cycle,duty=100%,I
I/O
=0mA,CS=V
IL
As above
Min cycle,duty=100%,I
I/O
=0mA,CS=V
IL
CS
(1)
≥V
IH
V
CC
= 5.5V
CS
(1)
≥V
IH
, V
IL
≤V
IN
≥V
IH,
f = 0 Hz
I
OL
= 8.0mA
I
OH
= -4.0mA
-
-
-
-
-
-
2.4
-
-
-
-
-
-
-
680 mA
420 mA
290 mA
160 mA
40
0.4
-
mA
V
V
min
-8
-8
typ
-
-
max Unit
8
8
µA
µA
Notes: (1) CS and WE above are accessed through CS1~4 and WE1~4 respectively. These inputs must be
operated simultaneously for 32 bit mode, in pairs for 16 bit mode and singly for 8 bit mode.
Capacitance
(V
CC
=5V±10%,T
A
=25°C)
Note: (1) On the standard module, WE = 30 pF max.
Parameter
Input Capacitance Address, OE
WE1~4
(1)
, CS1~4
I/O Capacitance
D0~D31
Symbol
C
IN1
C
IN2
C
I/O
Test Condition
V
IN
=0V
V
IN
=0V
V
I/O
=0V
typ
-
-
-
max
30
16
30
Unit
pF
pF
pF (8 bit mode)
These parameters are calculated, not measured.
2
TIGA
2/6/7S4000/A/B - 20/25/35
Issue
1 2005
Operating Modes
The table below shows the logic inputs required to control the operating modes of each of the SRAMs on the
modules.
Mode
Not Selected
Output Disable
Read
Write
1 = V
IH
,
0 = V
IL
,
X = Don't Care
Note: CS above is accessed through CS1~4 (and WE by WE1~4 on the
TIGA
2S4000, 6S4000A, 7S4000A). For correct
operation, CS1~ 4 (and WE1~4) must operate simultaneously for 32 bit operation, in pairs for 16 bit operation, or
singly for 8 bit operation.
CS
1
0
0
0
OE
X
1
0
X
WE
X
1
1
0
V
CC
Current
I
SB1
,I
SB2
I
CC
I
CC
I
CC
I/O Pin
High Z
High Z
D
OUT
D
IN
Reference Cycle
Power Down
-
Read Cycle
Write Cycle
AC Test Conditions
*Input pulse levels: 0.0V to 3.0V
*Input rise and fall times: 3 ns
*Input and Output timing reference levels: 1.5V
*V
cc
=5V±10%
*TIGA module is tested in 32 bit mode.
Output Load
I/O Pin
166
Ω
1.76V
30pF
3
TIGA
2/6/7S4000/A/B - 20/25/35
Issue
1
2005
AC OPERATING CONDITIONS
Read Cycle
Parameter
Read Cycle Time
Address Access Time
Chip Select Access Time
Output Enable to Output Valid
Output Hold from Address Change
Chip Selection to Output in Low Z
Output Enable to Output in Low Z
Output Disable to Output in High Z
(3)
Symbol
t
RC
t
AA
t
ACS
t
OE
t
OH
t
CLZ
t
OLZ
t
OHZ
20
min
max
20
-
-
-
5
6
0
0
0
-
20
20
9
-
-
-
9
9
25
min
max
25
-
-
-
5
5
0
-
-
-
25
25
8
-
-
-
15
15
min
35
-
-
-
5
5
0
-
-
35
max Units
-
35
35
12
-
-
-
15
15
ns
ns
ns
ns
ns
ns
ns
ns
ns
Chip Deselection to Output in High Z
(3)
t
CHZ
Write Cycle
20
Parameter
Write Cycle Time
Chip Selection to End of Write
Address Valid to End of Write
Address Setup Time
Write Pulse Width
Write Recovery Time
Data to Write Time Overlap
Output Active from End of Write
Data Hold from Write Time
Write to Output High Z
Symbol
t
WC
t
CW
t
AW
t
AS
t
WP
t
WR
t
DW
t
OW
t
DH
t
WHZ
min
20
15
15
0
15
0
0
15
2*
5
max
-
-
-
-
-
-
15
-
-
-
min
25
16
16
0
15
5
10
3
2*
0
25
max
-
-
-
-
-
-
-
-
-
10
min
35
20
20
0
20
5
15
3
2*
0
35
max
-
-
-
-
-
-
-
-
-
10
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* Note : Only applies to
TIGA6S4000/A
otherwise t
DH
(min) = 0
4
TIGA
2/6/7S4000/A/B - 20/25/35
Issue
1
2005

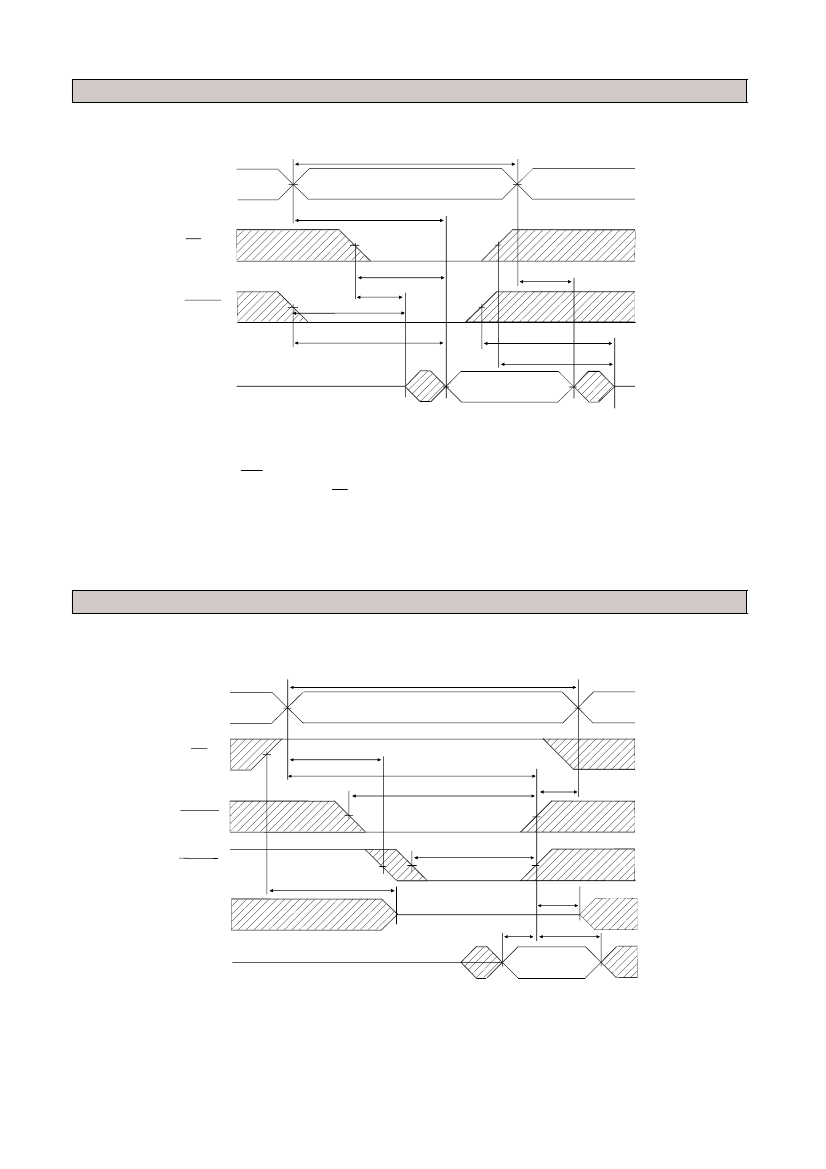

Read Cycle Timing Waveform
(1,2)
t
A0~A16
t
AA
OE
RC
t
OE
t
OLZ
CS1~4
t
CLZ
t
ACS
t
OH
t
CHZ(3)
t
OHZ(3)
High-Z
D0~31
Data Valid
Notes:
(1) During the Read Cycle, WE is high for the modules.
(2) Address valid prior to or coincident with CS transition Low.
(3) t
CHZ
and t
OHZ
are defined as the time at which the outputs achieve the open circuit conditions and are not referenced
to output voltage levels. These parameters are sampled and not 100% tested.
Write Cycle No.1 Timing Waveform
t
WC
A0~A16
OE
t
AS(3)
t
AW
t
CW(4)
(6)
t
WR
(2)
CS1~4
t
WP(1)
WE1~4
t
OHZ(3,9)
t
OW
D0~31out
High-Z
High-Z
t
DW
t
DH
D0~31in
5
