DG212CYT datasheet, PDF - EEWORLD Datasheet

DG212CYT: DescriptionSPST, 4 Func, 1 Channel, CMOS, PDSO16; CategoryAnalog mixed-signal IC The signal circuit; File Size131KB，5 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

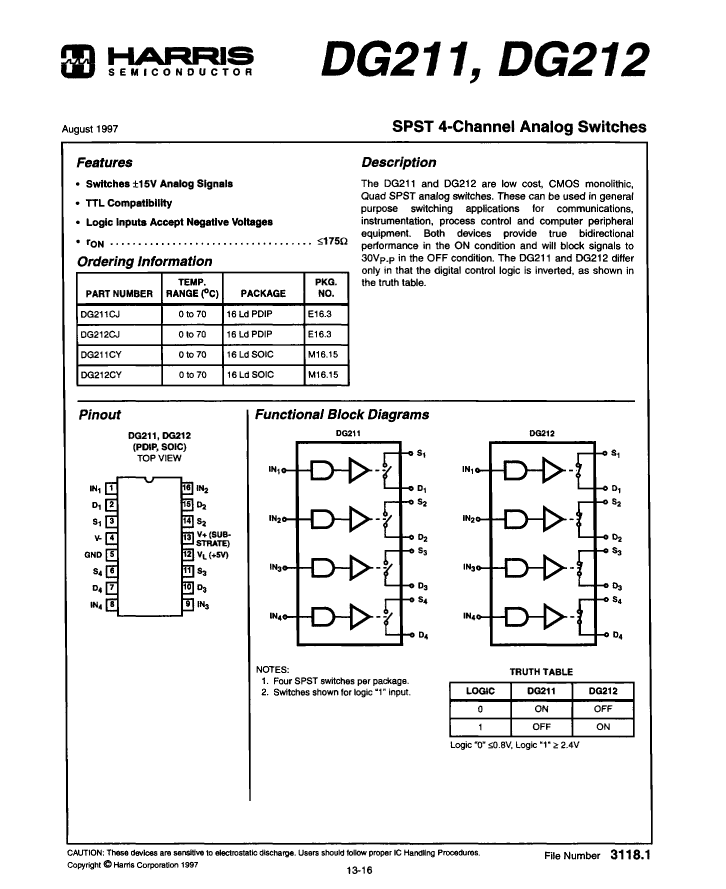

DG212CYT Overview

SPST, 4 Func, 1 Channel, CMOS, PDSO16

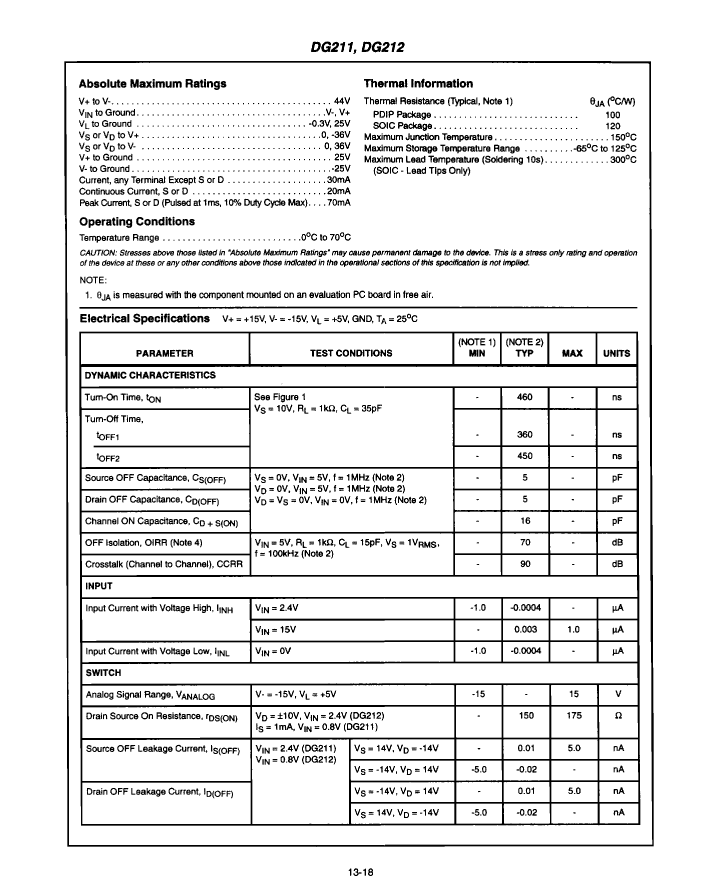

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	70 dB
Maximum on-state resistance (Ron)	175 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5,+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES

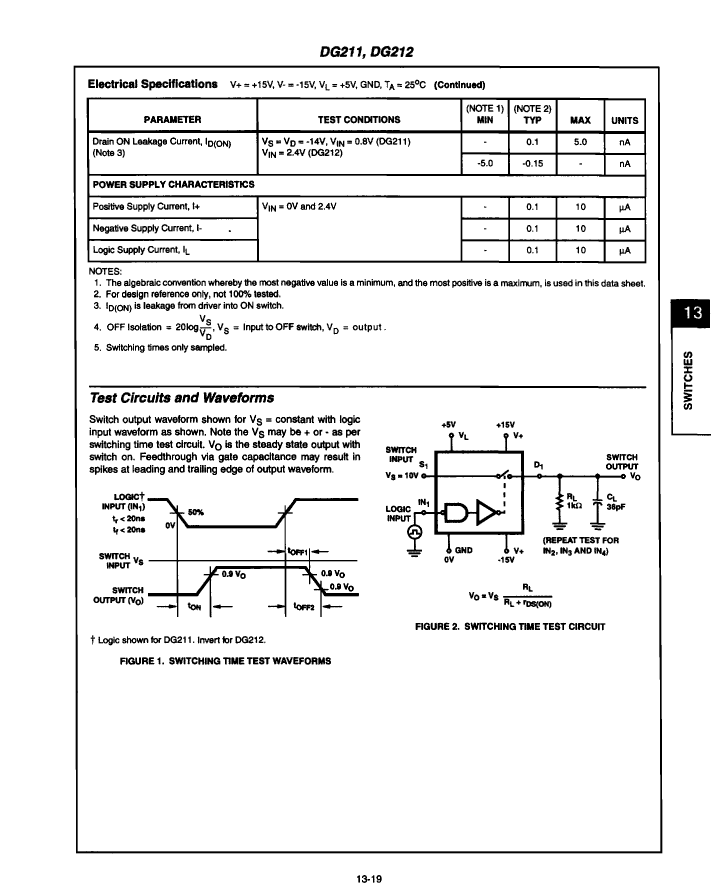

Maximum disconnect time	500 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

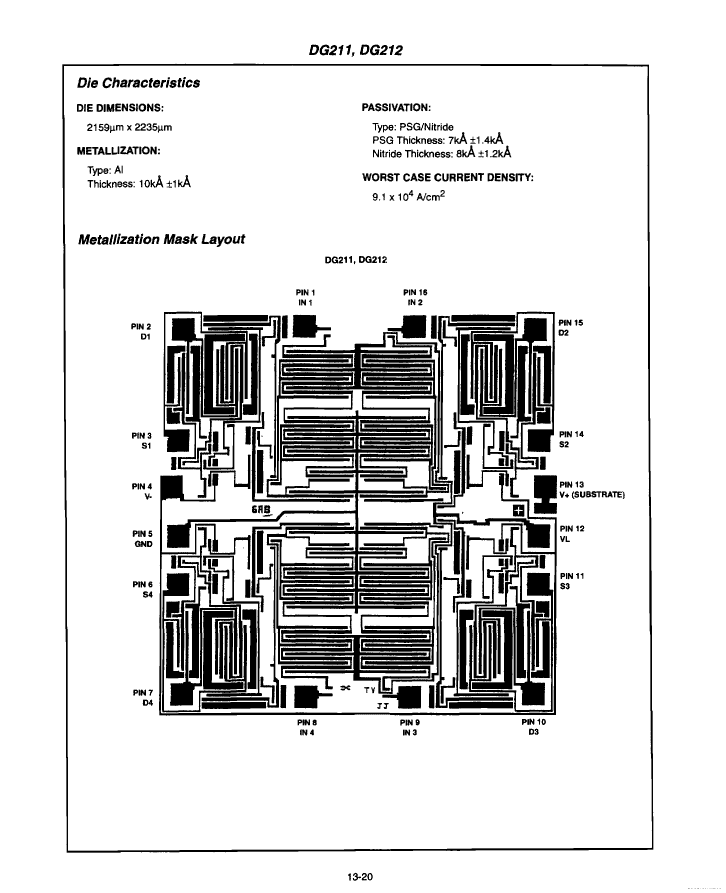

	DG212CYT
Description	SPST, 4 Func, 1 Channel, CMOS, PDSO16
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	70 dB
Maximum on-state resistance (Ron)	175 Ω
Maximum operating temperature	70 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5,+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	500 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
