ALD4702SBXXXX: DescriptionOperational Amplifier, 4 Func, 6500uV Offset-Max, CMOS, PDSO14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size296KB，6 Pages; ManufacturerALD [Advanced Linear Devices]

Download Datasheet Parametric Compare View All

ALD4702SBXXXX Overview

Operational Amplifier, 4 Func, 6500uV Offset-Max, CMOS, PDSO14

ALD4702SBXXXX Parametric

Parameter Name	Attribute value
Maker	ALD [Advanced Linear Devices]
Parts packaging code	SOIC
package instruction	,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.0003 µA
Nominal Common Mode Rejection Ratio	83 dB
Maximum input offset voltage	6500 µV
JESD-30 code	R-PDSO-G14
Negative supply voltage upper limit	-6.6 V
Nominal Negative Supply Voltage (Vsup)	-2.5 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Nominal slew rate	1.9 V/us
Supply voltage upper limit	6.6 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	1500 kHz

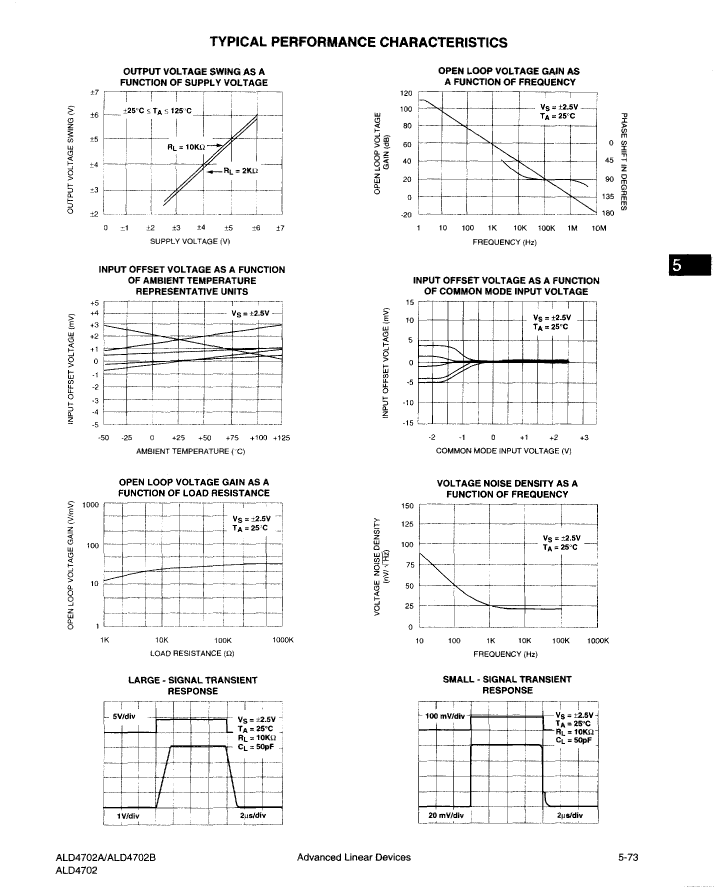

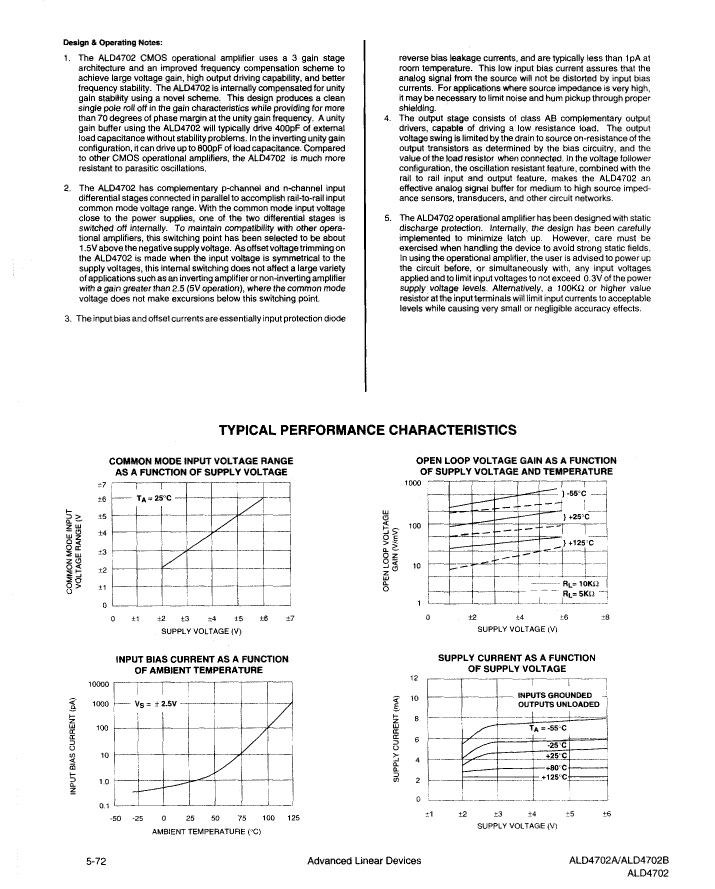

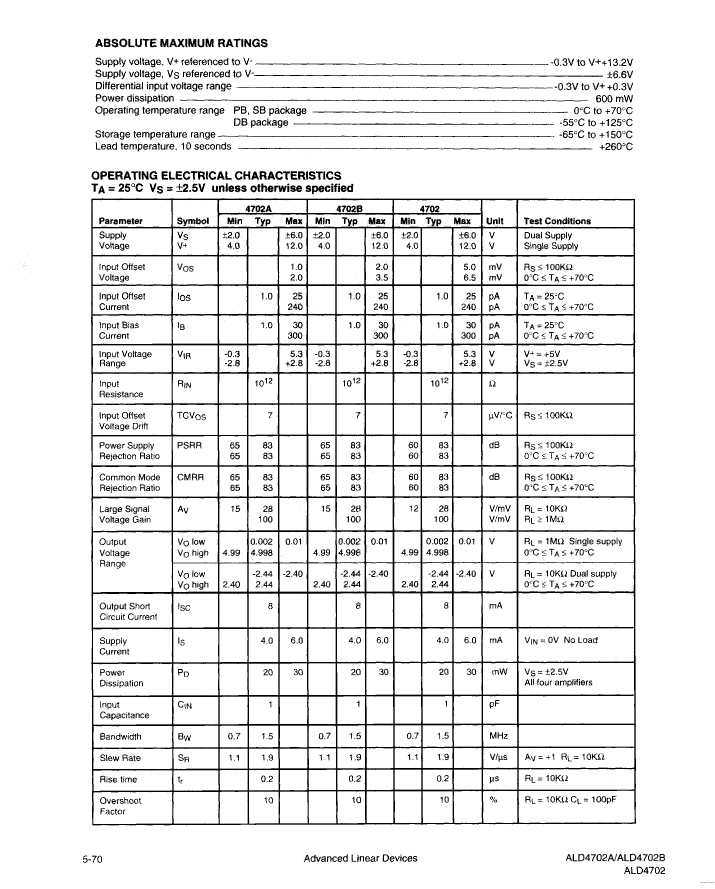

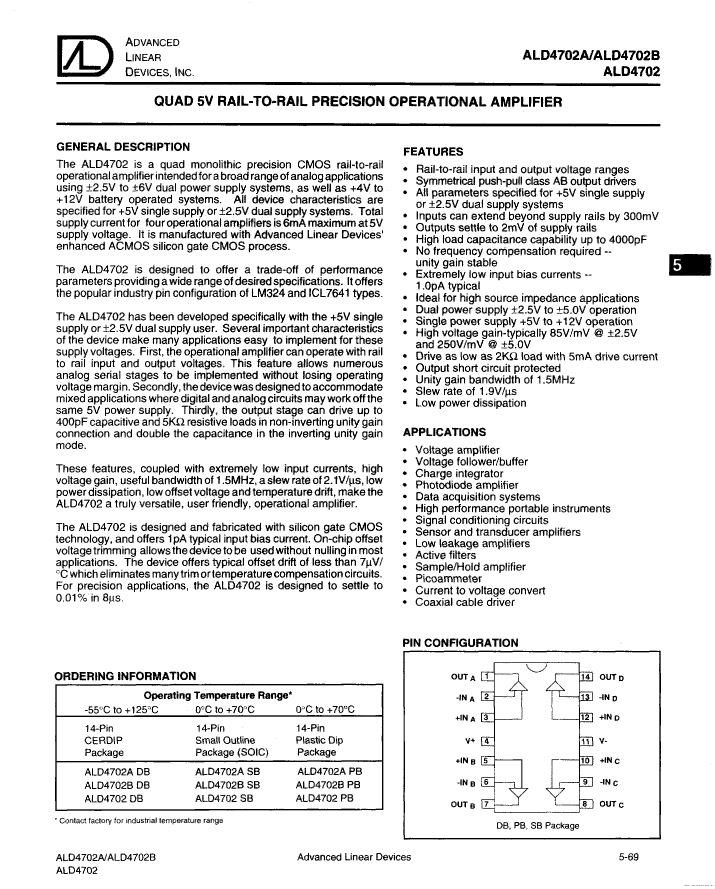

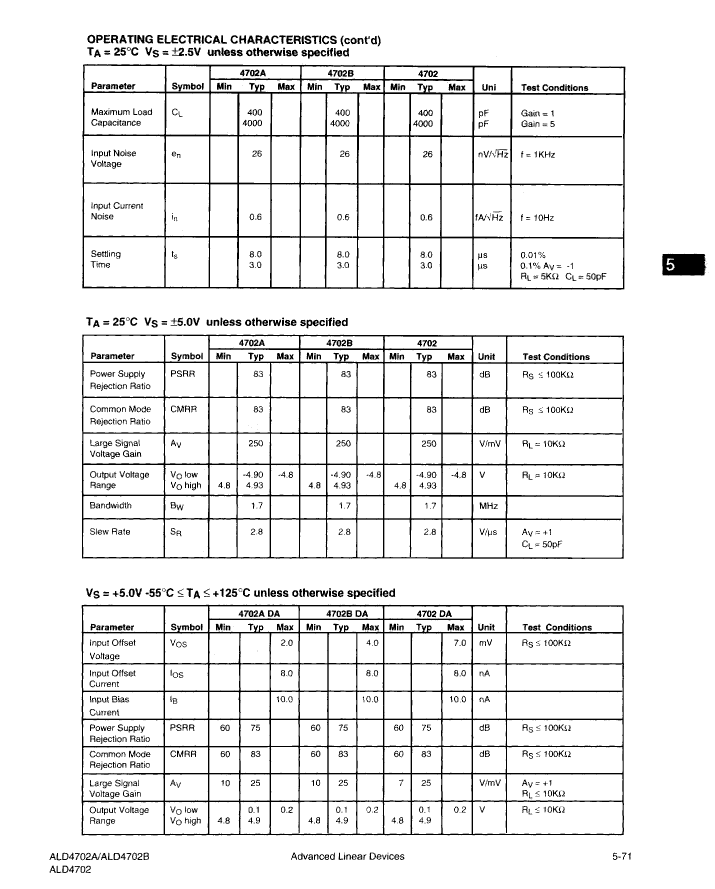

Preview

Download Datasheet

ALD4702SBXXXX Related Products

	ALD4702SBXXXX	ALD4702ADBMXXXX	ALD4702PBXXXX	ALD4702APBXXXX	ALD4702BSBXXXX	ALD4702DBMXXXX	ALD4702BDBMXXXX	ALD4702ASBXXXX	ALD4702BPBXXXX
Description	Operational Amplifier, 4 Func, 6500uV Offset-Max, CMOS, PDSO14	Operational Amplifier, 4 Func, 2000uV Offset-Max, CMOS, CDIP14, CERDIP-14	Operational Amplifier, 4 Func, 6500uV Offset-Max, CMOS, PDIP14	Operational Amplifier, 4 Func, 2000uV Offset-Max, CMOS, PDIP14	Operational Amplifier, 4 Func, 3500uV Offset-Max, CMOS, PDSO14	Operational Amplifier, 4 Func, 7000uV Offset-Max, CMOS, CDIP14, CERDIP-14	Operational Amplifier, 4 Func, 4000uV Offset-Max, CMOS, CDIP14, CERDIP-14	Operational Amplifier, 4 Func, 2000uV Offset-Max, CMOS, PDSO14	Operational Amplifier, 4 Func, 3500uV Offset-Max, CMOS, PDIP14
Maker	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]
Parts packaging code	SOIC	DIP	DIP	DIP	SOIC	DIP	DIP	SOIC	DIP
Contacts	14	14	14	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.0003 µA	0.01 µA	0.0003 µA	0.0003 µA	0.0003 µA	0.01 µA	0.01 µA	0.0003 µA	0.0003 µA
Nominal Common Mode Rejection Ratio	83 dB	83 dB	83 dB	83 dB	83 dB	83 dB	83 dB	83 dB	83 dB
Maximum input offset voltage	6500 µV	2000 µV	6500 µV	2000 µV	3500 µV	7000 µV	4000 µV	2000 µV	3500 µV
JESD-30 code	R-PDSO-G14	R-CDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14	R-CDIP-T14	R-CDIP-T14	R-PDSO-G14	R-PDIP-T14
Negative supply voltage upper limit	-6.6 V	-6.6 V	-6.6 V	-6.6 V	-6.6 V	-6.6 V	-6.6 V	-6.6 V	-6.6 V
Nominal Negative Supply Voltage (Vsup)	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V
Number of functions	4	4	4	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14	14	14	14
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	1.9 V/us	1.9 V/us	1.9 V/us	1.9 V/us	1.9 V/us	1.9 V/us	1.9 V/us	1.9 V/us	1.9 V/us
Supply voltage upper limit	6.6 V	6.6 V	6.6 V	6.6 V	6.6 V	6.6 V	6.6 V	6.6 V	6.6 V
Nominal supply voltage (Vsup)	2.5 V	5 V	2.5 V	2.5 V	2.5 V	5 V	5 V	2.5 V	2.5 V
surface mount	YES	NO	NO	NO	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz
