609-3654: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Guide Slot, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size32KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

609-3654 Overview

Board Connector, 36 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Guide Slot, Blue Insulator, Receptacle

609-3654 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZING KEY AVAILABLE
Board mount options	HOLE .099-.111
body width	0.35 inch
subject depth	0.7 inch
body length	2.56 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	PANEL
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.61 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	36
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

IDC Systems

Headers

STRAIGHT

STANDARD HEADERS

WITH AND WITHOUT

RETAINER/EJECTOR

LATCHES

.100" x .100" CENTERS

LR92984

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Blue

ONTACT

ATERIAL

Phosphor bronze with 30µ

inches min. gold over 50µ inches min. nickel

plating

LECTRICAL

ROPERTIES

URRENT

ATING

1 Amp

NSULATION

ESISTANCE

>1 x 10

Ohms @500 VDC

IELECTRIC

TRENGTH

>1000 VRMS @ sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

ATING

ONNECTORS

EMALE

OCKETS

See pages 9-12

CCESSORIES

OLARIZING

See page 44

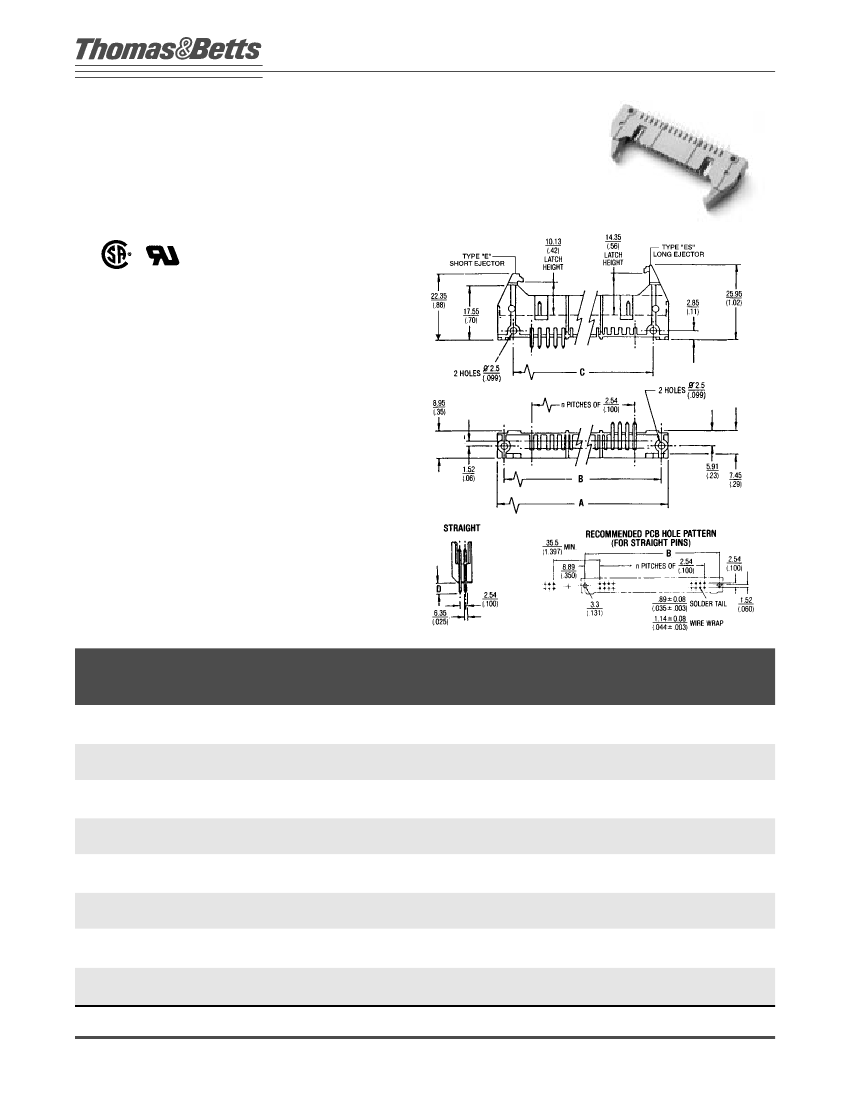

Ordering Information

PCB 1.57MM (.062)

D=2.9MM (.114)

STRAIGHT

609-0624

609-1024

609-1224

609-1424

609-1624

609-2024

609-2424

609-2624

609-3024

609-3424

609 3624

609-4024

609-4424

609-5024

609-6024

609-6424

CATALOG NUMBERS

PCB 3.18 MM(.125)

D=4.48MM (.176)

STRAIGHT

609-0634

609-1034

609-1234

609-1434

609-1634

609-2034

609-2434

609-2634

609-3034

609-3434

609-3634

609-4034

609-4434

609-5034

609-6034

609-6434

DIMENSIONS IN MM (INCHES)

WIREWRAP

D=15.5MM (.610)

STRAIGHT

609-0654

609-1054

609-1254

609-1454

609-1654

609-2054

609-2454

609-2654

609-3054

609-3454

609-3654

609-4054

609-4454

609-5054

609-6054

609-6454

NO.

POS.

27.05 (1.07)

32.13 (1.26)

34.64 (1.36)

37.21 (1.46)

39.75 (1.56)

44.83 (1.76)

49.88 (1.96)

52.45 (2.06)

57.50 (2.26)

62.61 (2.46)

65.12 (2.56)

70.23 (2.76)

75.31 (2.96)

82.93 (3.26)

95.63 (3.76)

100.71 (3.96)

22.86 (.90)

27.94 (1.10)

30.48 (1.20)

33.02 (1.30)

35.56 (1.40)

40.64 (1.60)

45.72 (1.80)

48.26 (1.90)

53.34 (2.10)

58.42 (2.30)

60.96 (2.40)

66.04 (2.60)

71.12 (2.80)

78.74 (3.10)

91.44 (3.60)

96.52 (3.80)

16.76 (.66)

21.64 (.85)

24.38 (.96)

26.92 (1.06)

29.46 (1.16)

34.54 (1.36)

39.62 (1.56)

42.16 (1.66)

47.26 (1.86)

52.32 (2.06)

54.86 (2.16)

59.94 (2.36)

65.02 (2.56)

72.64 (2.86)

85.35 (3.36)

90.42 (3.56)

For long ejectors, add suffix ES (609-XXXXES). For short ejectors, add suffix E (609-XXXXE)

Add “R” to part number for PCB retention feature.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
