SSG70D50 datasheet, PDF - EEWORLD Datasheet

SSG70D50: DescriptionTRIAC, 500V V(DRM), 70A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size569KB，4 Pages; ManufacturerSanRex; Websitehttp://www.ecomallbiz.com/sanrex

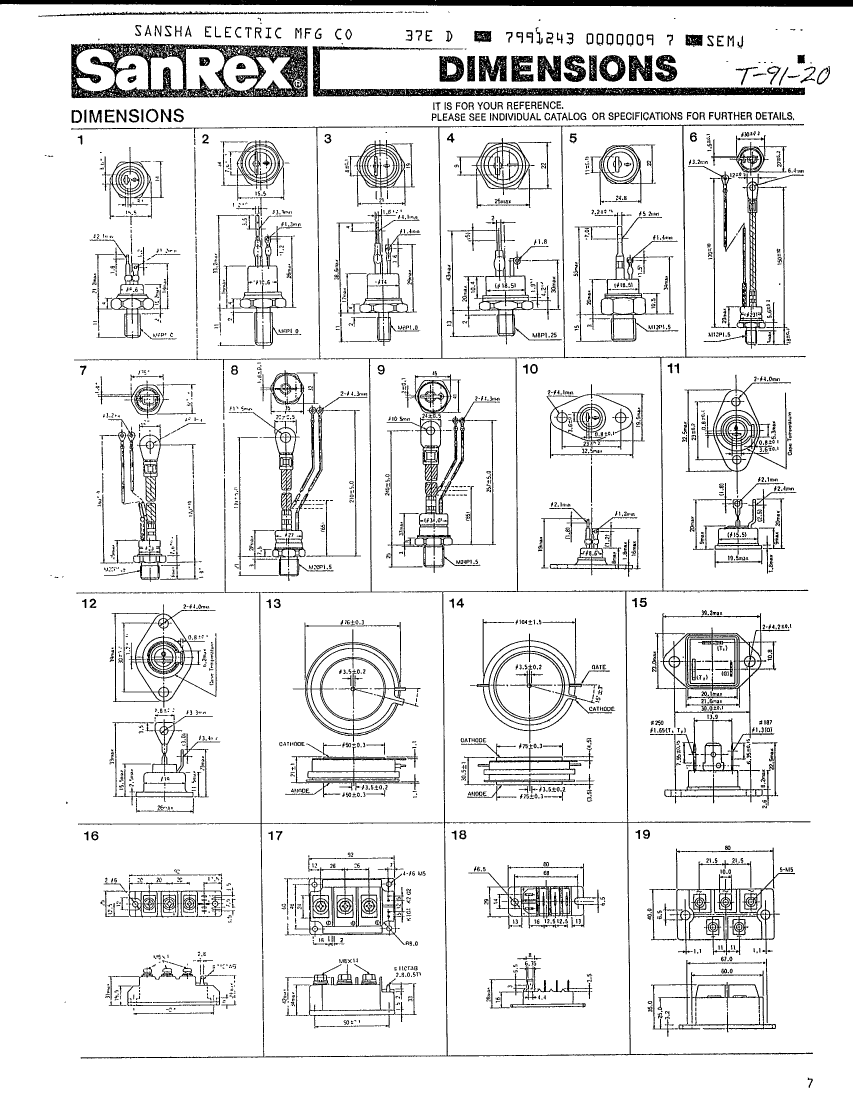

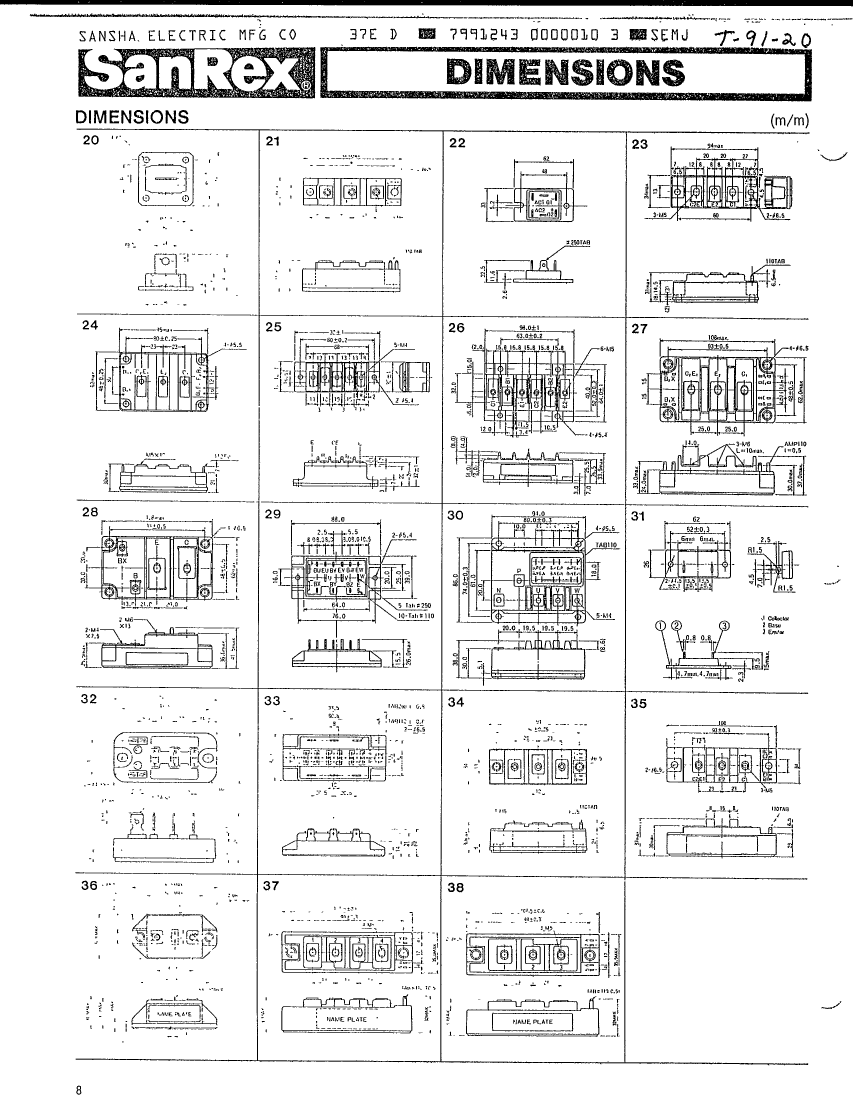

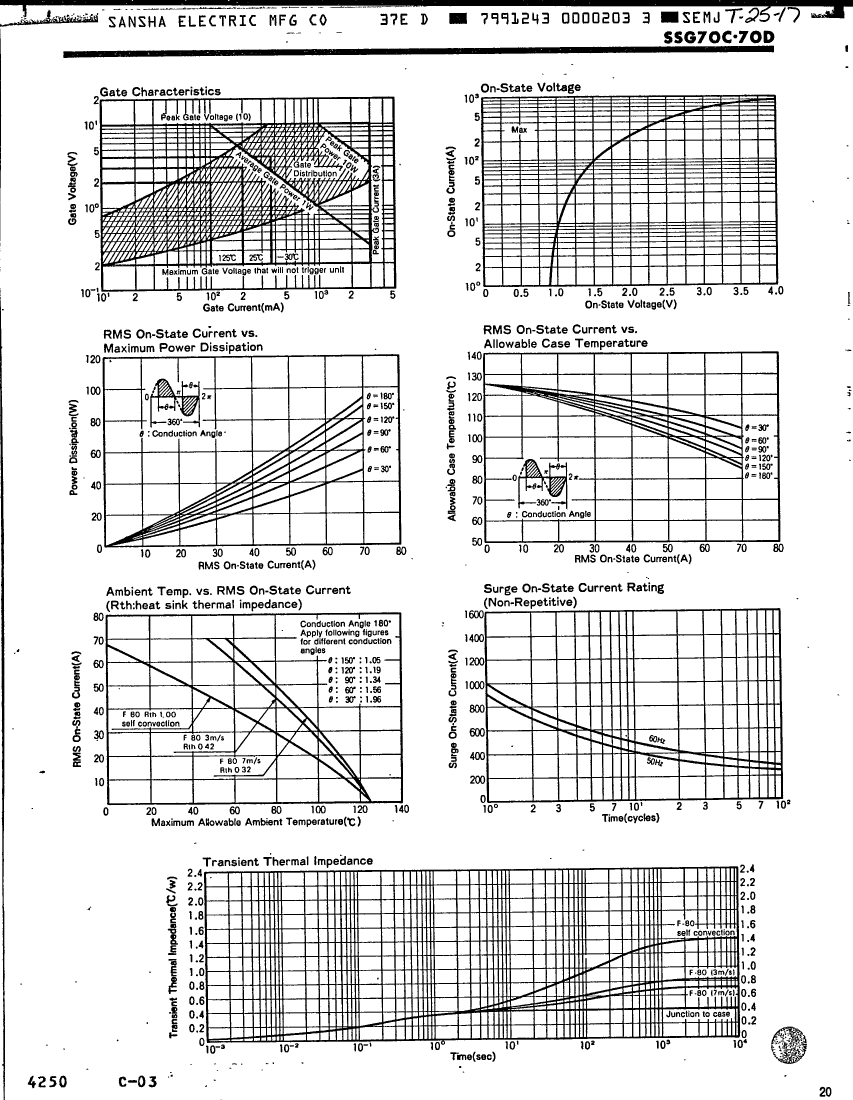

Download Datasheet Parametric Compare View All

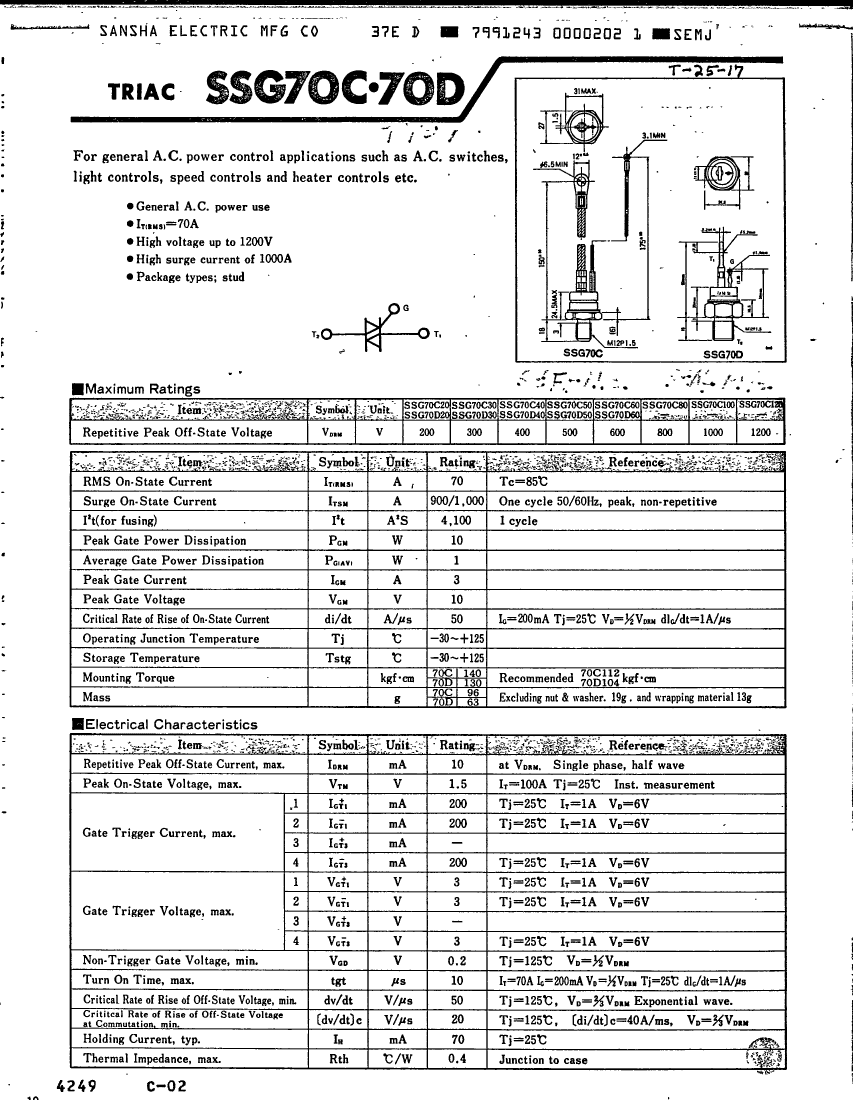

SSG70D50 Overview

TRIAC, 500V V(DRM), 70A I(T)RMS

Parameter Name	Attribute value
Maker	SanRex
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of commutation voltage - minimum value	20 V/us
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Maximum leakage current	10 mA
Maximum on-state voltage	1.5 V
Maximum operating temperature	125 °C
Minimum operating temperature	-30 °C
Maximum rms on-state current	70 A
Off-state repetitive peak voltage	500 V
surface mount	NO
Trigger device type	TRIAC

	SSG70D50	SSG70C20	SSG70C30	SSG70C50	SSG70D20	SSG70D30
Description	TRIAC, 500V V(DRM), 70A I(T)RMS	TRIAC, 200V V(DRM), 70A I(T)RMS	TRIAC, 300V V(DRM), 70A I(T)RMS	TRIAC, 500V V(DRM), 70A I(T)RMS	TRIAC, 200V V(DRM), 70A I(T)RMS	TRIAC, 300V V(DRM), 70A I(T)RMS
Maker	SanRex	SanRex	SanRex	SanRex	SanRex	SanRex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Critical rise rate of commutation voltage - minimum value	20 V/us	20 V/us	20 V/us	20 V/us	20 V/us	20 V/us
Critical rise rate of minimum off-state voltage	50 V/us	50 V/us	50 V/us	50 V/us	50 V/us	50 V/us
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V
Maximum leakage current	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Maximum on-state voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Maximum rms on-state current	70 A	70 A	70 A	70 A	70 A	70 A
Off-state repetitive peak voltage	500 V	200 V	300 V	500 V	200 V	300 V
surface mount	NO	NO	NO	NO	NO	NO
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
