SEL2015

Description
3phi Round Narrow Viewing Angle LEDs
File Size424KB,2 Pages
ManufacturerSANKEN
Websitehttp://www.sanken-ele.co.jp/en/
Download Datasheet View All

SEL2015 Overview

3phi Round Narrow Viewing Angle LEDs

5-1-1 Unicolor lamps
■3
φ
Round Narrow Viewing Angle LEDs
SEL2015 Series
Part Number
SEL2215R
SEL2215S
SEL2815A
SEL2815D
SEL2915A
SEL2915D
SEL2715K
SEL2715Y
SEL2415E
SEL2415G
SEL2515C
SELU2215R-S
Emitting Color
Red
Red
Amber
Amber
Orange
Orange
Yellow
Yellow
Green
Green
Pure green
Ultrahigh luminosity  Red
Lens Color
Diffused red
Transparent red
Transparent orange
Diffused orange
Transparent orange
Diffused orange
Transparent yellow
Diffused yellow
Transparent green
Diffused green
Water clear
Diffused red
Forward Voltage
Luminous Intensity Peak Wavelength Dominant Wavelength Spectrum Half Bandwidth
I
v
λP
λd
∆λ
Conditions
Conditions
Conditions
Conditions
Conditions
VF
(nm)
(nm)
(nm)
(mcd) IF (mA)
IF (mA)
IF (mA)
IF (mA)
IF (mA)
(V)
TYP
MAX
TYP
TYP
TYP
TYP
1.9
2.5
10
38
20
630
10
620
10
35
10
1.9
2.5
10
45
20
630
10
620
10
35
10
1.9
2.5
10
80
20
610
10
605
10
35
10
1.9
2.5
10
60
20
610
10
605
10
35
10
1.9
2.5
10
81
20
587
10
590
10
33
10
1.9
2.5
10
53
20
587
10
590
10
33
10
2.0
2.5
10
130
20
570
10
571
10
30
10
2.0
2.5
10
110
20
570
10
571
10
30
10
2.0
2.5
10
110
20
560
10
567
10
20
10
2.0
2.5
10
72
20
560
10
567
10
20
10
2.0
2.5
10
52
20
555
10
559
10
20
10
2.0
2.5
20
380
20
632
20
624
20
20
20
Chip
Material
GaAsP
GaAsP
GaAsP
GaAsP
GaAsP
GaAsP
GaP
GaP
GaP
GaP
GaP
AlGaInP

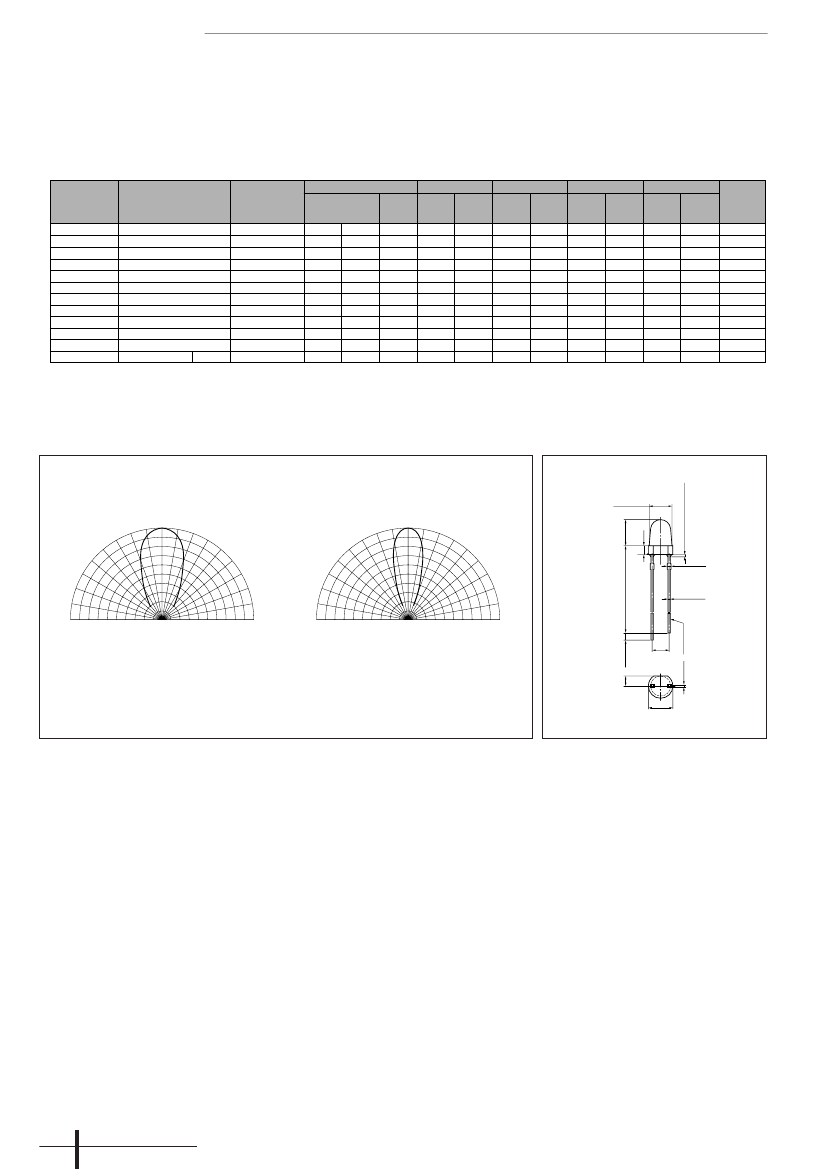

Directional Characteristics (representative example)
External Dimensions
(Unit: mm)
Dimensional Tolerance:
±0.3
Resin heap 1.5max
ø3.1
±0.1
4.0
±0.1
(1.3)
30°
60°
30°
60°
60°
30°
30°
60°
0.65max
25.4min
0.45
±0.1
1.55 1.0min
Diffused lens
Transparent lens
(2.54)
ø3.8
Product Mass: Approx. 0.12 g
232
LEDs
0.4
±0.1
Cathode
90°
100%
50
0
50
90°
100%
90°
100%
50
0
50
90°
100%
