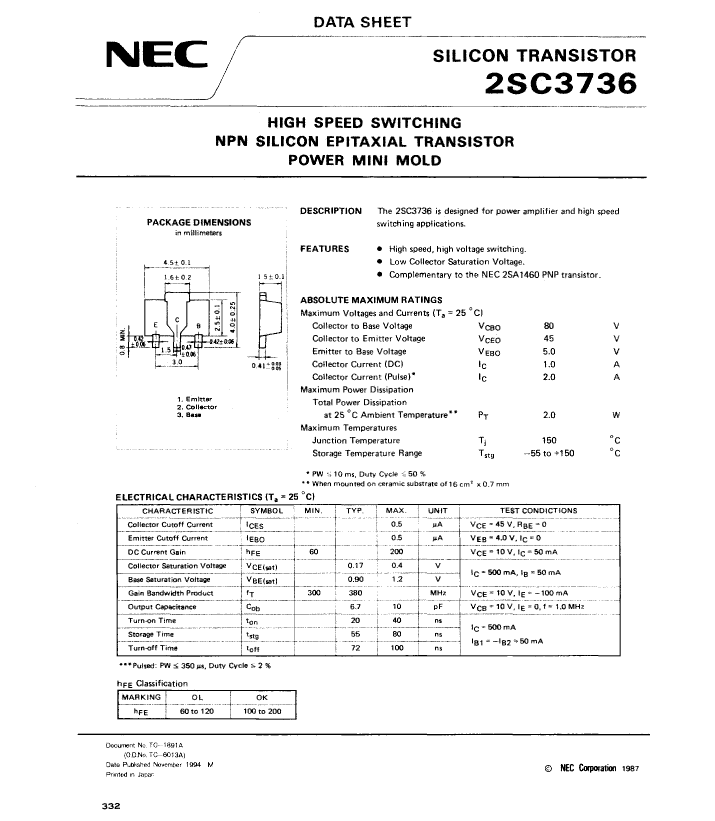

2SC3736OK-T2-AZ

Description
1000mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size137KB,3 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric View All

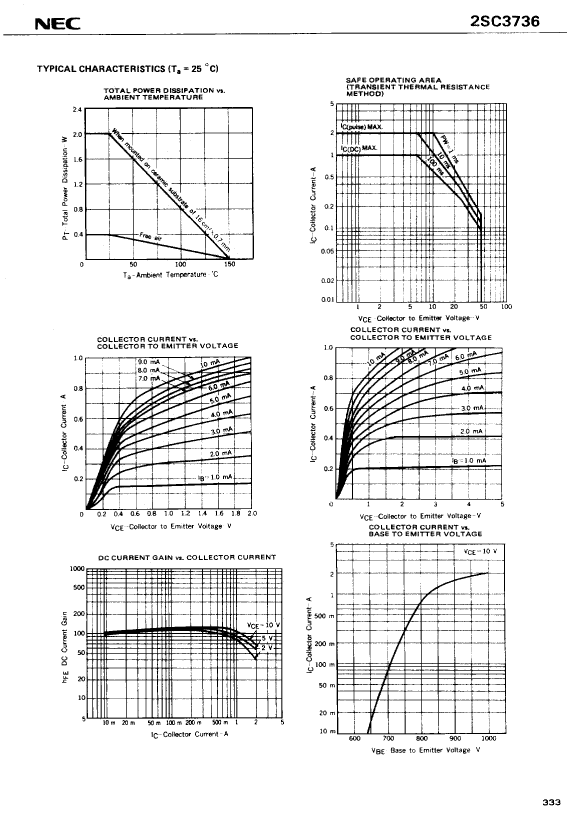

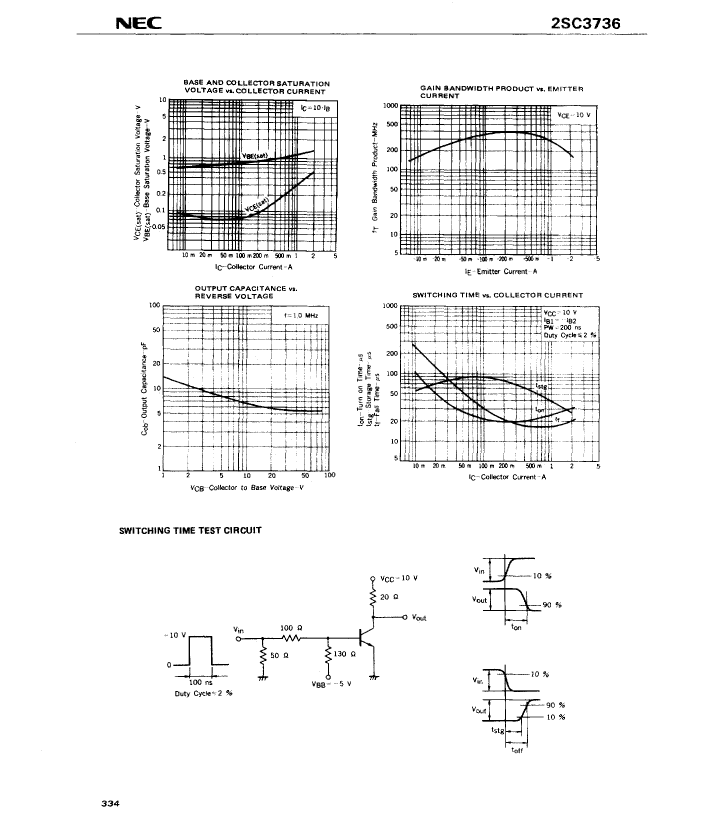

2SC3736OK-T2-AZ Overview

1000mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN

2SC3736OK-T2-AZ Parametric

Parameter NameAttribute value
Parts packaging codeSC-62
package instructionSMALL OUTLINE, R-PSSO-F3
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)1 A
Collector-emitter maximum voltage45 V
ConfigurationSINGLE
Minimum DC current gain (hFE)100
JESD-30 codeR-PSSO-F3
JESD-609 codee6
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal surfaceTIN BISMUTH
Terminal formFLAT
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)380 MHz
Maximum off time (toff)100 ns
Maximum opening time (tons)40 ns
Base Number Matches1
