ST49C101A-01: DescriptionClock Generator, 140MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size313KB，9 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

ST49C101A-01 Overview

Clock Generator, 140MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8

ST49C101A-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Exar
Parts packaging code	SOIC
package instruction	0.150 INCH, SOIC-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IT ALSO OPERATES 5V
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	140 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Master clock/crystal nominal frequency	30 MHz
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

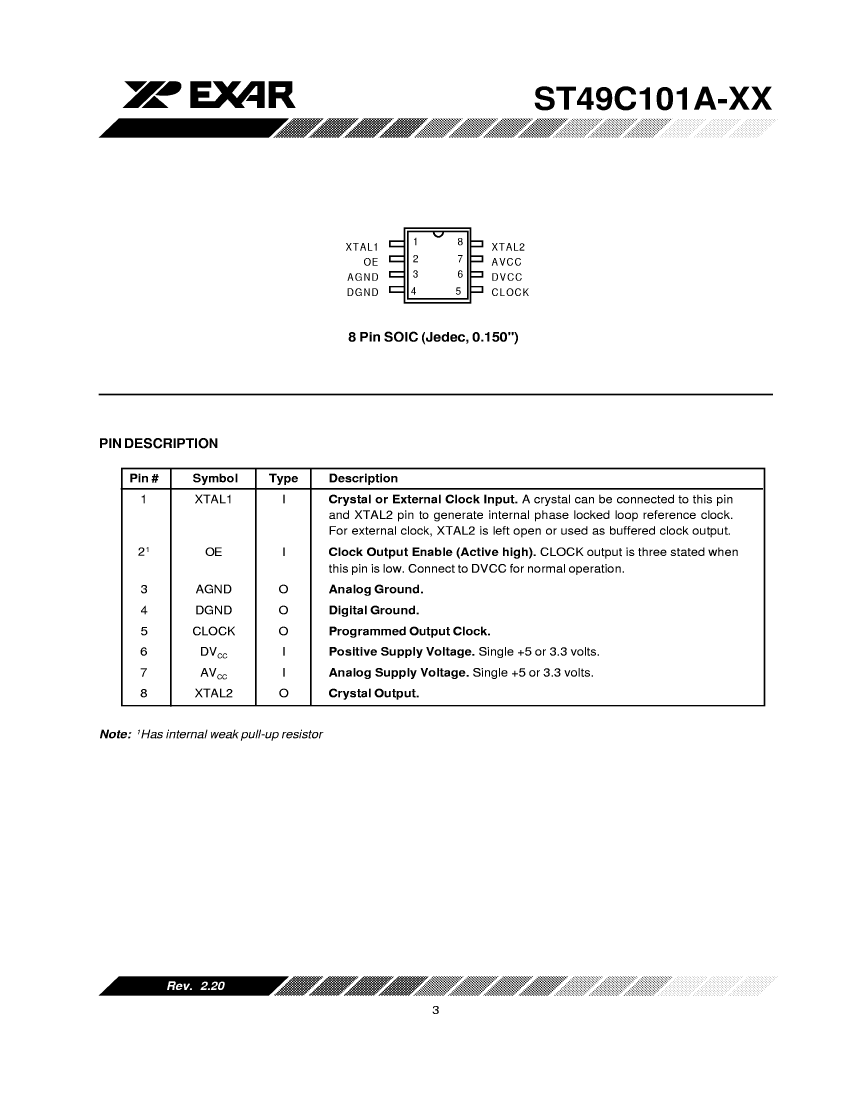

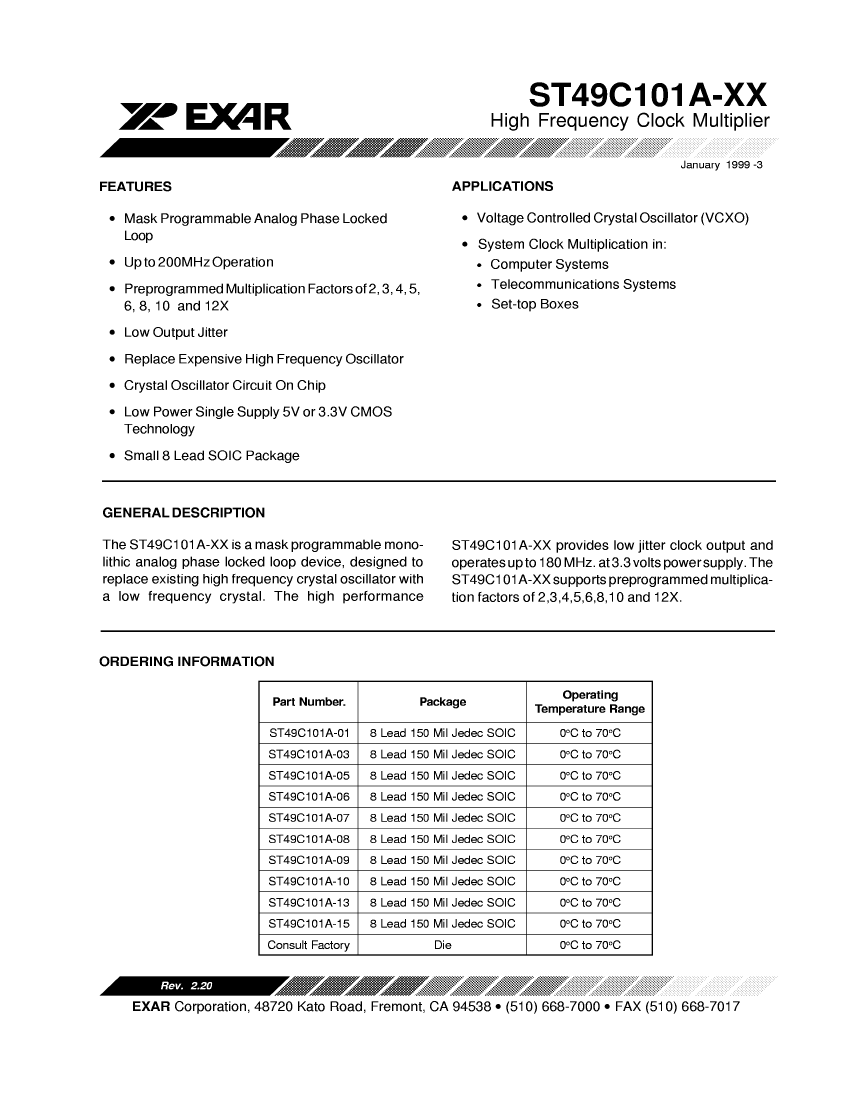

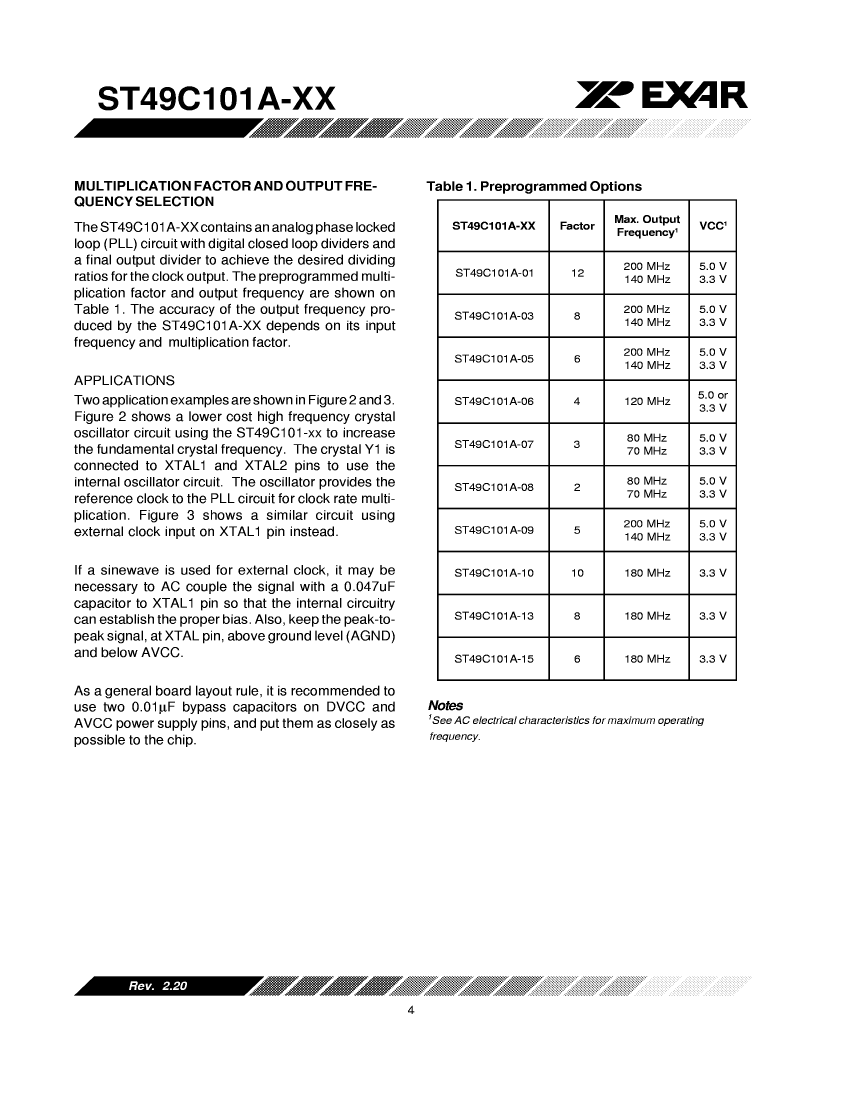

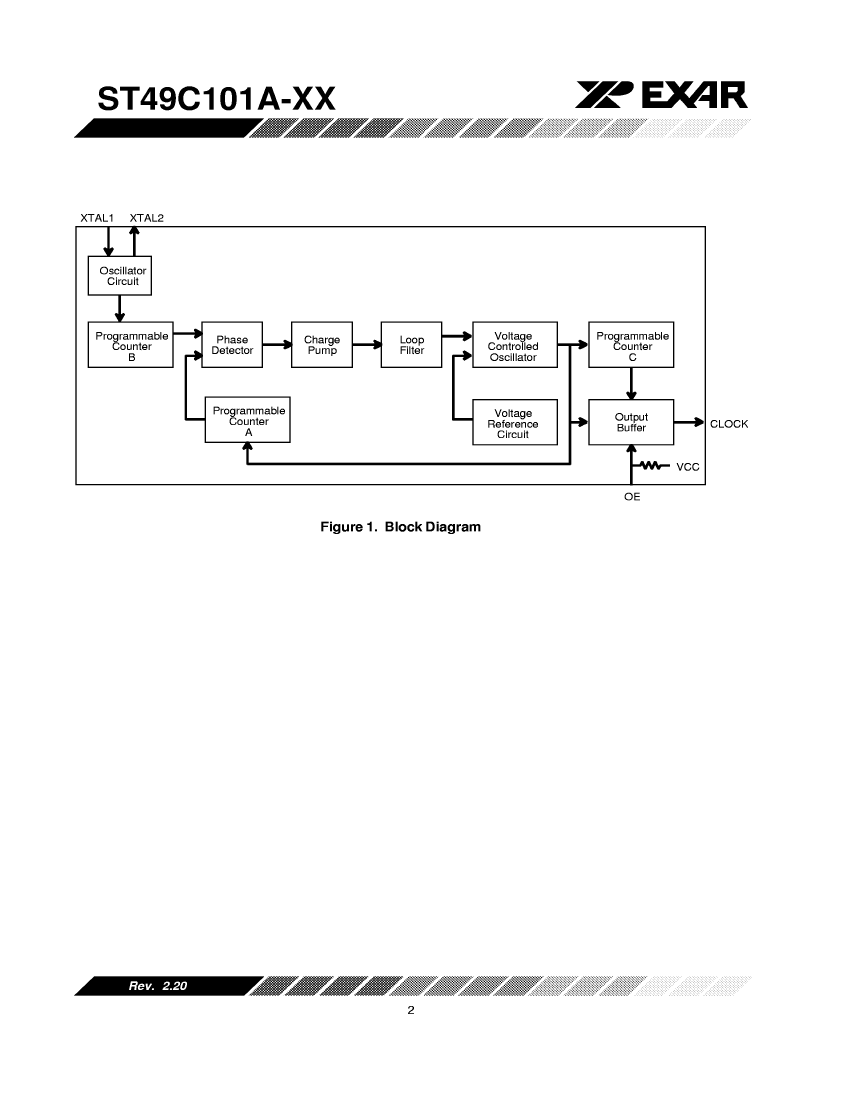

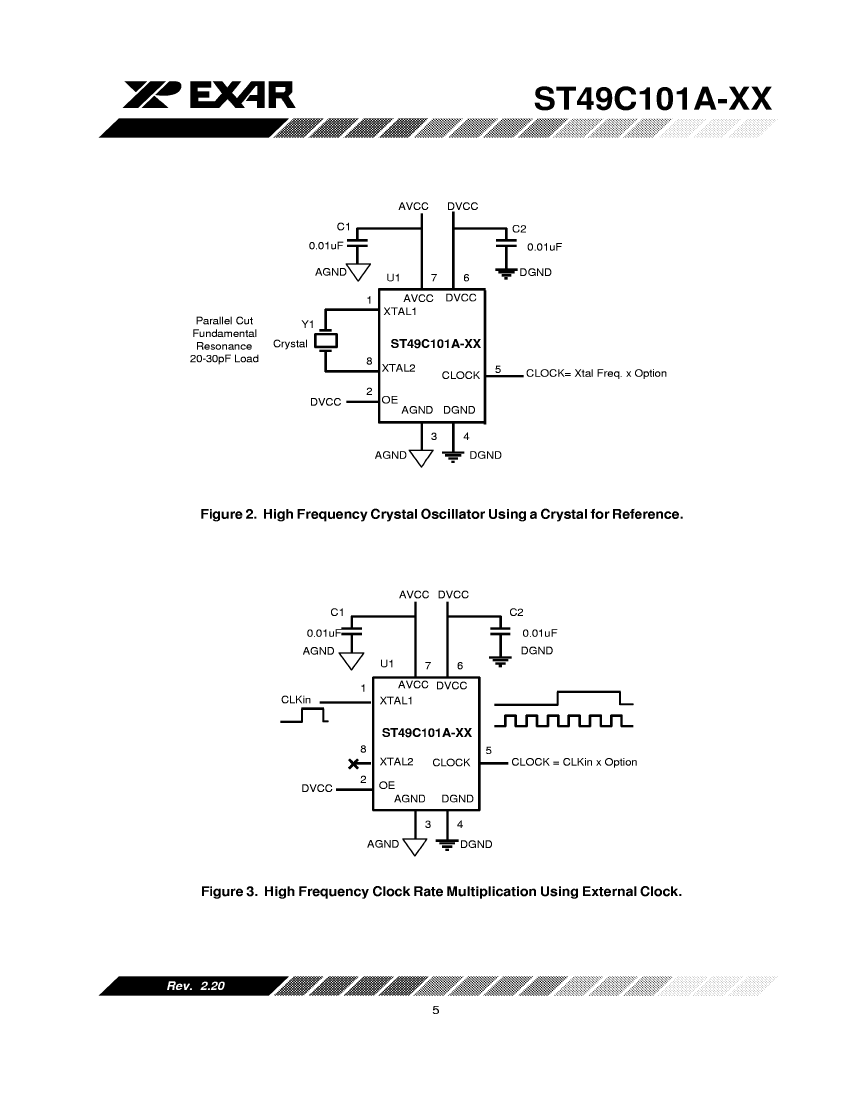

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

ST49C101A-01 Related Products

	ST49C101A-01	ST49C101A-15	ST49C101A-10	ST49C101A-13	ST49C101A-08	ST49C101A-09	ST49C101A-07	ST49C101A-06	ST49C101A-03
Description	Clock Generator, 140MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8	Clock Generator, 180MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8	Clock Generator, 180MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8	Clock Generator, 180MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8	Clock Generator, 70MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8	Clock Generator, 140MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8	Clock Generator, 70MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8	Clock Generator, 120MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8	Clock Generator, 140MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	0.150 INCH, SOIC-8	0.150 INCH, SOIC-8	0.150 INCH, SOIC-8	0.150 INCH, SOIC-8	0.150 INCH, SOIC-8	0.150 INCH, SOIC-8	0.150 INCH, SOIC-8	SOP,	SOP,
Contacts	8	8	8	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	IT ALSO OPERATES 5V	IT ALSO OPERATES 5V	IT ALSO OPERATES 5V	IT ALSO OPERATES 5V	IT ALSO OPERATES 5V	IT ALSO OPERATES 5V	IT ALSO OPERATES 5V	IT ALSO OPERATES 5V	IT ALSO OPERATES 5V
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm
Number of terminals	8	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Maximum output clock frequency	140 MHz	180 MHz	180 MHz	180 MHz	70 MHz	140 MHz	70 MHz	120 MHz	140 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Master clock/crystal nominal frequency	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
Maker	Exar	-	-	-	Exar	Exar	Exar	Exar	Exar
