CSR-1015-0A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CSR-1015-0A

CSR-1015-0A: DescriptionBoard Connector; CategoryThe connector The connector; File Size455KB，4 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

CSR-1015-0A Overview

Board Connector

CSR-1015-0A Parametric

Parameter Name	Attribute value
Maker	Cristek Interconnects Inc
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Manufacturer's serial number	CSR

Preview

Download Datasheet

View All

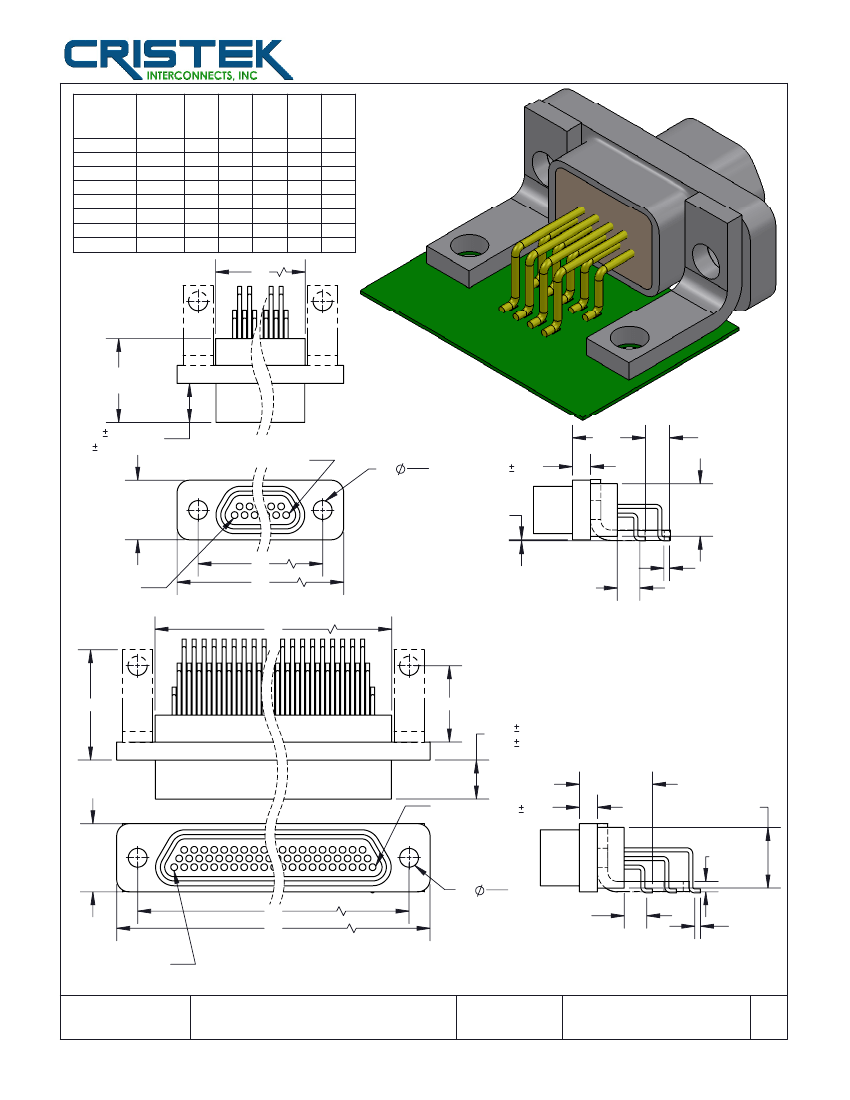

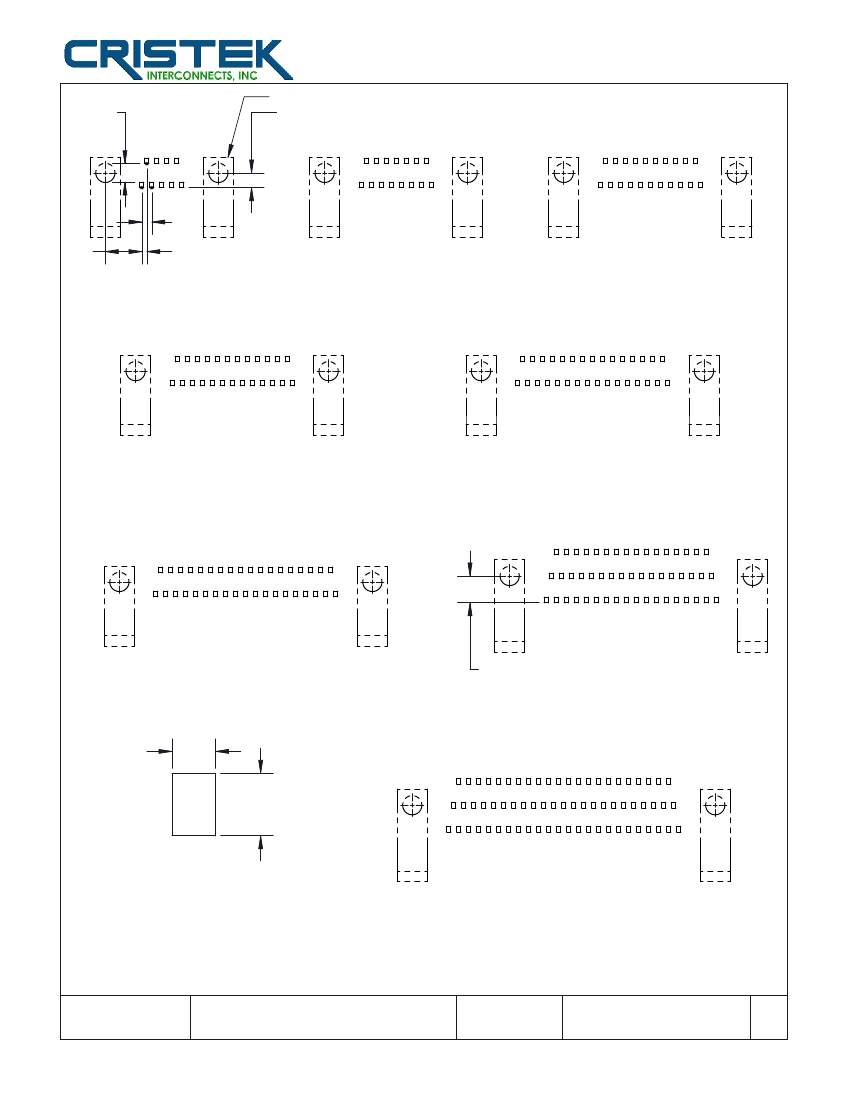

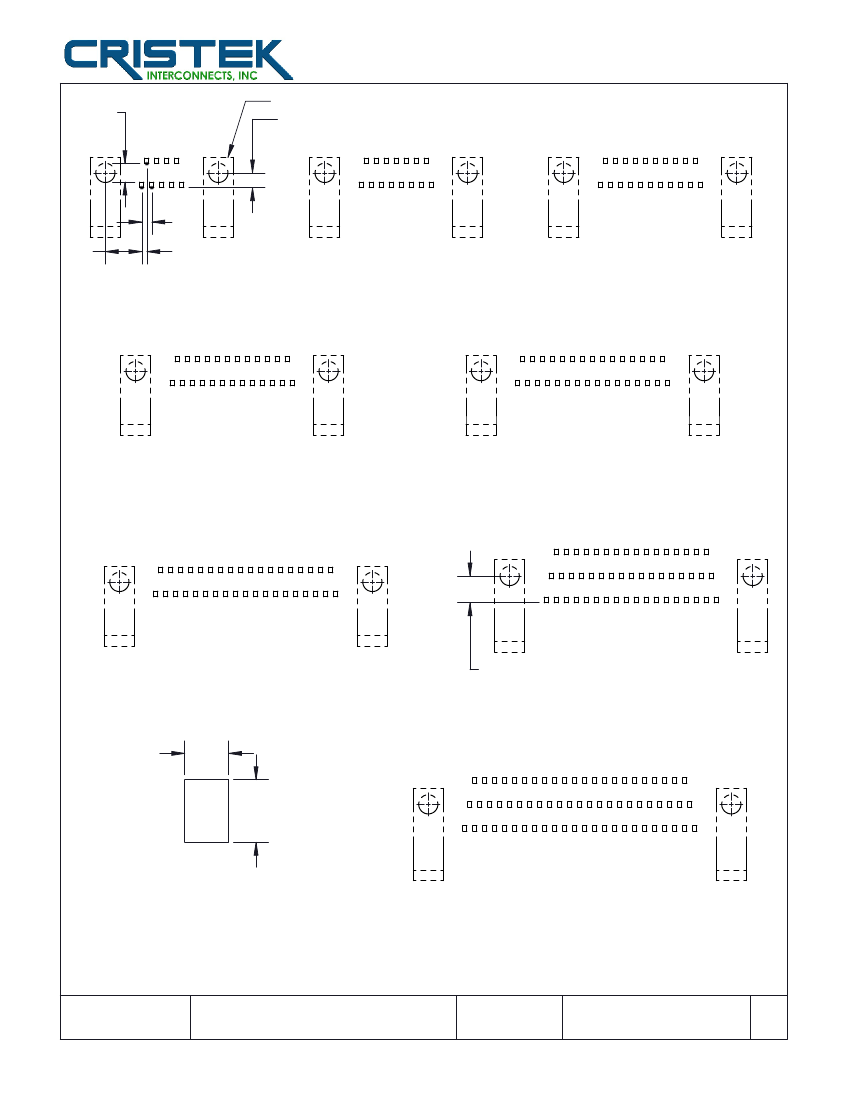

MICRO-D METAL SHELL

SURFACE MOUNT RIGHT ANGLE, CONDENSED

NO. OF

CONTACTS

FIGURE

MAX

.785

.935

1.085

1.185

1.335

1.485

1.435

1.735

SERIES

CSR

MAX

D (E)

.318

.378

.491

.551

.565 .400

.715 .550

.865 .700

.965 .800

1.115 .950

1.265 1.100

1.215 1.050

1.515 1.350

.429 MAX RECEPT

.416 MAX PLUG

.183 .003 PLUG

.195 .003 RECEPT

PLUG #1

(PLUG)

.365

.096

.088

.093 .003

.120 TYP

.308 MAX

.0050 TYP ALL SIZES

.0000

.270 MAX

SOCKET #1

(RECEPTACLE)

FIGURE 1

SIZE 9 - 37

(.114 PLUG)

(.110 RECEPT)

.028 TYP

.183 .003 PLUG

.195 .003 RECEPTACLE

.365

PIN #1

(PLUG)

.093 .003

.310 MAX

.052 TYP

ALL SIZES

SOCKET #1

(RECEPTACLE)

.096

.088

(.114 PLUG)

(.110 RECEPT)

.351

MAX

.028 TYP

NOTE: LEADS FOR ALL SIZES ARE HOT SOLDER DIPPED

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

FIGURE 2

SIZE 51 & 69

MICRO-D METAL SHELL

SURFACE MOUNT RIGHT ANGLE,

CONDENSED

DWG. NO.

SHT

REV

CSR

CRISTEK.COM

888.265.9162
