DATA SHEET
SILICON TRANSISTOR
2SA1714
PNP SILICON EPITAXIAL POWER TRANSISTOR
(DARLINGTON CONNECTION)
FOR HIGH-SPEED SWITCHING
The 2SA1714 is a high-speed darlington power transistor. This
transistor is ideal for high-precision control such as PWM control for
pulse mortors or blushless mortor of OA and FA equipment.
PACKAGE DRAWING (UNIT: mm)
FEATURES
• High DC current amplifiers due to darlington connection
• Large current capacitance and low V
CE(sat)
• TO-126 power transistor with high power dissipation
• Complementary transistor with 2SC4342
QUALITY GRADES
• Standard
Please refer to “Quality Grades on NEC Semiconductor Devices”
(Document No. C11531E) published by NEC Corporation to know
the specification of quality grade on the devices and its
recommended applications.
Electrode Connection
1. Emitter
2. Collector
3. Base
4. Fin (collector)

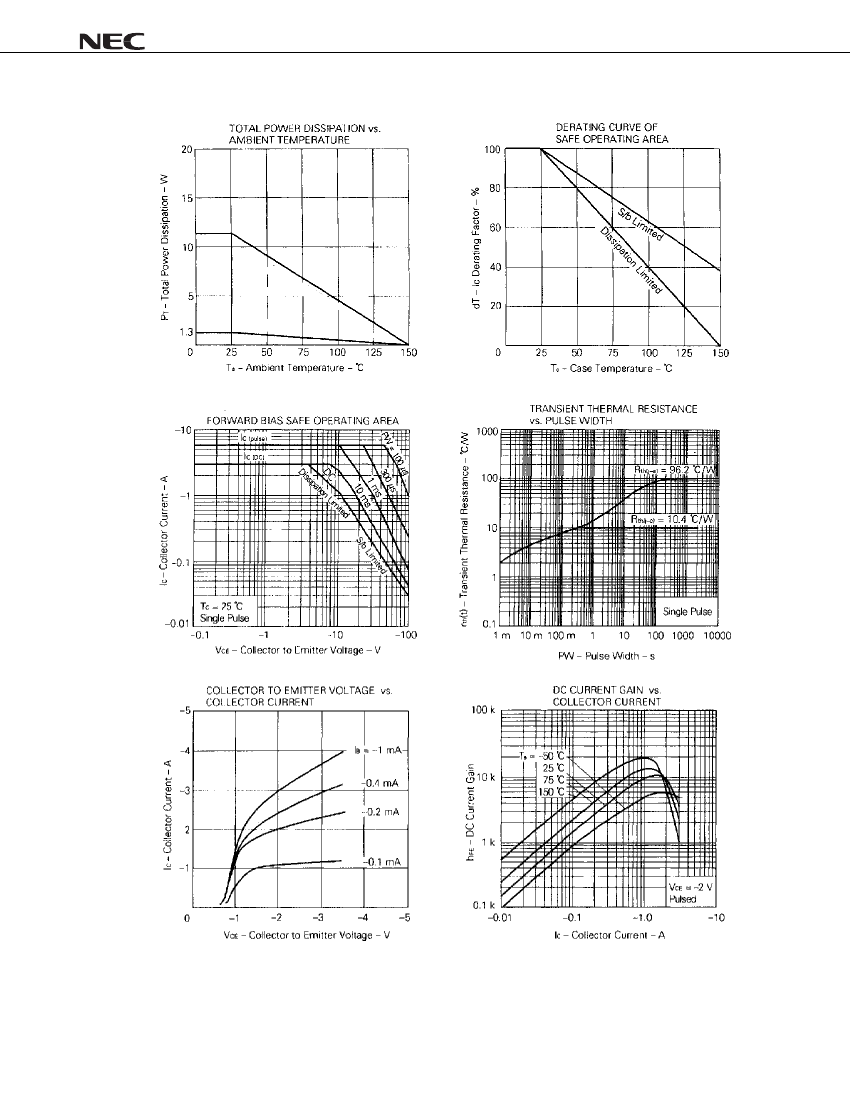

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)
°
Parameter
Collector to base voltage
Collector to emitter voltage
Emitter to base voltage
Collector current (DC)
Collector current (pulse)
Base current (DC)
Total power dissipation
Total power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C(DC)
I
C(pulse)
*
I
B(DC)
P
T
(Ta = 25°C)
P
T
(Tc = 25°C)
T
j
T
stg
Ratings
−100
−100
−8.0
–
+3.0
–
+6.0
−0.3
1.3
12
150
−55
to +150
Unit
V
V
V
A
A
A
W
W
°C
°C
* PW
≤
10 ms, duty cycle
≤
50%
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. D16124EJ1V0DS00 (1st edition)
Date Published April 2002 N CP(K)
Printed in Japan
©
