IMS1223A-35M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IMS1223A-35M

IMS1223A-35M: DescriptionStandard SRAM, 1KX4, 35ns, CMOS, CDFP18,; Categorystorage storage; File Size282KB，8 Pages; ManufacturerInmos Corporation

Download Datasheet Parametric Compare View All

IMS1223A-35M Overview

Standard SRAM, 1KX4, 35ns, CMOS, CDFP18,

IMS1223A-35M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Inmos Corporation
Reach Compliance Code	unknown
Maximum access time	35 ns
I/O type	COMMON
JESD-30 code	R-XDFP-F18
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of terminals	18
word count	1024 words
character code	1000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1KX4
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL18,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.005 A
Minimum standby current	4.5 V
Maximum slew rate	0.11 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

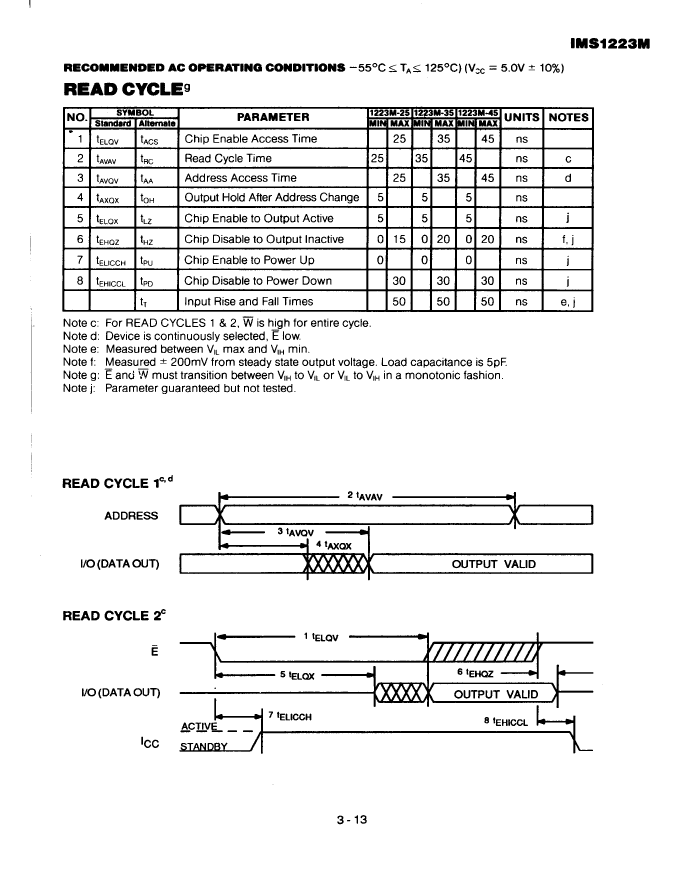

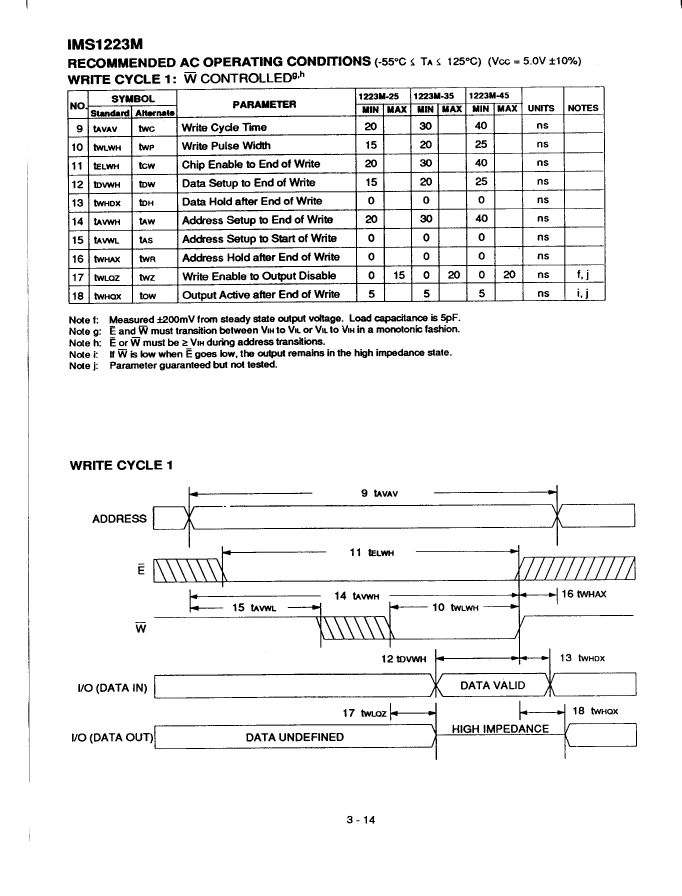

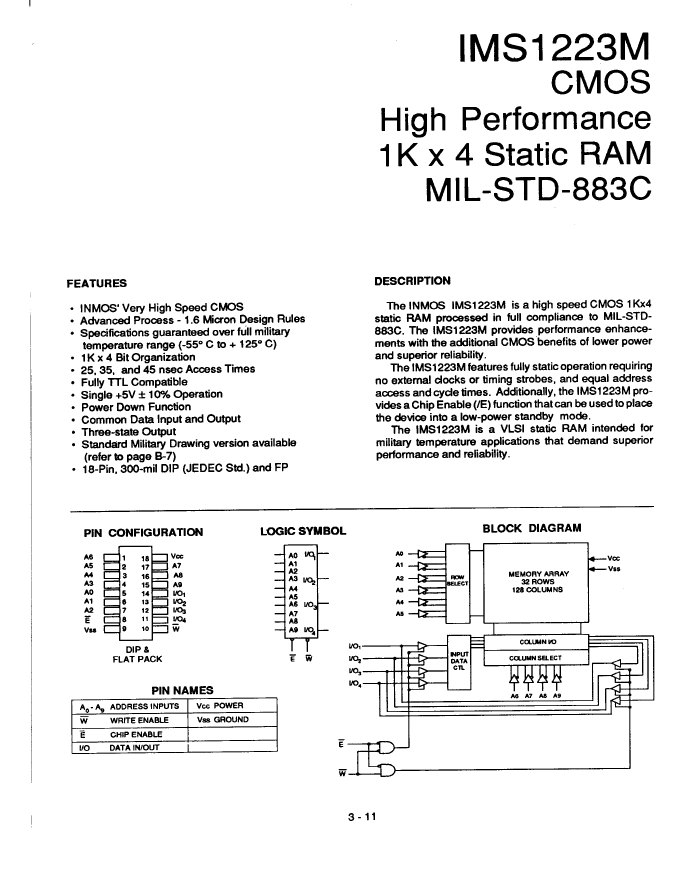

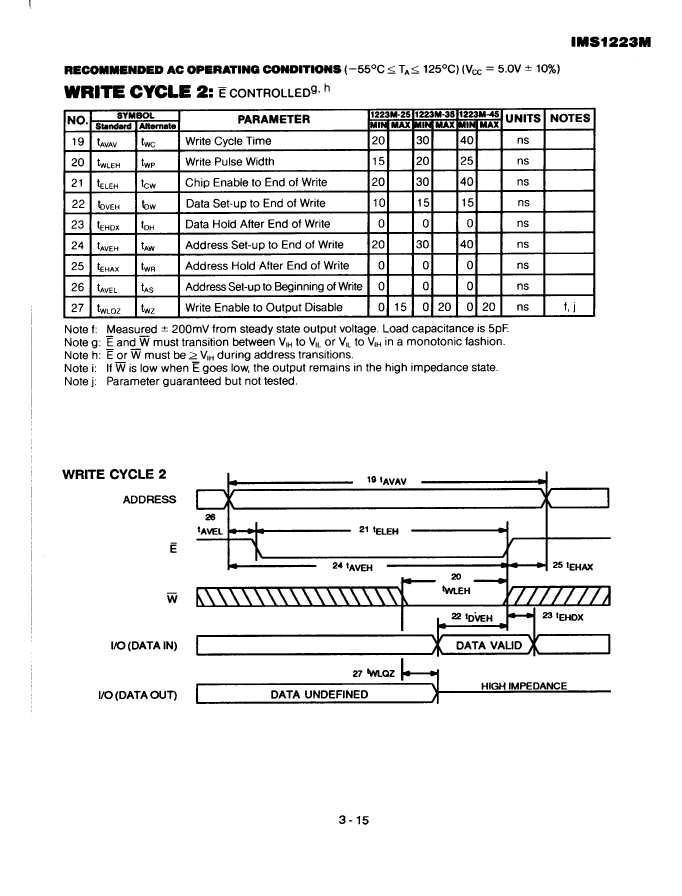

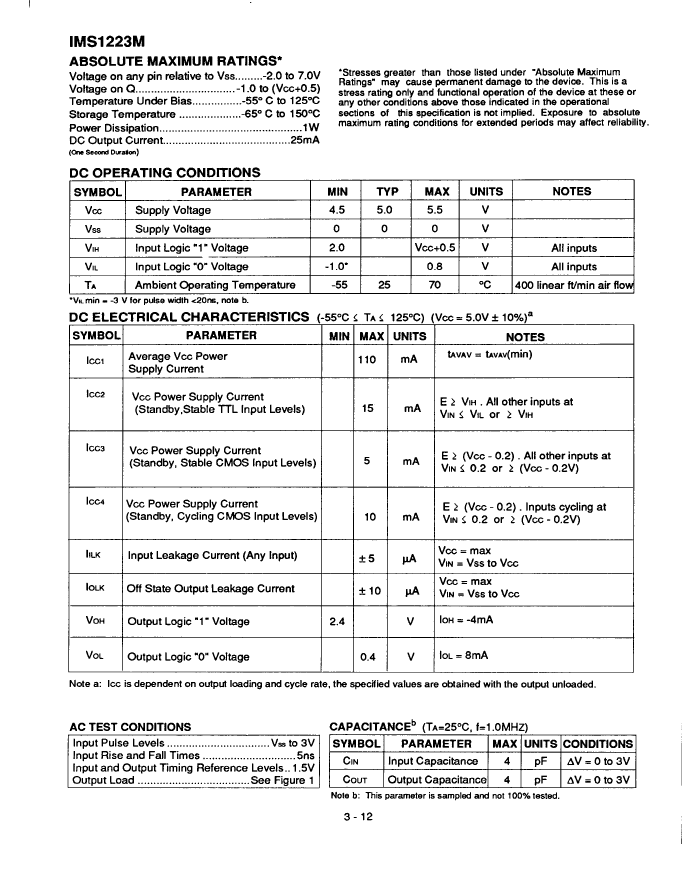

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

IMS1223A-35M Related Products

	IMS1223A-35M	IMS1223S-45M	IMS1223A-45M	IMS1223S-35M
Description	Standard SRAM, 1KX4, 35ns, CMOS, CDFP18,	Standard SRAM, 1KX4, 45ns, CMOS, CDIP18,	Standard SRAM, 1KX4, 45ns, CMOS, CDFP18,	Standard SRAM, 1KX4, 35ns, CMOS, CDIP18,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Inmos Corporation	Inmos Corporation	Inmos Corporation	Inmos Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	35 ns	45 ns	45 ns	35 ns
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDFP-F18	R-XDIP-T18	R-XDFP-F18	R-XDIP-T18
JESD-609 code	e0	e0	e0	e0
memory density	4096 bit	4096 bit	4096 bit	4096 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4
Number of terminals	18	18	18	18
word count	1024 words	1024 words	1024 words	1024 words
character code	1000	1000	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	1KX4	1KX4	1KX4	1KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	DIP	DFP	DIP
Encapsulate equivalent code	FL18,.3	DIP18,.3	FL18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum standby current	0.005 A	0.005 A	0.005 A	0.005 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.11 mA	0.11 mA	0.11 mA	0.11 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
