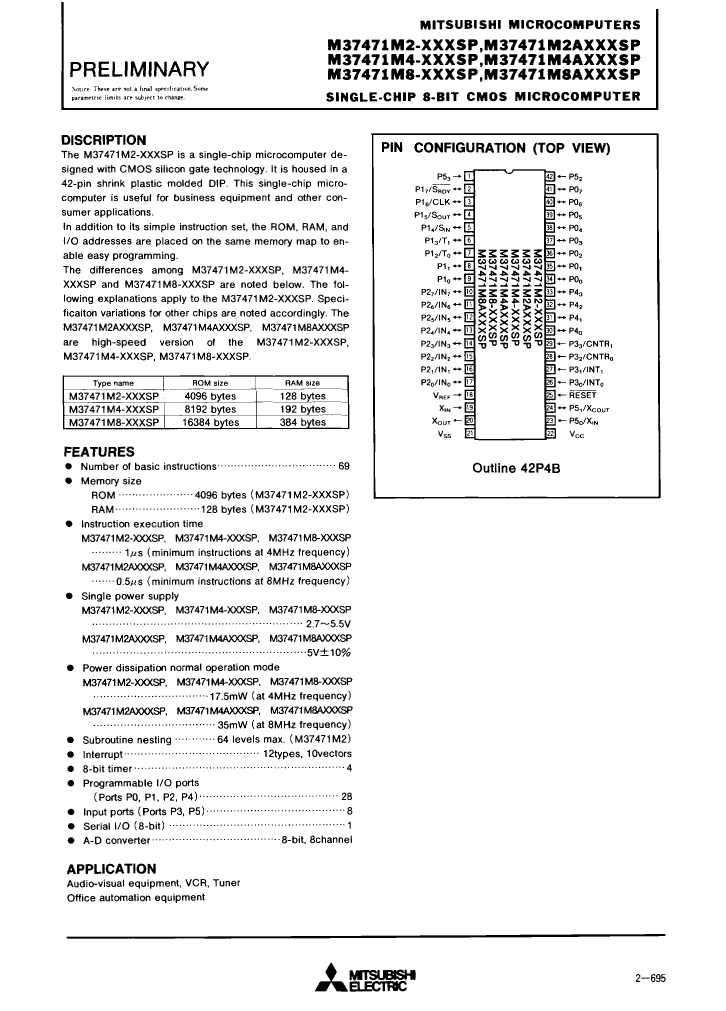

Microcontroller, 8-Bit, MROM, MELPS740 CPU, 8MHz, CMOS, PDIP42, PLASTIC, DIP-42

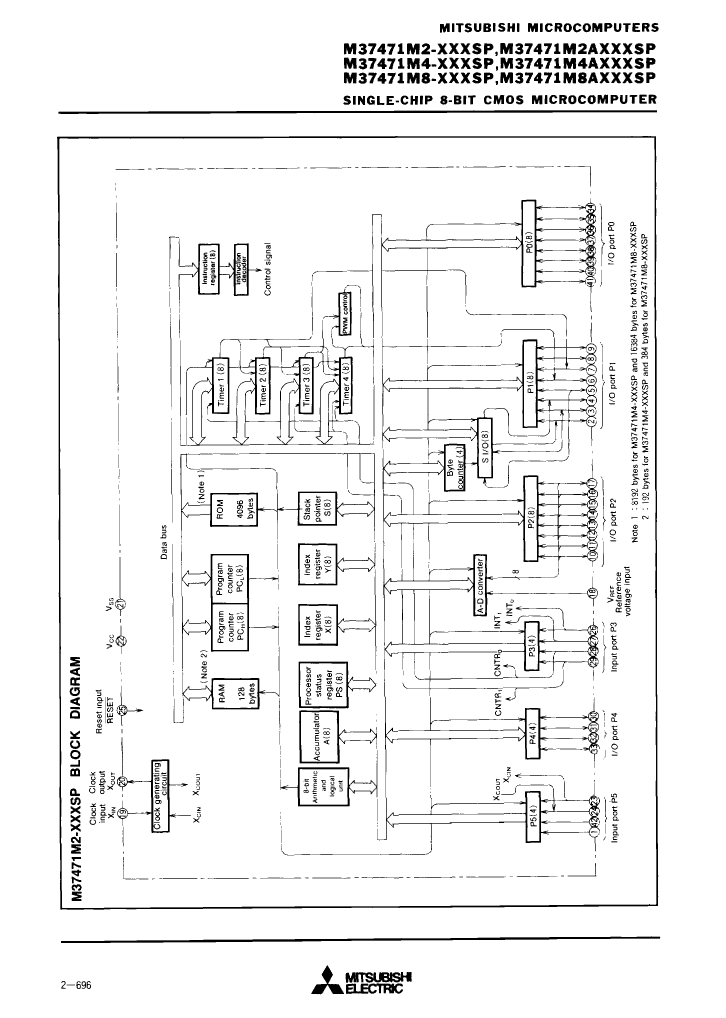

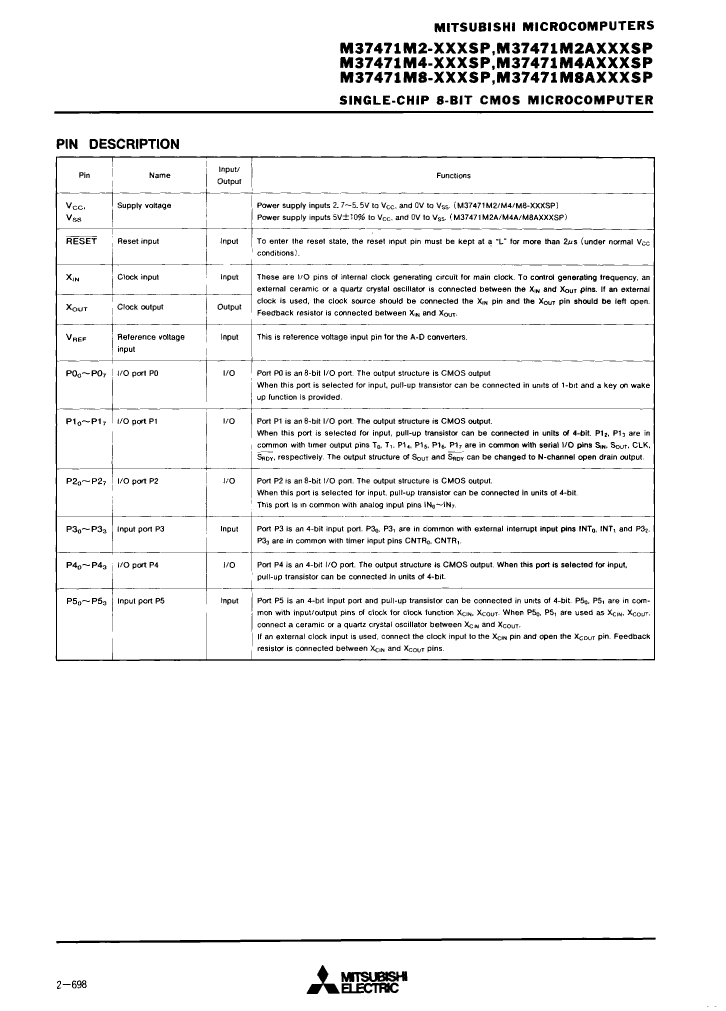

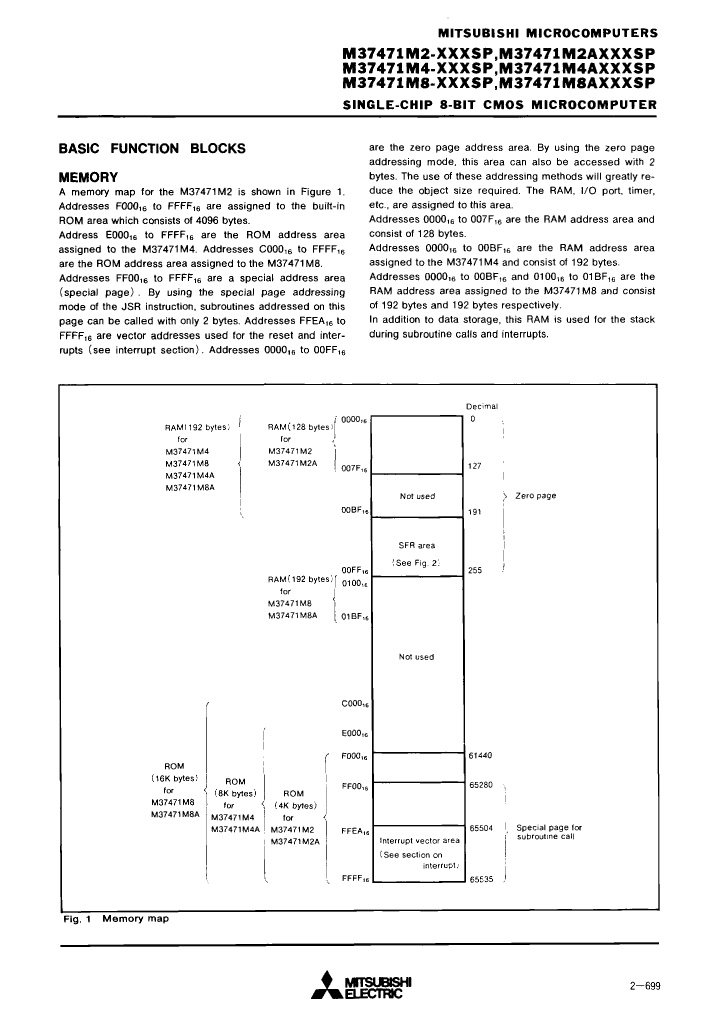

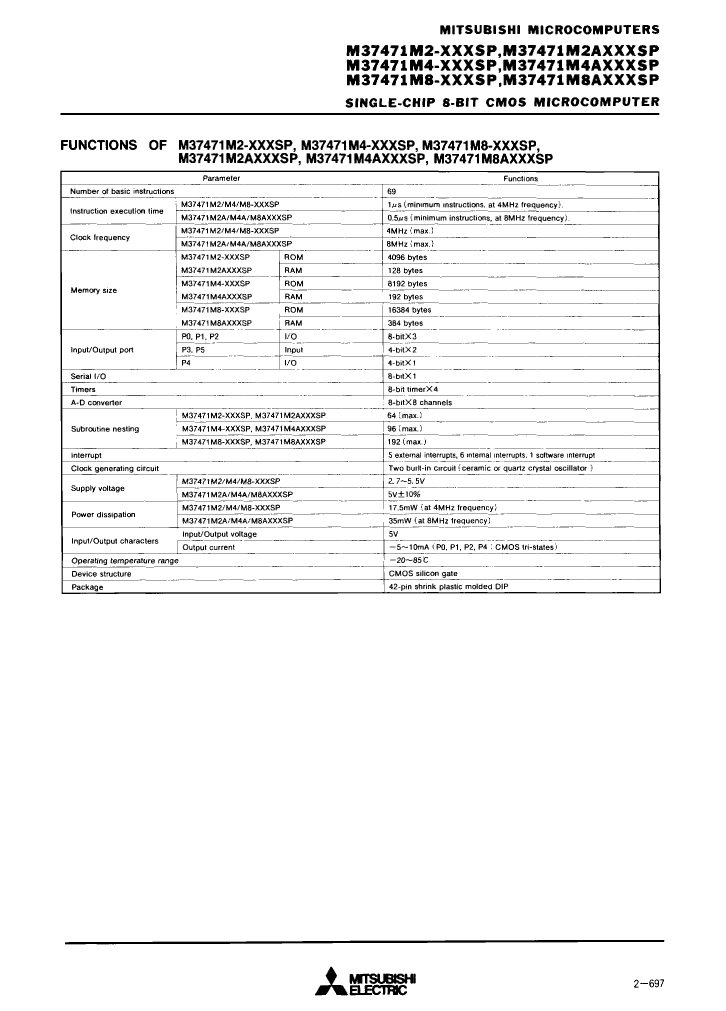

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Mitsubishi |
| Parts packaging code | DIP |
| package instruction | SDIP, SDIP42,.6 |
| Contacts | 42 |
| Reach Compliance Code | unknown |
| Has ADC | YES |
| Address bus width | |
| bit size | 8 |
| CPU series | MELPS740 |
| maximum clock frequency | 8 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | |
| JESD-30 code | R-PDIP-T42 |
| JESD-609 code | e0 |
| length | 36.7 mm |
| Number of I/O lines | 36 |
| Number of terminals | 42 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SDIP |
| Encapsulate equivalent code | SDIP42,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 3/5 V |
| Certification status | Not Qualified |
| RAM (bytes) | 128 |
| rom(word) | 4096 |
| ROM programmability | MROM |
| Maximum seat height | 5.5 mm |
| speed | 8 MHz |
| Maximum slew rate | 15 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 1.778 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| M37471M2AXXXSP | M37471M4AXXXSP | M37471M8AXXXSP | |
|---|---|---|---|
| Description | Microcontroller, 8-Bit, MROM, MELPS740 CPU, 8MHz, CMOS, PDIP42, PLASTIC, DIP-42 | Microcontroller, 8-Bit, MROM, MELPS740 CPU, 8MHz, CMOS, PDIP42, PLASTIC, DIP-42 | Microcontroller, 8-Bit, MROM, MELPS740 CPU, 8MHz, CMOS, PDIP42, PLASTIC, DIP-42 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Mitsubishi | Mitsubishi | Mitsubishi |
| Parts packaging code | DIP | DIP | DIP |
| package instruction | SDIP, SDIP42,.6 | SDIP, SDIP42,.6 | SDIP, SDIP42,.6 |
| Contacts | 42 | 42 | 42 |
| Reach Compliance Code | unknown | unknown | unknow |
| Has ADC | YES | YES | YES |
| bit size | 8 | 8 | 8 |
| CPU series | MELPS740 | MELPS740 | MELPS740 |
| maximum clock frequency | 8 MHz | 8 MHz | 8 MHz |
| DAC channel | NO | NO | NO |
| DMA channel | NO | NO | NO |
| JESD-30 code | R-PDIP-T42 | R-PDIP-T42 | R-PDIP-T42 |
| JESD-609 code | e0 | e0 | e0 |
| length | 36.7 mm | 36.7 mm | 36.7 mm |
| Number of I/O lines | 36 | 36 | 36 |
| Number of terminals | 42 | 42 | 42 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C |
| PWM channel | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SDIP | SDIP | SDIP |
| Encapsulate equivalent code | SDIP42,.6 | SDIP42,.6 | SDIP42,.6 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE, SHRINK PITCH | IN-LINE, SHRINK PITCH | IN-LINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 3/5 V | 3/5 V | 3/5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| RAM (bytes) | 128 | 192 | 384 |
| rom(word) | 4096 | 8192 | 16384 |
| ROM programmability | MROM | MROM | MROM |
| Maximum seat height | 5.5 mm | 5.5 mm | 5.5 mm |
| speed | 8 MHz | 8 MHz | 8 MHz |
| Maximum slew rate | 15 mA | 15 mA | 15 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V |
| surface mount | NO | NO | NO |
| technology | CMOS | CMOS | CMOS |
| Temperature level | OTHER | OTHER | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.778 mm | 1.778 mm | 1.778 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 15.24 mm | 15.24 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
