PTTLPGM-5-7 datasheet, PDF - EEWORLD Datasheet

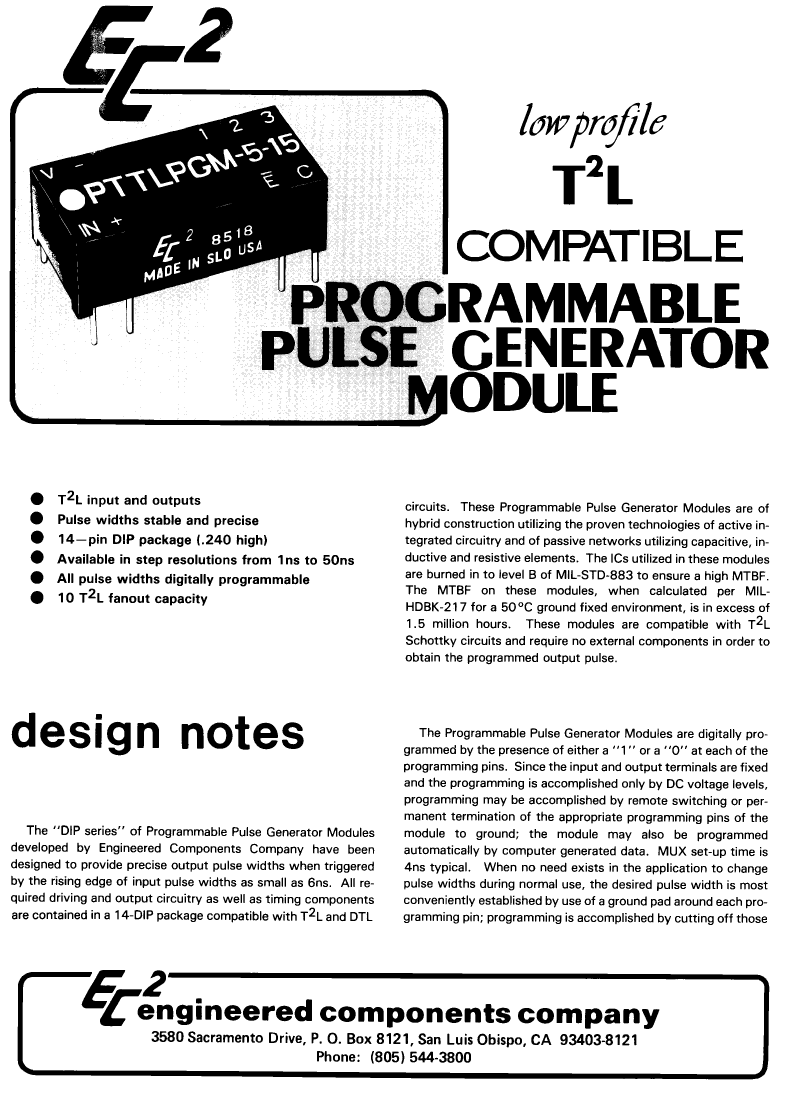

PTTLPGM-5-7: DescriptionPulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, PDIP9, 0.240 INCH HEIGHT, PLASTIC, MODULE, DIP-14/9; Categorylogic logic; File Size202KB，4 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

PTTLPGM-5-7 Overview

Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, PDIP9, 0.240 INCH HEIGHT, PLASTIC, MODULE, DIP-14/9

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	DIP,
Contacts	14/9
Reach Compliance Code	unknown

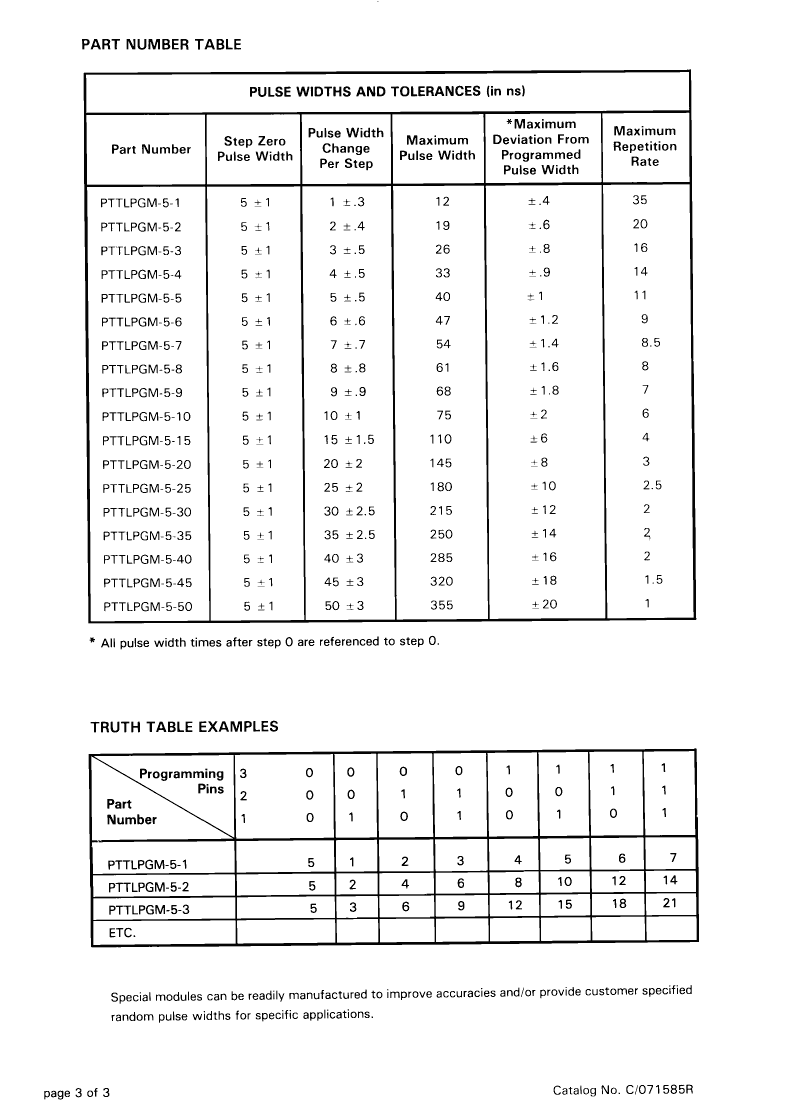

Other features	PULSE WIDTH CHANGE PER STEP = 7+-0.7NS; MAX RISE TIME CAPTURED
series	TTL
Input frequency maximum value (fmax)	8.5 MHz
JESD-30 code	R-PDIP-P9

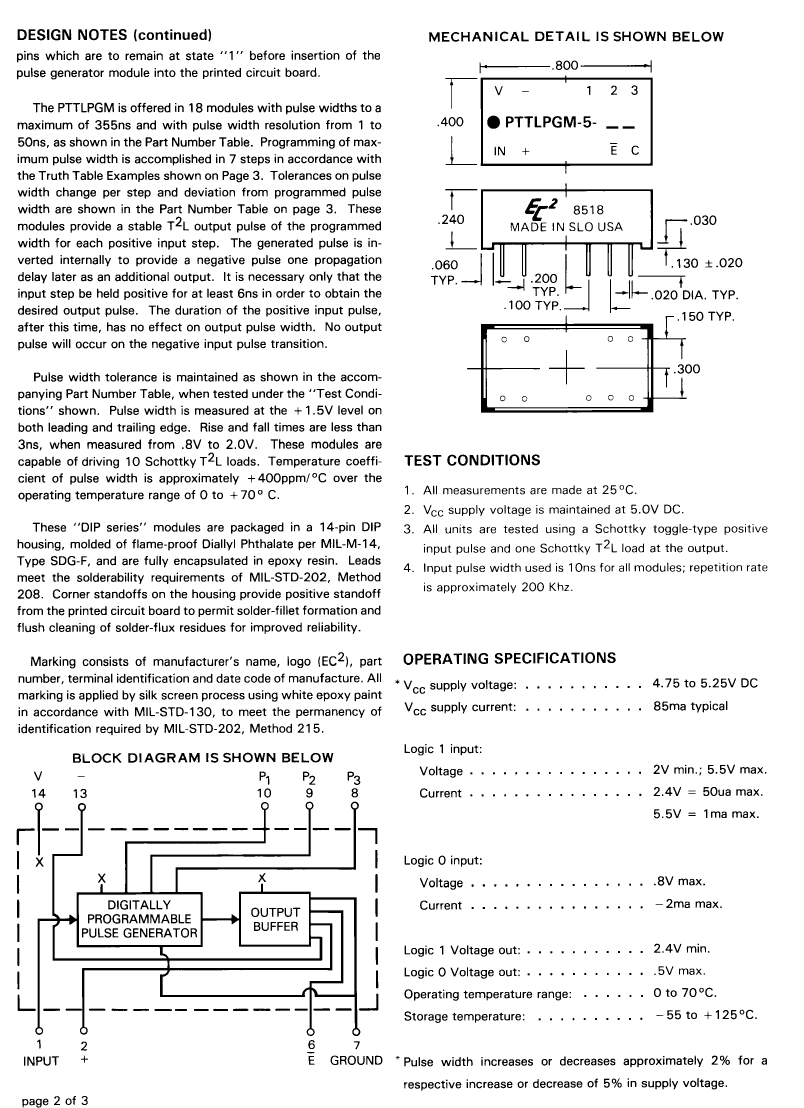

length	20.32 mm
Logic integrated circuit type	PULSE GENERATOR DELAY LINE
Number of functions	1
Number of taps/steps	7
Number of terminals	9
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	YES
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
