PU3119 datasheet, PDF - EEWORLD Datasheet

PU3119: DescriptionPower Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 3-Element, NPN, Silicon, Plastic/Epoxy, 8 Pin, PLASTIC, SIL, 8 PIN; CategoryDiscrete semiconductor The transistor; File Size107KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

PU3119 Overview

Power Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 3-Element, NPN, Silicon, Plastic/Epoxy, 8 Pin, PLASTIC, SIL, 8 PIN

Parameter Name	Attribute value
Maker	Panasonic
package instruction	IN-LINE, R-PSIP-T8
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	150 V
Configuration	COMPLEX
Minimum DC current gain (hFE)	500
JESD-30 code	R-PSIP-T8
Number of components	3
Number of terminals	8
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	25 MHz

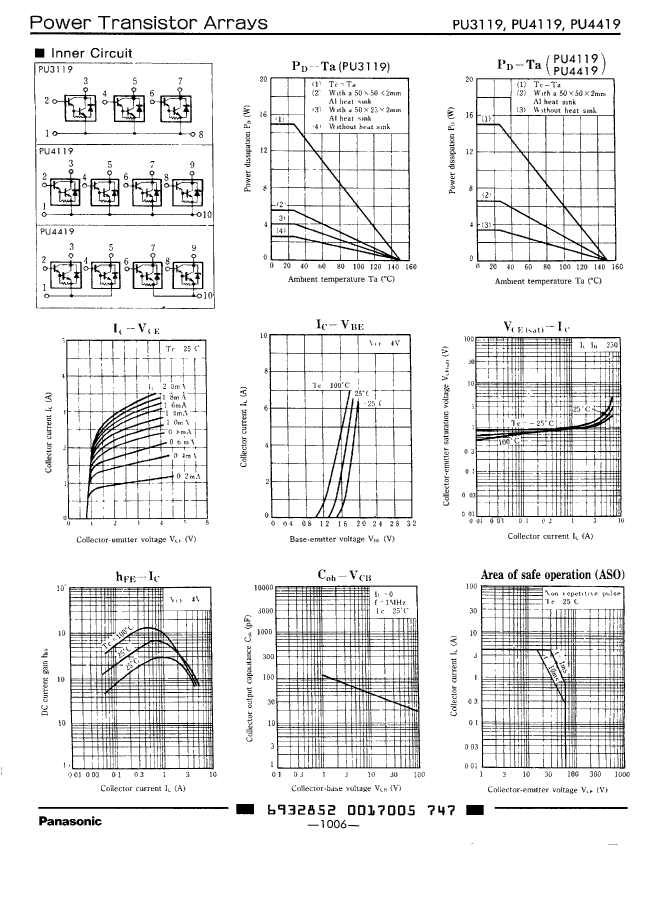

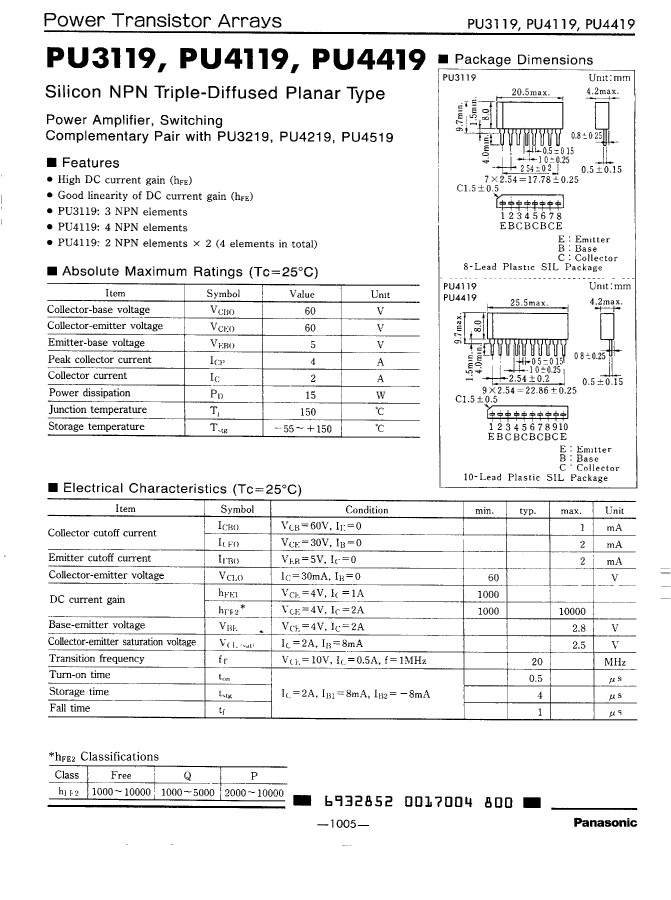

This Material Copyrighted By Its Respective Manufacturer

	PU3119	PU4119	PU4419
Description	Power Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 3-Element, NPN, Silicon, Plastic/Epoxy, 8 Pin, PLASTIC, SIL, 8 PIN	Power Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 4-Element, NPN, Silicon, Plastic/Epoxy, 10 Pin, PLASTIC, SIL, 10 PIN	Power Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 4-Element, NPN, Silicon, Plastic/Epoxy, 10 Pin, PLASTIC, SIL, 10 PIN
Maker	Panasonic	Panasonic	Panasonic
package instruction	IN-LINE, R-PSIP-T8	IN-LINE, R-PSIP-T10	IN-LINE, R-PSIP-T10
Contacts	8	10	10
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum collector current (IC)	1 A	1 A	1 A
Collector-emitter maximum voltage	150 V	150 V	150 V
Configuration	COMPLEX	COMPLEX	COMPLEX
Minimum DC current gain (hFE)	500	500	500
JESD-30 code	R-PSIP-T8	R-PSIP-T10	R-PSIP-T10
Number of components	3	4	4
Number of terminals	8	10	10
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	25 MHz	25 MHz	25 MHz
