DATA SHEET
JUNCTION FIELD EFFECT TRANSISTOR
2SK4028
N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR
FOR IMPEDANCE CONVERTER OF ECM
DESCRIPTION
The 2SK4028 is suitable for converter of ECM.
PACKAGE DRAWING (Unit: mm)
1.2 ±0.1
0.3
–0.05
+0.1
MAX. 0.33
FEATURES
•
High gain
1.2 ±0.1
•
Low noise
−115
dB (V
DD
= 2.0 V, C = 5 pF, R
L
= 2.2 kΩ)
•
Ultra thin thickness package
t = 0.3 mm TYP.
0.8 ±0.1
−1.0
dB (V
DD
= 2.0 V, C = 5 pF, R
L
= 2.2 kΩ)
3
0 to 0.02
2
1
0.4
0.4
0.13
–0.05
+0.1
ORDERING INFORMATION
PART NUMBER
2SK4028
PACKAGE
3pXSOF03 (0812)
0.2
+0.1
–0
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Drain to Source Voltage (V
GS
=
−1.0
V)
Gate to Drain Voltage
Drain Current
Gate Current
Total Power Dissipation
Junction Temperature
Storage Temperature
V
DSX
V
GDO
I
D
I
G
P
T
T
j
T
stg
20
−20
10
10
100
125
−55
to +125
V
V
mA
mA
mW
°C
°C
EQUIVALENT CIRCUIT
2
3
1
1: Source
2: Drain
3: Gate
Caution Please take care of ESD (Electro Static Discharge) when you handle the device in this document.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D17529EJ1V0DS00 (1st edition)
Date Published April 2005 NS CP(K)
Printed in Japan
2005
2SK4028

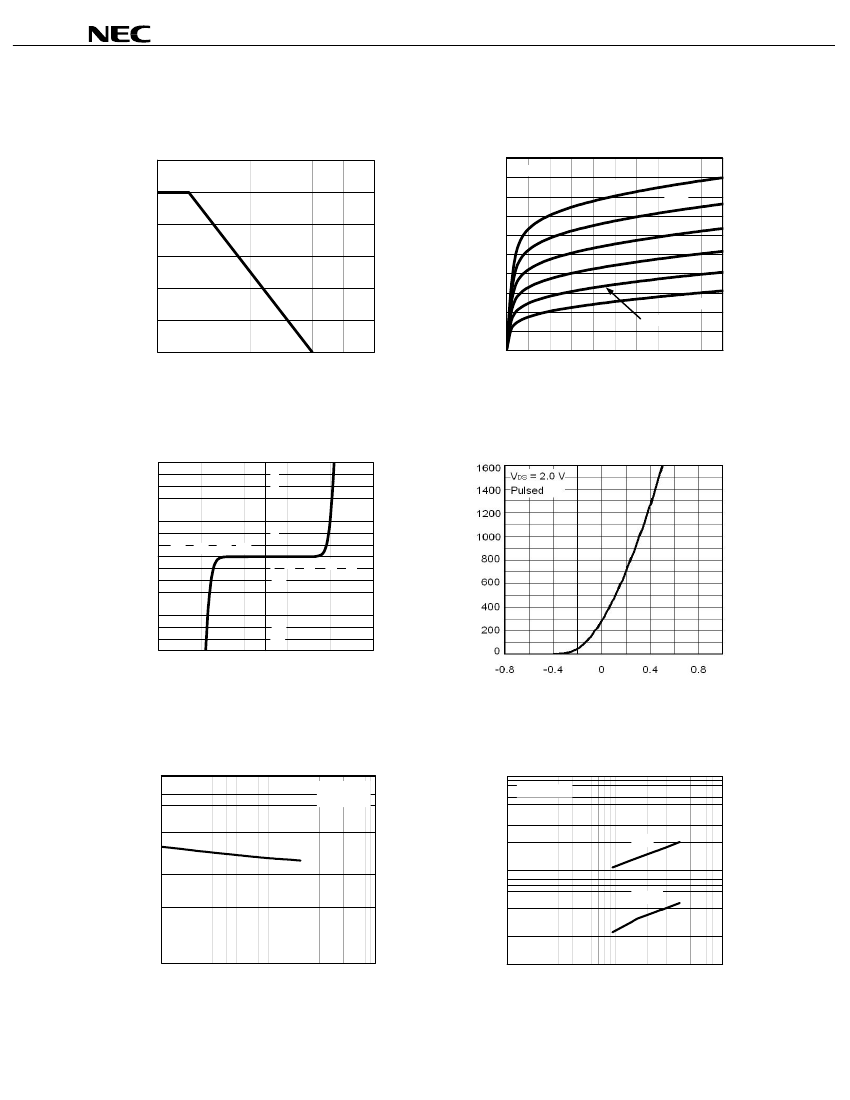

TYPICAL CHARACTERISTICS (T
A
= 25°C)
DERATING FACTOR OF POWER DISSIPATION
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
120
dT - Derating Factor - %
1000
Pulsed
0.20 V
80
60
40
20
0
0
25
50
75
100
125
150
175
T
A
- Ambient Temperature -
°C
I
D
- Drain Current -
µ
A
100
800
600
400
0.15 V
0.10 V
0.05 V
200
0
0
2
4
6
−0.05
V
V
GS
= 0 V
8
10
V
DS
- Drain to Source Voltage - V
GATE TO SOURCE CURRENT vs.
GATE TO SOURCE VOLTAGE
I
GS
- Gate to Source Current -
µ
A
40
30
20
10
−0.8
−0.6
−0.4 −0.2
0
0.2
0.4
0.6
0.8
DRAIN CURRENT vs.
GATE TO SOURCE VOLTAGE
−10
−20
−30
−40
V
GS
- Gate to Source Voltage - V
I
D
- Drain Current -
µ
A
V
GS
- Gate to Source Voltage - V
INPUT CAPACITANCE vs.
DRAIN TO SOURCE VOLTAGE
10
FORWARD TRANSFER ADMITTANCE AND GATE
CUT-OFF VOLTAGE vs. ZERO GATE VOLTAGE
DRAIN CURRENT
10
| y
fs
| - Forward Transfer Admittance - mS
V
GS(off)
- Gate Cut-off Voltage - V
V
GS
= 0 V
f = 1.0 MHz
V
DS
= 2.0 V
C
iss
- Input Capacitance - pF
| y
fs
|
1
V
GS(off)
1
1
10
100
0.1
10
100
1000
V
DS
- Drain to Source Voltage - V
I
DSS
- Zero Gate Voltage Drain Current -
µ
A
Data Sheet D17529EJ1V0DS
3
2SK4028
•
