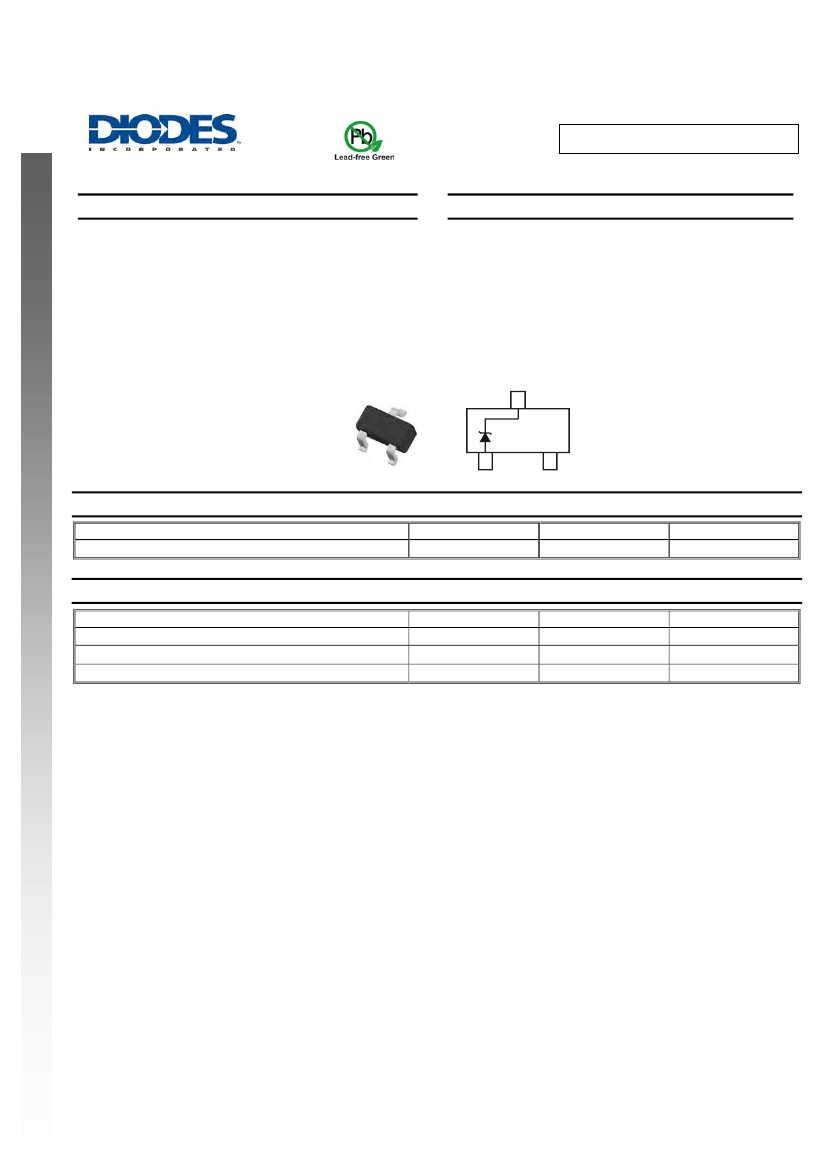

BZX84C2V4T - BZX84C39T
150mW SURFACE MOUNT ZENER DIODE
Features
•
•
•
•
Ultra-Small Surface Mount Package
Planar Die Construction
Lead Free/RoHS Compliant (Note 2)
"Green" Device (Note 3 and 4)
Mechanical Data
•
•
•
•
•
•
•
•
•
Case: SOT-523
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagram
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.002 grams (approximate)
NEW PRODUCT
Top View
Device Schematic
Maximum Ratings
Forward Voltage
@T
A
= 25°C unless otherwise specified
Symbol
@ I
F
= 10mA
V
F
Value
0.9
Unit
V
Characteristic
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
Symbol
(Note 1)
(Note 1)
P
D
R
θ
JA
T
J,
T
STG
Value
150
833
-65 to +150
Unit
mW
°C/W
°C
Device mounted on FR-4 PC board with recommended pad layout at http://www.diodes.com/datasheets/ap02001.pdf.
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.

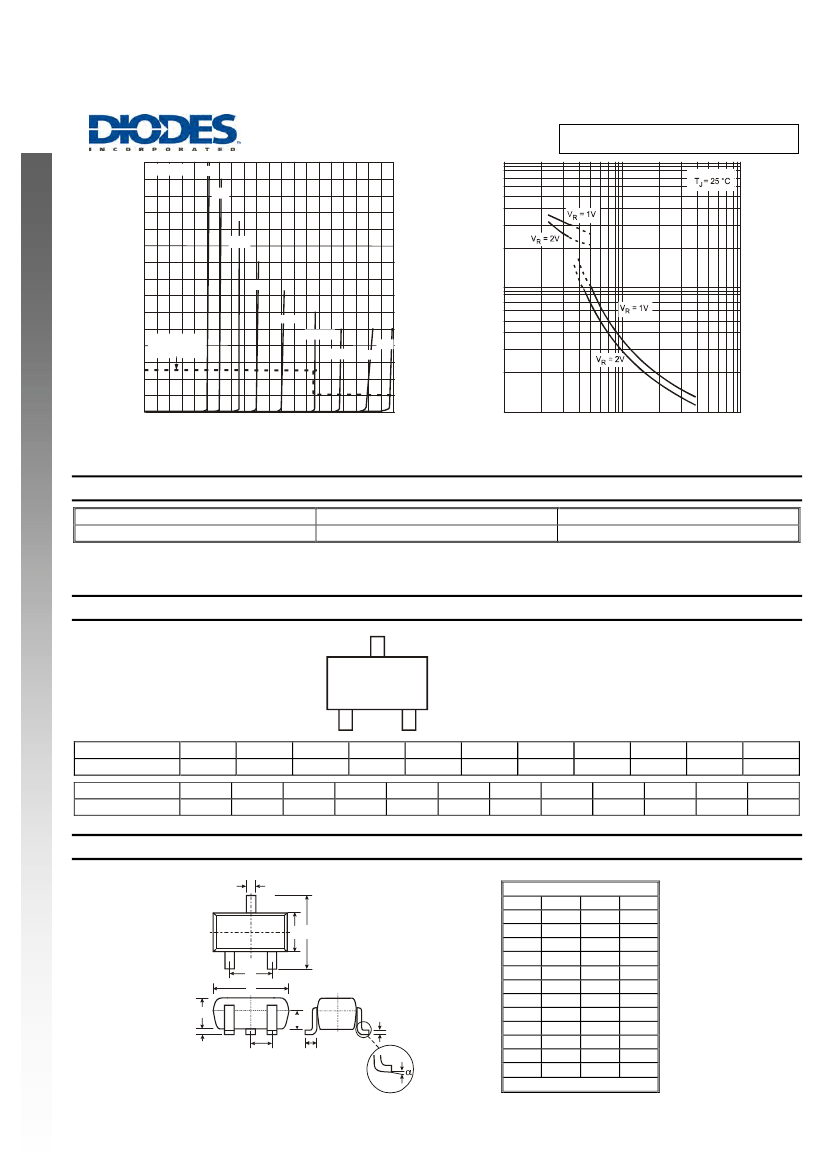

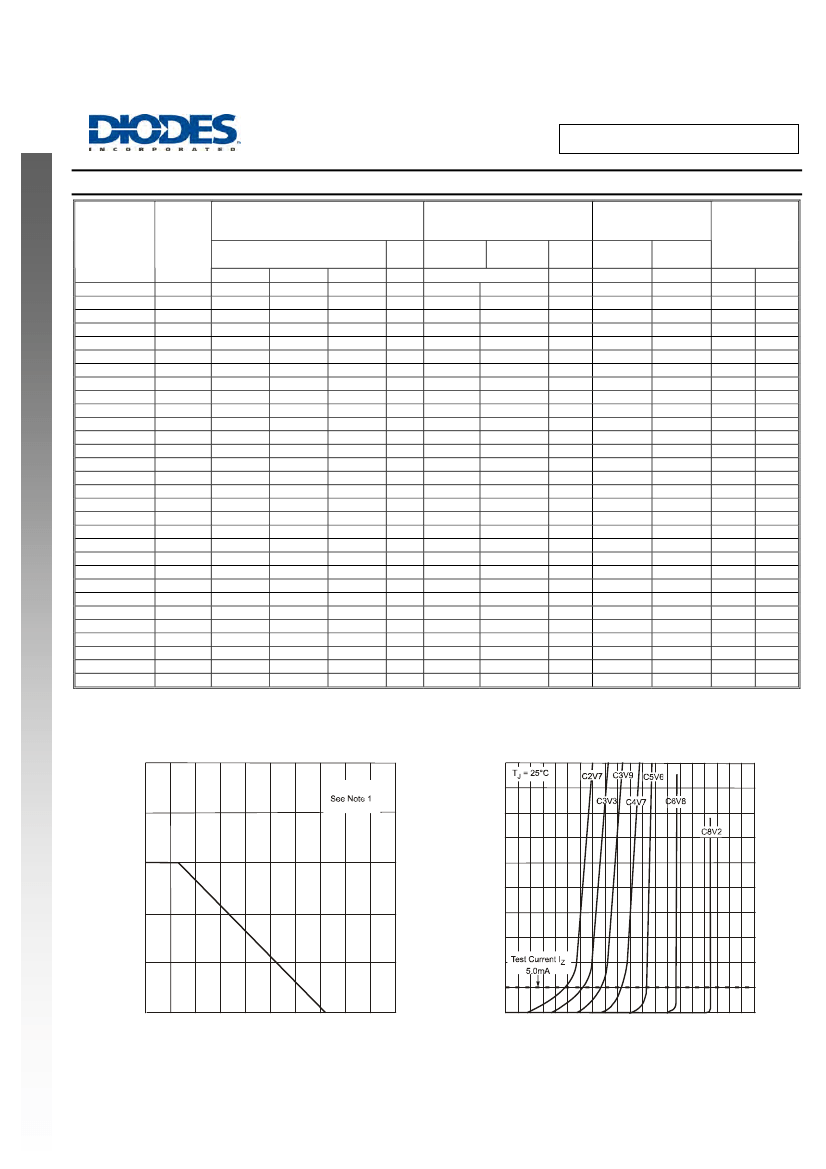

BZX84C2V4T - BZX84C39T
Document number: DS30262 Rev. 10 - 2
1 of 4
www.diodes.com
May 2008
© Diodes Incorporated
BZX84C2V4T - BZX84C39T
Electrical Characteristics
Type
Number
Marking
Code
Nom (V)
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30.0
33.0
36.0
39.0
@T
A
= 25°C unless otherwise specified
Zener Voltage
Range (Note 5)
V
Z @ IZT
Min (V)
2.2
2.5
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28.0
31.0
34.0
37.0
Max (V)
2.6
2.9
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
I
ZT
mA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
2.0
2.0
2.0
2.0
2.0
Maximum Zener Impedance
(Note 6)
Z
ZT
@ I
ZT
Z
ZK
@ I
ZK
Ω
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
600
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
Maximum
Reverse Current
(Note 5)
I
R
uA
50
20
20
5.0
5.0
3.0
3.0
3.0
2.0
1.0
3.0
2.0
1.0
0.7
0.5
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@V
R
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
Temperature
Coefficient of
Zener Voltage
@ I
ZT
= 5mA
(mV/°C)
Min
Max
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0.2
-2.7
1.2
-2.0
2.5
0.4
3.7
1.2
4.5
2.5
5.3
3.2
6.2
3.8
7.0
4.5
8.0
5.4
9.0
6.0
10.0
7.0
11.0
9.2
13.0
10.4
14.0
12.4
16.0
14.4
18.0
16.4
20.0
18.4
22.0
21.4
25.3
24.4
29.4
27.4
33.4
30.4
37.4
33.4
41.2
NEW PRODUCT
BZX84C2V4T
BZX84C2V7T
BZX84C3V0T
BZX84C3V3T
BZX84C3V6T
BZX84C3V9T
BZX84C4V3T
BZX84C4V7T
BZX84C5V1T
BZX84C5V6T
BZX84C6V2T
BZX84C6V8T
BZX84C7V5T
BZX84C8V2T
BZX84C9V1T
BZX84C10T
BZX84C11T
BZX84C12T
BZX84C13T
BZX84C15T
BZX84C16T
BZX84C18T
BZX84C20T
BZX84C22T
BZX84C24T
BZX84C27T
BZX84C30T
BZX84C33T
BZX84C36T
BZX84C39T
Notes:
RB
RC
RD
RE
RF
RG
RH
R1
R2
R3
R4
R5
R6
R7
R8
R9
P1
P2
P3
P4
P5
P6
P7
P8
P9
PA
PB
PC
PD
PE
5. Short duration pulse test used to minimize self-heating effect.
6. f = 1KHz.
250
50
P
D
, POWER DISSIPATION (mW)
200
I
Z
, ZENER CURRENT (mA)
40
150
30
100
20
50
10
0
0
100
T
A
, AMBIENT TEMPERATURE, °C
Fig. 1. Power Derating Curve
200
0
0
3
4
5
6
8
9 10
7
V
Z
, ZENER VOLTAGE (V)
Fig. 2 Typical Zener Breakdown Characteristics
1
2
BZX84C2V4T - BZX84C39T
Document number: DS30262 Rev. 10 - 2
2 of 4
www.diodes.com
May 2008
© Diodes Incorporated
BZX84C2V4T - BZX84C39T
30
T
J
= 25°C
C10
C12
1,000
20
C15
NEW PRODUCT
C
T
, TOTAL CAPACITANCE (pF)
I
Z
, ZENER CURRENT (mA)
C18
100
10
Test current I
Z
5mA
C22
C27
C33
C39
C36
0
10
0
10
20
30
40
V
Z
, ZENER VOLTAGE (V)
Fig. 3. Typical Zener Breakdown Characteristics
10
100
V
Z
, NOMINAL ZENER VOLTAGE (V)
Fig. 4. Typical Total Capacitance vs. Nominal Zener Voltage
1
Ordering Information
Part Number
(Type Number)-7-F*
(Note 7)
Case
SOT-523
Packaging
3000/Tape & Reel
*Add “-7-F” to the appropriate type number in Electrical Characteristics Table on page 2 example: 6.2V Zener = BZX84C6V2T-7-F.
Notes:
7. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
xxx = Product Type Marking Code
(See Electrical Characteristics Table)
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
xxx
YM
Date Code Key
Year
Code
Month
Code
2002
N
Jan
1
2003
P
Feb
2
2004
R
Mar
3
2005
S
Apr
4
2006
T
May
5
Jun
6
2007
U
Jul
7
2008
V
Aug
8
2009
W
Sep
9
2010
X
Oct
O
2111
Y
Nov
N
2012
Z
Dec
D
Package Outline Dimensions
A
TOP VIEW
B C
G
H
K
N
J
M
D
L
SOT-523
Dim
Min
Max
Typ
A
0.15
0.30
0.22
B
0.75
0.85
0.80
C
1.45
1.75
1.60
D
0.50
⎯
⎯
G
0.90
1.10
1.00
H
1.50
1.70
1.60
J
0.00
0.10
0.05
K
0.60
0.80
0.75
L
0.10
0.30
0.22
M
0.10
0.20
0.12
N
0.45
0.65
0.50
0°
8°
α
⎯
All Dimensions in mm
BZX84C2V4T - BZX84C39T
Document number: DS30262 Rev. 10 - 2
3 of 4
www.diodes.com
May 2008
© Diodes Incorporated
BZX84C2V4T - BZX84C39T
Suggested Pad Layout
Y
Z
C
NEW PRODUCT
X
E
Dimensions Value (in mm)
Z
1.8
X
0.4
Y
0.51
C
1.3
E
0.7
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
BZX84C2V4T - BZX84C39T
Document number: DS30262 Rev. 10 - 2
4 of 4
www.diodes.com
May 2008
© Diodes Incorporated
