CTCDRH125-101N: DescriptionGeneral Purpose Inductor, 100uH, 30%, 1 Element, SMD; CategoryPassive components inductor; File Size441KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTCDRH125-101N Overview

General Purpose Inductor, 100uH, 30%, 1 Element, SMD

CTCDRH125-101N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CT [ Central Technologies ]
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.16 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTCDRH125
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum rated current	1.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	30%

Preview

Download Datasheet

View All

NEW!

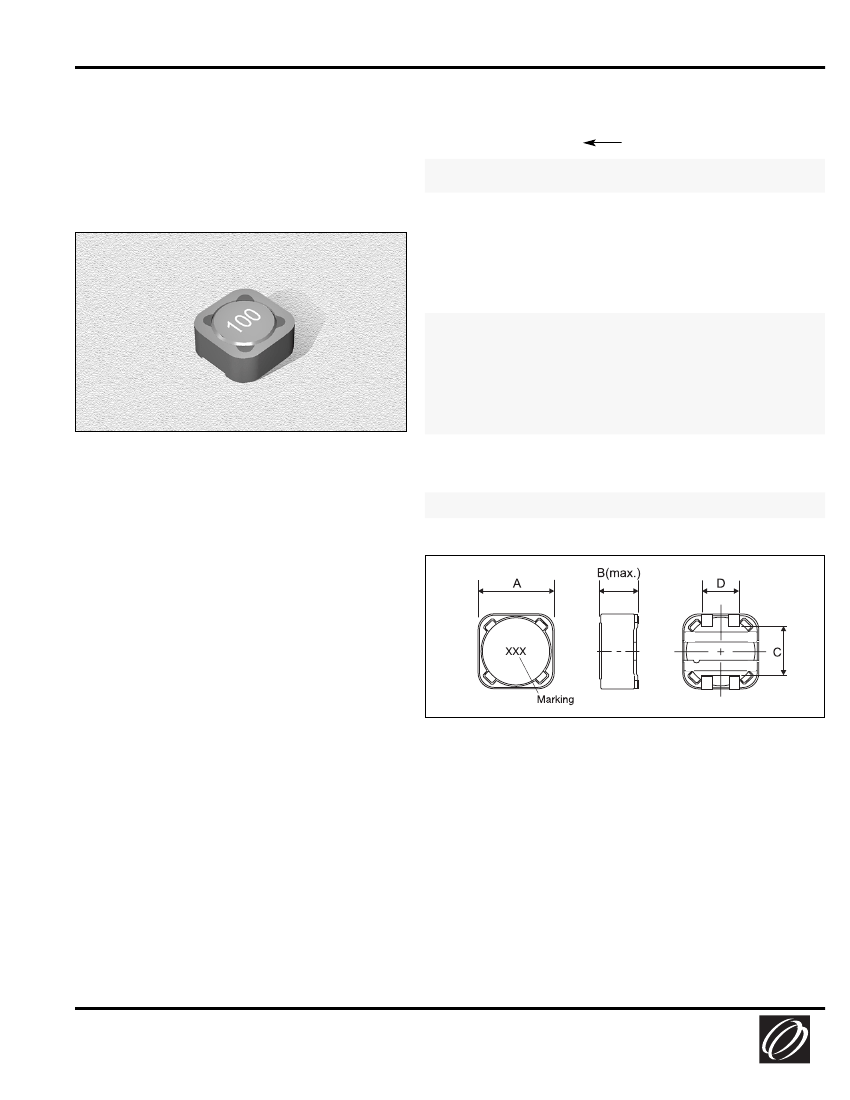

SMD Shielded Power Inductors

SPECIFICATIONS

ctparts.com

CTCDRH125 Series

From 10 µH to 1,000 µH

Part

Number

Not shown at actual size.

Please specify tolerance code when ordering.

CTCDRH124-3R9_

J = ±5%, K = ±10% L = ±15%

M = ±20%, N = ±30%

Inductance

(µH)

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

560

680

820

1000

L Test

Freq.

(kHz)

1.0

DCR

Max.

Ω

(Ω)

.03

.04

.05

.06

.07

.08

.11

.12

.14

.16

.17

.23

.29

.40

.46

.51

.69

.77

.86

1.2

1.3

1.5

IDC

Max.

(A)

4.0

3.5

3.3

3.0

2.8

2.3

2.1

2.0

1.8

1.7

1.5

1.4

1.3

1.1

1.0

0.9

0.8

0.7

0.6

0.5

0.4

CTCDRH125-100_

CTCDRH125-120_

CTCDRH125-150_

CTCDRH125-180_

CTCDRH125-220_

CTCDRH125-270_

CTCDRH125-330_

CTCDRH125-390_

CTCDRH125-470_

CTCDRH125-560_

CTCDRH125-680_

CTCDRH125-820_

CTCDRH125-101_

CTCDRH125-121_

CTCDRH125-151_

CTCDRH125-181_

CTCDRH125-221_

CTCDRH125-271_

CTCDRH125-331_

CTCDRH125-391_

CTCDRH125-471_

CTCDRH125-561_

CTCDRH125-681_

CTCDRH125-821_

CTCDRH125-102_

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature:

-30°C to +100°C

Inductance Tolerance:

±5%, ±10%, ±15%, ±20%, ±30%

Testing:

Inductance is tested on an HP4284A at 1.0 kHz

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

Magnetically shielded

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

mm

inches

A

12±0.3

0.47±0.011

B

6

0.24

C

8±0.3

0.31±0.011

D

5±0.2

0.2±0.007

Volume Manufacturer of Inductive Components

800-684-5322

Inside US

949-453-1811

Outside US

7.12.14.01

CT Magnetics reserves the right to make improvements or change specifications without notice.

33

CENTRAL

Technologies
