Power Inductors - Shielded
ctparts.com
CTCDRH5D18 Series
From 4.1 µH to 330 µH
Part
Number
Not shown at actual size.
SPECIFICATIONS
Parts are available in ±30% tolerance only.
CTCDRH5D18F
Please specify “F” for RoHS Compliant
Inductance
(µH ±30%)
4.1
5.4
6.2
8.9
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
L Test
Freq.
(kHz)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR
Max.
Ω
(mΩ)
57
76
96
116
124
153
196
210
290
330
386
520
595
665
840
978
1200
1500
1710
2240
2440
3380
4340
Rated DC
Current
(A)
1.95
1.60
1.40
1.25
1.20
1.10
0.97
0.85
0.80
0.75
0.65
0.57
0.54
0.50
0.43
0.41
0.36
0.33
0.31
0.28
0.23
0.21
0.18
CTCDRH5D18_-4R1N
CTCDRH5D18_-5R4N
CTCDRH5D18_-6R2N
CTCDRH5D18_-8R9N
CTCDRH5D18_-100N
CTCDRH5D18_-120N
CTCDRH5D18_-150N
CTCDRH5D18_-180N
CTCDRH5D18_-220N
CTCDRH5D18_-270N
CTCDRH5D18_-330N
CTCDRH5D18_-390N
CTCDRH5D18_-470N
CTCDRH5D18_-560N
CTCDRH5D18_-680N
CTCDRH5D18_-820N
CTCDRH5D18_-101N
CTCDRH5D18_-121N
CTCDRH5D18_-151N
CTCDRH5D18_-181N
CTCDRH5D18_-221N
CTCDRH5D18_-271N
CTCDRH5D18_-331N
Compliant
Available
RoHS

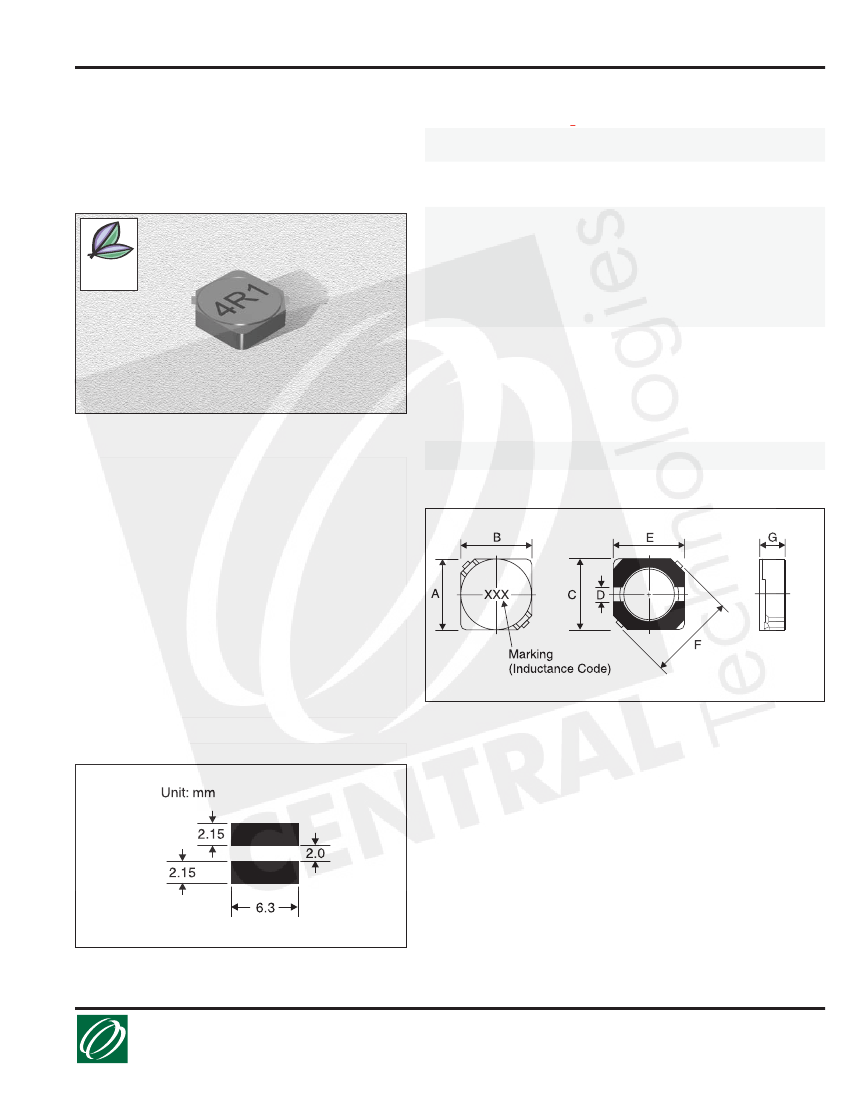

PHYSICAL DIMENSIONS
CHARACTERISTICS
Description:
SMD (shielded) power inductor
Applications:
Power supplies for VTR, OA equipment, LCD
televisions, PC notebooks, portable communication equipment,
DC/DC converters, etc.
Operating Temperature:
-30°C to +80°C
Inductance Tolerance:
±30%
Testing:
Tested on a HP4284A at 10 KHz , 0.25Vrms , 0Adc
Packaging:
Tape & Reel
Marking:
Parts are marked with inductance code
Rated DC Current: Indicates the current when the inductance
decreases to 65% of its initial value or D.C. current when the
temperature of coil is increased by 30% the smaller one is defined
as rated current.
Miscellaneous:
RoHS Compliant available
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
Size
mm
inches
A
5.7±0.3
0.22±0.01
B
5.7±0.3
0.22±0.01
C
5.5
0.217
D
2.0
0.08
E
5.5
0.217
F
Max.
8.2
0.32
G
Max.
2.0
0.08
PAD LAYOUT
01.14-05
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2005 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
