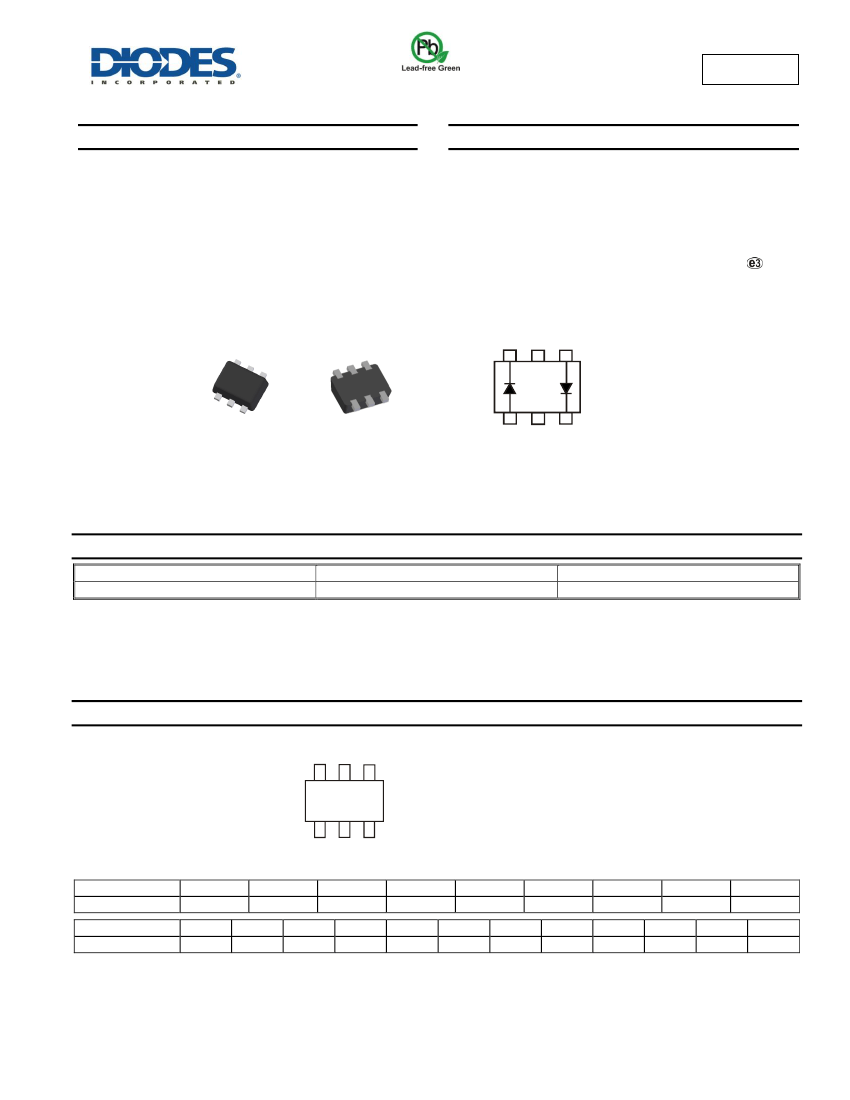

BAS116V
DUAL SURFACE MOUNT LOW LEAKAGE DIODE
Features
Surface Mount Package Ideally Suited for Automated Insertion
Very Low Leakage Current
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SOT563
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish
Matte
Tin Annealed over Copper
Leadframe; Solderable per MIL-STD-202, Method 208
Weight: 0.003 grams (Approximate)
SOT563
C
1
NC
A
2
A
1
NC
C
2
Top View
Bottom View
Top View
Internal Schematic
Ordering Information
(Note 4)
Part Number
BAS116V-7
Notes:
Case
SOT563
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT563
KAZ YM
KAZ = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: R = 2004)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2004
R
Jan
1
Feb
2
2005
S
Mar
3
…
…
Apr
4
2015
C
May
5
Jun
6
2016
D
Jul
7
2017
E
Aug
8
2018
F
Sep
9
Oct
O
2019
G
Nov
N
2020
H
Dec
D
BAS116V
Document number: DS30562 Rev. 8 - 2
1 of 5
www.diodes.com
November 2015
© Diodes Incorporated
BAS116V
Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 5)
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge Current
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FRM
@ t = 1.0µs
@ t = 1.0ms
@ t = 1.0s
I
FSM
Value
85
60
215
500
4.0
1.0
0.5
Unit
V
V
mA
mA
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
JA
T
J
, T
STG
Value
150
833
-65 to +150
Unit
mW
°
C/W
°
C
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Reverse Breakdown Voltage (Note 6)
Forward Voltage
Symbol
V
(BR)R
V
FM
Min
85
Typ
Max
0.90
1.0
1.1
1.25
5.0
80
3.0
Unit
V
V
nA
nA
pF
µs
Test Condition
I
R
= 100µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= +150°
C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
RR
= 0.1 x I
R
, R
L
= 100Ω
Leakage Current (Note 6)
Total Capacitance
Reverse Recovery Time
Notes:
I
RM
C
T
t
RR
2
5. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
6. Short duration pulse test used to minimize self-heating effect.
BAS116V
Document number: DS30562 Rev. 8 - 2
2 of 5
www.diodes.com
November 2015
© Diodes Incorporated
BAS116V
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
250
1,000
P
D
, POWER DISSIPATION (mW)
200
100
150
10
100
1.0
50
0.1
0
-50
0.01
0
1
2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

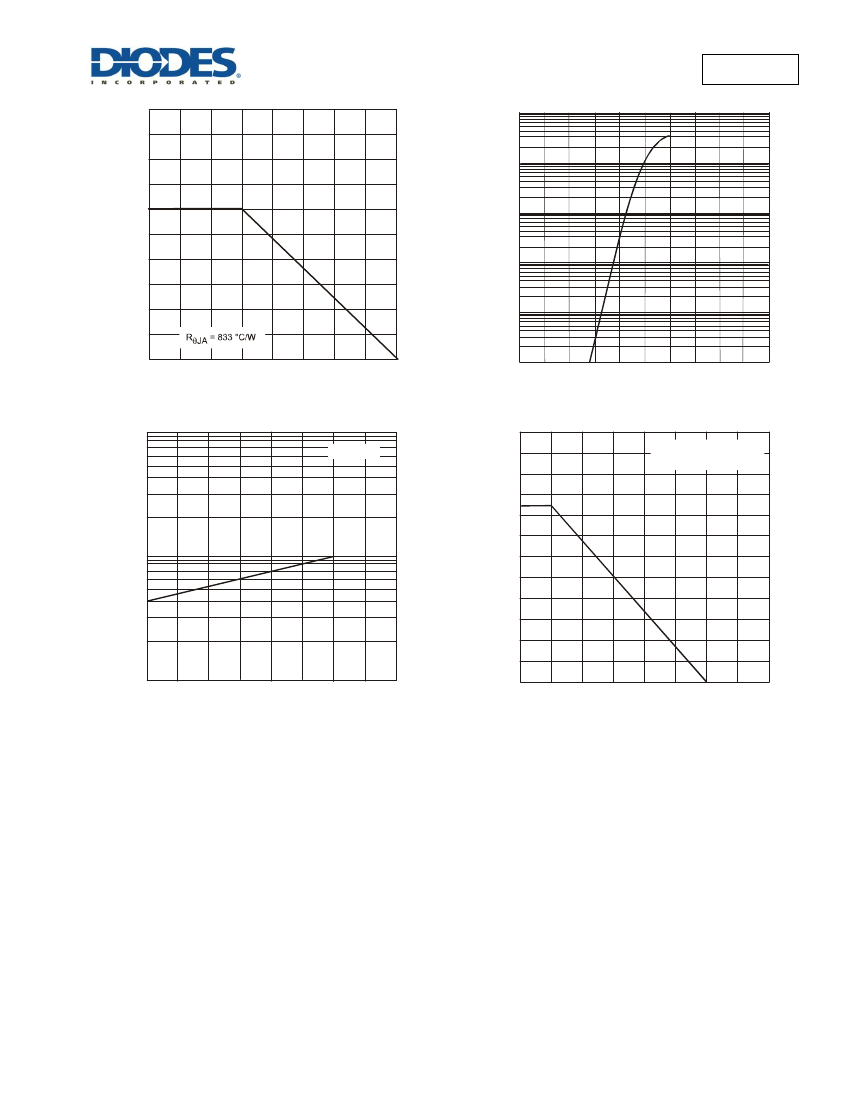

Fig. 2 Typical Forward Characteristics, Per Element
0
50
100
150
T
A
, AMBIENT TEMPERATURE (°
C)
Fig. 1 Power Derating Curve, Total Package
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10
V
R
= 75V
300
Device mounted on an
FR4 printed-circuit board
250
I
F
, FORWARD CURRENT (mA)
0
200
1
150
100
50
0.1
50
100
150
200
T
A
, AMBIENT TEMPERATURE (°
C)
Fig. 3 Typical Reverse Characteristics, Per Element
0
0
50
100
150
200
T
A
, AMBIENT TEMPERATURE (°
C)
Fig. 4 Current Derating Curve, Per Element
BAS116V
Document number: DS30562 Rev. 8 - 2
3 of 5
www.diodes.com
November 2015
© Diodes Incorporated
BAS116V
