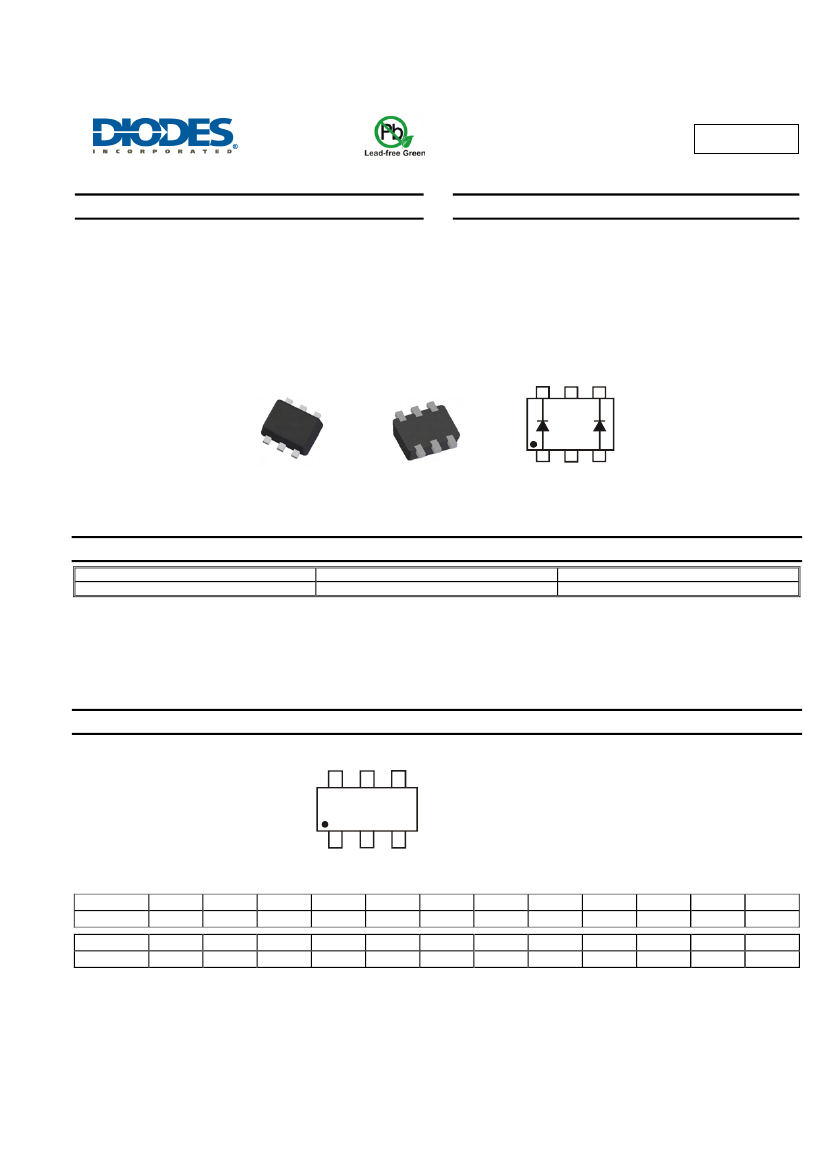

BAT40VC
SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS
Features
•
•
•
•
•
•
•
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Lead Free by Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOT-563
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.003 grams (approximate)
C
1
NC
C
2
A
1
NC
A
2
Top View
Bottom View
Device Schematic
Ordering Information
(Note 3)
Part Number
BAT40VC-7
Notes:
Case
SOT-563
Packaging
3000/Tape & Reel
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
AXK YM
AXK = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: R = 2004)
M = Month (ex: 9 = September)
Date Code Key
Year
2004
Code
Month
Code
R
Jan
1
2005
S
Feb
2
2006
T
Mar
3
2007
U
Apr
4
2008
V
May
5
2009
W
Jun
6
2010
X
Jul
7
2011
Y
Aug
8
2012
Z
Sep
9
2013
A
Oct
O
2014
B
Nov
N
2015
C
Dec
D
BAT40VC
Document number: DS30637 Rev. 6 - 2
1 of 4
www.diodes.com
October 2010
© Diodes Incorporated
BAT40VC
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current (Note 4)
Repetitive Peak Forward Current (Note 4)
Forward Surge Current (Note 4) @tp =10ms
Symbol
V
RRM
V
RWM
V
R
I
F
I
FRM
I
FSM
Value
40
200
350
750
Unit
V
mA
mA
mA
Thermal Characteristics
Characteristic
Power Dissipation (Note 4)
Thermal Resistance, Junction to Ambient Air (Note 4)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
150
833
-65 to +125
Unit
mW
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
Min
40
⎯
⎯
⎯
⎯
Typ
⎯
⎯
⎯
⎯
⎯
Max
⎯
330
420
800
1000
500
10
5.0
Unit
V
mV
nA
pF
ns
Test Condition
I
R
= 100μA
I
F
= 2.0mA
I
F
= 15mA
I
F
= 100mA
I
F
= 200mA
V
R
= 25V
V
R
= 1.0V, f = 1.0MHz
I
F
= 10mA through I
R
= 10mA
to I
R
= 1.0mA, R
L
= 100Ω
Characteristic
Reverse Breakdown Voltage (Note 5)
Forward Voltage
Reverse Leakage Current (Note 5)
Total Capacitance
Reverse Recovery Time
Notes:
V
F
I
R
C
T
t
rr
4. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. T
A
= 25°C.
5. Short duration pulse test used to minimize self-heating effect.
BAT40VC
Document number: DS30637 Rev. 6 - 2
2 of 4
www.diodes.com
October 2010
© Diodes Incorporated

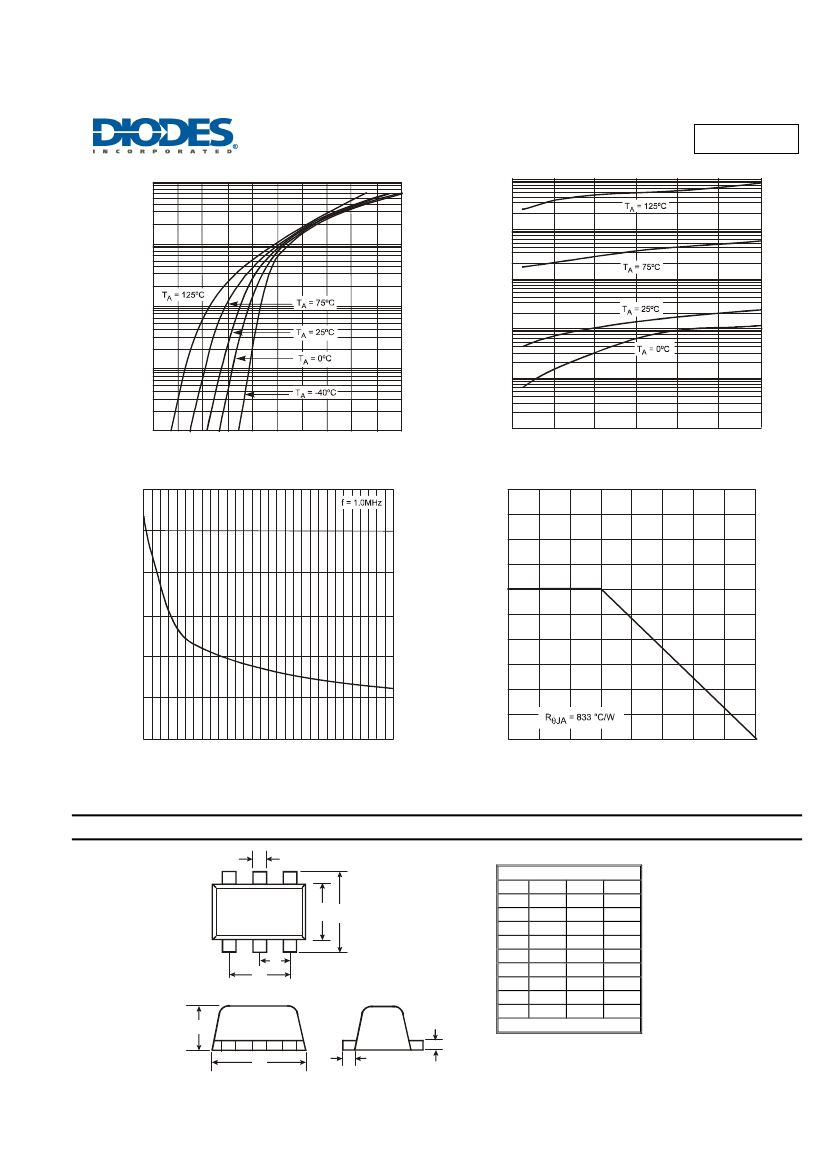

BAT40VC
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
1
100
10
0.1
1
0.01
0.1
0.001
0.01
0.0001
0.4
1.0
0.2
0.8
0
0.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics
0.001
0
20
30
5
10
15
25
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
12
250
P
D
, POWER DISSIPATION (mW)
C
T
, TOTAL CAPACITANCE (pF)
10
200
8
150
6
100
4
2
50
0
0
10
15
20
25
5
30
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
0
-50
100
0
50
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Derating Curve - Total
150
Package Outline Dimensions
A
B
C
D
G
K
M
SOT-563
Dim Min
Max
Typ
A
0.15 0.30 0.20
B
1.10 1.25 1.20
C
1.55 1.70 1.60
D
-
-
0.50
G
0.90 1.10 1.00
H
1.50 1.70 1.60
K
0.55 0.60 0.60
L
0.10 0.30 0.20
M
0.10 0.18 0.11
All Dimensions in mm
H
L
BAT40VC
Document number: DS30637 Rev. 6 - 2
3 of 4
www.diodes.com
October 2010
© Diodes Incorporated
BAT40VC
Suggested Pad Layout
E
E
Z
G
C
Dimensions Value (in mm)
Z
2.2
G
1.2
X
0.375
Y
0.5
C
1.7
E
0.5
Y
X
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2010, Diodes Incorporated
www.diodes.com
BAT40VC
Document number: DS30637 Rev. 6 - 2
4 of 4
www.diodes.com
October 2010
© Diodes Incorporated
