Green
DFLS160
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
POWERDI123
Features
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Patented Interlocking Clip Design for High Surge Current
Capacity
Qualified to AEC-Q101 Standards for High Reliability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: PowerDI 123
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202 Method 208
Weight: 0.01 grams (Approximate)
®
PowerDI123
Top View
Ordering Information
(Note 4)
Part Number
DFLS160-7
Notes:
Case
PowerDI123
Packaging
3,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
F17 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: E = 2017)
M = Month (ex: 9 = September)
Date Code Key
Year
2004
Code
R
Month
Code
Jan
1
2014
B
Feb
2
2015
C
Mar
3
2016
D
2017
E
Apr
4
2018
F
May
5
2019
G
Jun
6
2020
H
Jul
7
2021
I
Aug
8
2022
J
Sep
9
2023
K
2024
L
Oct
O
2025
M
Nov
N
2026
N
Dec
D
PowerDI is a registered trademark of Diodes Incorporated.
DFLS160
Document number: DS30548 Rev. 8 - 2
1 of 5
www.diodes.com
May 2017
© Diodes Incorporated
DFLS160
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed On Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F(AV)
I
FSM
Value
60
42
1.0
50
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Thermal Resistance Junction to Soldering Point (Note 8)
Thermal Resistance Junction to Ambient (Note 9)
Typical Thermal Resistance (Note 7)
Operating and Storage Temperature Range
Symbol
R
θJS
R
θJA
R
θJC
T
J
, T
STG
Typ
125
-65 to +150
Max
6
18
Unit
°C/W
°C/W
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 5)
Forward Voltage
Leakage Current (Note 5)
Total Capacitance
Notes:
Symbol
V
(BR)R
V
F
I
R
C
T
Min
60
Typ
67
Max
0.50
0.1
Unit
V
V
mA
pF
Test Condition
I
R
= 0.2mA
I
F
= 1.0A
V
R
= 60V, T
A
= +25°C
V
R
= 10V, f = 1.0MHz
5. Short duration pulse test to minimize self-heating effect
6. Part mounted on 50.8mm*50.8mm GETEK board with 25.4mm*25.4mm copper pad,25% anode,75% cathode. T
A
= +25°C.
7. Part mounted on FR-4 board with 1.8mm X 2.5mm cathode and 1.8mm X 1.2mm anode, 1 oz. copper pads. T
A
= +25°C.
8. Theoretical R
θJS
calculated from the top center of the die straight down to the PCB/cathode tab solder junction.
9. Device mounted on Polymide substrate, 1" x 1" 2oz copper double-sided PC board with minimum recommended pad layout, which can be found on our
website at http://www.diodes.com.
DFLS160
Document number: DS30548 Rev. 8 - 2
2 of 5
www.diodes.com
May 2017
© Diodes Incorporated
DFLS160
100
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
100,000
T
A
= 150
°
C
10,000
1,000
100
10
1
0.1
0.01
0.001
0.0001
5
20
30
40
50
60
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)

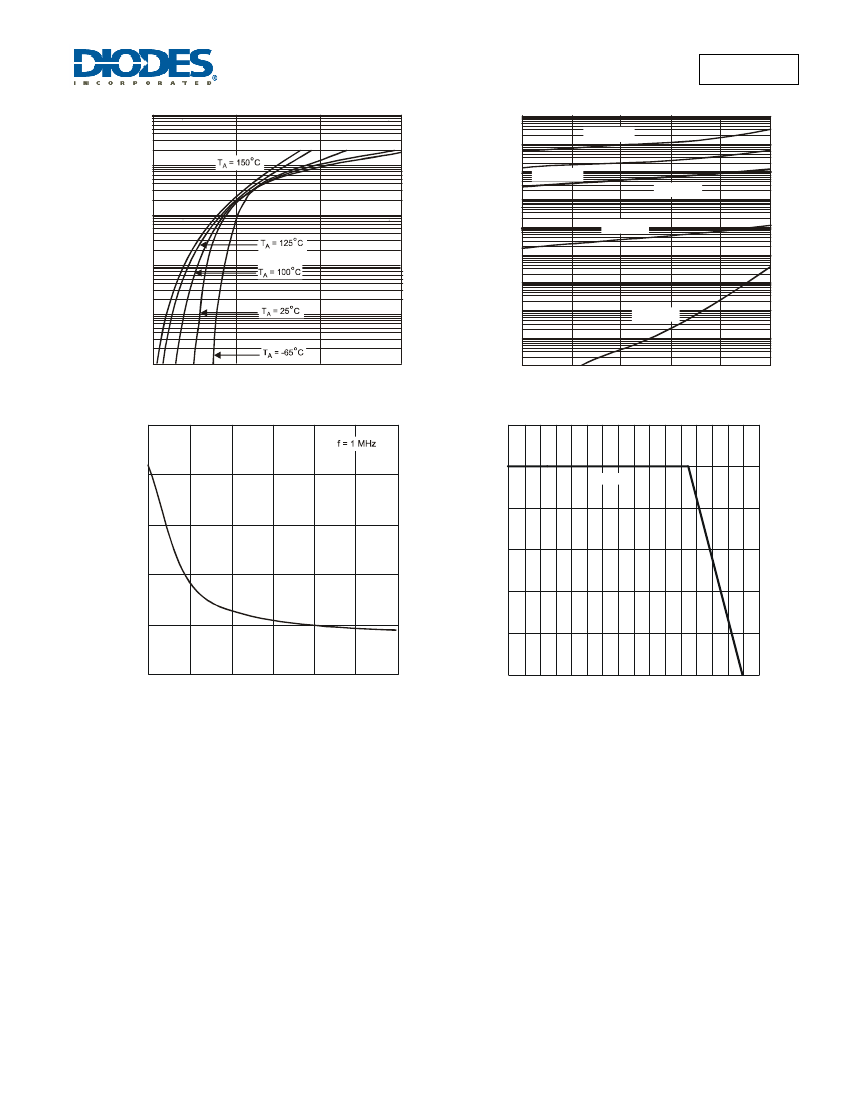

Fig. 2 Typical Reverse Characteristics
T
A
= -65
°
C
T
A
= 25
°
C
T
A
= 125
°
C
T
A
= 100
°
C
10
1
0.1
0.01
0.001
0.5
1.0
1.5
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics
250
1.2
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
C
T
, TOTAL CAPACITANCE (pF)
200
1.0
Note 6
0.8
150
0.6
100
0.4
50
0.2
0
0
10
15
20
25
30
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
5
0
0
20
40
60
80 100 120 140 160
T
T
, Terminal Temperature (°C)
Fig.4 Forward Current Derating (Note 4)
DFLS160
Document number: DS30548 Rev. 8 - 2
3 of 5
www.diodes.com
May 2017
© Diodes Incorporated
DFLS160
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
D
E1
PowerDI123
Dim
Min
Max
Typ
A
0.93
1.00
0.98
A3
0.15
0.25
0.20
b
0.85
1.25
1.00
b2
1.025 1.125 1.10
D
1.63
1.93
1.78
E
3.50
3.90
3.70
E1
2.60
3.00
2.80
L
0.40
0.50
0.45
L1
1.25
1.40
1.35
L3
0.125 0.275 0.20
All Dimensions in mm
A3
A
L(2X)
L1
b
b2
L3
E
L3
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
X2
Dimensions
G
X
X1
X2
Y
Y1
Y
Y1
X
G
X1
Value
(in mm)
0.65
1.05
2.40
4.10
1.50
1.50
DFLS160
Document number: DS30548 Rev. 8 - 2
4 of 5
www.diodes.com
May 2017
© Diodes Incorporated
DFLS160
