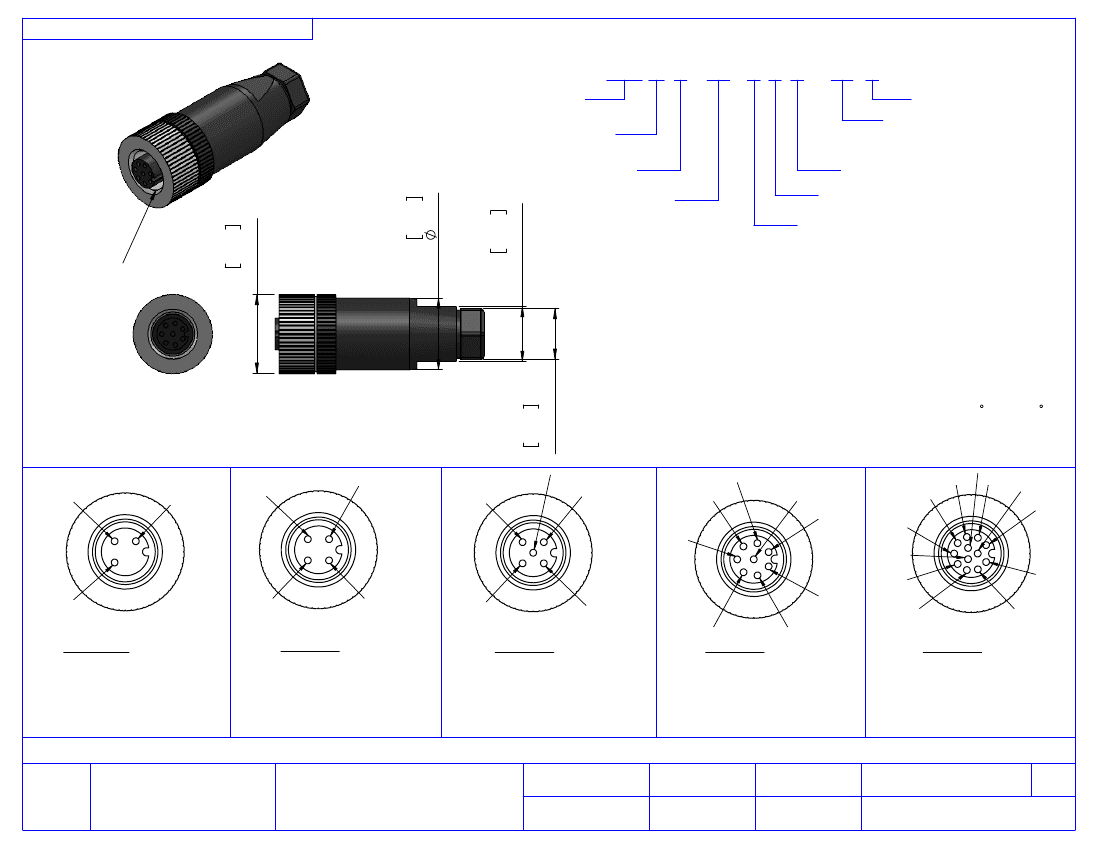

DESCRIPTION: M12 - FEMALE - FIELD INSTALL
UNITS = MM [INCHES]
858 F A YY 2 7 0 L YY 1
SERIES
M12
F = FIELD INSTALL
A = A CODE
# OF POSITIONS
03 = 3 POSITION
04 = 4 POSITION
05 = 5 POSITION
08 = 8 POSITION
12 = 12 POSITION
0.714
18.14
0.546
13.87
1 = GOLD FLASH
CABLE DIAMETER
46 = 4-6 MM
69 = 6-9 MM
PLASTIC SHELL
CABLE MOUNT
2 = FEMALE
M12 x 1.00
0.784
19.92
CHARACTERISTICS
MATERIALS
HOUSING : PA66, BLACK
SCREW : BRASS, NICKEL PLATED
CONTACTS : BRASS, GOLD FLASH
MECHANICAL
DURABILITY: 100 CYCLES
OPERATING TEMP. RANGE: -25 C ~ +85 C
WIRE GAUGE : 24 to 26 AWG
IP RATING: 67
PIN 1
PIN 7
PIN 6
PIN 5
PIN 8
PIN 1
PIN 8
PIN 7
PIN 6
PIN 11
PIN 5
PIN 3
PIN 3
PIN 2
PIN 3
PIN 2
PIN 4
PIN 3
PIN 2
PIN 4
PIN 2
PIN 3
PIN 12
PIN 9
PIN 10
PIN 1
PIN 4
PIN 1
PIN 4
PIN 1
PIN 4
3 POSITION
RATED VOLTAGE : 250 VOLTS
RATED CURRENT : 4 AMPS
CONTACT RESISTANCE : 3 m
Ω
INSULATION RESISTANCE : 100M
Ω
4
POSITION
RATED VOLTAGE : 250 VOLTS
RATED CURRENT : 4 AMPS
CONTACT RESISTANCE : 3 m
Ω
INSULATION RESISTANCE : 100M
Ω
5
POSITION
RATED VOLTAGE : 125 VOLTS
RATED CURRENT : 4 AMPS
CONTACT RESISTANCE : 3 m
Ω
INSULATION RESISTANCE : 100M
Ω
0.504
12.80
PIN 5
8
POSITION
RATED VOLTAGE : 60 VOLTS
RATED CURRENT : 2 AMPS
CONTACT RESISTANCE : 3 m
Ω
INSULATION RESISTANCE : 100M
Ω
12
POSITION
RATED VOLTAGE : 30 VOLTS
RATED CURRENT : 2 AMPS
CONTACT RESISTANCE : 3 m
Ω
INSULATION RESISTANCE : 100M
Ω
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
M. SIGMON
DATE:
03-22-17
SCALE:
N.T.S.
SHEET
1
OF
1
REV:
2
CHECKED:
DATE:
DWG NO.
858FAYY270LYY1
