LH532600N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH532600N

LH532600N: DescriptionMASK ROM, 256KX8, 100ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40; Categorystorage storage; File Size163KB，8 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH532600N Overview

MASK ROM, 256KX8, 100ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40

LH532600N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	0.525 INCH, PLASTIC, SOP-40
Reach Compliance Code	unknown
Maximum access time	100 ns
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
length	26.3 mm
memory density	2097152 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.3 mm

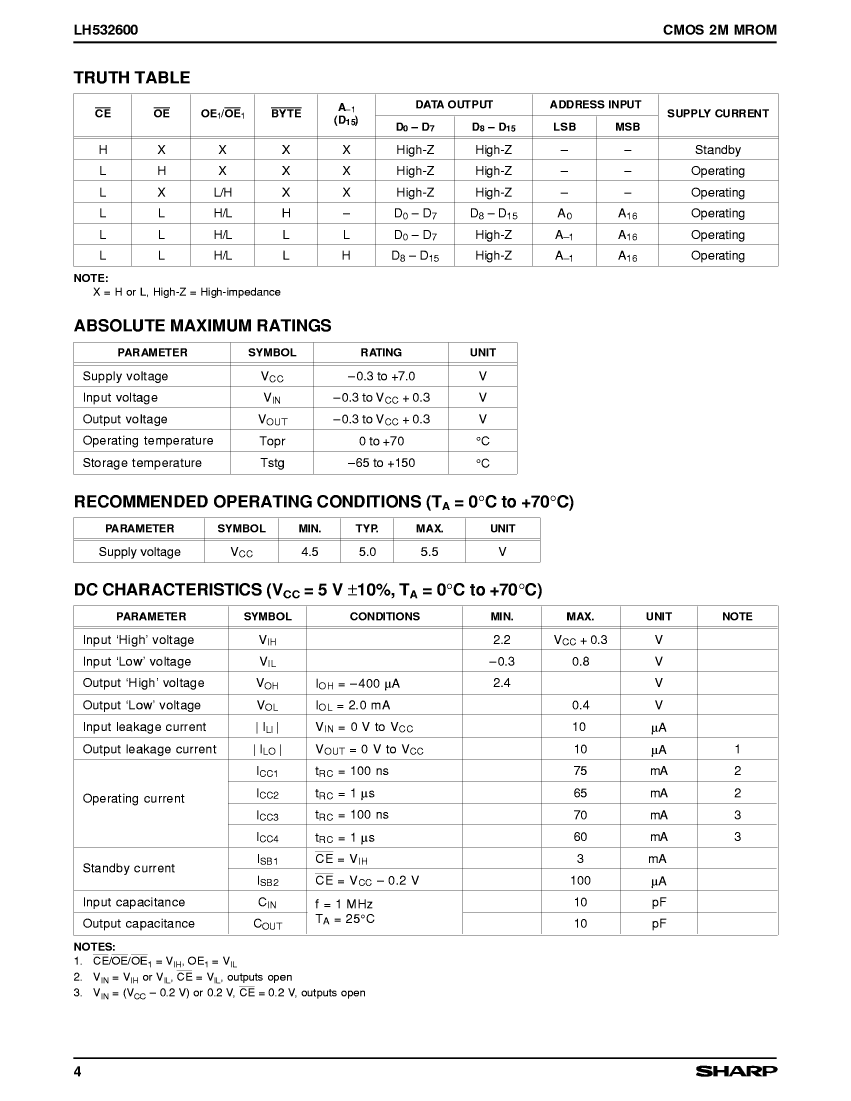

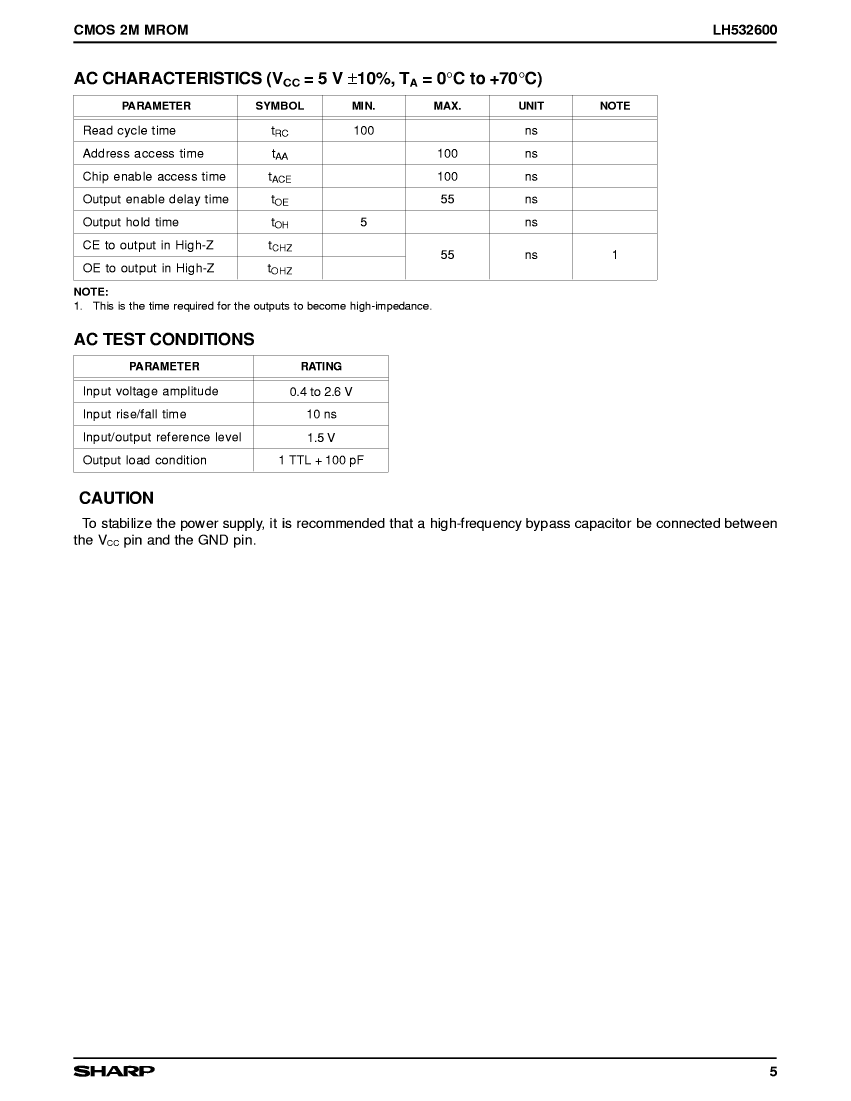

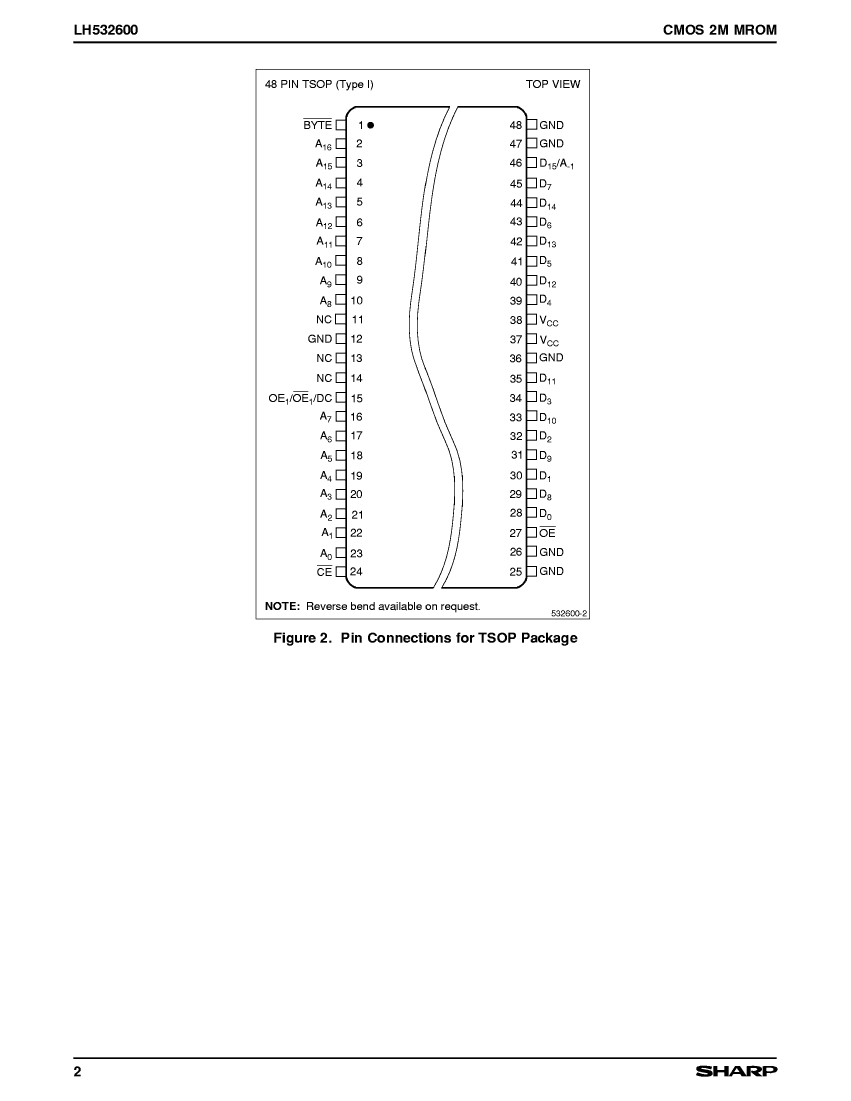

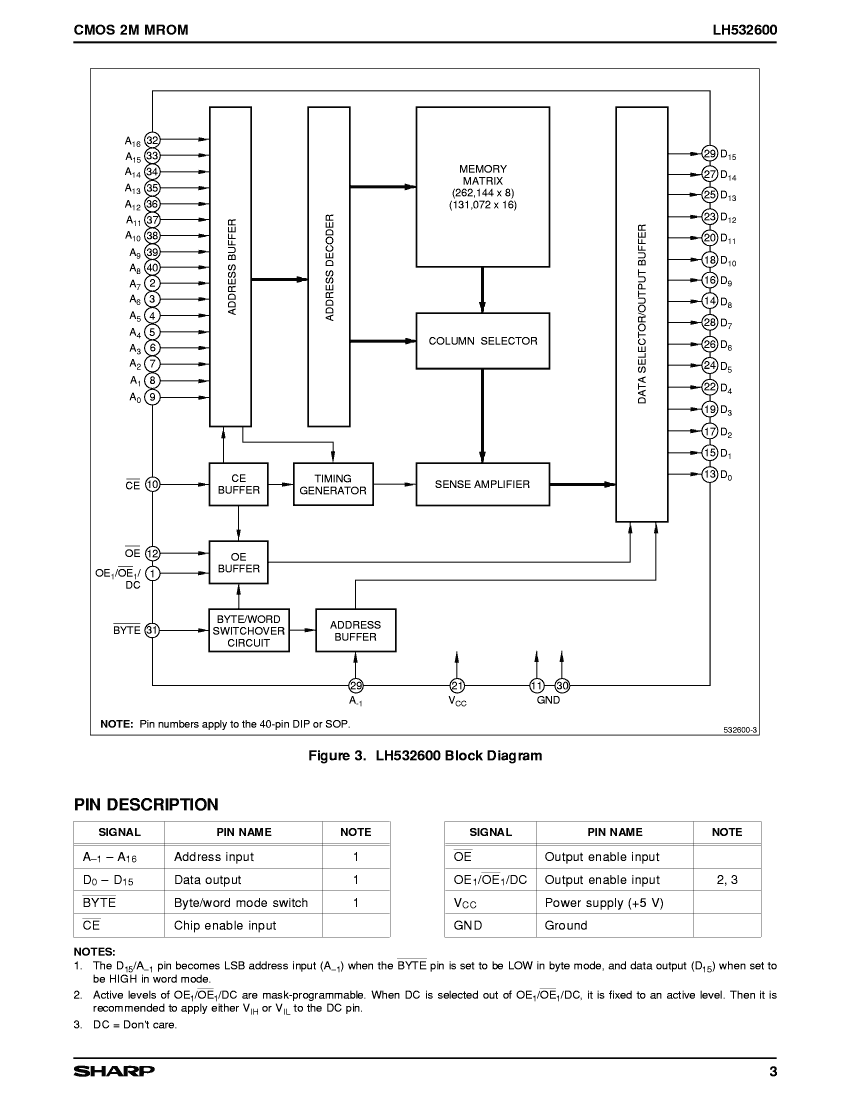

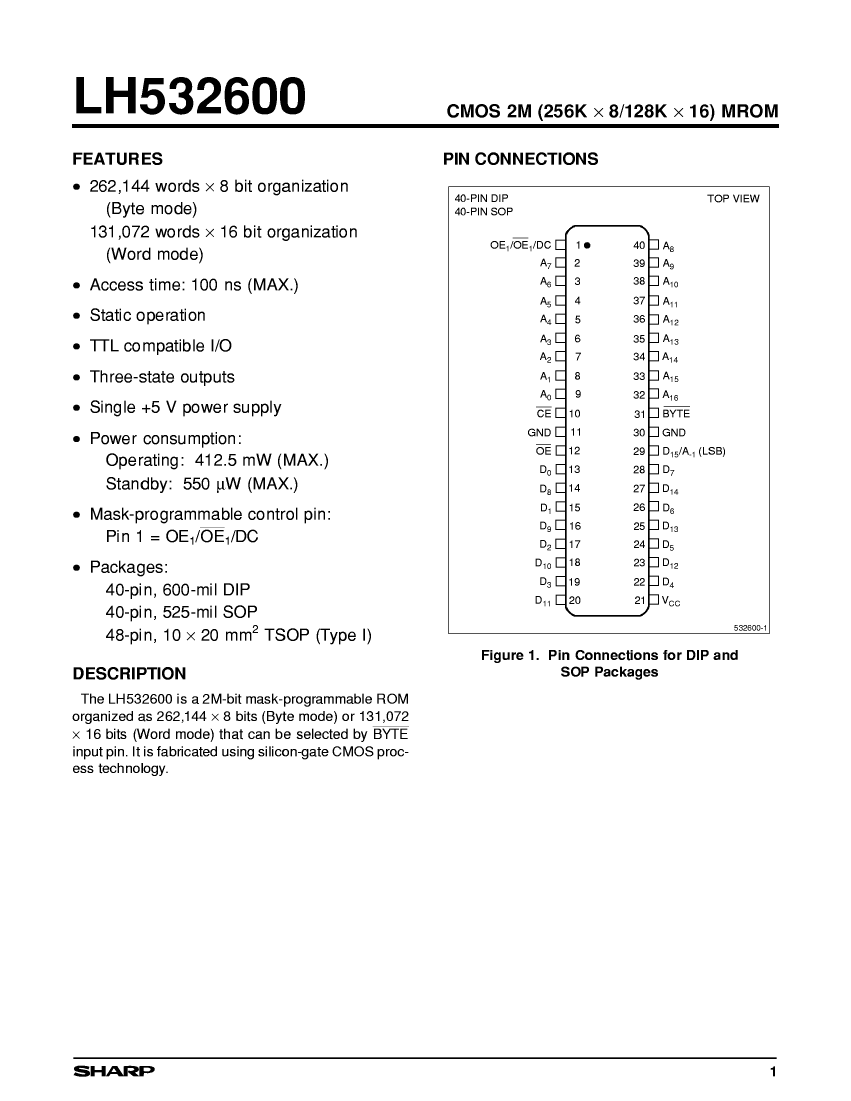

Preview

Download Datasheet

View All

LH532600N Related Products

	LH532600N	LH532600TR	LH532600D	LH532600T
Description	MASK ROM, 256KX8, 100ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40	MASK ROM, 256KX8, 100ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	MASK ROM, 256KX8, 100ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40	MASK ROM, 256KX8, 100ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	SHARP	SHARP	SHARP	SHARP
package instruction	0.525 INCH, PLASTIC, SOP-40	12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	0.600 INCH, PLASTIC, DIP-40	12 X 18 MM, PLASTIC, TSOP1-48
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	100 ns	100 ns	100 ns	100 ns
JESD-30 code	R-PDSO-G40	R-PDSO-G48	R-PDIP-T40	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0
length	26.3 mm	16.4 mm	52 mm	16.4 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	40	48	40	48
word count	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1-R	DIP	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	1.2 mm	5.4 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	0.5 mm	2.54 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	11.3 mm	12 mm	15.24 mm	12 mm
