LAS1520 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LAS1520

LAS1520: DescriptionRegulator, 1 Output, BIPolar,; CategoryPower/power management The power supply circuit; File Size170KB，6 Pages; ManufacturerTDK-LAMBDA

Download Datasheet Parametric Compare View All

LAS1520 Overview

Regulator, 1 Output, BIPolar,

LAS1520 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TDK-LAMBDA
package instruction	, TO-204/-3
Reach Compliance Code	compliant
Adjustability	FIXED
Nominal dropback voltage 1	3 V
Maximum absolute input voltage	40 V
Maximum grid adjustment rate	0.3%
Maximum load regulation	0.12%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1.5 A
Nominal output voltage 1	20 V
Package body material	METAL
Encapsulate equivalent code	TO-204/-3
Certification status	Not Qualified
technology	BIPOLAR
Maximum voltage tolerance	5%

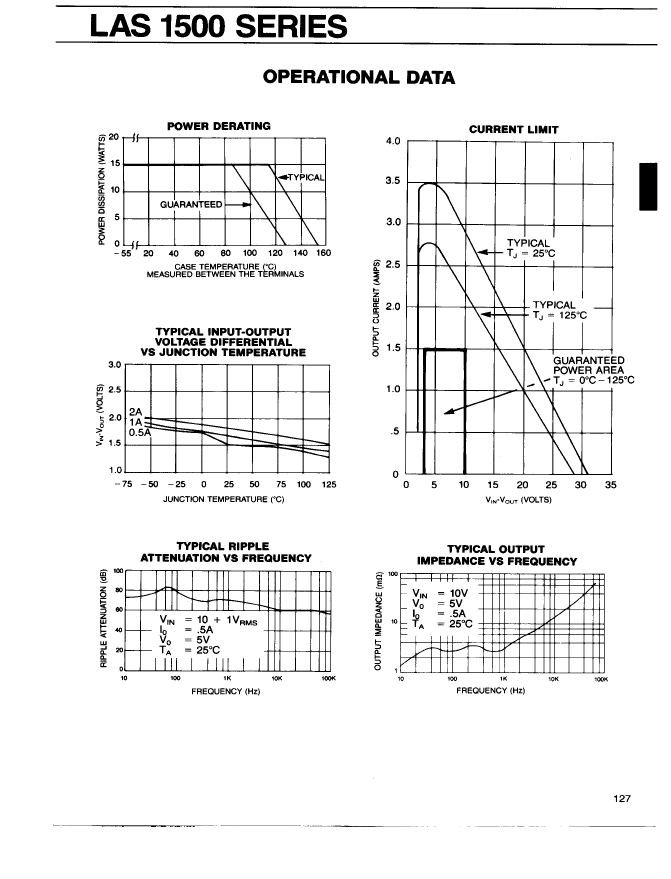

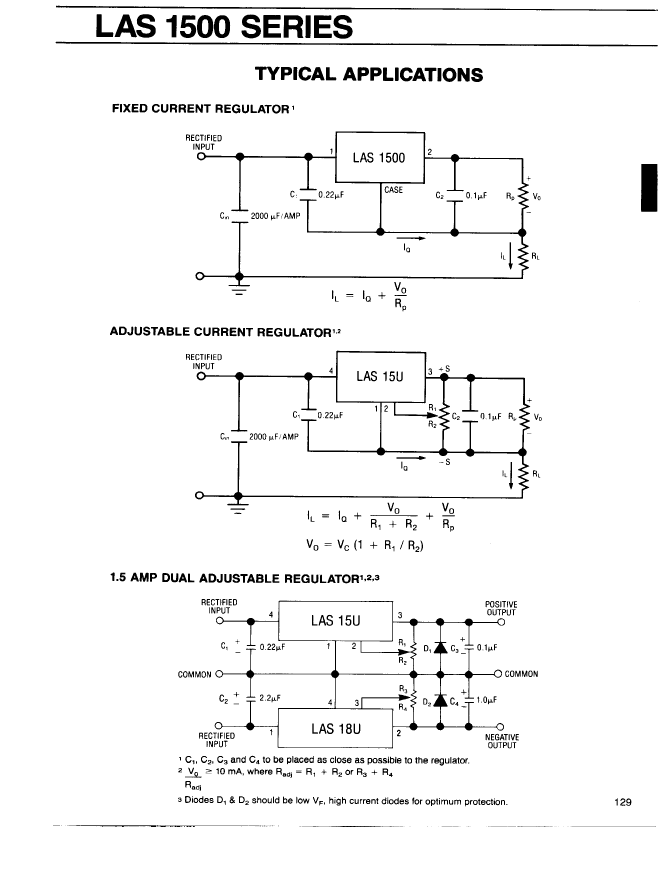

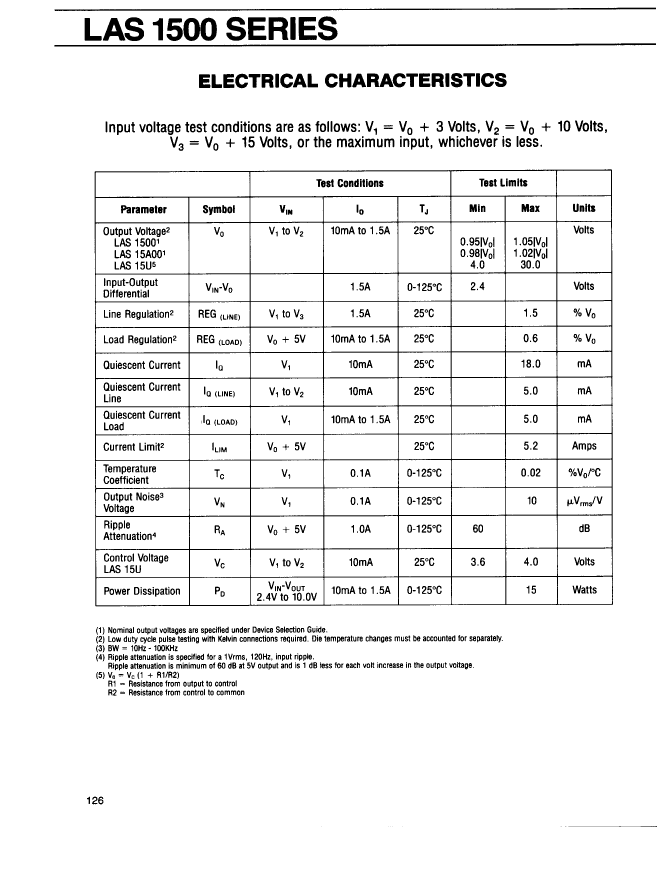

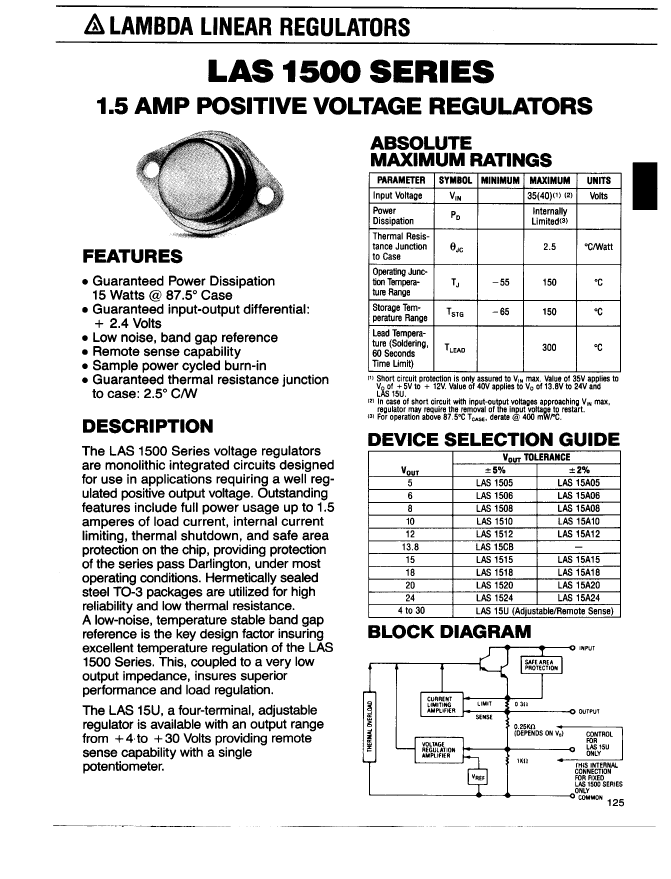

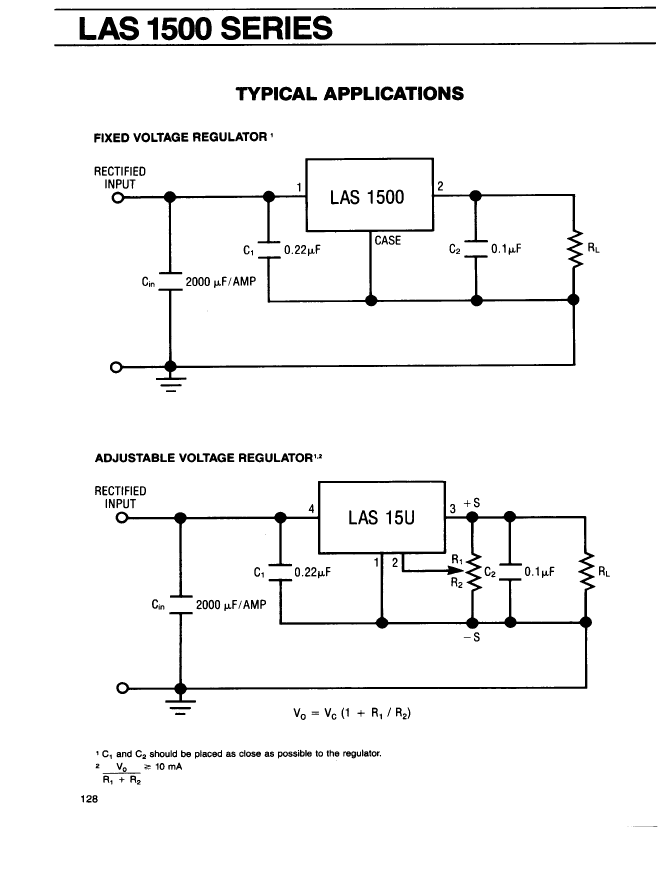

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

LAS1520 Related Products

	LAS1520	LAS15A06	LAS1505	LAS1506	LAS1512	LAS15A05	LAS15A08	LAS15A18
Description	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA
package instruction	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Maximum absolute input voltage	40 V	35 V	35 V	35 V	35 V	35 V	35 V	40 V
Maximum grid adjustment rate	0.3%	0.09%	0.075%	0.09%	0.18%	0.075%	0.12%	0.27%
Maximum load regulation	0.12%	0.036%	0.03%	0.036%	0.072%	0.03%	0.048%	0.108%
Output times	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Nominal output voltage 1	20 V	6 V	5 V	6 V	12 V	5 V	8 V	18 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage tolerance	5%	2%	5%	5%	5%	2%	2%	2%
