BAV3004WS
SURFACE MOUNT LOW LEAKAGE DIODE
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
Surface Mount Package Ideally Suited for Automated Insertion
Low Leakage Current
Fast Switching Speed
High Reverse Breakdown Voltage
Lead Free By Design/RoHS Compliant (Note 3)
“Green” Device (Note 4)
Mechanical Data
•
•
•
•
•
•
•
•
SOD-323
Case: SOD-323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish
⎯
Matte Tin Finish annealed over Alloy 42
leadframe. Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Marking Information: See Page 2
Ordering Information: See Page 2
Weight: 0.004 grams (approximate)
TOP VIEW
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FRM
@ t = 1.0μs
@ t = 1.0s
I
FSM
Value
350
300
212
225
625
4.0
1.0
Unit
V
V
V
mA
mA
A
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage
Leakage Current (Note 2)
Total Capacitance
Reverse Recovery Time
Notes:
1.
2.
3.
4.
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
Min
350
⎯
⎯
⎯
⎯
Typ
⎯
⎯
0.78
0.93
1.03
30
35
1.0
⎯
Max
⎯
⎯
0.87
1.0
1.25
100
100
5.0
50
Unit
V
V
nA
μA
pF
ns
Test Condition
I
R
= 150μA
I
F
= 20mA
I
F
= 100mA
I
F
= 200mA
V
R
= 240V, T
J
= 25°C
V
R
= 240V, T
J
= 150°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
rr
= 3.0mA, R
L
= 100Ω
Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Short duration pulse test used to minimize self-heating effect.
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
BAV3004WS
Document number: DS30646 Rev. 4 - 2
1 of 3
www.diodes.com
March 2008
© Diodes Incorporated
BAV3004WS
I
F
, INSTANTANEOUS FORWARD CURRENT (
m
A)
300
1,000
P
D
, POWER DISSIPATION (mW)
100
200
10
1.0
100
0.1
0
0
40
80
120
160
T
A
, AMBIENT TEMPERATURE (°C)

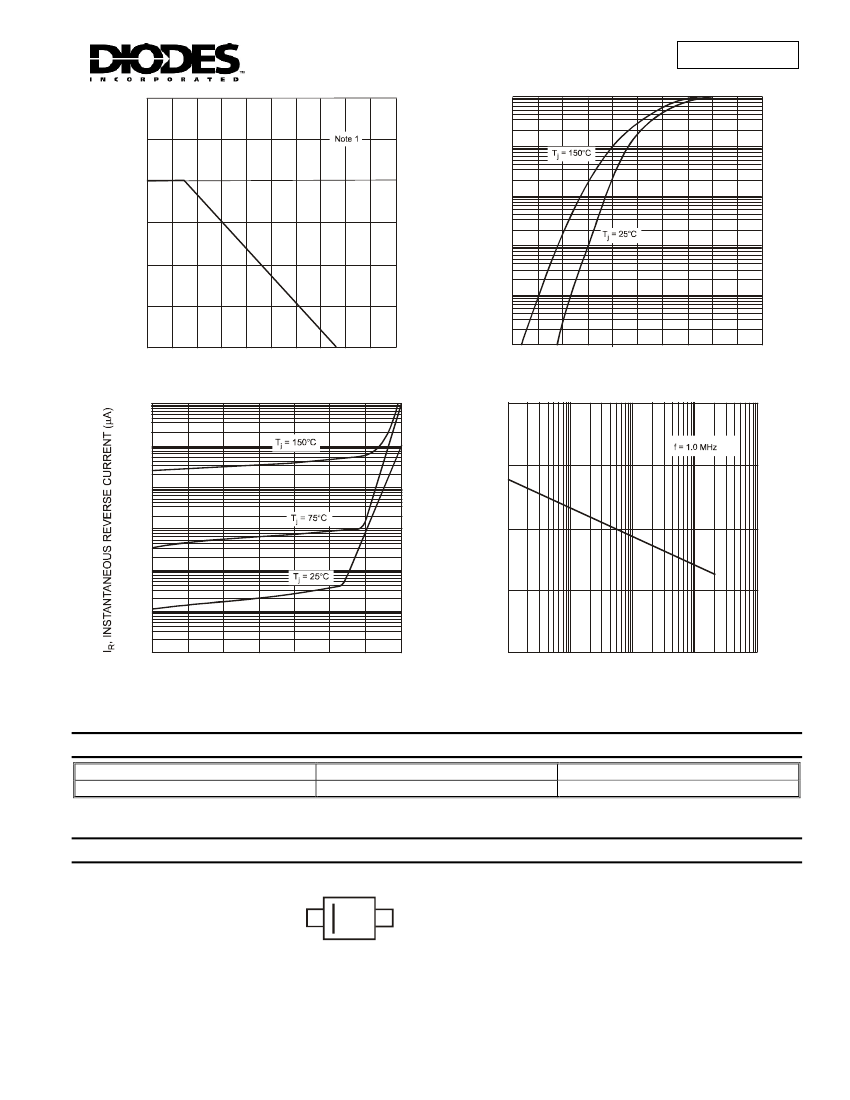

Fig. 1 Power Derating Curve
200
0.01
0
1,600
2,000
400
800
1,200
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Fig. 2 Typical Forward Characteristics
1.1
1,000
C
T
, TOTAL CAPACITANCE (pF)
100
150
50
200
250 300 350
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
100
1.0
10
1.0
0.9
0.1
0.8
0.01
0.001
0
0.7
0.01
100
0.1
10
1.0
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
Ordering Information
Part Number
BAV3004WS-7
Notes:
(Note 5)
Case
SOD-323
Packaging
3000/Tape & Reel
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
4P
4P = Product Type Marking Code
BAV3004WS
Document number: DS30646 Rev. 4 - 2
2 of 3
www.diodes.com
March 2008
© Diodes Incorporated
BAV3004WS
Package Outline Dimensions
A
B
SOD-323
Dim
A
Min
2.30
1.60
1.20
0.25
0.20
0.10
0.00
0°
Max
2.70
1.80
1.40
0.35
0.40
0.15
0.10
8°
C
E
B
C
D
E
D
1.05 Typical
H
G
G
H
J
α
All Dimensions in mm
Suggested Pad Layout
C
Dimensions Value (in mm)
Z
G
3.75
1.05
0.65
1.35
2.40
X
X
Y
Y
G
Z
C
