6. For packaging details, go to our website at http://www.diodes.com/ap2007.pdf.
NEW PRODUCT

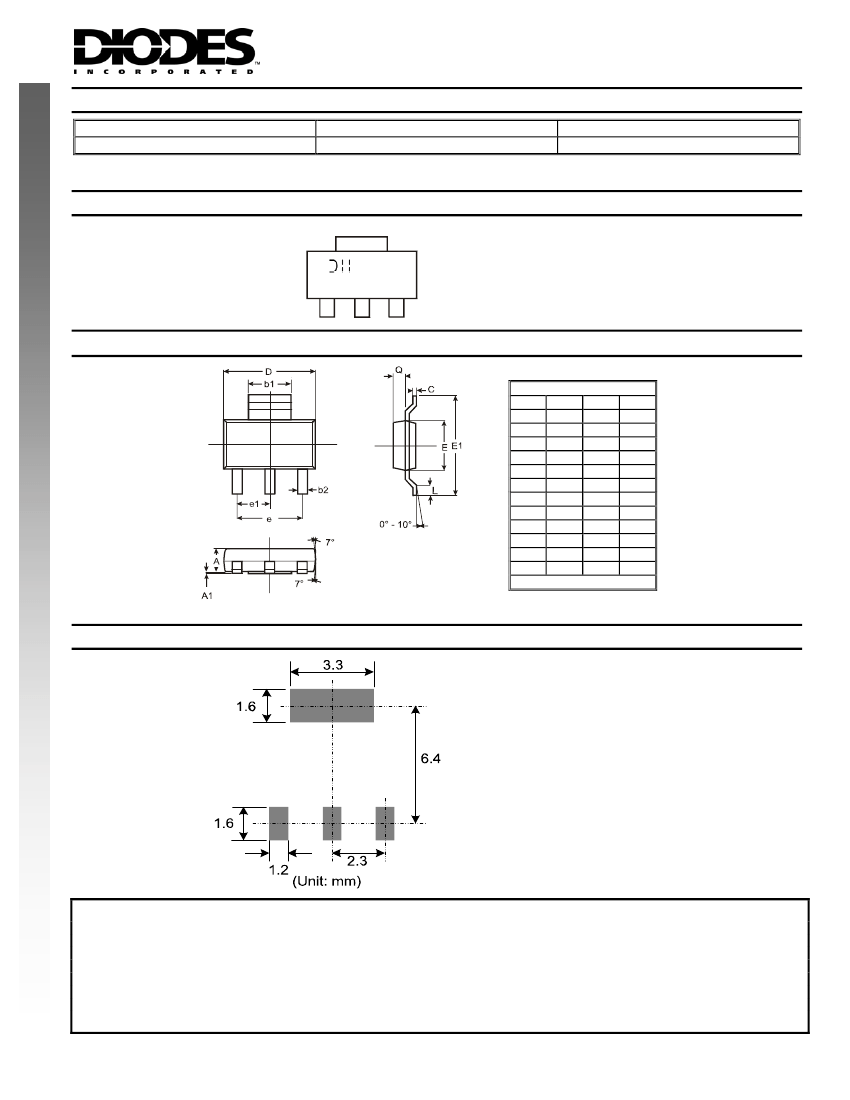

Marking Information
(Top View)
YWW
KN2
KN2 = Product Type Marking Code
YWW = Date Code Marking
Y = Last digit of year ex: 7 = 2007
WW = Week code 01 - 52
Package Outline Dimensions
SOT-223
Dim Min Max Typ
A
1.55 1.65 1.60
A1
0.010 0.15 0.05
b1
2.90 3.10 3.00
b2
0.60 0.80 0.70
C
0.20 0.30 0.25
D
6.45 6.55 6.50
E
3.45 3.55 3.50
E1
6.90 7.10 7.00
e
—
—
4.60
e1
—
—
2.30
L
0.85 1.05 0.95
Q
0.84 0.94 0.89
All Dimensions in mm
Suggested Pad Layout
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
