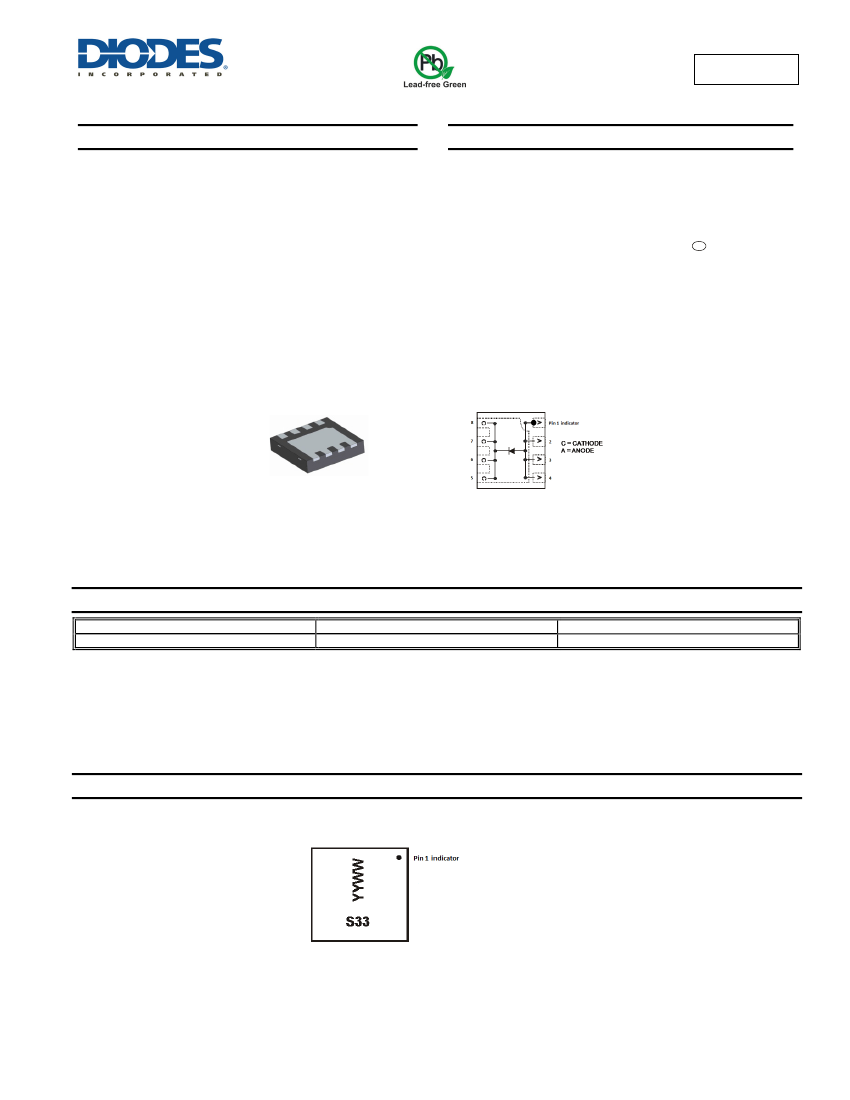

B3L30LP
3A SCHOTTKY BARRIER RECTIFIER
Features
•
•
•
•
•
•
•
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Low Forward Voltage Drop
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
High Forward Surge Current Capability
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
•
•
•
•
•
Case: U-DFN3030-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - NiPdAu over Copper lead frame.
Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.0172 grams (approximate)
e4
U-DFN3030-8
Bottom View
Top View
Schematic and Pin Configuration
Ordering Information
(Note 4)
Part Number
B3L30LP-7
Notes:
Case
U-DFN3030-8
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
S33 = Product marking code
YYWW = Date code marking
YY = Last digit of year (ex: 13 for 2013)
WW = Week code (01 ~ 53)
B3L30LP
Document number: DS30915 Rev. 11 - 2
1 of 5
www.diodes.com
March 2014
© Diodes Incorporated
B3L30LP
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
Value
30
21
3.0
30
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Thermal Resistance Junction to Soldering Point
Thermal Resistance Junction to Ambient Air
Power Dissipation
Operating and Storage Temperature Range
(Note 5)
(Note 6)
(Note 7)
(Note 8)
Symbol
R
θ
JS
R
θ
JA
P
D
T
J
, T
STG
Typ
⎯
130
⎯
⎯
⎯
-65 to +150
Max
3
⎯
2.5
4.0
4.5
Unit
°C/W
°C/W
W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 9)
Symbol
V
(BR)R
Min
30
⎯
⎯
⎯
Forward Voltage
V
F
⎯
⎯
⎯
⎯
Reverse Current (Note 9)
Notes:
Typ
⎯
0.28
0.30
0.18
0.33
0.22
0.35
0.26
0.27
55
Max
⎯
⎯
0.35
0.29
0.40
0.37
0.45
0.42
1.0
90
Unit
V
Test Condition
I
R
= 5.0mA
I
F
= 0.5A, T
J
= +25°C
I
F
= 1.0A, T
J
= +25°C
I
F
= 1.0A, T
J
= +125°C
V
I
F
= 2.0A, T
J
= +25°C
I
F
= 2.0A, T
J
= +125°C
I
F
= 3.0A, T
J
= +25°C
I
F
= 3.0A, T
J
= +125°C
I
R
⎯
⎯
mA
mA
T
J
= +25°C, V
R
= 30V
T
J
= +100°C, V
R
= 30V
5. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com. T
A
= +25°C.
6. Device mounted on FR-4 PCB, 25mm
2
pad area.
7. Device mounted on FR-4 PCB, 75mm
2
pad area.
8. Aluminum PCB with copper mounting pad area of 75mm
2
.
9. Short duration pulse test used to minimize self-heating effect.
B3L30LP
Document number: DS30915 Rev. 11 - 2
2 of 5
www.diodes.com
March 2014
© Diodes Incorporated
B3L30LP
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
100
100
T
A
= 100°C
10
T
A
= 150°C
T
A
= 125°C
10
T
A
= 85°C
1
1
T
A
= 25°C
T
A
= 0°C
T
A
= 100°C
T
A
= 85°C
0.1
0.1
T
A
= 25°C
T
A
= 0°C
0.01
T
A
= -55°C
0.01
0.001
0.0001
T
A
= -55°C
0.001
1
0.6
0.8
0.2
0.4
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

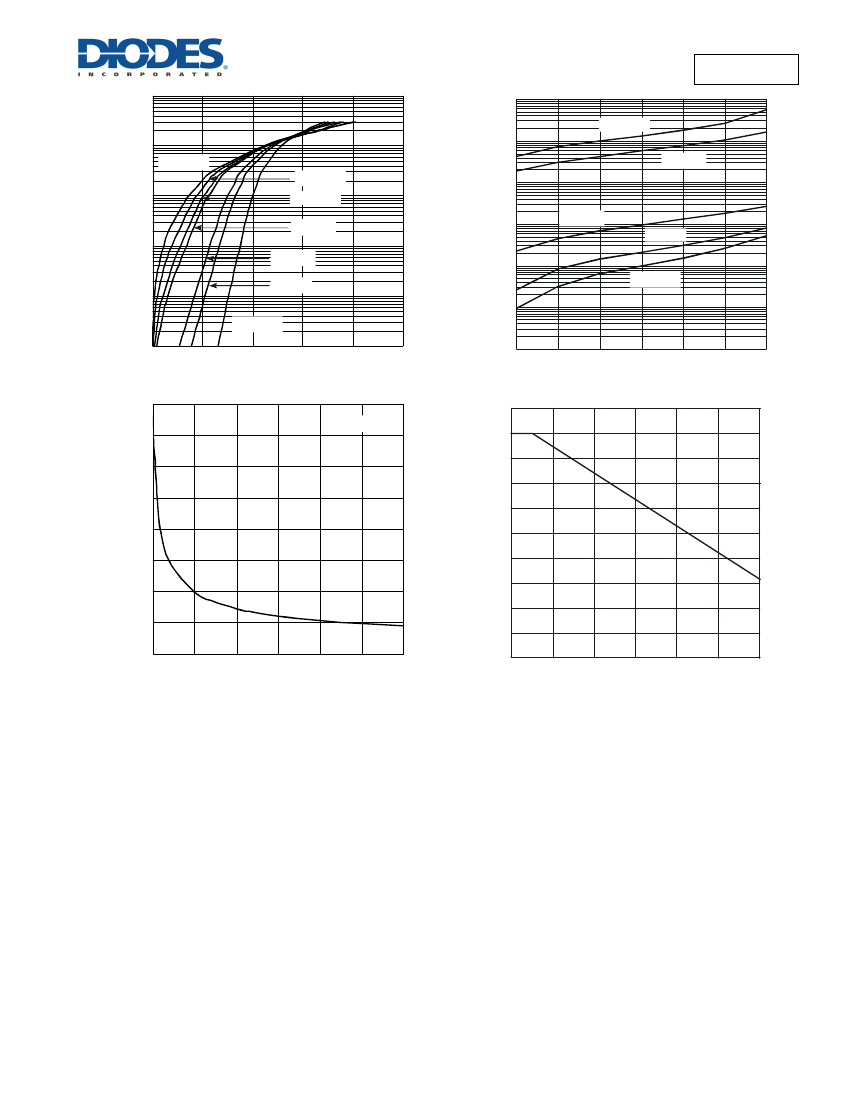

Fig. 1 Typical Forward Characteristics
0
10
20
30
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
f = 1.0 MHz
T
A
, DERATED AMBIENT TEMPERATURE (°C)
800
165
150
135
120
105
90
75
60
45
30
15
0
10
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Operating Temperature Derating
30
C
T
, TOTAL CAPACITANCE (pF)
600
400
200
0
0
5
15
10
20
25
30
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
B3L30LP
Document number: DS30915 Rev. 11 - 2
3 of 5
www.diodes.com
March 2014
© Diodes Incorporated
B3L30LP
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A 1
A
S e a ti n g P l a n e
A 3
D
D 2
E
E 2
R 0.
︵
200
L
e
b
P in # 1 I D
U-DFN3030-8
Dim Min Max
Typ
A
0.57 0.63
0.60
A1
0
0.05
0.02
A3
-
-
0.15
b
0.29 0.39
0.34
D
2.90 3.10
3.00
D2
2.19 2.39
2.29
e
-
-
0.65
E
2.90 3.10
3.00
E2
1.64 1.84
1.74
L
0.30 0.60
0.45
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Z
︶
X1
X2
Y
C
G
Dimensions Value (in mm)
Z
2.59
G
0.11
X1
2.49
X2
0.65
Y
0.39
C
0.65
B3L30LP
Document number: DS30915 Rev. 11 - 2
4 of 5
www.diodes.com
March 2014
© Diodes Incorporated
B3L30LP
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2014, Diodes Incorporated
