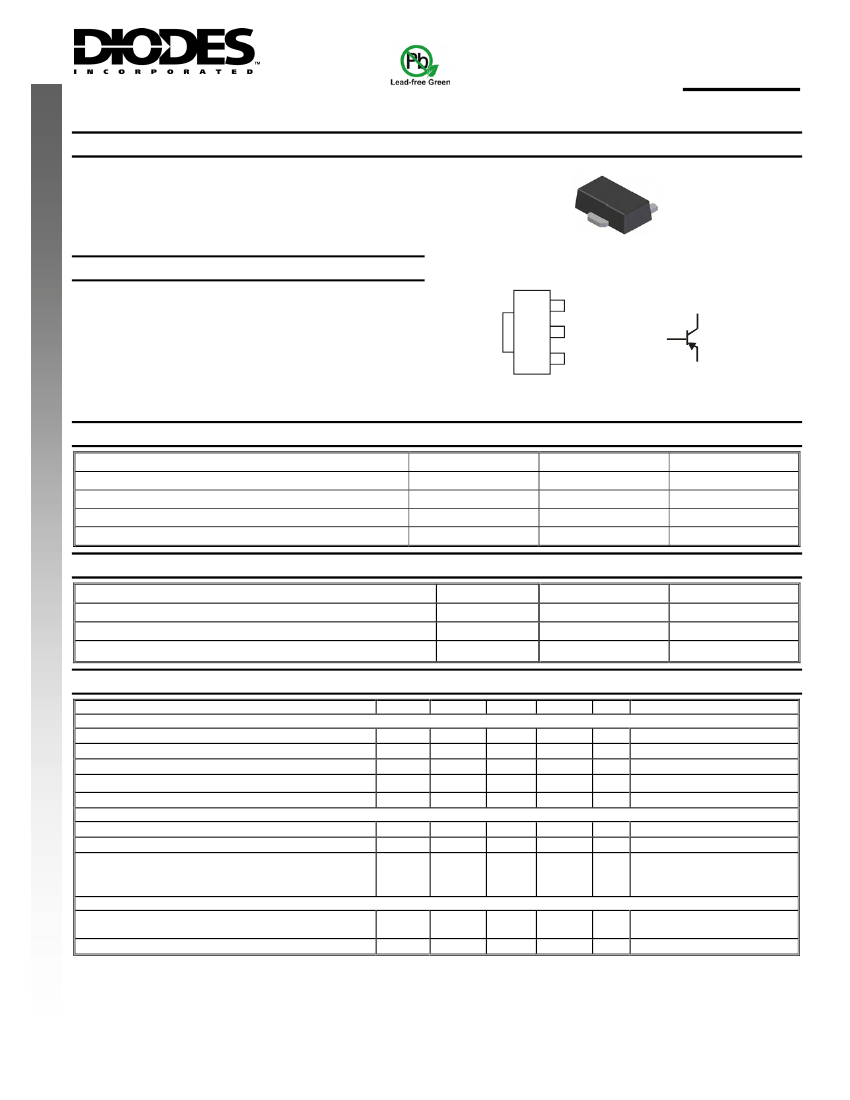

DXTA92
PNP SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary NPN Type Available (DXTA42)
Ideally Suited for Automated Assembly Processes
Ideal for Medium Power Switching or Amplification Applications
Lead Free By Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
NEW PRODUCT
SOT89-3L
COLLECTOR
2,4
Mechanical Data
•
•
•
•
•
•
•
Case: SOT89-3L
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish — Matte Tin annealed over Copper leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Marking & Type Code Information: See Page 3
Ordering Information: See Page 3
Weight: 0.072 grams (approximate)
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
Value
-300
-300
-5
-500
Unit
V
V
V
mA
3 E
C 4
2 C
1 B
1
BASE
TOP VIEW
3
EMITTER
Schematic and Pin Configuration
Maximum Ratings
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Characteristic
Thermal Characteristics
Characteristic
Power Dissipation (Note 3) @ T
A
= 25°C
Thermal Resistance, Junction to Ambient (Note 3)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
j
, T
STG
Value
1
125
-55 to +150
Unit
W
°C/W
°C
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 4)
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Base Cut-off Current
Emitter-Base Cut-off Current
ON CHARACTERISTICS (Note 4)
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Static Forward Current Transfer Ratio
SMALL SIGNAL CHARACTERISTICS
Gain-Bandwidth Product
Output Capacitance
Notes:
1.
2.
3.
4.
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
V
CE(SAT)
V
BE(SAT)
h
FE
Min
-300
-300
-5
⎯
⎯
⎯
⎯
25
40
25
50
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Max
⎯
⎯
⎯
-0.25
-0.1
-0.5
-0.9
⎯
⎯
⎯
⎯
6
Unit
V
V
V
μA
μA
V
V
V
Test Conditions
I
C
= -100μA, I
E
= 0
I
C
= -1mA, I
B
= 0
I
E
= -100μA, I
C
= 0
V
CB
= -200V, I
E
= 0
V
EB
= -3V, I
C
= 0A
I
C
= -20mA, I
B
= -2mA
I
C
= -20mA, I
B
= -2mA
I
C
= -1mA, V
CE
= -10V
I
C
= -10mA, V
CE
= -10V
I
C
= -30mA, V
CE
= -10V
I
C
= -10mA, V
CE
= -20V,
f = 100MHz
V
CB
= -20V, f = 1MHz
f
T
C
obo
MHz
pF
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Device mounted on FR-4 PCB; pad layout as shown on page 4 or in Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Measured under pulsed conditions. Pulse width = 300μs. Duty cycle
≤2%.
DS31159 Rev. 4 - 2
1 of 4
www.diodes.com
DXTA92
© Diodes Incorporated

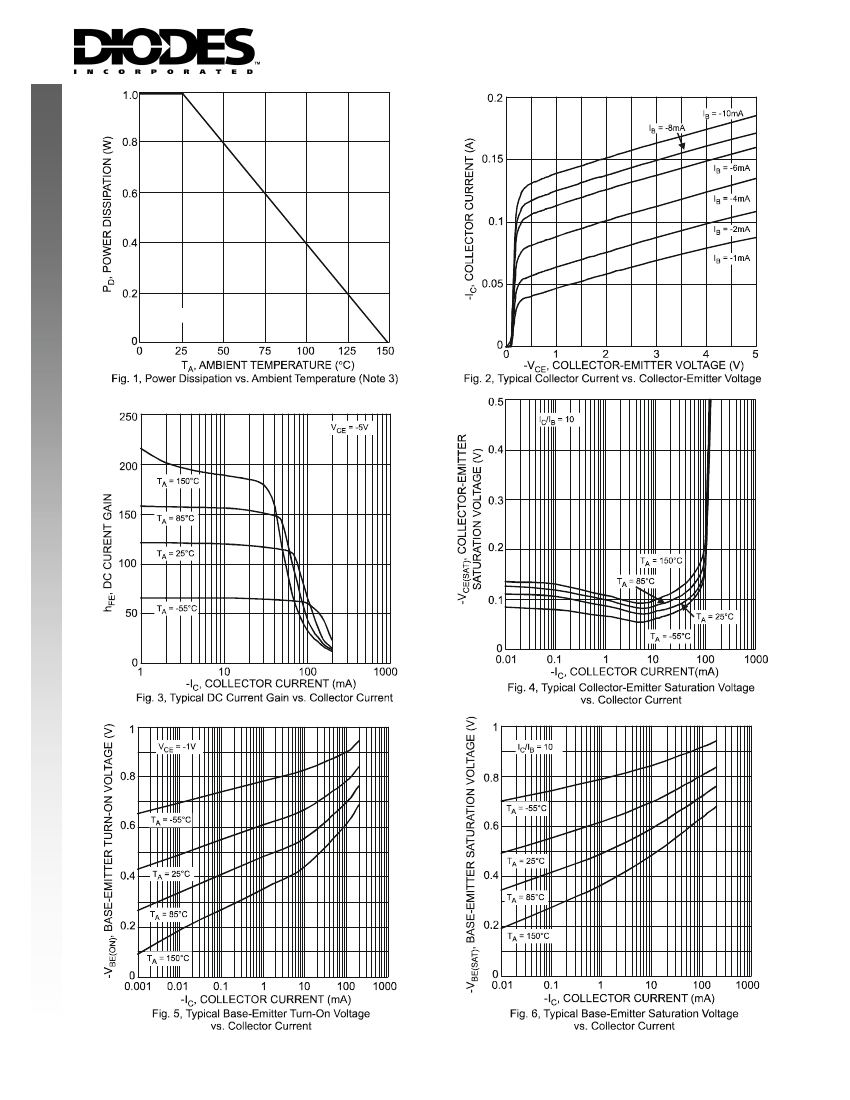

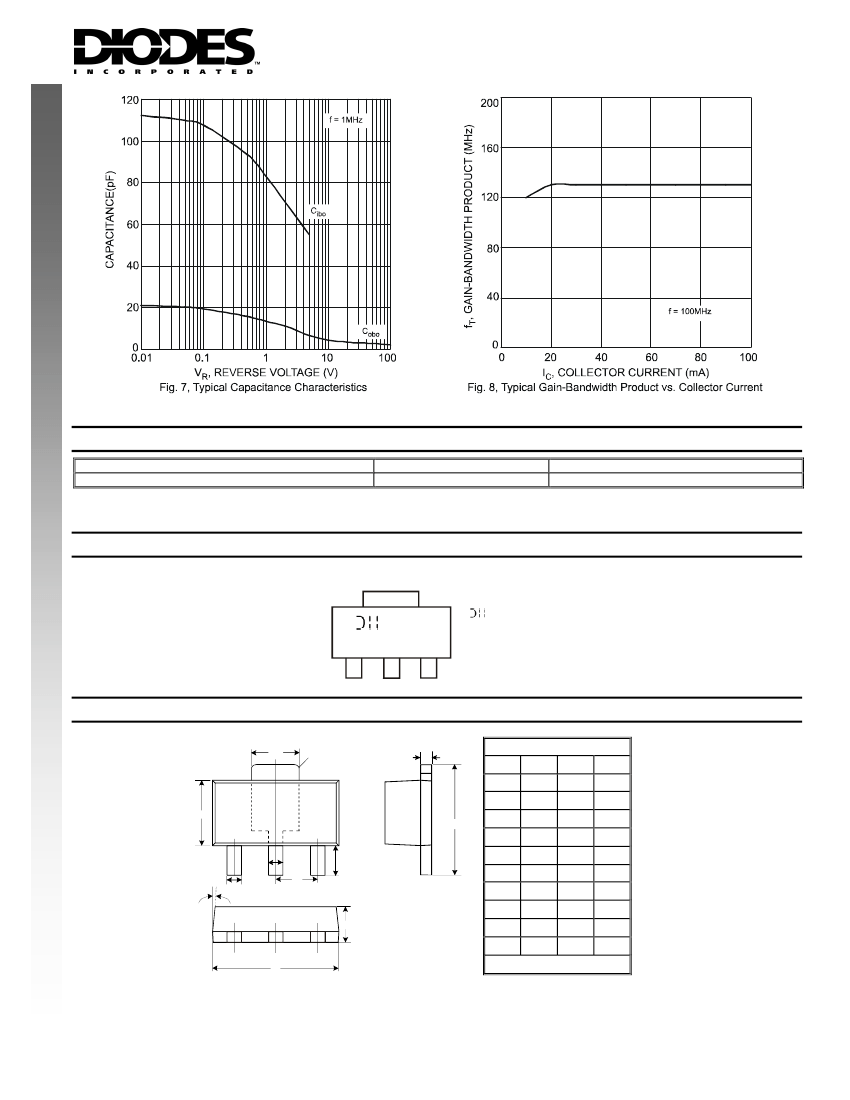

Suggested Pad Layout
1.7
NEW PRODUCT
2.7
0.4
1.9
1.3
0.9
3.0
Unit: mm
