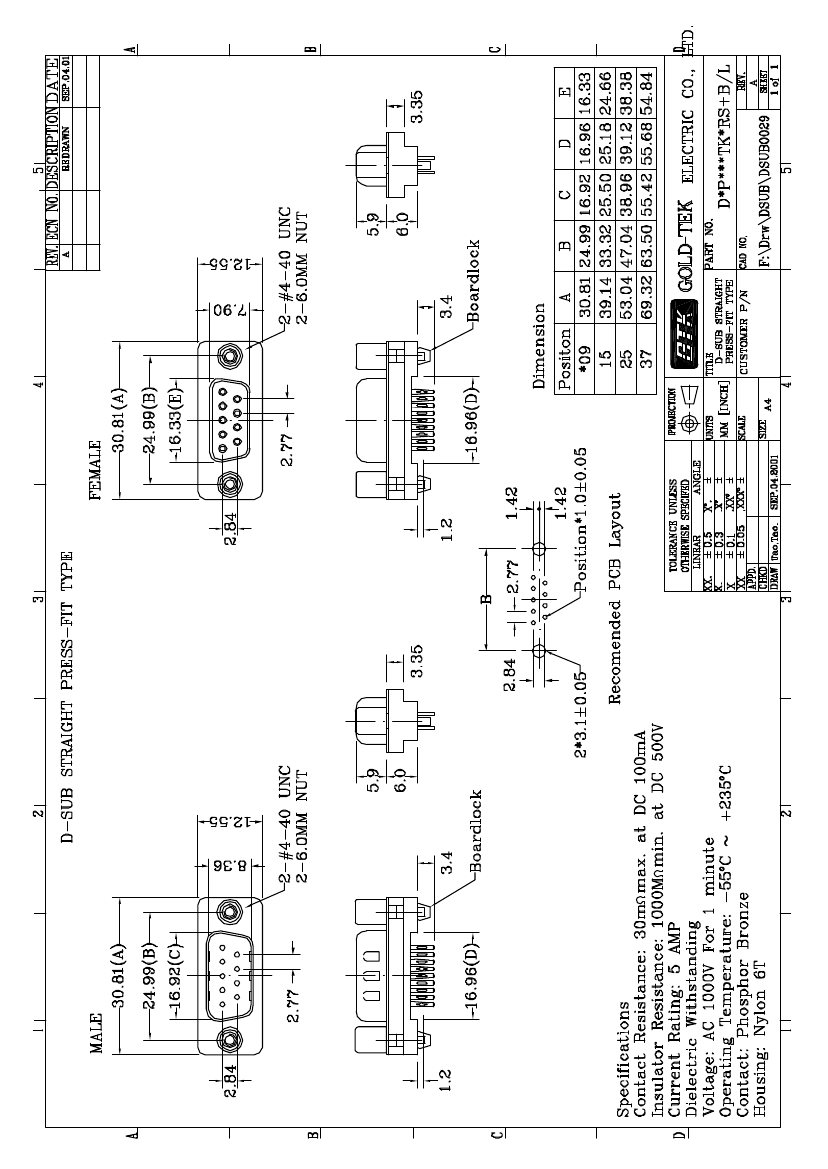

Preview

DEP09STK2RS+B/L-R: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, #4-40, Plug; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerGTK UK Ltd

Download Datasheet Parametric Compare View All

DEP09STK2RS+B/L-R Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, #4-40, Plug

DEP09STK2RS+B/L-R Parametric

Parameter Name	Attribute value
Maker	GTK UK Ltd
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.236 inch
body length	1.213 inch
Body/casing type	PLUG
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	DEP
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREWLOCKS
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	235 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.134 inch
Terminal pitch	2.7686 mm
Termination type	PRESS FIT
Total number of contacts	9

Preview

Download Datasheet

View All

DEP09STK2RS+B/L-R Related Products

	DEP09STK2RS+B/L-R	DBP25STK2RS+B/L-R	DCP37STK2RS+B/L-R	DAP15STK2RS+B/L-R
Description	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, #4-40, Plug	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, #4-40, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, #4-40, Plug
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.236 inch	0.236 inch	0.236 inch	0.236 inch
body length	1.213 inch	2.088 inch	2.729 inch	1.541 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	DEP	DBP	DCP	DAP
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40
Installation option 2	SCREWLOCKS	SCREWLOCKS	SCREWLOCKS	SCREWLOCKS
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	235 °C	235 °C	235 °C	235 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL
Terminal length	0.134 inch	0.134 inch	0.134 inch	0.134 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	9	25	37	15
