HLMP-Ex1A/1B-xxxDV (15° minimum),
HLMP-Ex3A/3B-xxxDV (30° minimum)
5mm Extra High Brightness AlInGaP LED lamps
Data Sheet
Description
These 5mm Extra High Brightness AlInGaP LEDs provide
superior light output for excellent readability in sunlight
and are extremely reliable. AlInGaP LED technology
provides extremely stable light output over long periods
of time. These Extra High Brightness lamps utilize
the aluminum indium gallium phosphide (AlInGaP)
technology.
These LED lamps are untinted. T-1¾ packages incorpo-
rating second generation optics producing well defined
spatial radiation patterns at specific viewing cone angles.
These lamps are made with an advanced optical grade
epoxy offering superior high temperature and high
moisture resistance performance in outdoor signal and
sign application. The maximum LED junction tempera-
ture limit of +130°C enables high temperature operation
in bright sunlight conditions. The epoxy contain both
uv-a and uv-b inhibitor to reduce the effects of long term
exposure to direct sunlight.
Features
•
Viewing Angle: 15° minimum
30° minimum
•
High luminous Intensity
•
Color
– 590nm Amber
– 626nm Red
•
Package options:
– With or without standoff
•
Superior resistance to moisture
•
Untinted for 15° and 30° lamps
Applications
•
Traffic management:
– Traffic signals
– Pedestrian signals
– Work zone warning lights
– Variable message signs
•
Solar Power signs
•
Commercial outdoor advertising
– Signs
– Marquees
Benefits
•
Superior performance for outdoor environment
•
Suitable for auto-insertion onto PC board
Package Dimension
A: Non-standoff
5.00 ± 0.20
(0.197 ± 0.008)
1.14 ± 0.20
(0.045 ± 0.008)
d
B: Standoff
5.00 ± 0.20
(0.197 ± 0.008)
8.71 ± 0.20
(0.343 ± 0.008)
8.71 ± 0.20
(0.343 ± 0.008)
2.35 (0.093)
MAX.
0.70 (0.028)
MAX.
31.60
MIN.
(1.244)
31.60
MIN.
(1.244)
1.14 ± 0.20
(0.045 ± 0.008)
1.50 ± 0.15
(0.059 ± 0.006)
0.70 (0.028)
MAX.
CATHODE
LEAD
CATHODE
LEAD
1.00 MIN.
(0.039)
0.50 ± 0.10
SQ. TYP.
(0.020 ± 0.004)
1.00 MIN.
(0.039)
0.50 ± 0.10
SQ. TYP.
(0.020 ± 0.004)
CATHODE
FLAT
5.80 ± 0.20
(0.228 ± 0.008)
CATHODE
FLAT
5.80 ± 0.20
(0.228 ± 0.008)
2.54 ± 0.38
(0.100 ± 0.015)
2.54 ± 0.38
(0.100 ± 0.015)
Viewing Angle
HLMP-Ex1B
HLMP-Ex3B
d
12.39±0.25
(0.476±0.010)
11.96±0.25
(0.459±0.010)
Notes:
1. All dimensions are in millimeters (inches)
2. Leads are mild steel with tin plating.
3. The epoxy meniscus is 1.21mm max
4. For Identification of polarity after the leads are
trimmed off, please refer to the illustration below:
CATHODE
ANODE
2
Device Selection Guide
Minimum viewing
Angle
2θ
1/2
(Deg)
[4]
15°
Color and Dominant
Wavelength (nm),
Typ
[3]
Amber 590
Red 626
Lamps without Standoff
on leads
(Package drawing A)
HLMP-EL1A-Z1KDV
HLMP-EL1A-Z1LDV
HLMP-EG1A-Z10DV
HLMP-EL3A-WXKDV
HLMP-EL3A-WXLDV
HLMP-EG3A-WX0DV
Lamps with Standoff
on leads
(Package drawing B)
HLMP-EL1B-Z1KDV
HLMP-EL1B-Z1LDV
HLMP-EG1B-Z10DV
HLMP-EL3B-WXKDV
HLMP-EL3B-WXLDV
HLMP-EG3B-WX0DV
Luminous Intensity Iv
(mcd)
[1,2,5]
at 20 mA
Min
12000
12000
12000
5500
5500
5500
Max
21000
21000
21000
9300
9300
9300
30°
Amber 590
Red 626
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package.
2. The optical axis is closely aligned with the package mechanical axis.
3. Dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
4.
θ
½
is the off-axis angle where the luminous intensity is half the on-axis intensity.
5. Tolerance for each bin limit is ±15%
Part Numbering System
HLM P -E x xx – x x x xx
Packaging Option
DV: Ammo Pack with minimum viewing angle of 15° or 30°
Color Bin Selection
0: Full Distribution
K: Color Bin 2 & 4
L: Color Bin 4 & 6
Maximum Intensity Bin
Refer to Selection Guide
Minimum Intensity Bin
Refer to Devise Selection Guide
Viewing Angle and Lead Standoffs
1A: 15° without lead standoff
1B: 15° with lead standoff
3A: 30° without lead standoff
3B: 30° with lead standoff
Color
G: Red 626
L: Amber 590
Note: Please refer to AB 5337 for complete information on part numbering system.
3
Absolute Maximum Ratings
T
J
= 25°C
Parameter
DC Forward Current
[2]
Peak Forward Current
Average Forward Current
Power Dissipation
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Notes:
1. Duty Factor 30%, frequency 1KHz.
2. Derate linearly as shown in Figure 4
Red/ Amber
50
100
[1]
30
120
5
-40 to +100
-40 to +100
Unit
mA
mA
mA
mW
V
°C
°C
Electrical / Optical Characteristics
T
J
= 25°C
Parameter
Forward Voltage
Red / Amber
Reverse Voltage
Dominant Wavelength
[1]
Amber
Red
Peak Wavelength
Amber
Red
Spectral Halfwidth
Amber
Red
Thermal resistance
Luminous Efficacy
[2]
Amber
Red
Luminous Flux
Amber
Red
Luminous Efficiency
[3]
Amber
Red
Thermal coefficient of
λ
d
Amber
Red
Symbol
V
F
V
R
λ
d
Min
1.8
5
587.0
618.0
Typ.
2.1
Max
2.4
Units
V
V
nm
Test Conditions
I
F
= 20 mA
I
R
= 100 μA
I
F
= 20 mA
590.0
626.0
594
634
594.5
630.0
nm
Peak of Wavelength of Spectral
Distribution at I
F
= 20 mA
I
F
= 20 mA
λ
PEAK
Δλ
1/2
13
14
RΦ
J-PIN
η
v
500
200
Φ
v
2000
1900
η
e
50
55
240
nm
°C/W
lm/W
LED junction to anode lead
Emitted Luminous Flux/Emitted
Radiant Flux
I
F
= 20 mA
mlm
lm/W
Emitted Luminous Flux/Electrical
Power
I
F
= 20 mA ; +25°C ≤ T
J
≤ +100°C
nm/°C
0.08
0.05
Notes:
1. The dominant wavelength,
λ
d
is derived from the CIE Chromaticity Diagram referenced to Illuminant E. Tolerance for each color of dominant
wavelength is +/- 0.5nm.
2. The radiant intensity, Ie in watts per steradian, maybe found from the equation I
e
= I
v
/
η
V
where Iv is the luminous intensity in candela and
η
V
is
the luminous efficacy in lumens/ watt.
3.
η
e =
Φ
v
/ I
F
x V
F
where
Φ
v
is the emitted luminous flux, I
F
is electrical forward current and V
F
is the forward voltage.
4
1.0
0.8
RELATIVE INTENSITY
0.6
0.4
0.2
0.0
500
100
80
60
40
20
0
Red
550
600
WAVELENGTH - nm
650
700
FORWARD CURRENT-mA
Amber
0
1
2
FORWARD VOLTAGE-V
3

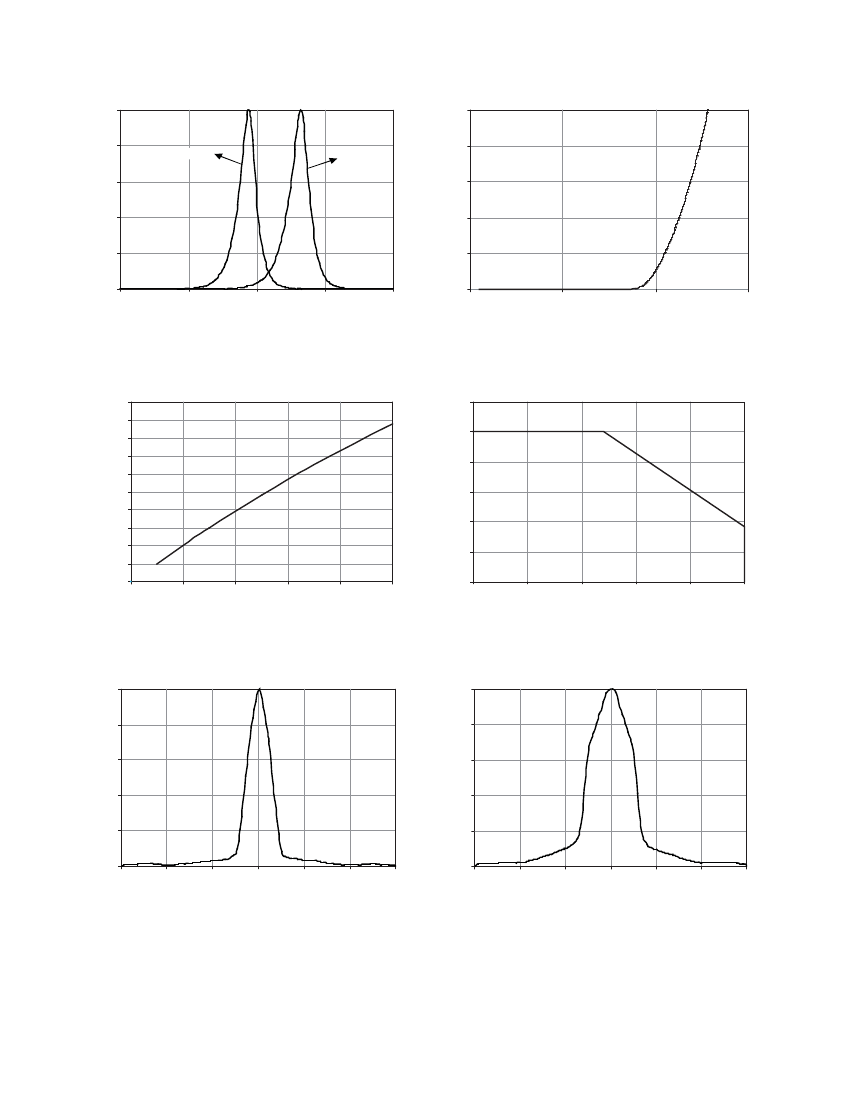

Figure 1. Relative Intensity vs Peak Wavelength
Figure 2. Forward Current vs Forward Voltage
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
DC FORWARD CURRENT - mA
80
100
I
FMAX
- MAXIMUM FORWARD CURRENT - mA
60
50
40
30
20
10
0
0
20
40
60
80
T
A
- AMBIENT TEMPERATURE - C
100
Figure 3. Relative Luminous Intensity vs Forward Current
RELATIVE LUMINOUS INTENSITY
(NORMALIZED AT 20 mA)
Figure 4. Maximum Forward Current vs Ambient Temperature
1.0
0.8
0.6
0.4
0.2
0.0
1.0
0.8
0.6
0.4
0.2
0.0
NORMALIZED INTENSITY
NORMALIZED INTENSITY
-90
-60
-30
0
30
60
ANGULAR DISPLACEMENT - DEGREES
90
-90
-60
-30
0
30
ANGULAR DISPLACEMENT-DEGREE
60
90
Figure 5. Radiation Pattern for 15° (minimum 15°)
Figure 6. Radiation Pattern for 30° (minimum 30°)
5
