KS0066F03Q datasheet, PDF - EEWORLD Datasheet

KS0066F03Q: DescriptionDot Matrix LCD Driver, 16 X 40 Dots, CMOS, PQFP80, 14 X 20 MM, QFP-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size798KB，24 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

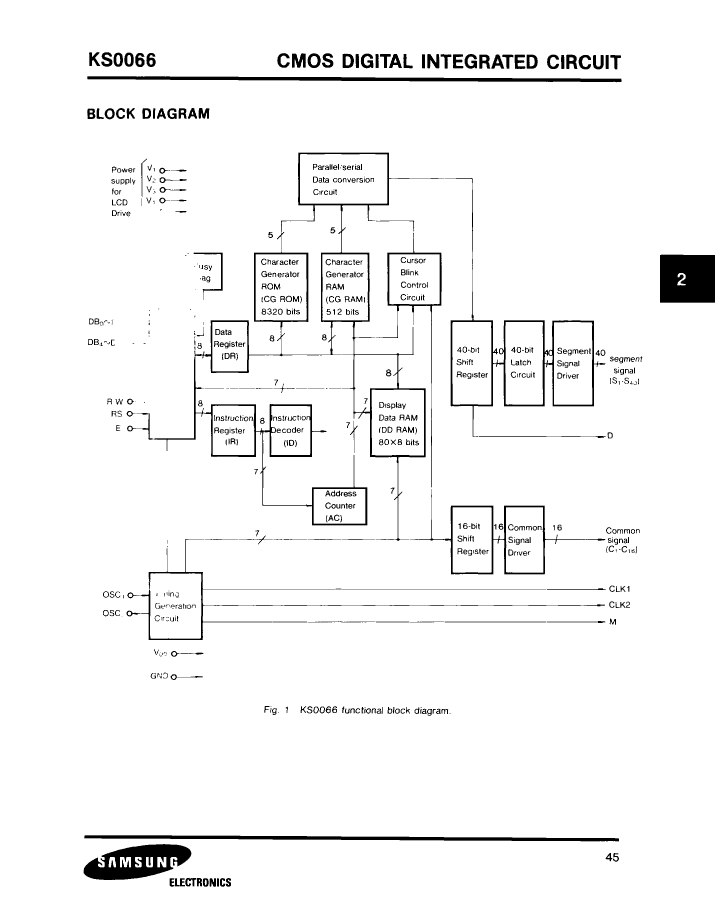

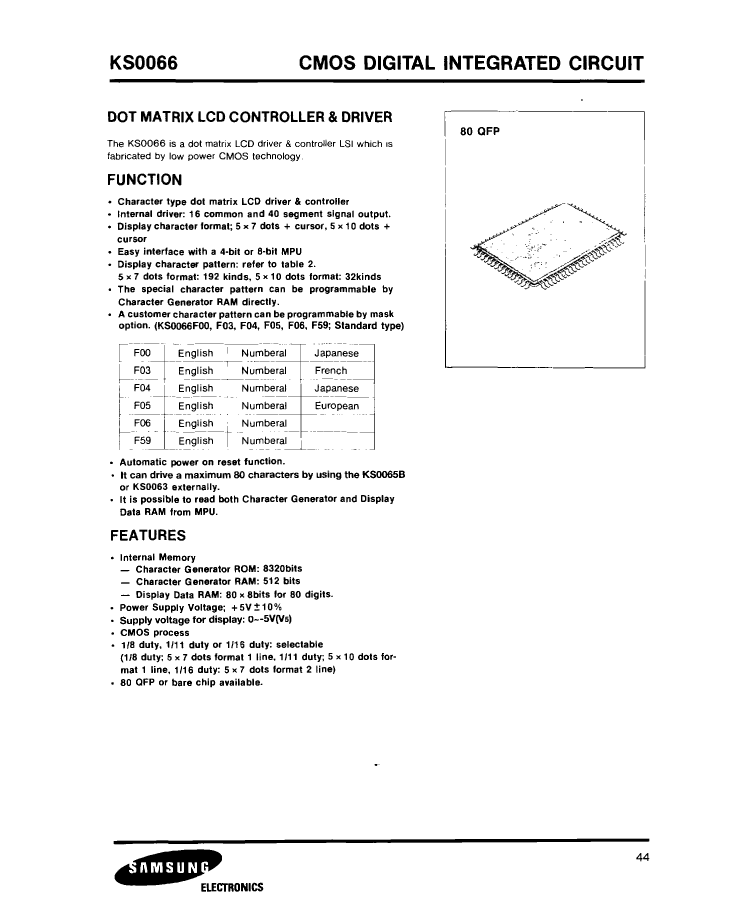

KS0066F03Q Overview

Dot Matrix LCD Driver, 16 X 40 Dots, CMOS, PQFP80, 14 X 20 MM, QFP-80

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	QFP
package instruction	QFP,

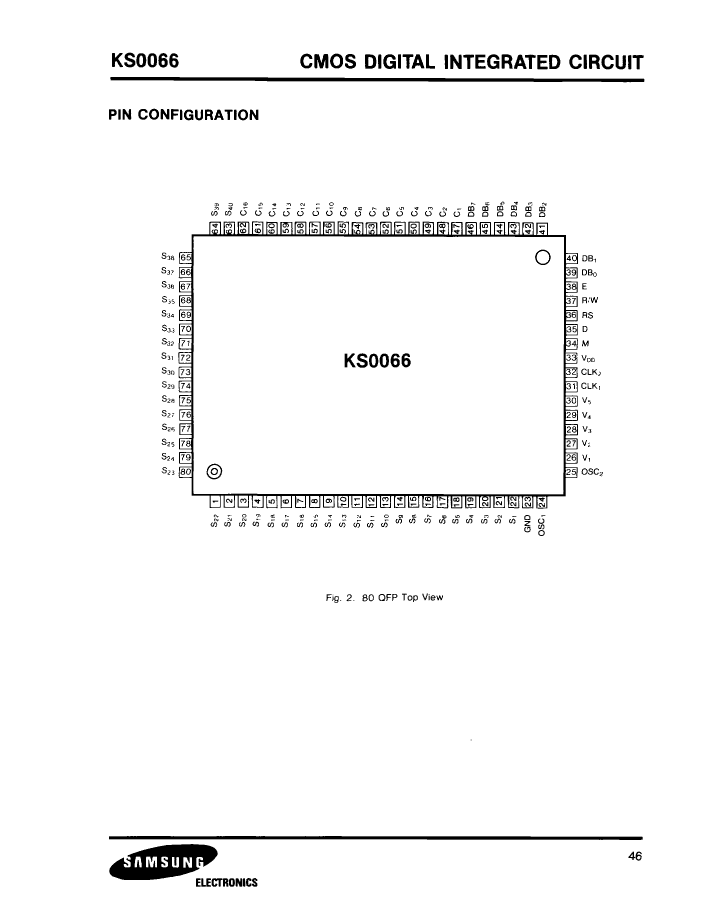

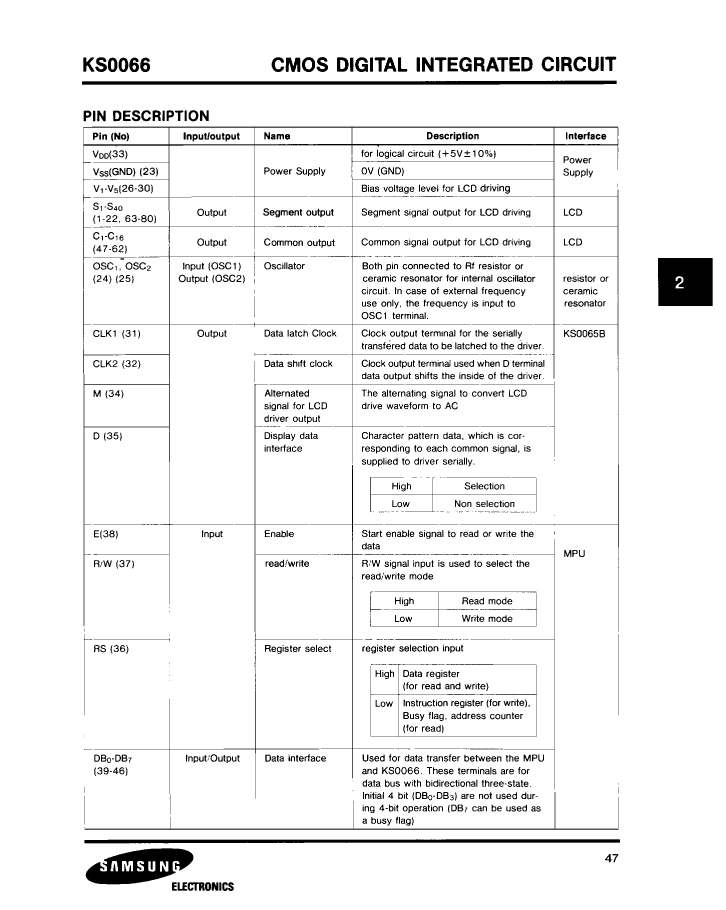

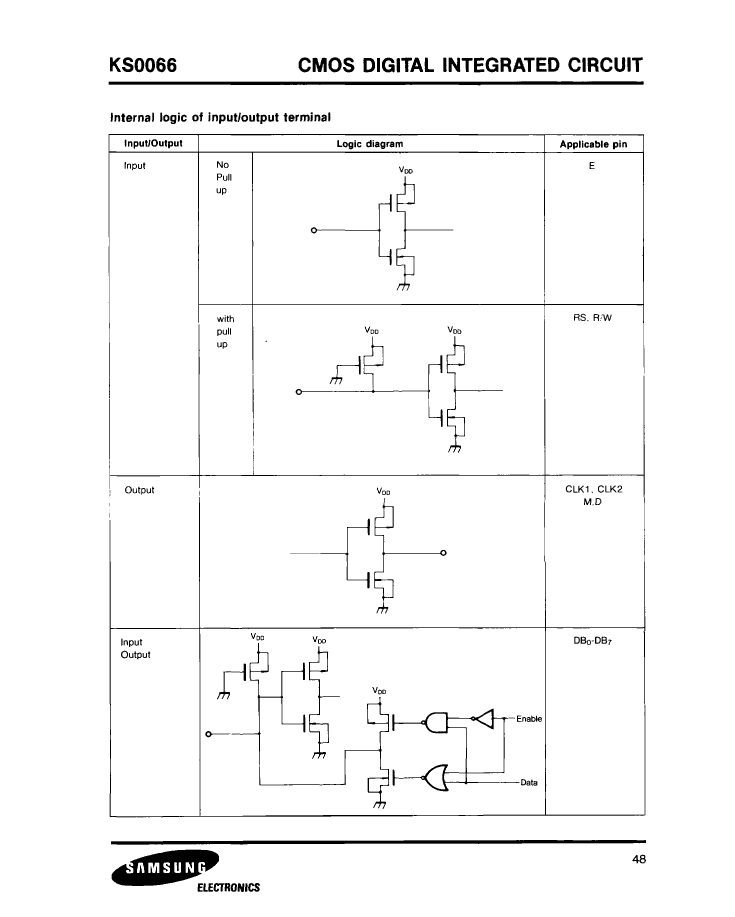

Contacts	80
Reach Compliance Code	compliant
Address bus width	1
maximum clock frequency	2 MHz
show configuration	16 X 40 DOTS
External data bus width	8
JESD-30 code	R-PQFP-G80
JESD-609 code	e0
length	20 mm
Number of terminals	80
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.45 mm
Maximum slew rate	0.8 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, DOT MATRIX LCD DRIVER
