EM258510H

Description
16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
CategoryThe connector    terminals
File Size52KB,1 Pages
ManufacturerCooper Industries
Download Datasheet Parametric View All

EM258510H Overview

16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

EM258510H Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerCooper Industries
Reach Compliance Codeunknown
ECCN codeEAR99
Other features94V-0, THERMOPLASTIC, MAGNUM
Fastening methodSCREW
Manufacturer's serial numberEM2585
Installation typeBOARD
Number of layers1
Rows1
Number of channels10
Rated current16 A
Rated voltage300 V
safety certificateUL; CSA; CE
Terminal and terminal strip typesSTRIP TERMINAL BLOCK
Wire gauge12 AWG
MAGNUM
®
Single & Double Row
Filtered Connectors

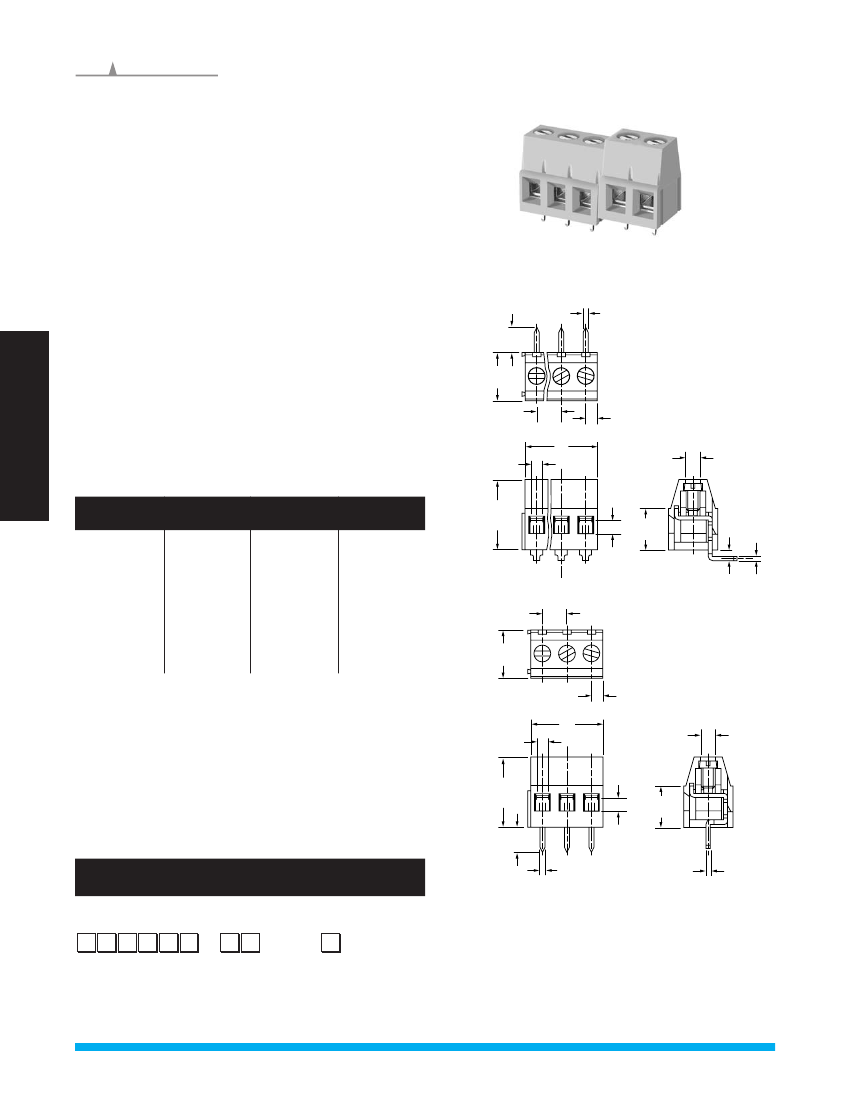

EM2585 Series
Euro-Mag Terminal Blocks
5.00 Centers; Modular
SPECIFICATIONS
Rating:
16A, 300V
Center Spacing:
.197” (5.00 mm)
Consult factory for .394” (10.00 mm)
Wire Range:
#12-26 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Brass Tin Plated
Screw Size:
M3x5 Zinc Plated Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
7 in-lb.
Recommended PCB Hole Diameters:
.055” (1.40)
Construction:
Modular design features dove-tails for
interlocking to achieve longer lengths
Connector Style:
Rising Cage Clamp
Agency Information:
UL/CSA; CE Certified
TABLE A
Position
02
03
04
05
06
07
08
09
10
11
12
13
L (mm)
10.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
55.00
60.00
65.00
Position
14
15
16
17
18
19
20
21
22
23
24
L (mm)
70.00
75.00
80.00
85.00
90.00
95.00
100.00
105.00
110.00
115.00
120.00
.57
(14.5)
EM258505V
HORIZONTAL
.035
(.90)
.19
(4.9)
Euro-MAG Series
PCB – Cage Clamp
.40
10.2)
.197
(5.00)
.10
(2.50)
L
.10
(2.5)
.12
(3.1)
.10
(2.6)
.33
(8.5)
.07
(1.8)
Base & Rail Mount
Connectors
.03
(0.8)
VERTICAL
.197
(5.00)
.40
(10.2)
To convert to inches, divide by 25.4
.10
(2.5)
L
.10
(2.5)
.12
(3.1)
Power Distribution Blocks
.10
(2.5)
.57
(14.5)
.34
(8.5)
.18
(4.7)
.035
(.90)
.031
(.79)
Part Numbering System
Series
# of Positions
Orientation
WIRE MANAGEMENT PRODUCTS
EM 2 5 8 5
02
to
24
H
- horizontal
V
- vertical
52
