UMK212SD822KD-G datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> UMK212SD822KD-G

UMK212SD822KD-G: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, SD, 0.0082uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size2MB，15 Pages; ManufacturerTAIYO YUDEN; Websitehttps://www.yuden.co.jp/; Environmental Compliance

Download Datasheet Parametric View All

UMK212SD822KD-G Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, SD, 0.0082uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

UMK212SD822KD-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.0082 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	M
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	SD
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

超½歪積層セラミックコンデンサ

（CFCAP

）

SUPER LOW DISTORTION MULTILAYER CERAMIC

CAPACITORS

(CFCAP

)

OPERATING TEMP.

−55∼＋125℃

特長 FEATURES

・新規開発を行った誘電½材料を½用し優れた温度特性と内部電極にNiを

用いることで、小型・高容量・½コストを実現しました

・½歪み率、½ショックノイズでアナログ回路や携帯機器のデジタル回路

に最適です

・耐熱性、耐破壊電圧、機械的強度が高くフィルムコンデンサの½き換え

に最適です

・Newly

developed dielectric material and the use of nickel for internal

electrodes provide excellent temperature characteristics with high ca-

pacitance, small case size and low cost.

・Low

distortion and low shock noise make these capacitors well suited

for use in analog or digital mobile devices.

・Excellent

heat-resistance, high break down voltage, and mechanical

strength make these capacitors well suited for replacing ﬁlm capacitors.

用途 APPLICATIONS

・AV関連機器などの信号回路

・アナログ信号のカップリング用途

・携帯電話のPLL回路

・良½な温度特性による時定数回路、発信回路、フィルタなど

・Signal

line for AV products

・Analog

signal coupling applications

・PLL

circuit of mobile phones

・Good

temperature characteristics for time constant circuits, oscillation

circuits and ﬁlters

½名表記法 ORDERING

CODE

定格電圧

〔VDC〕

端子電極

メッキ品

シリーズ記号

スタンダード

容量許容差

±10

個別仕様

−

標準

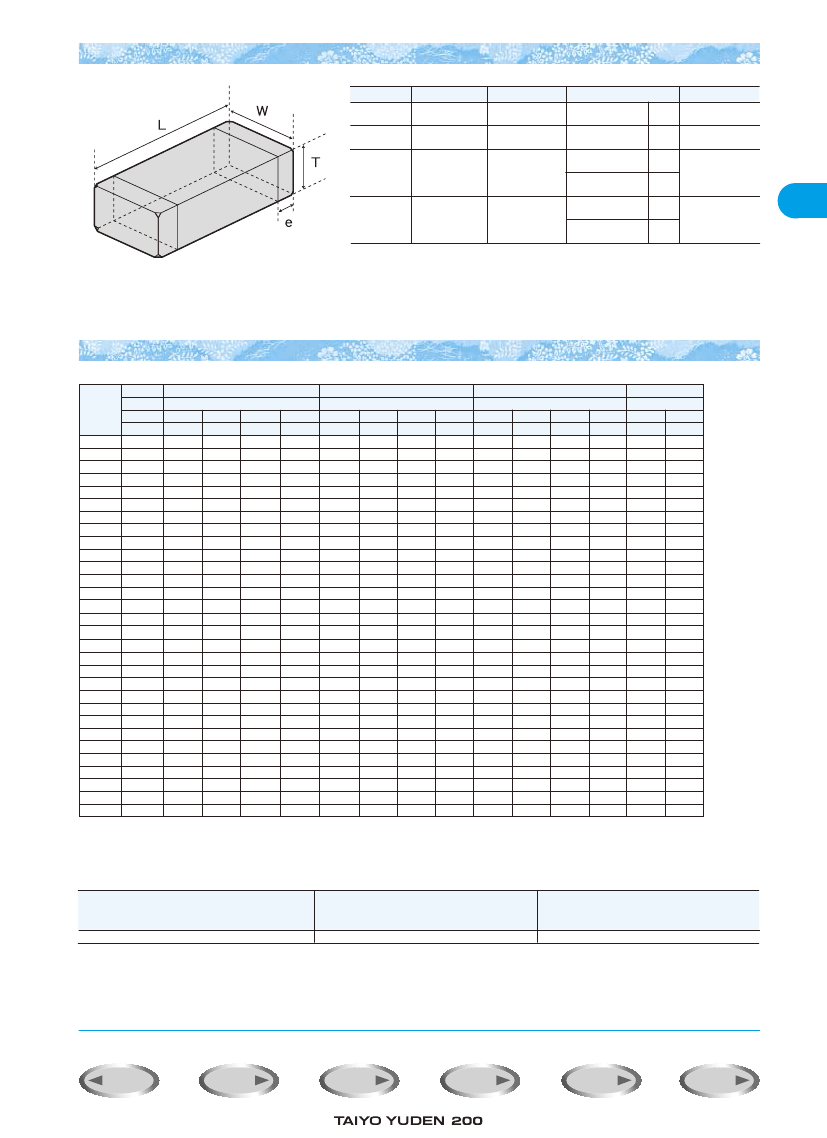

½状寸法

（EIA）

L×W

（mm）

105

（0402）

107

（0603）

212

（0805）

316

（1206）

1.0×0.5

1.6×0.8

2.0×1.25

3.2×1.6

公称静電容量

（μF）

例

223

104

0.022

0.1

½品厚み

（mm）

0.5

0.8

0.85

1.15

1.25

1.6

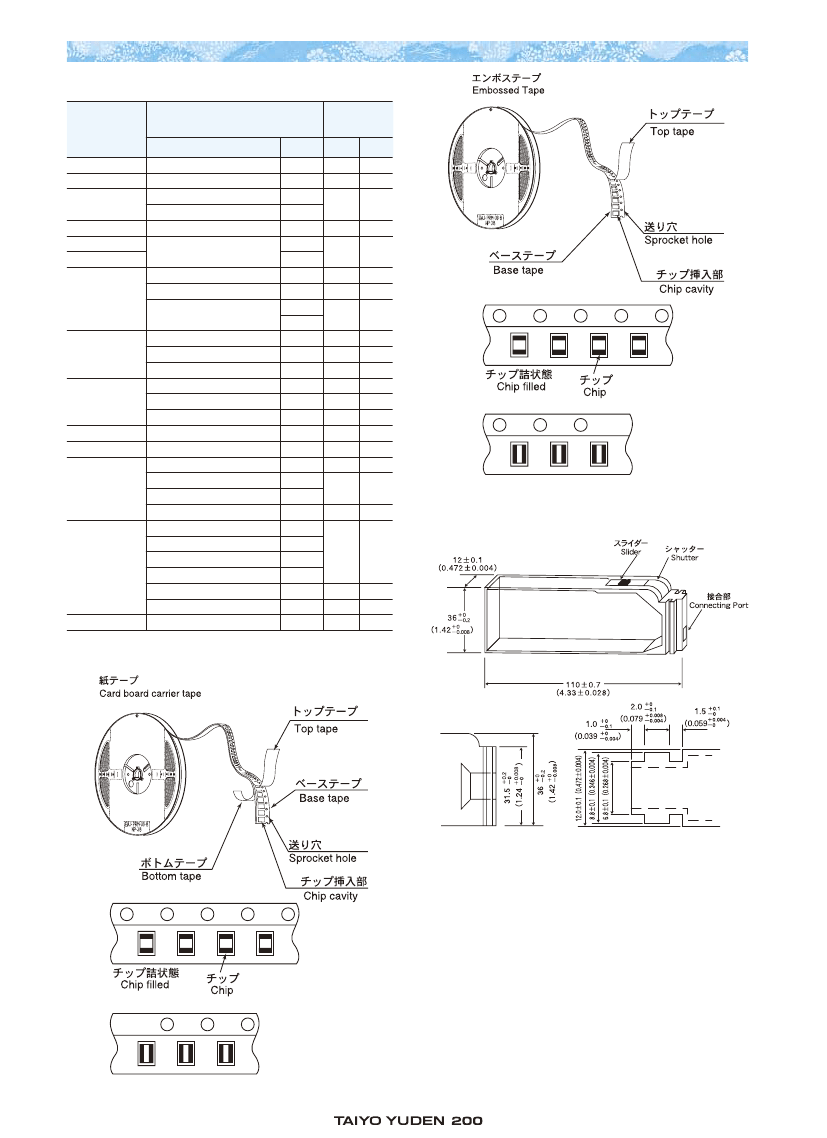

包装

リールテーピング（4mmピッチ）

リールテーピング（2mmピッチ）

シリーズ名

積層コンデンサ

½社管理記号

○

標準品

○＝スペース

_ T

○

T M K 3 1 6 S D 1 0 4 K L

Rated voltage VDC〕

〔

End termination

Plated

Series Symbol

Standard

Capacitance tolerances

（％）

±10

Special code

−

Standard products

Dimensions(case size) mm）

（

105

（0402）

107

（0603）

212

（0805）

316

（1206）

1.0×0.5

1.6×0.8

2.0×1.25

3.2×1.6

Nominal capacitance

（μF）

example

223

104

0.022

0.1

Thickness

（mm）

0.5

0.8

0.85

1.15

1.25

1.6

Packaging

Tape & reel

4mm

pitches）

（

Tape & reel

2mm

pitches）

（

Series name

Multilayer ceramic

capacitors

Internal code

○

Standard products

○

＝Blank

space
