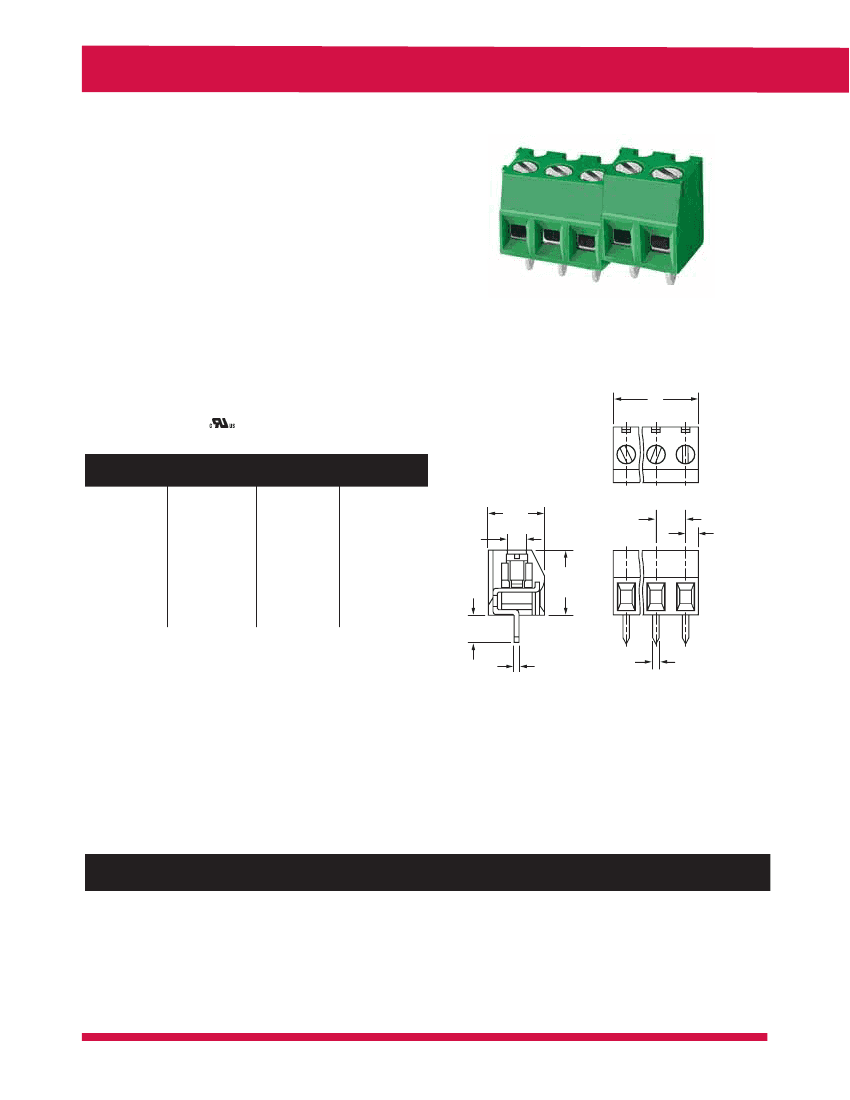

EuroMag Series PCB Mount Terminal Blocks
EM3503 Series
Euro-Mag Terminal Blocks
3.81 Centers; Modular
SPECIFICATIONS
Rating:
8A, 300V
Center Spacing:
0.150” (3.81mm)
Wire Size:
#16-26 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Brass Tin-Plated
Screw Size:
M 2x3 Zinc-Plated Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
4.5 lb-in.
Recommended PCB Hole Diameters:
0.055” (1.40mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
EM350305
Dimensions - mm (in)
L
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
7.62
11.43
15.24
19.05
22.86
26.67
30.48
34.29
38.10
41.91
45.72
49.53
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
53.34
57.15
60.96
64.77
68.58
72.39
76.20
80.01
83.82
87.63
91.44
0.29
(7.3)
0.09
(2.3)
0.33
(8.5)
0.150
(3.81)
0.075
(1.90)
To convert to inches, divide by 25.4
0.14
(3.6)
0.02
(.50)
0.031
(0.79)
Part Numbering System
Series
# of Positions
EM 3 5 0 3
IIIIII II
02
to
24
