DZQA6V8AXV5
QUAD SURFACE MOUNT TVS ARRAY
Features
•
•
•
•
•
•
Quad TVS in Common Anode Configuration
Ultra-Small Surface Mount Package
Ideal For Transient Suppression and ESD Protection
Lead Free By Design/RoHS Compliant (Note 1)
"Green Device" (Note 2)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
•
•
Case: SOT-553
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish: Matte Tin, Annealed Over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Pin 1 Indicator
Marking Information: See Page 2
Ordering Information: See Page 2
Weight: 0.002 grams (approximate)
NEW PRODUCT
ESD Capability
•
•
IEC 61000-4-2 Contact Method ±8kV
IEC 61000-4-2 Air Discharge Method ±15kV
C2
3
A1/A2
A3/A4
2
C1
1
D2
D3
4
C3
D1
D4
5
C4
TOP VIEW
Device Schematic
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
F
Value
0.9
Unit
V
Characteristic
Forward Voltage @ I
F
= 10mA
Thermal Characteristics
Characteristic
Power Dissipation (Notes 4, 7)
Peak Power Dissipation, 8x20μS Waveform (Note 5)
Thermal Resistance, Junction-to-Ambient (Note 4)
Operating and Storage Temperature Range
Symbol
P
D
P
pk
R
θ
JA
T
J,
T
STG
Value
380
20
327
-55 to +150
Unit
mW
W
°C/W
°C
Electrical Characteristics
Type
Number
DZQA6V8AXV5
Notes:
1.
2.
3.
4.
@T
A
= 25°C unless otherwise specified
Leakage Current
(Note 3)
I
RM
@ V
RM
(V)
Max(μA)
1
4.3
Clamping
Voltage
(Note 5)
V
C
@ I
PP
V
C
(V) I
PP
(A)
13
1.6
Typ Capacitance
@0V Bias(pF)
(Note 6)
C
T
Typ
Max
12.5
15
Typ Capacitance
@3V Bias(pF)
(Note 6)
C
T
Typ
Max
7.6
9.5
Marking
Code
T62
Breakdown Voltage
(Note 3)
V
BR
@ I
T
= 1mA
Min (V) Nom (V) Max (V)
6.47
6.8
7.14
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Short duration pulse test used to minimize self-heating effect.
Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. Suggested Pad Layout Document AP02001,
which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
5. Non-repetitive current pulse per Figure 3 and derate above T
A
= 25°C per Figure 1.
6. Per element, f = 1MHz, T
A
= 25°C
7. Only 1 diode under power. For all 4 diodes under power, P
D
will be 25% of the listed value.
DZQA6V8AXV5
Document number: DS31271 Rev. 5 - 2
1 of 3
www.diodes.com
March 2010
© Diodes Incorporated

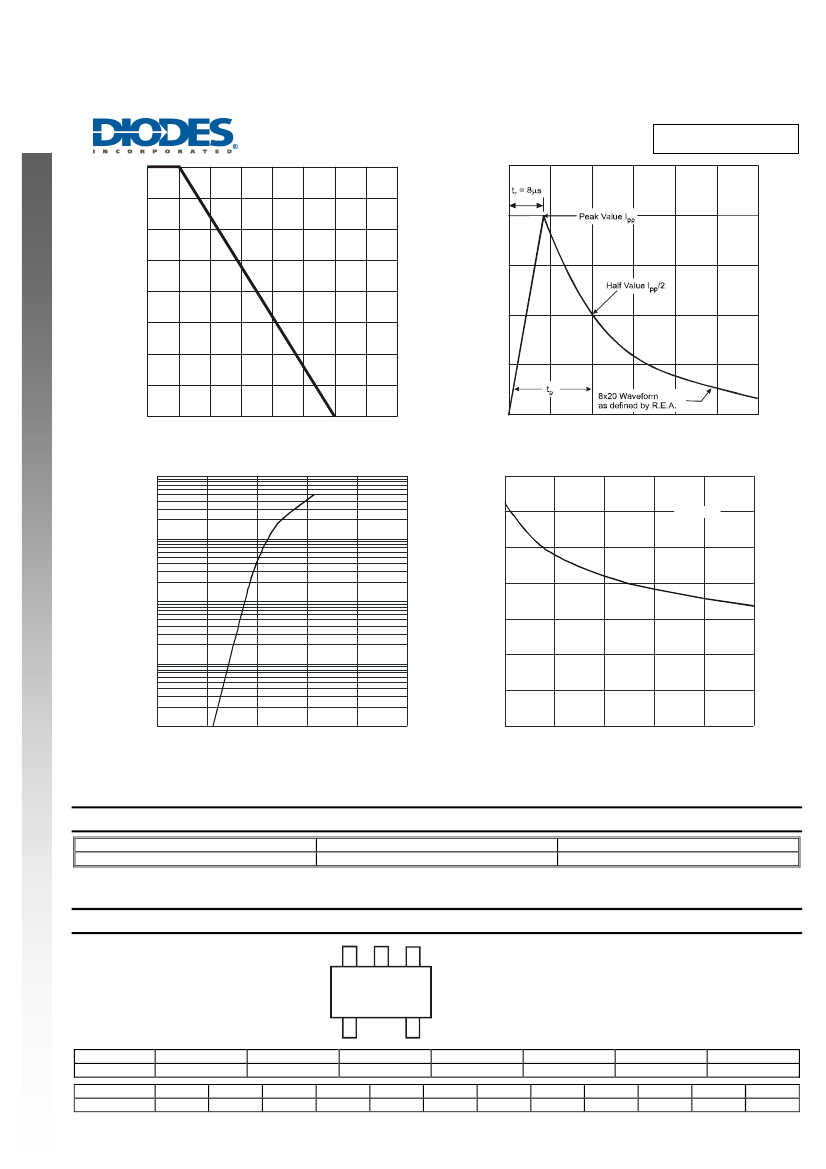

DZQA6V8AXV5
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
75
NEW PRODUCT
50
I
PP
, PEAK PULSE CURRENT (%I
pp
)
100
50
25
0
0
25
50
75
100 125 150 175
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Pulse Derating Curve
200
0
0
20
40
t, TIME (
μ
s)
Fig. 2 Pulse Waveform
14
12
f = 1.0MHz
60
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
1
0.1
C
T
, TOTAL CAPACITANCE (pF)
10
8
6
4
2
0.01
0.001
0.0001
0.5
0.7
0.9
1.1
1.3
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 3 Typical Forward Characteristics
0
0
1.0
2.0
3.0
4.0
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance vs.
Reverse Voltage (Per Element)
5.0
Ordering Information
(Note 8)
Part Number
DZQA6V8AXV5-7
Notes:
Case
SOT-553
Packaging
3000/Tape & Reel
8. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
T62 = Product type marking code
YM = Date code marking
Y = Year (Ex: W = 2009)
M = Month (ex: 9 = September)
T62
Date Code Key
Year
Code
Month
Code
2009
W
Jan
1
Feb
2
2010
X
Mar
3
Apr
4
2011
Y
May
5
Jun
6
YM
2012
Z
Jul
7
2013
A
Aug
8
Sep
9
2014
B
Oct
O
Nov
N
2015
C
Dec
D
March 2010
© Diodes Incorporated
DZQA6V8AXV5
Document number: DS31271 Rev. 5 - 2
2 of 3
www.diodes.com
DZQA6V8AXV5
Package Outline Dimensions
D
e1
e
NEW PRODUCT
E1
E
L
b (5 places)
a
c
SOT-553
Dim Min
Max Typ
A
0.55
0.60 0.60
c
0.10
0.18 0.15
D
1.50
1.70 1.60
E
1.55
1.70 1.60
E1
1.10
1.25 1.20
L
0.10
0.30 0.20
b
0.15
0.30 0.20
e
0.50 Typ
e1
1.00 Typ
a
6°
8°
7°
All Dimensions in mm
A
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B.
A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2010, Diodes Incorporated
www.diodes.com
DZQA6V8AXV5
Document number: DS31271 Rev. 5 - 2
3 of 3
www.diodes.com
March 2010
© Diodes Incorporated
