Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1588
DESCRIPTION
・With
TO-220Fa package
・Complement
to type 2SB1097
・Low
speed switching
APPLICATIONS
・For
low frequency power
amplifier applications
PINNING
PIN
1
2
3
DESCRIPTION
Base
Collector

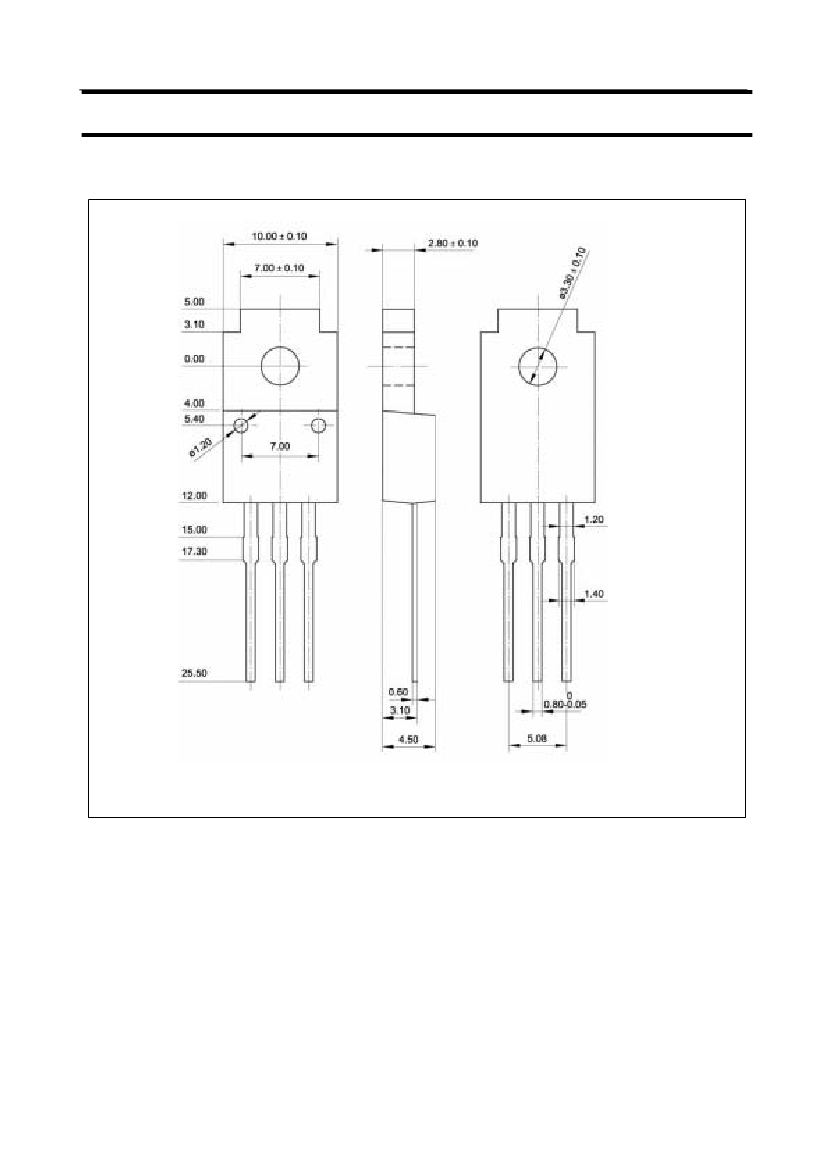

Fig.1 simplified outline (TO-220Fa) and symbol
Emitter
Absolute maximum ratings(Ta=25
℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
固电
PARAMETER
导½
ANG
CH
IN
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current-Peak
Base current
Open emitter
Open base
MIC
E SE
CONDITIONS
OR
CT
NDU
O
VALUE
100
60
7
7
15
3.5
UNIT
V
V
V
A
A
A
Open collector
T
C
=25℃
P
C
Collector power dissipation
T
a
=25℃
T
j
T
stg
Junction temperature
Storage temperature
30
W
2
150
-55~150
